Product Description
Anderson Hay Merger | Model Merge Pro 1060 | Working Width 35' Ft | Horsepower 100-180 HP | For Tractors
DESCRIPTION
The MERGEPRO1060 Hay Merger is a cutting-edge agricultural tool designed for efficient forage handling and swath formation. With its advanced camless pickup technology and adaptive ground speed monitoring, this hay merger ensures consistent crop delivery and optimal drying effects. Its versatile crop delivery options and compact transport dimensions make it ideal for both large-scale operations and tight spaces. Built for durability and ease of use, the MERGEPRO1060 is a reliable choice for modern farming.
Key Features

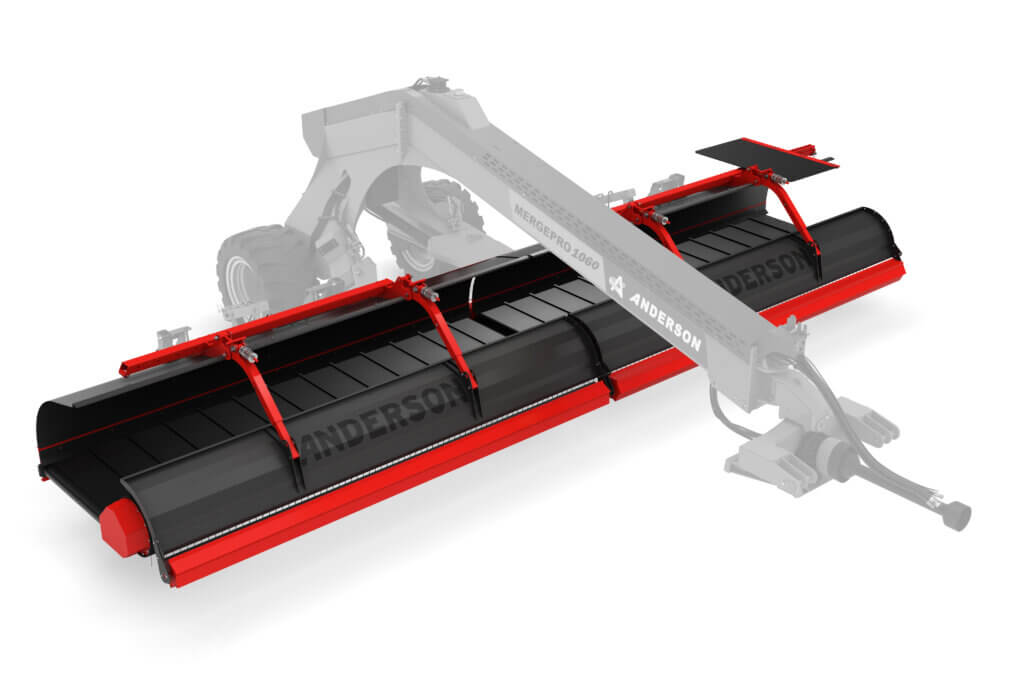

- Camless Pickup: Features a 6-row camless pickup reel with fewer components, reducing maintenance and wear while enabling higher working speeds.
- Fastest Working Speed: Operates at speeds up to 18 mph (28 km/h), maximizing efficiency in the field.
- Adaptive True Ground Speed Technology: Automatically adjusts the pickup and belt speed to match ground speed, ensuring consistent crop delivery.
- Deflector Above Pickup and Belt: Optimizes crop rotation for better drying and smooth flow from the field to the belt conveyor without damaging leaves.
- Multiple Crop Delivery Options: Offers versatile delivery modes, including left, right, center, and combinations, with working widths of 30 ft (side delivery) and 35 ft (center delivery).
- Narrow and Simple Transport: Compact design for easy transport and storage, with stability and reduced weight for simpler navigation on rough roads.
- Heavy-Duty Belt Conveyors: Self-cleaning commercial-grade conveyors ensure efficient crop transition and require minimal maintenance.
- Field Compaction Reduction: Large skid shoes and hydraulic suspension system minimize soil compaction and protect the field during operation.
- Adjustable Skid Shoes: Standard feature for smooth gliding over soft and wet soil conditions.
Detailed Specifications
| Feature | MERGEPRO1060 Specifications |
|---|---|
| Working Width (Center Swath) | 35 ft (10.67 m) |
| Working Width (Side Swath) | 30 ft + 5 ft swath (9.15 m + 1.52 m swath) |
| Swath Width (Center Swath) | 4.6 ft (1.40 m) |
| Swath Width (Side Swath) | 3 to 5 ft (0.91 to 1.52 m) |
| Number of Pickup Units | 2 |
| Pickup Width (Tine-to-Tine) | 15 ft (4.57 m) |
| Transport Width | 8.3 ft (2.53 m) |
| Transport Height | 11.4 ft (3.47 m) |
| Transport Length | 30.1 ft (9.18 m) |
| Height in Transport Position | 10.4 ft (3.17 m) |
| Minimum Power (Flat Ground) | 100 HP |
| Minimum Power (Flat Terrain) | 140 HP |
| Minimum Power (Other Terrain) | 180 HP |
| PTO Requirement | 1 3/8 Z21 1000 @ 800 RPM (Standard) |
| Max Working Speed | 18 mph (28 km/h) |
| Hydraulic Requirements | 38 GPM @ 800 RPM (133 L/min); 26 GPM @ 540 RPM (98 L/min) |
| Oil Reservoir Capacity | 95 US gal (360 L) |
| Oil Type | TDH |
| Conveyor Length | 15.2 ft (4.6 m) |
| Conveyor Width | 36 in (0.92 m) |
| Discharge Capability | Right, Left, Center |
| Pickup Height | 0-3 in (7.2 cm) |
| Hitch | 2 points Category 2 & 3 |
| Machine Weight | Approx. 11,750 lb (5,340 kg) |
| Road Lights and Signaling | Yes |
| Adjustable Skid Shoes | Standard |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

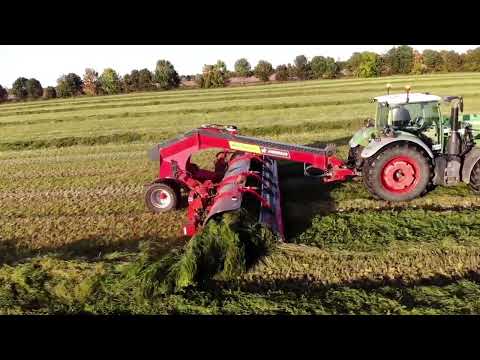

Videos
