Product Description
Anderson | Single Bale Wrapper | RB 200/T6-QA200 | Up to 5'6" Bale Height | 30 Bales/Hour | Hydraulic Flow 8 GPM | For Skid Steer
DESCRIPTION

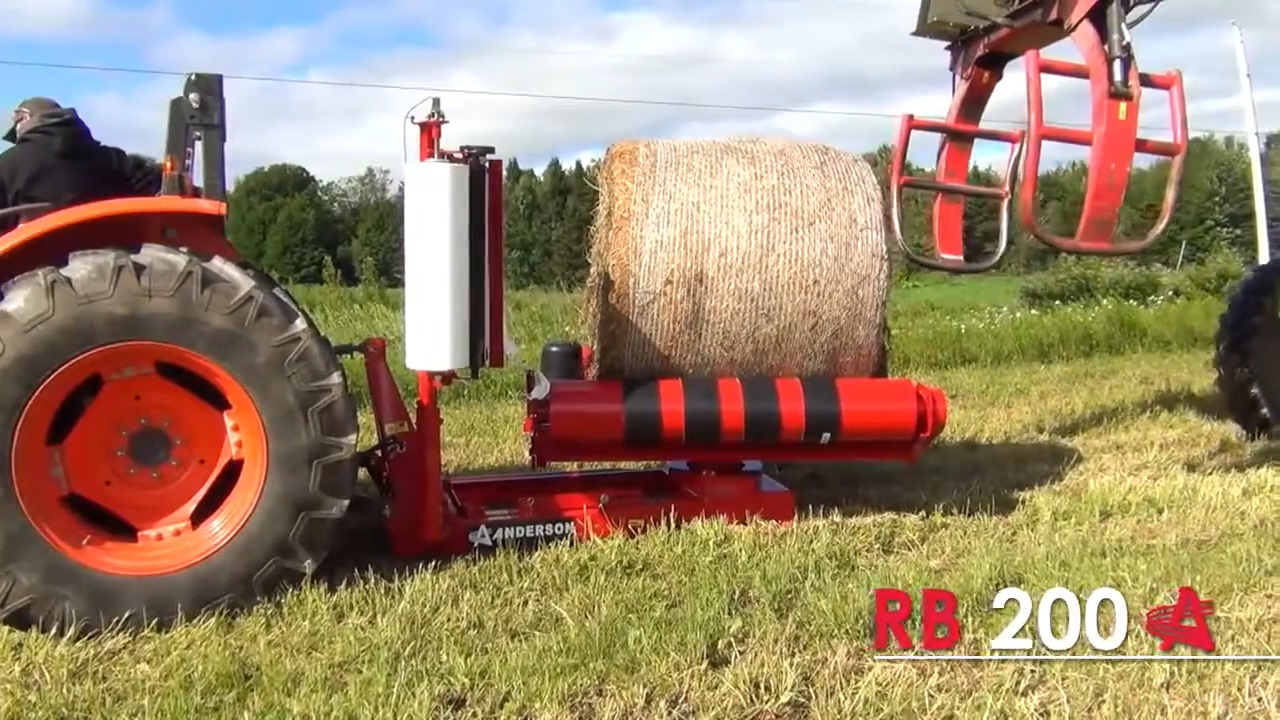

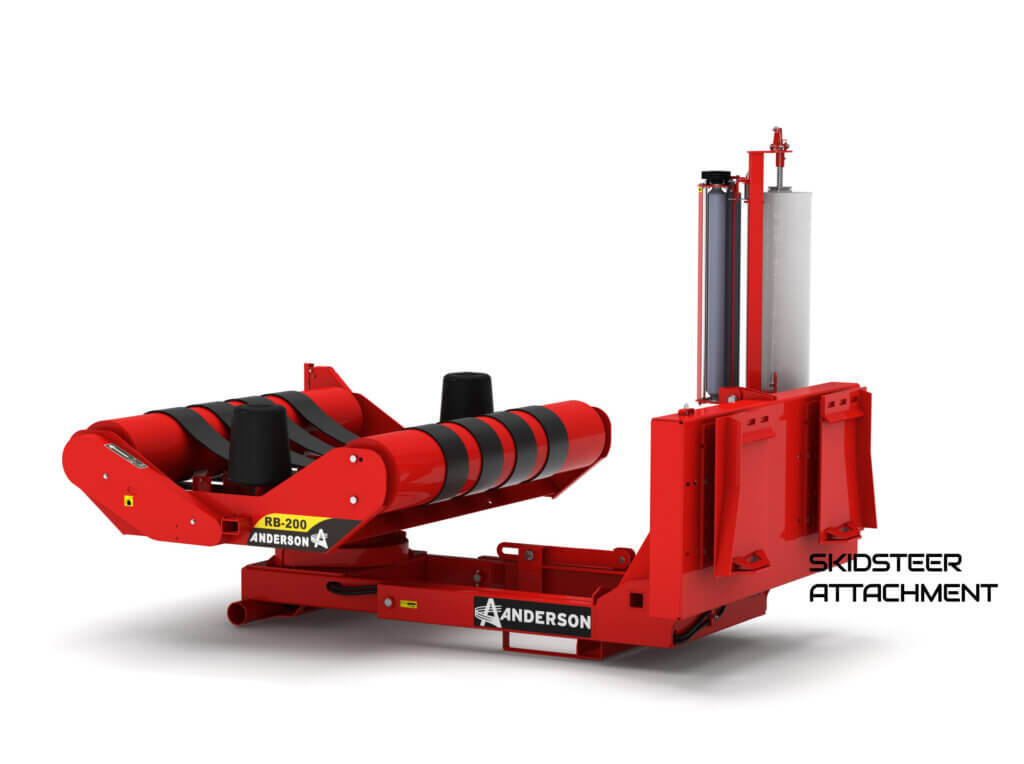

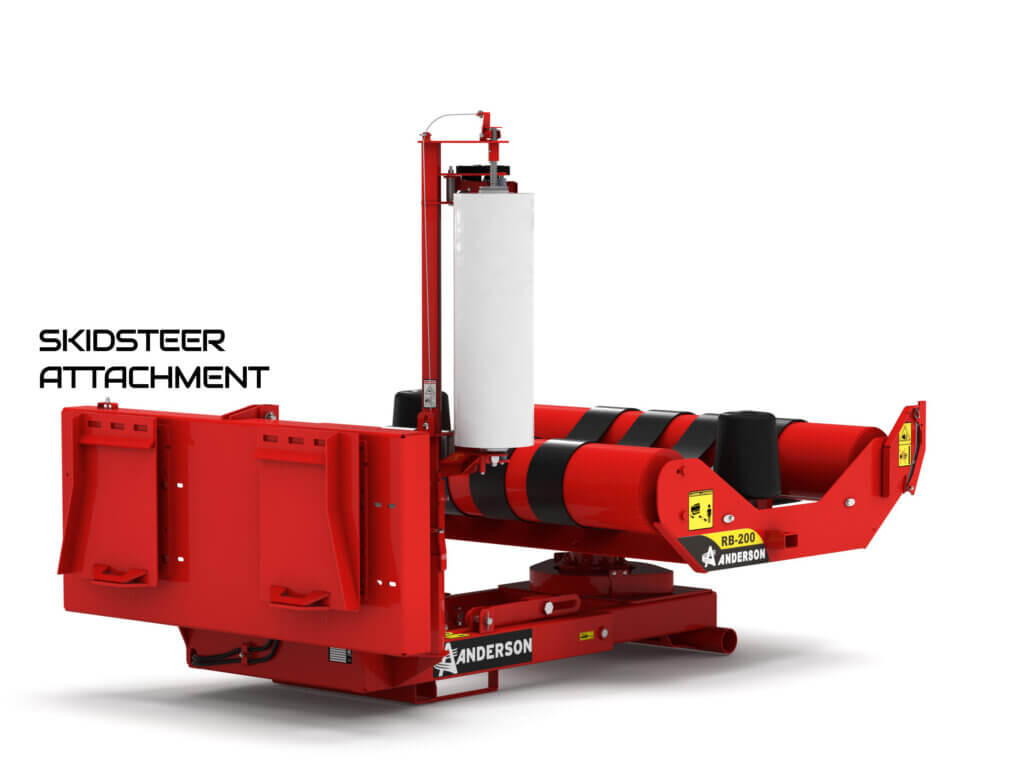

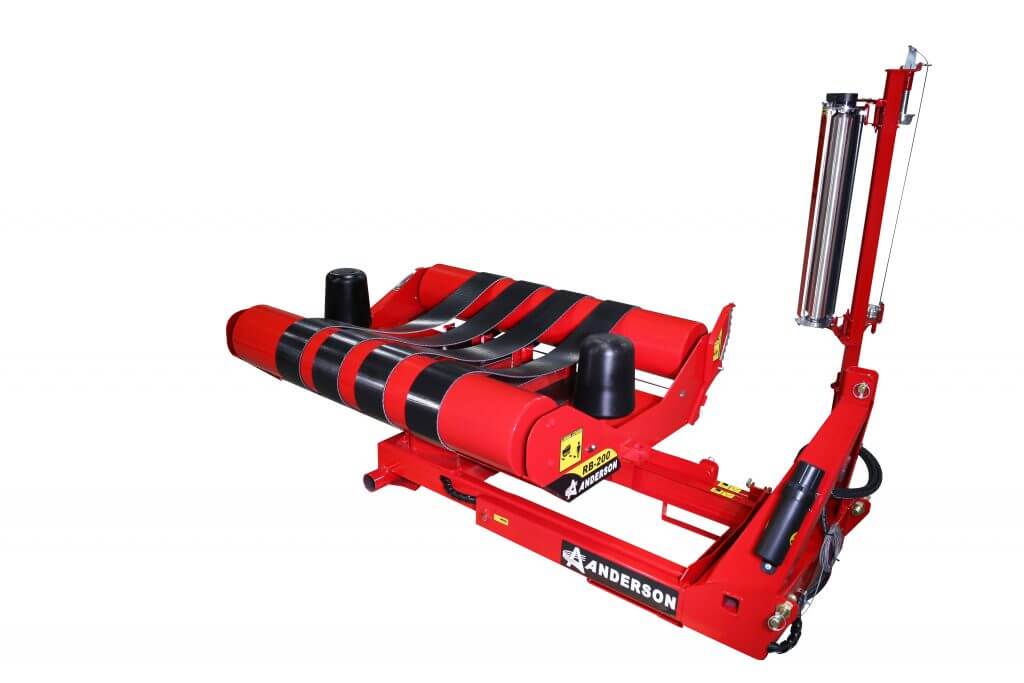

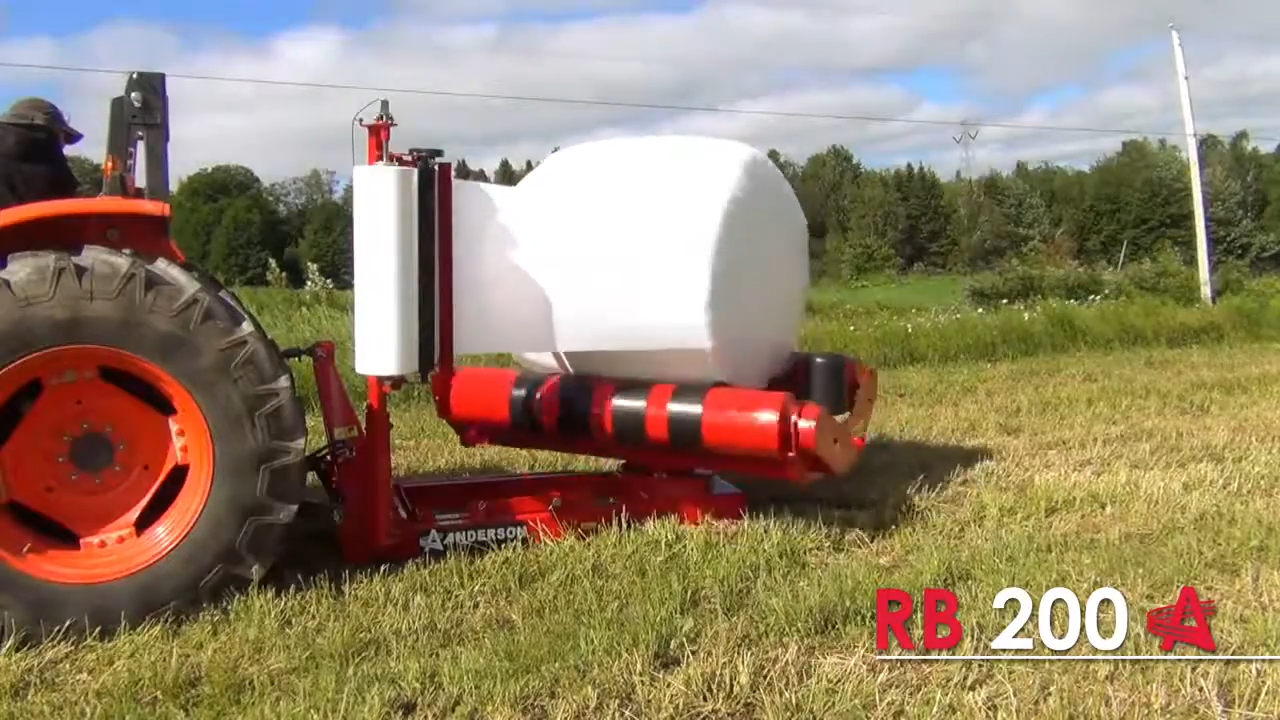

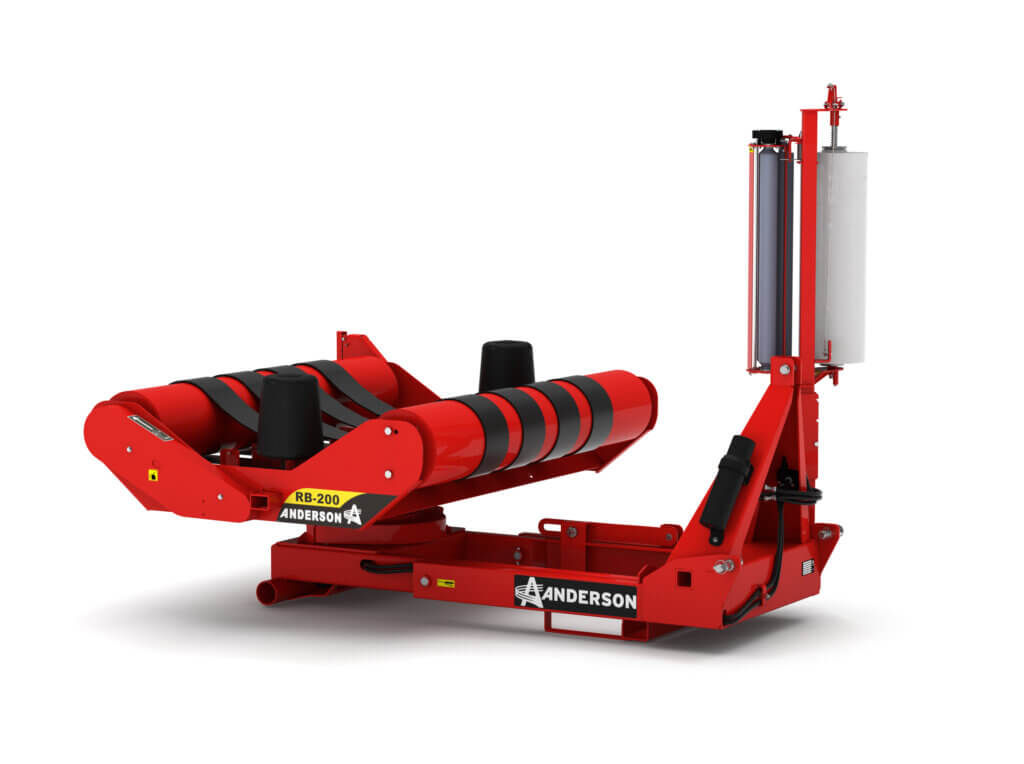

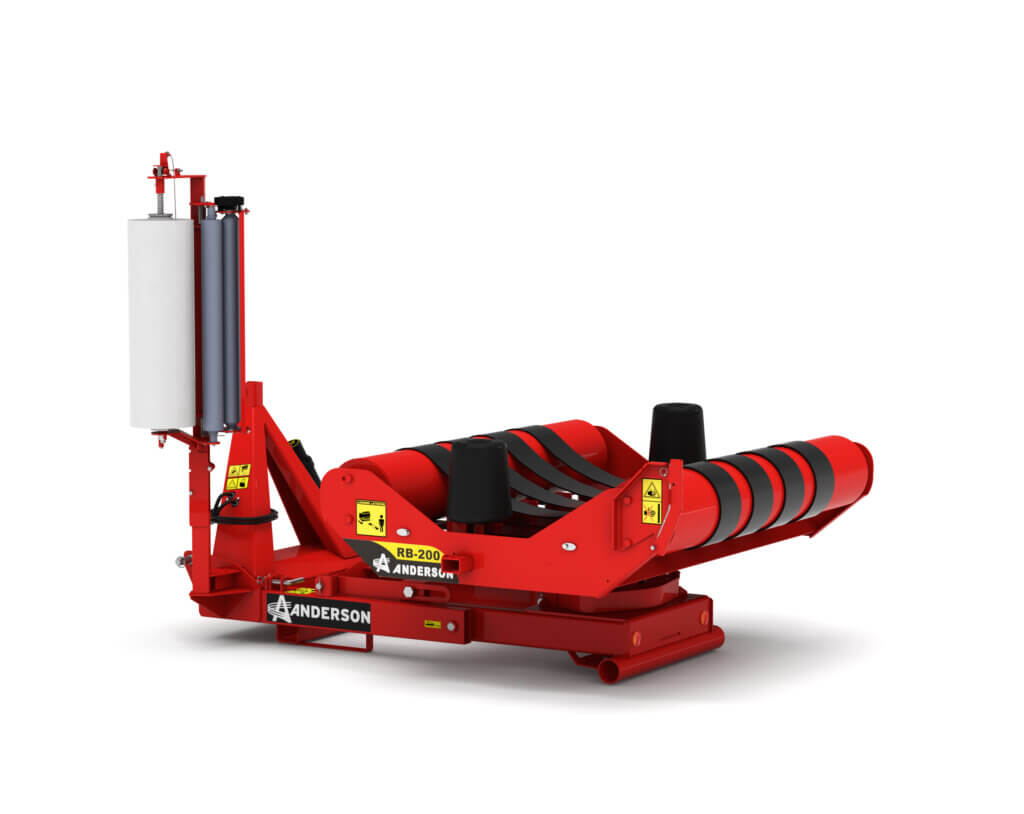

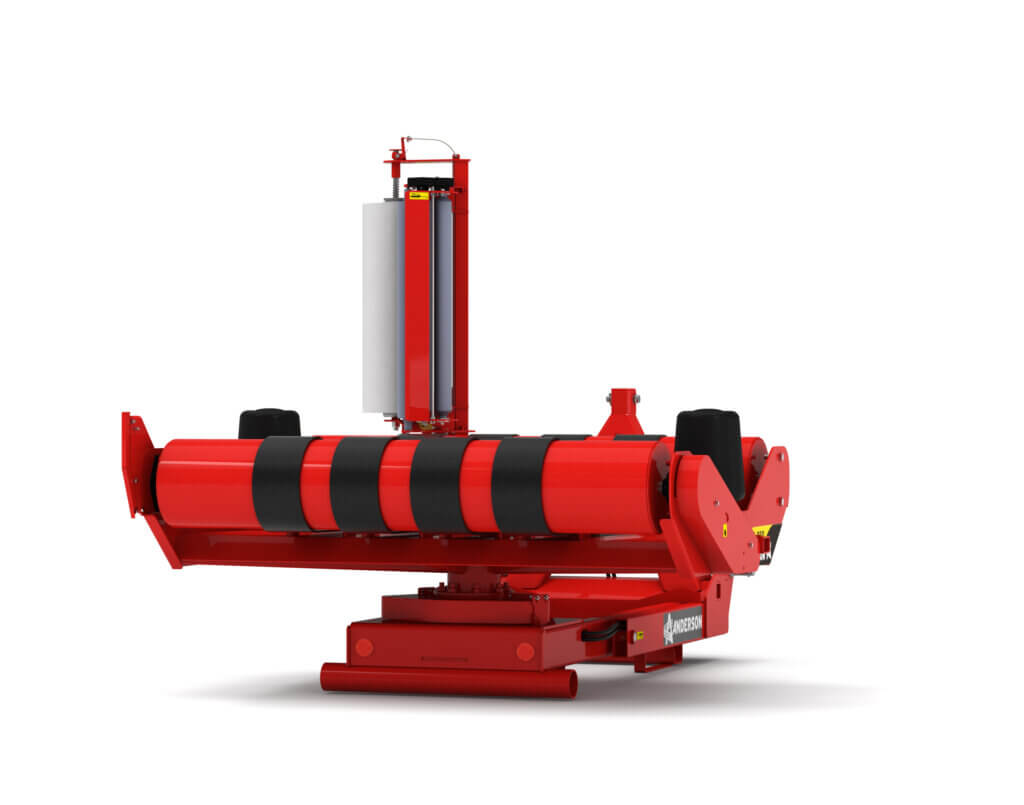

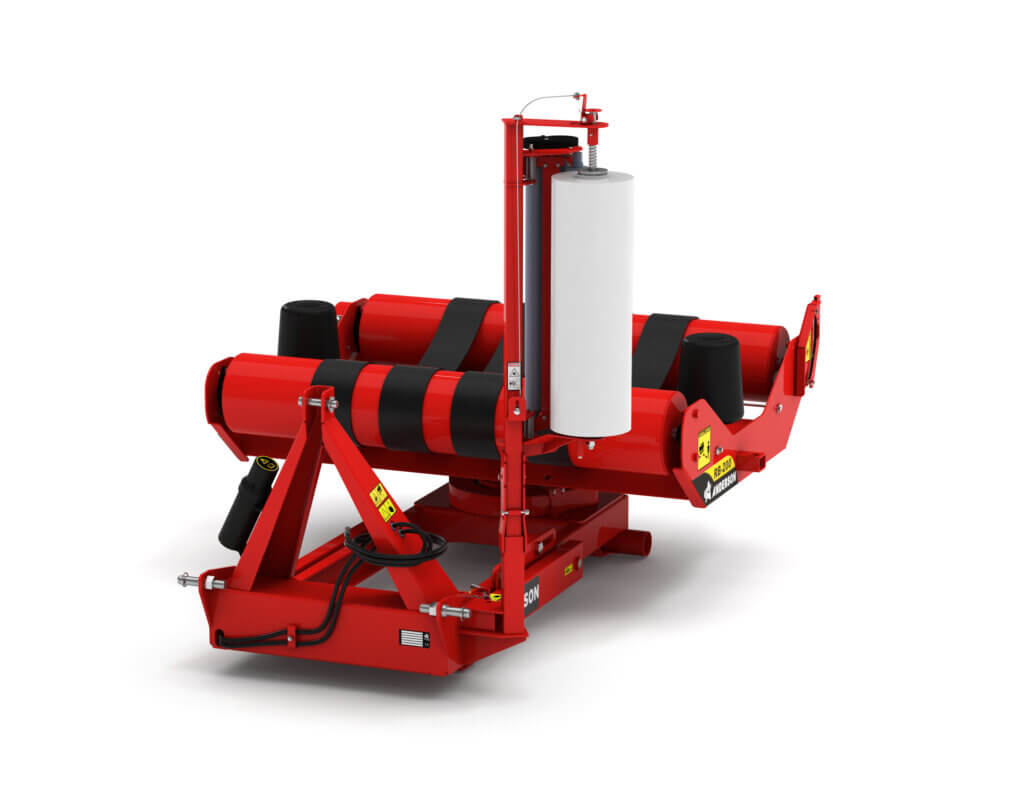

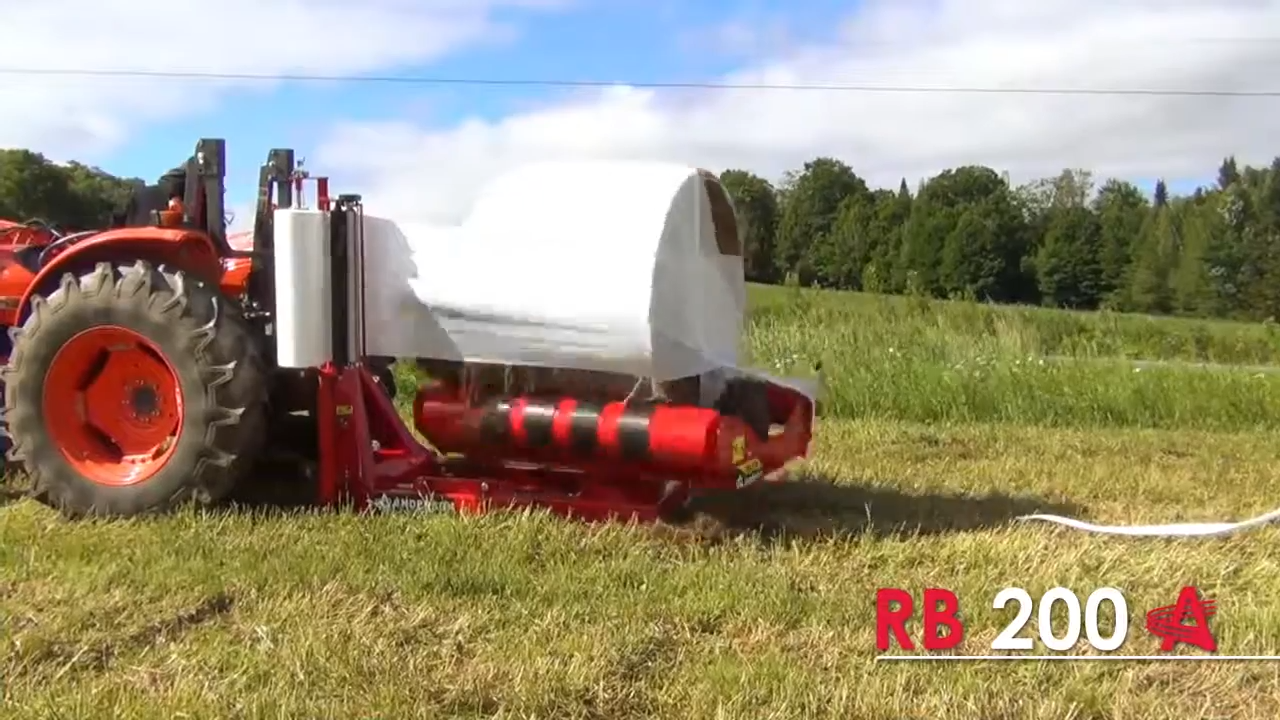

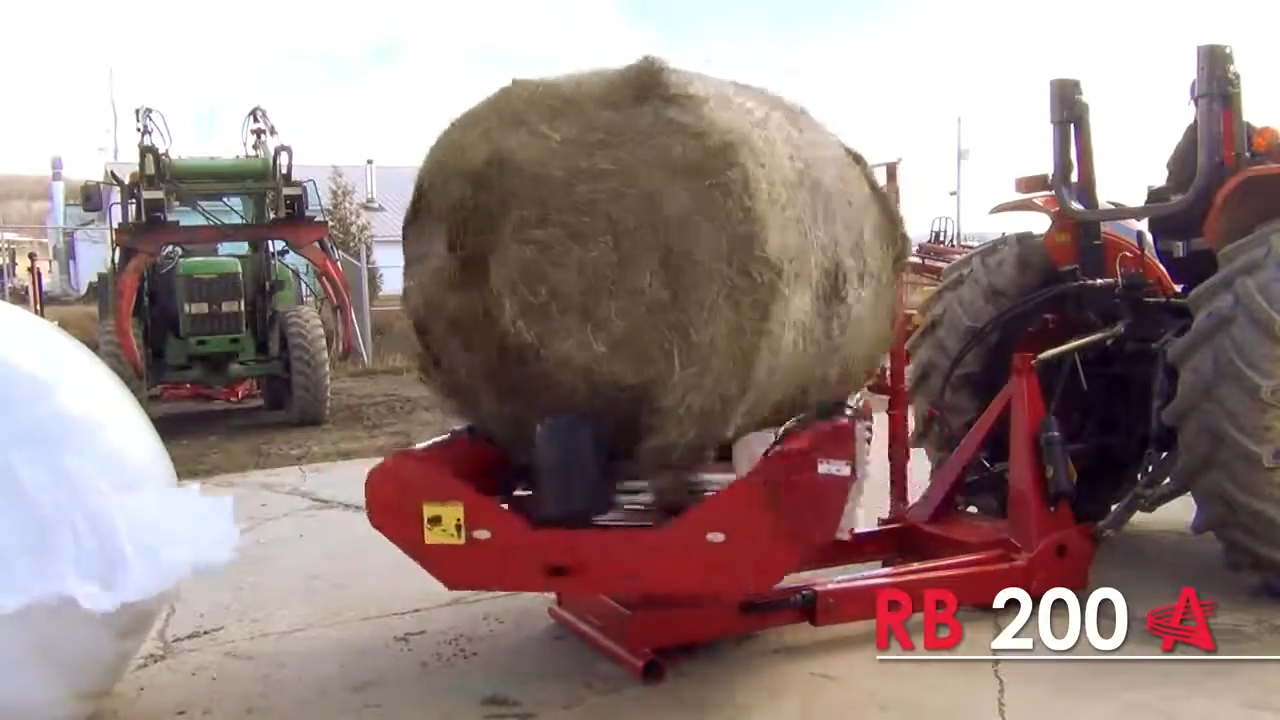

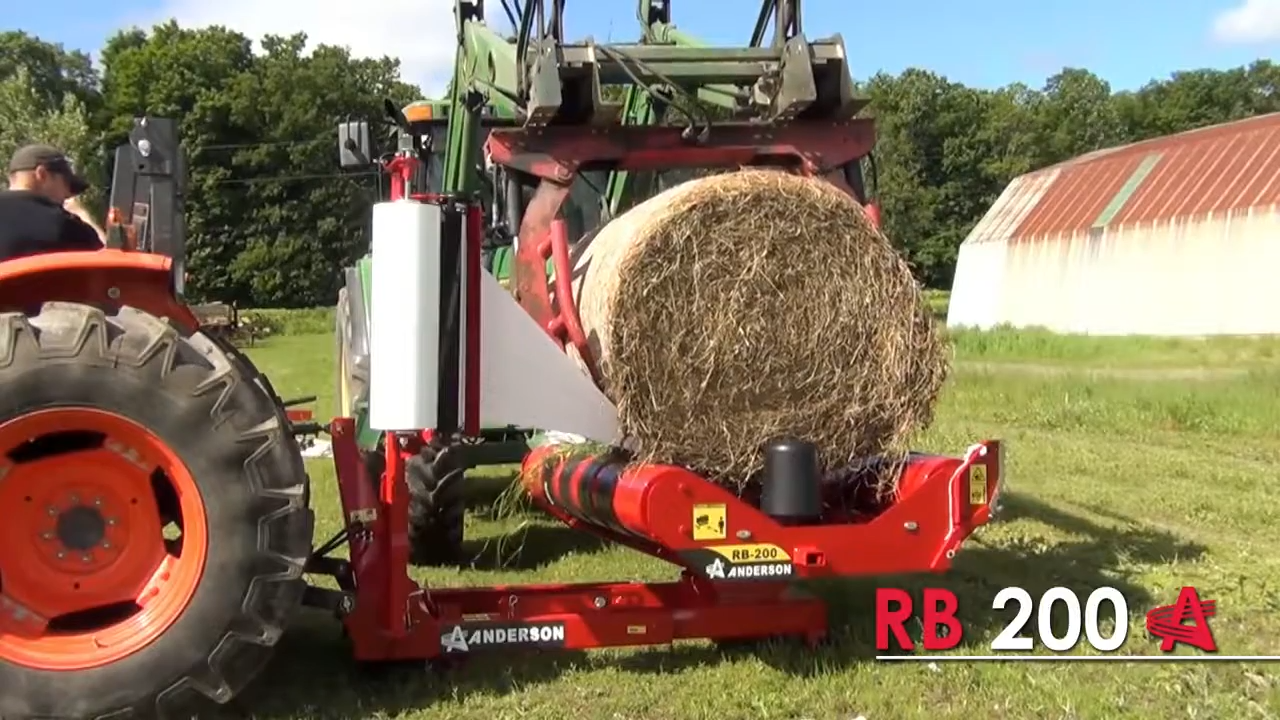

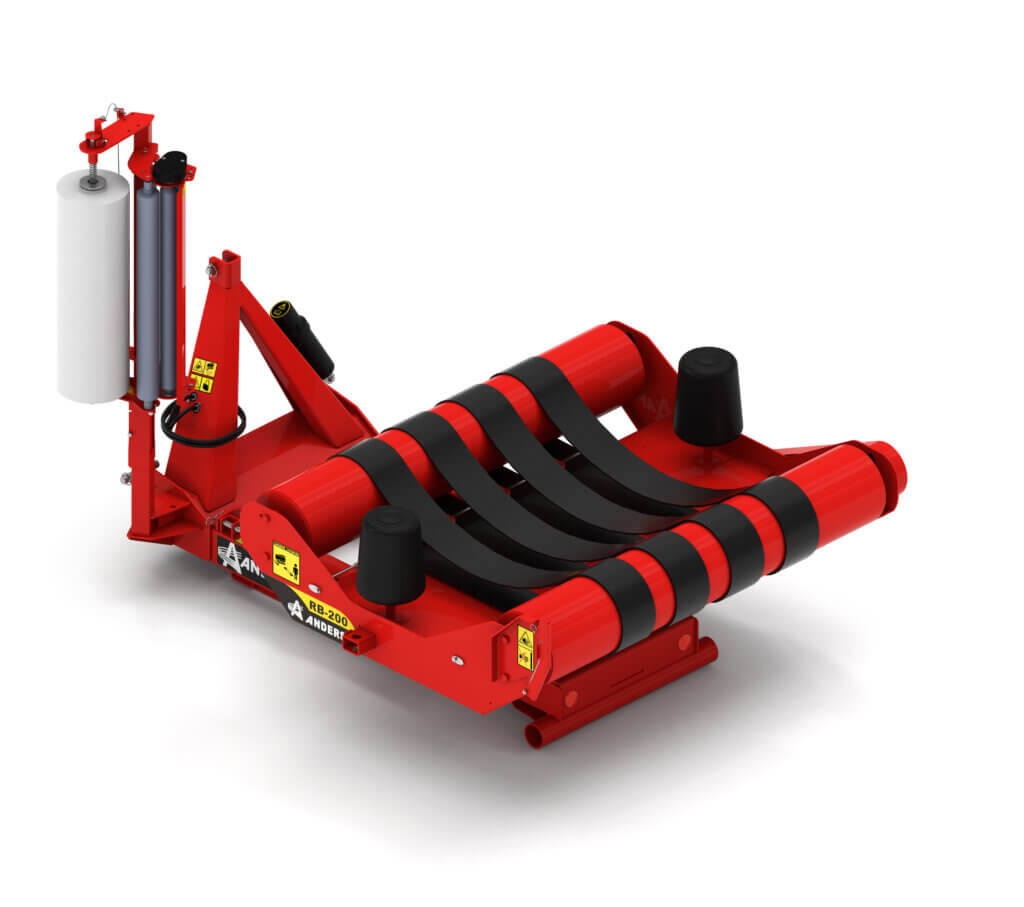

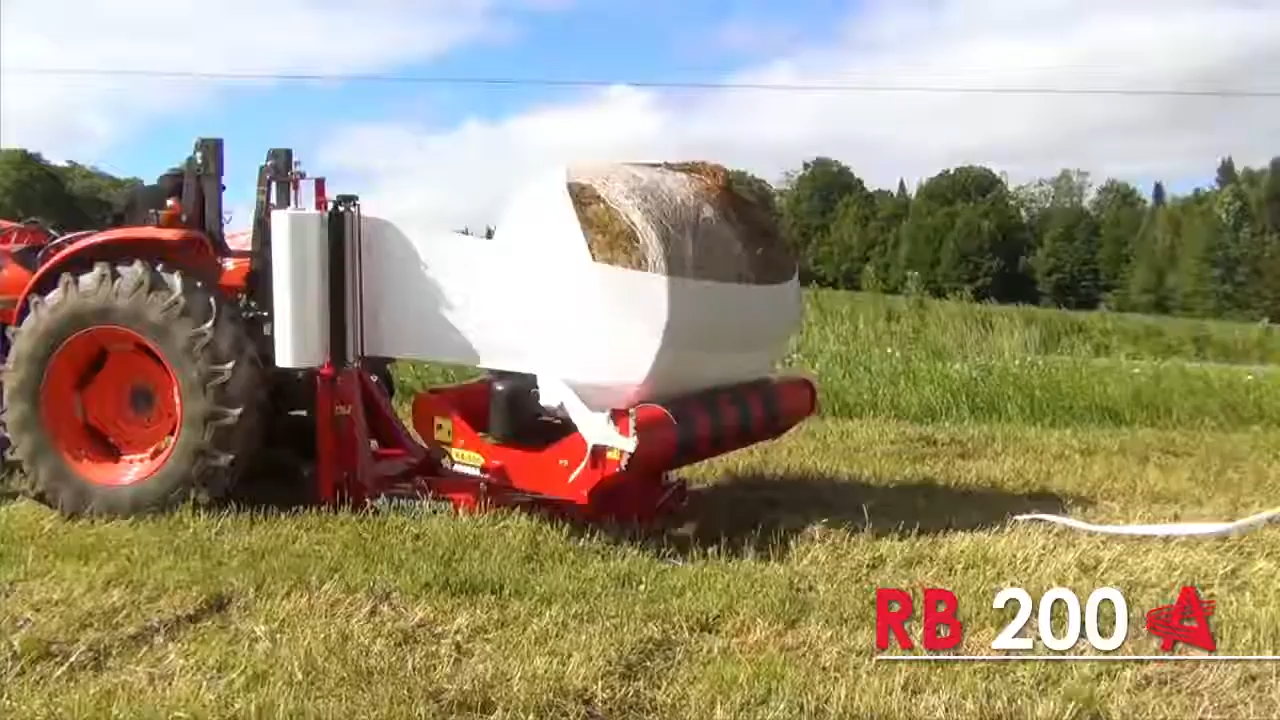

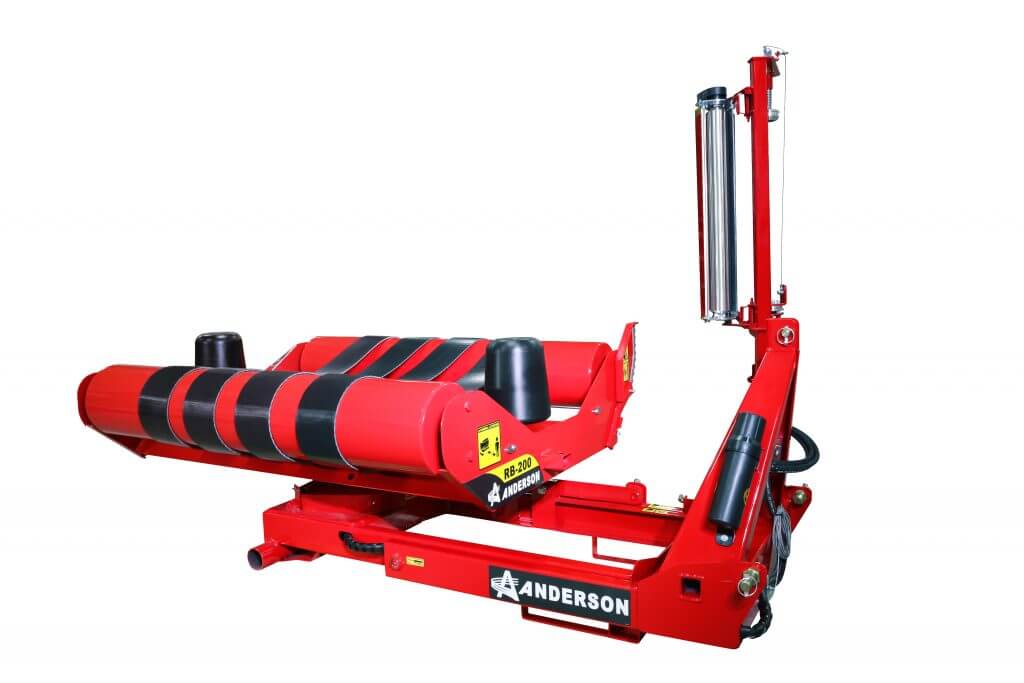

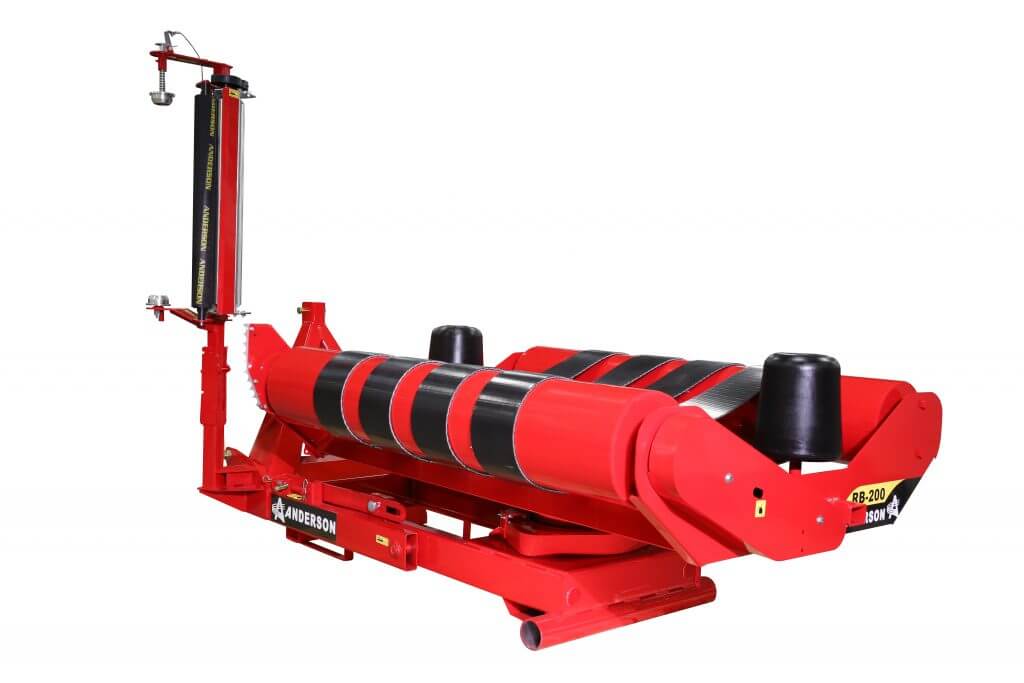

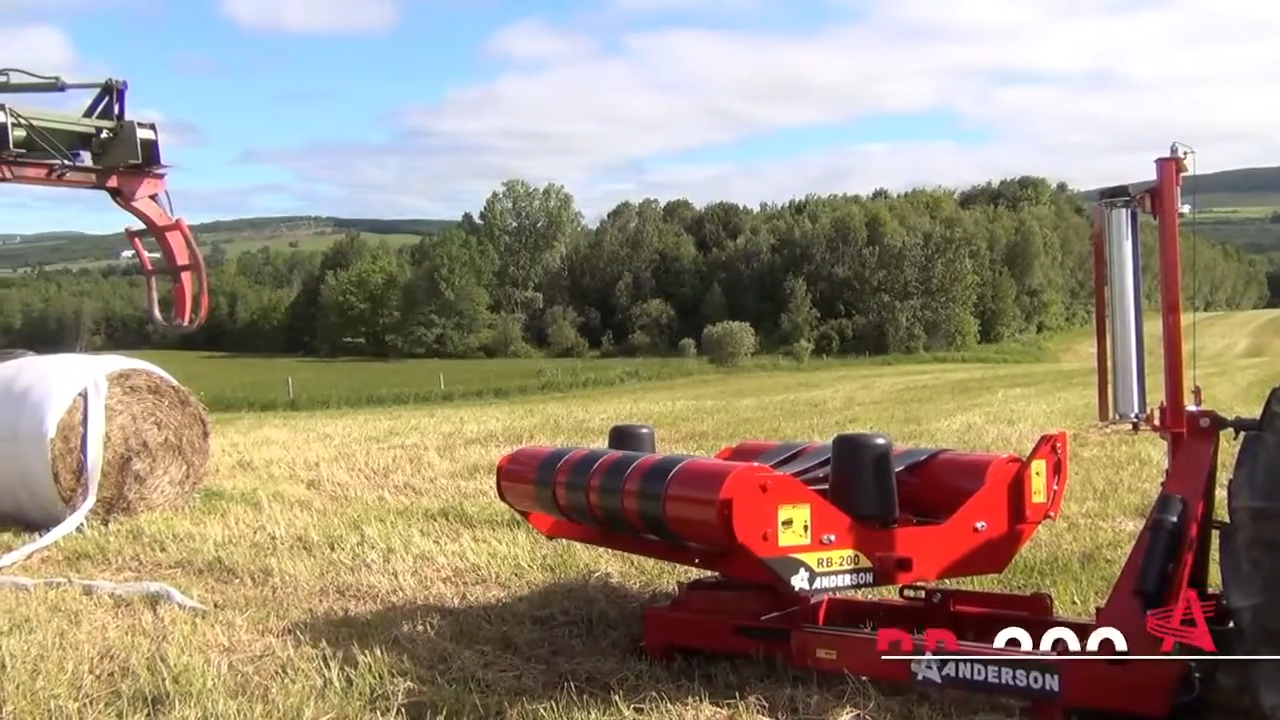

The Anderson RB 200 skid steer-mounted single bale wrapper is a compact, high-performance solution for preserving forage. Designed for stationary use, it connects to skid steer hydraulics for effortless wrapping without annual limits.

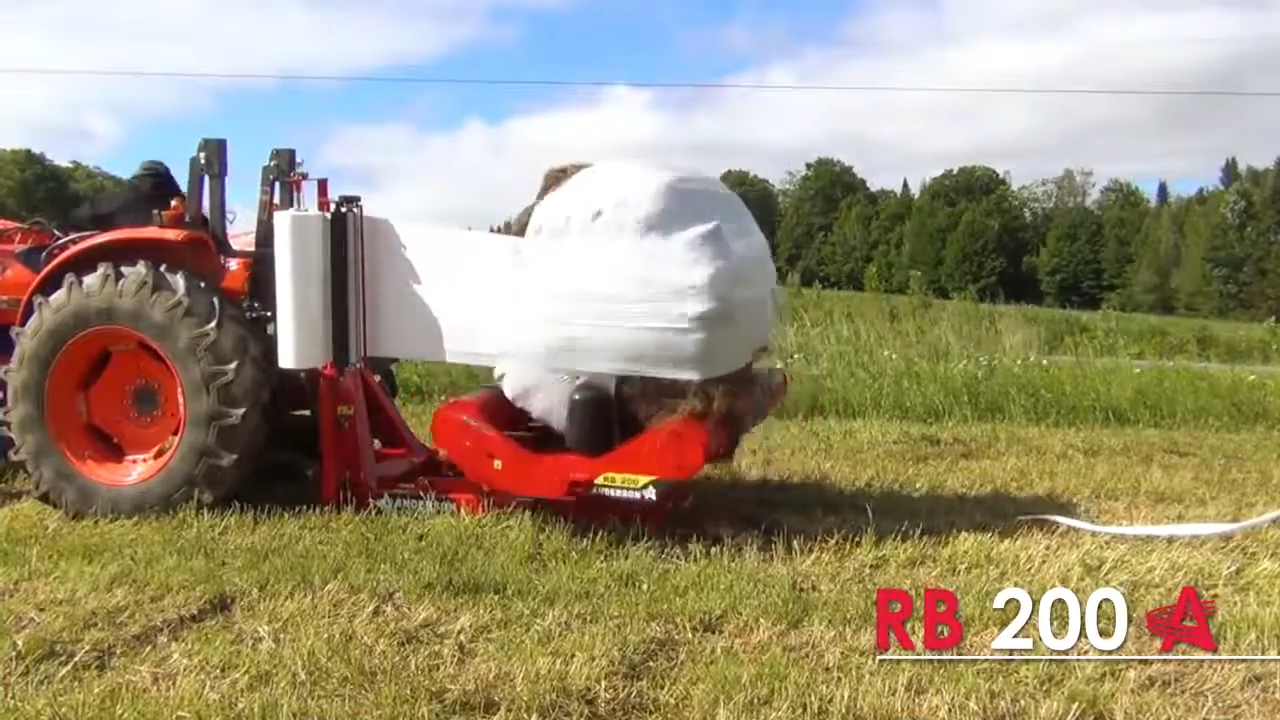

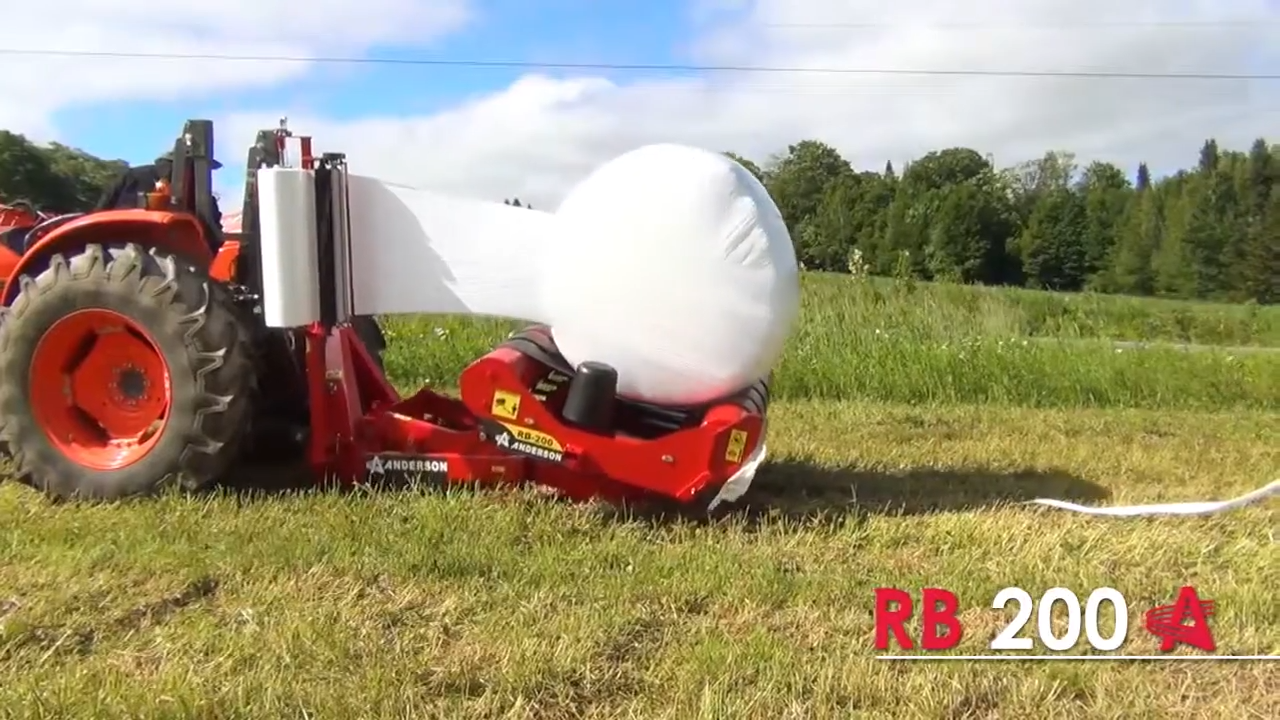

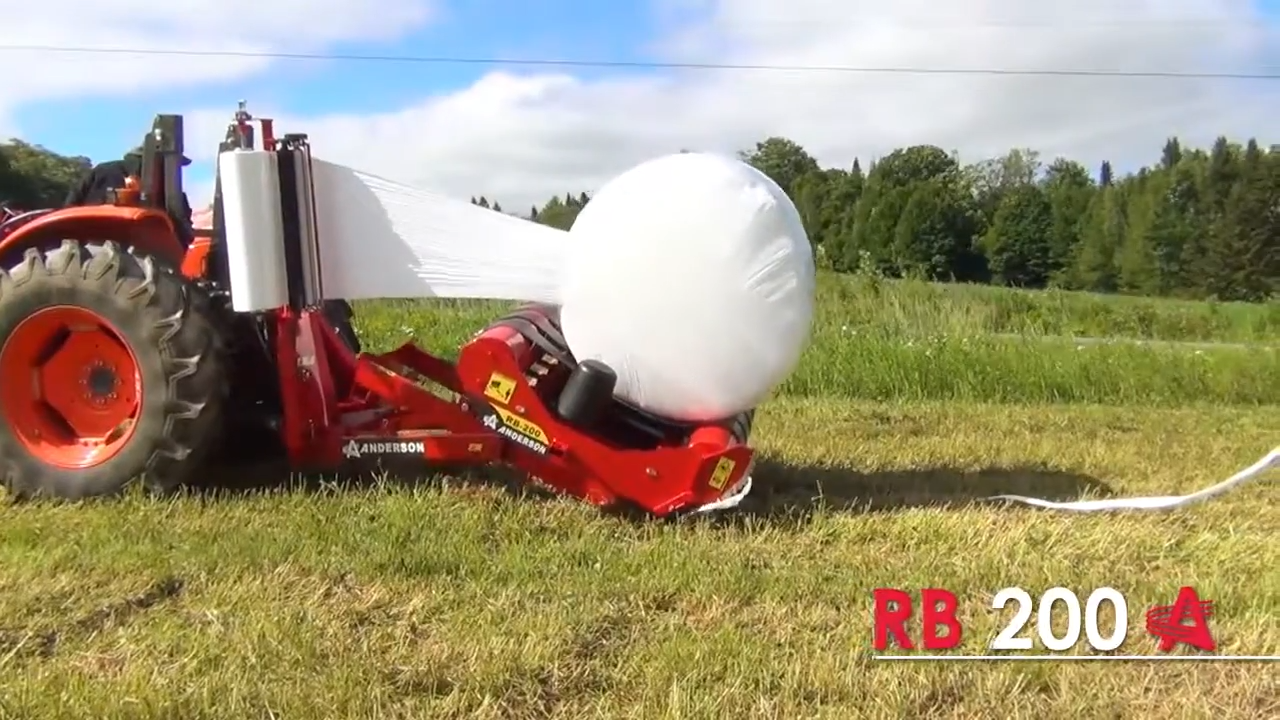

Capable of handling bales up to 5'6" in diameter, the RB 200 wraps up to 30 bales per hour, ensuring efficient processing and optimal feed preservation. The seamless belt wrapping table keeps bales stable and evenly rotated, while the hydraulically controlled discharge ensures smooth placement.
Equipped with a world-class aluminum film stretcher, knife cutting system, and bale guide rollers, it provides consistent wrapping performance even on uneven terrain. An electronic bale counter helps track operations for seamless workflow.
With 8 GPM hydraulic flow and 2200 psi pressure requirements, it connects via quick couplers, ensuring compatibility with skid steers. Durable and reliable, the RB 200 delivers efficient bale wrapping for season after season of dependable forage preservation
Key Features
- High Efficiency: Wraps up to 30 bales per hour, significantly enhancing productivity on your farm.
- Versatile Bale Handling: Accommodates round bales with a diameter of up to 5' 6" (1.65 m) and a length of up to 5' (1.5 m).

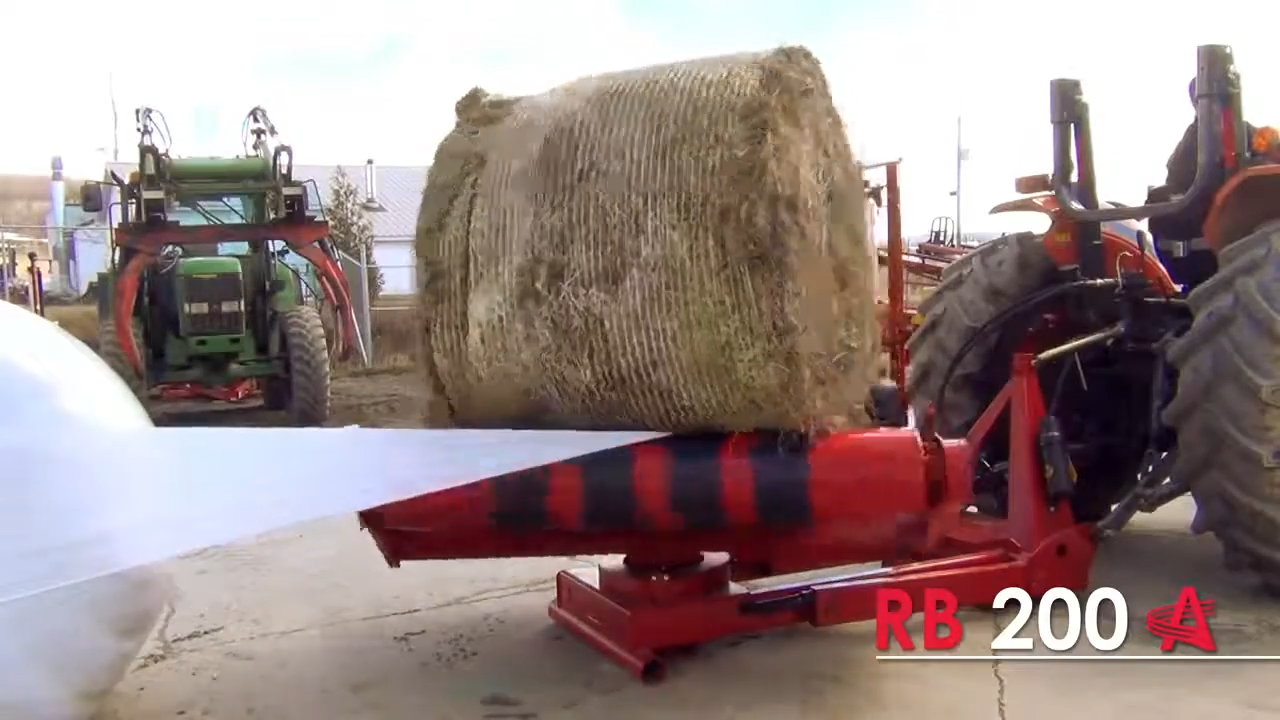

- Stable Wrapping Process: The seamless belt table allows for even rotation and wrapping of bales, ensuring consistent quality.
- Knife Cutting System: Automatically cuts the plastic film after a new bale is placed on the wrapper’s table, streamlining the wrapping process.
- Bale Guide Rollers: Keeps bales centered on the wrapper, even on slopes, ensuring stability during operation.
- World-Class Aluminum Stretcher: Designed for durability and efficiency, enhancing the wrapping process.
- Electronic Bale Counter: Standard feature for tracking the number of bales wrapped, helping you manage your operations effectively.
- Hydraulic Compatibility: Requires a minimum hydraulic flow of 8 gallons per minute and a pressure of 2200 psi, making it suitable for a variety of skid steers.
| Feature | Description | Photo (if available) |
|---|---|---|
| KNIFE CUTTING SYSTEM | Knife cutting the plastic film after a new bale has been placed on the wrapper’s table. |  |

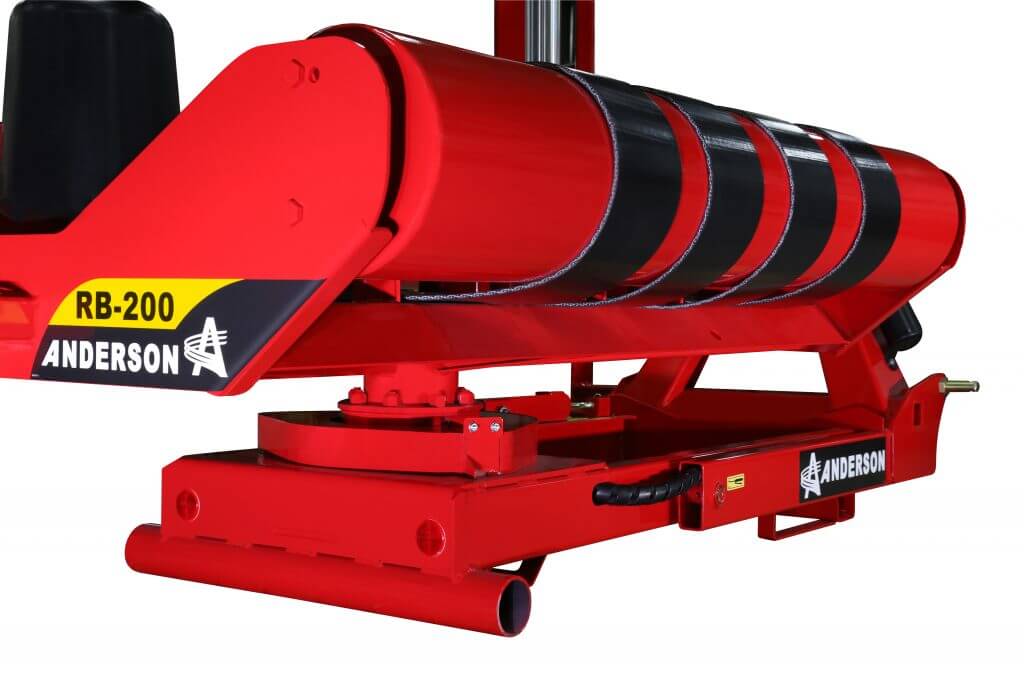

| Table with seamless belts | Table with seamless belts allowing each type of bales to rotate and be wrapped evenly. The unloading system RB200 differs from the competition in the stability of its table. While other products on the market will tend to twist and turn when they unload, the Anderson RB200 keeps the table hydraulically in a stable position for the bale to be unloaded in a straight line. |  |

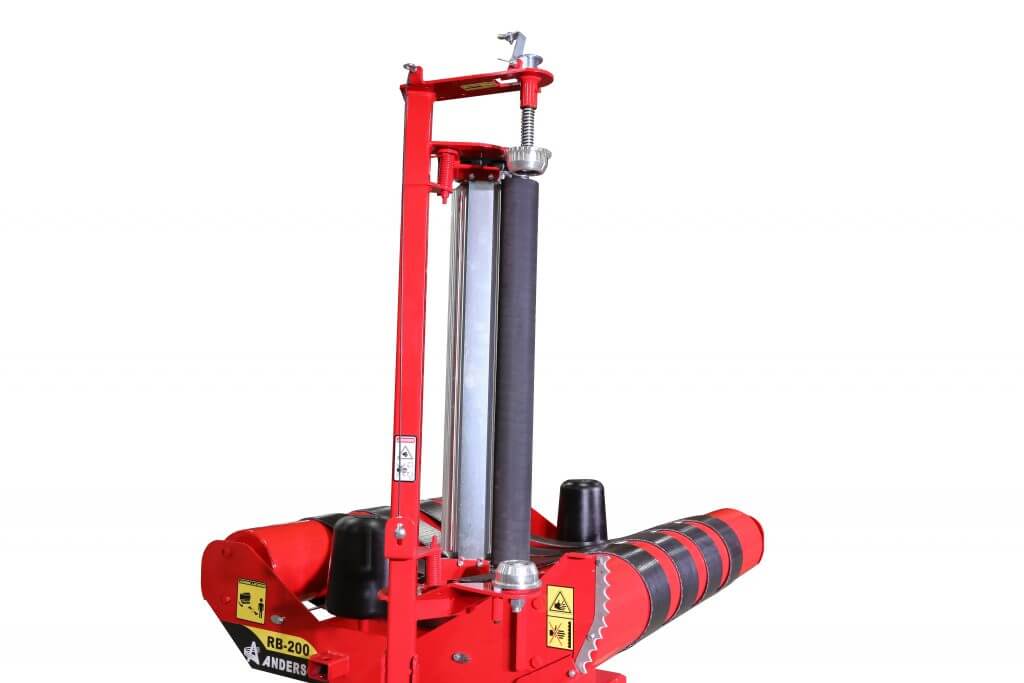

| World class aluminum stretcher. | World class aluminum stretcher. |  |
| BALEE GUIDE ROLLERS | Bale guide rollers keep the bales centered on the wrapper even when on a slope |  |
Detailed Specifications
| Specification | Details |
|---|---|
| Model Number | RB 200 / T6-QA200 |
| Manufacturer | Anderson |
| Category | Skid Steer Attachments |
| Sub-Category | Single Bale Wrapper (SSL Mount) |
| Industry | Agricultural |
| Compatibility | Skid Steer Loader (SSL) |
| Bale Type Supported | Round Bales Only |
| Max Bale Diameter | Up to 5’6” (1.65 m) |
| Max Bale Length | Up to 5’ (1.5 m) |
| Wrapping Speed | Up to 30 bales per hour |
| Wrapping Mode | Manual |
| Film Stretcher | 1 × 30” (750 mm) Aluminum |
| Plastic Cut System | Knife Cut |
| Bale Guide Rollers | Standard |
| Electronic Bale Counter | Included |
| Hydraulic Flow Requirement | 8 gal/min (30 L/min) |
| Hydraulic Pressure Requirement | 2200 psi (152 bar) |
| Hydraulic Connections | 2 × ½” male quick couplers |
| Overall Width | 100 7/8” (2.54 m) |
| Overall Height | 62 1/4” (1.53 m) |
| Overall Length | 73” (1.85 m) |
| Overall Weight | 1350 lbs (612 kg) |
Comparison Chart
| Feature | RB200 | Ellipse 660 | RB500 | RB600 | RB580 | 590HS | 680HS | 800HS |
|---|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
 |
 |
 |
 |
|
| Round Bale Diameter | Up to 5' 6" (1,65 m) | Up to 5’6” (1.65m) | Up to 5' 6" (1,65 m) | Up to 5' 6" (1,65 m) | Up to 6’ (1,8 m) | Up to 6’ (1,8 m) | Up to 6’ (1,8 m) | Up to 6’ (1,8 m) |
| Round Bale Length | Up to 5' (1,5 m) | Up to 5 ft (1.5 m) | Up to 5' (1,5 m) | Up to 5' (1,5 m) | Up to 5' (1,5 m) | Up to 5' (1,5 m) | Up to 5' (1,5 m) | Up to 5' (1,5 m) |
| Square Bale | 3' × 3' (80 x 90 cm) Up to 6' (1,8 m) | |||||||
| Wrapping Speed | Up to 30 bales/h | Up to 75 bales/h | Up to 40 bales/h | Up to 40 bales/h | Up to 40 bales/h | Up to 75 bales/h | Up to 75 bales/h | Up to 75 bales/h |
| Wrapping Process | Manual | Automatic | Manual | Automatic | Manual | Automatic | Automatic | Automatic |
| Mode | 3 point hitch | Pulled behind | Stationary | Stationary | Pulled behind | Pulled behind | Stationary | Stationary |
| Aluminum Film Stretcher | 1 × 30" (750 mm) | 2 x 30" | 1 × 30" (750 mm) | 1 × 30" (750 mm) | 1 × 30" (750 mm) | 1 × 30" (750 mm) or 2 × 30” (optional) | 1 × 30" (750 mm) or 2 × 30" (optional) | 1 × 30" (750 mm) or 2 × 30" (optional) |
| Engine | (available on model RB600E) | 13 HP Honda (18 A) | 13 HP Honda (18 A) | |||||
| Bale Dumper | 2 position series ball flipper for bales of 4 and 5 feet | 3 positions | 3 positions | 1 position or 3 positions (optional) | Bale receiver platform | |||
| Bale Guides Rollers | Standard | Standard | Standard | |||||
| Leveling System | Front and rear stabilizers | Front and rear stabilizers | ||||||
| Road Lights | For tractor | For tractor | For tractor | For tractor | For truck | For truck | ||
| Night Work Lights | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Tires | 15.0/55-17 14PRTL | 18,5 x 8,5-8 (215/60-8) | 18,5 x 8,5-8 (215/60-8) | 26 x 12-12 (300/60-12) | 26 x 12-12 (300/60-12) | 26 x 12-12 (300/60-12) | 20,5 x 8-10 (205/65-10) | |
| High Floatation Tires | Standard | Standard | Standard | Standard | Standard | Standard | Standard | |
| Plastic Cut & Hold | Plastic cut only | Hydraulic | Mechanical | Mechanical | Mechanical | Hydraulic | Hydraulic | Hydraulic |
| Self-loading Arm | Standard | Standard | Standard | |||||
| Electronic Bale Counter | Standard | Standard | ||||||
| Min. Hydraulic Flow | 8 gal/min (30 litres/min) | 15 gpm (57 liters/min) | 8 gal/min (30 litres/min) | 8 gal/min (30 litres/min) | 9 gal/min (30 litres/min) | 8 gal/min (30 litres/min) | Not required | Not required |
| Min. Hydraulic Pressure | 2200 psi (152 bar) | 2500 psi (172 bar) | 2200 psi (152 bar) | 2200 psi (152 bar) | 2200 psi (152 bar) | 2200 psi (152 bar) | Not required | Not required |
| Hydraulic Connections | 2 x 1/2" male quick couplers | Option 1: Load sensing and pump output + 1 hydraulic output + free returnnOption 2: 2 hydraulic outputs + free return" | 2 x 1/2" male quick couplers | 2 x 1/2" male quick couplers | 4 x 1/2" male quick couplers | 4 x 1/2" male quick couplersn1 x 3/4" Female Hydraulic Quick Coupler (Free Return) | ||
| Overall Width | 100 7/8 in (2,54 m) | 23 ft 1 in (7.04 m) | 10 ft 10 in (3,3 m) | 10 ft 10 in (3,3 m) | 15 ft 7 in (4,77 m) | 15 ft 7 in (4,77 m) | 15 ft 7 in (4,77 m) | 18 ft 2 in (5,56 m) |
| Overall Height | 62 1/4 in (1,53 m) | 9 ft 10 in (2.97 m) | 6 ft 9 in (2,1 m) | 6 ft 9 in (2,1 m) | 8 ft 5 in (2,56 m) | 8 ft 5 in (2,56 m) | 7 ft 4 in (2,26 m) | 7 ft 6 in (2,34 m) |
| Overall Length | 73 in (1,85 m) | 10 ft 7 in (3.22 m) | 6 ft 8 in (2,1 m) | 6 ft 8 in (2,1 m) | 9 ft 8 in (2,98 m) | 9 ft 8 in (2,98 m) | 8 ft 5 in (2,60 m) | 8 ft 4 in (2,57 m) |
| Overall Weight | 1350 lb (612 kg) | 5780 lbs | 1653 lb (750 kg) | 1763 lb (800 kg) | 3703 lb (1680 kg) | 3703 lb (1680 kg) | 3207 lb (1455 kg) | 4519 lb (2050 kg) |
