Product Description

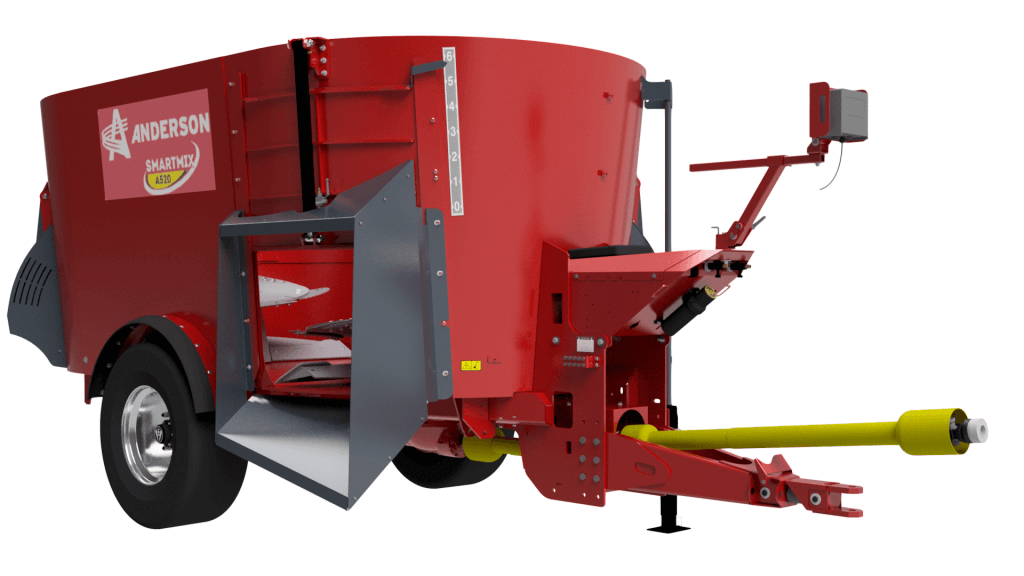

Anderson Vertical Mixer Double Auger | Models A520FD, A520ST & A700FD | Width 101" To 117" | Horsepower 80-100 HP | For Tractors
DESCRIPTION
The ANDERSON Vertical Mixer Double Auger Series is designed for farms requiring efficient and reliable feed mixing for dairy and beef herds. The twin auger mixers—A520 and A700—handle large amounts of hay, including full round and square bales, to create consistent, well-mixed rations that optimize herd health and productivity. Built for intensive daily use, these mixers are customizable with discharge options and are suitable for various farm sizes, offering high capacity and precise feed handling.
Key Features
- Capacity Options: Flexible configurations with or without extensions for optimized storage.
- Dimensions: Customized heights and lengths with incline conveyor options for operational adaptability.
- Hydraulics: Precise flow and pressure specifications ensuring reliable operation.
- Driveline Security: Robust shear bolt system enhances durability and safety.
- Load Cells & Scale Systems: Integrated DG500 scale system for accurate measurements.
- Axle & Wheels: Standard and optional specifications catering to different terrains and loads.
- Optional Features: Planetary configurations and advanced speed gearboxes to meet varied requirements.
Detailed Specifications
| Specification | A520FD | A520ST |
|---|---|---|
| Capacity (No Extension) | 520 ft³ (14.7 m³) | 520 ft³ (14.7 m³) |
| Capacity (6" Extension) | 574 ft³ (16.3 m³) | 574 ft³ (16.3 m³) |
| Capacity (12" Extension) | 628 ft³ (17.8 m³) | 628 ft³ (17.8 m³) |
| Capacity (18" Extension) | 682 ft³ (19.3 m³) | 682 ft³ (19.3 m³) |
| Number of Augers | 2 | 2 |
| Length (A) | 270 in (6.86 m) | 242 in (6.15 m) |
| Height (B) | 102 in (2.59 m) | 102 in (2.59 m) |
| Width (C) | 101 in (2.57 m) | 115 in (2.92 m, retracted) |
| Outside Width (Wheels) | 99 in (2.51 m) | 99 in (2.51 m) |
| Incline Conveyor Angle | 26–39° | 226–39° (likely typo) |
| Discharge Height | 33–35 in @ 26° / 40–40 in @ 40° | 34–38 in @ 26° / 44–44 in @ 40° |
| PTO Shaft | 540 RPM, 1" 3/8 Z6 | 540 RPM, 1" 3/8 Z6 |
| Min PTO HP Requirement | 80 HP (Low), 120 HP (High) | 80 HP (Low), 120 HP (High) |
| Hydraulic Flow Requirement | 10–15 gal/min (37–56 L/min) | 10–15 gal/min (37–56 L/min) |
| Utility Load Capacity | 15,080 lb (6839 kg) | 15,080 lb (6839 kg) |
| Specification | A700FD |
|---|---|
| Capacity (No Extension) | 700 ft³ (19.8 m³) |
| Capacity (6" Extension) | 770 ft³ (21.8 m³) |
| Capacity (12" Extension) | 840 ft³ (23.8 m³) |
| Capacity (18" Extension) | 910 ft³ (25.8 m³) |
| Number of Augers | 2 |
| Length (A) | 309 in (7.86 m) |
| Height (B) | 110 in (2.79 m) |
| Width (C) | 117 in (2.97 m, retracted) |
| Outside Width (Wheels) | 100 in (2.54 m) |
| Incline Conveyor Angle | 26–39° |
| Discharge Height | 41–43 in @ 26° / 50–50 in @ 40° |
| PTO Shaft | 1000 RPM, 1" 3/8 Z21 |
| Min PTO HP Requirement | 100 HP (Low), 150 HP (High) |
| Hydraulic Flow Requirement | 10–15 gal/min (37–56 L/min) |
| Utility Load Capacity | 20,300 lb (9206 kg) |
