Autel Robotics EVO II Dual 640T RTK V2 Thermal Drone Rugged Bundle
Autel Robotics EVO II Dual 640T RTK V2 Thermal Drone Rugged Bundle
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Autel Robotics EVO II Dual 640T RTK V2 Thermal Drone Rugged Bundle
DESCRIPTION
Autel EVO 2 Dual 640T RTK Thermal Imaging UAV is a professional and powerful commercial UAV. It integrates RTK module on EVO II 640T, which has unparalleled accuracy and centimeter-level positioning accuracy. The EVO II 640T has a 640x512 thermal resolution thermal camera and an 8k sensor camera, which can help you capture high-definition detailed images for optimal insight. This drone will be well-suited for applications such as geographic surveying and mapping.

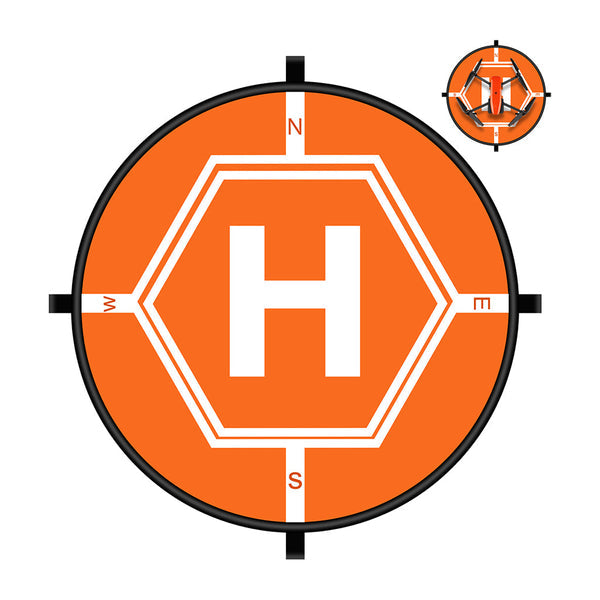

- Free pair of propeller guards and Landing Pad
- No Geofencing
- 640*512 Thermal Imaging Resolution
- RTK module with centimeter-level accuracy
- 10 Thermal Color Palettes
- 8K Video/48MP Picture
- 360° Obstacle Avoidance
- Dynamic Track 2.0
- 38 Mins Flight Time
- 5.5 Miles Video Transmission Range
Key Features
Dual-sensor camera - 8K and infrared camera
Dual-sensor camera: Includes the 8K camera plus an infrared imaging camera. It can operate in visible, infrared, and dual-image modes. In addition, this camera takes infrared images at a resolution of either 640 x 512 (640) or 320 x 256 (320), and records 720p video at 30 fps in dual-image mode. Additionally, 8k and infrared imaging cameras capable of simultaneous recording.
APPLICATION
 |
 |
| Line Inspections: Reduce costs, increase safety, and improve inspection workflow. | Firefighting: Locate hotspots, provide overwatch, and shorten response times. |
 |
 |
| Law enforcement: Perform overwatch, accident scene reconstruction, forensics, and crowd monitoring. | Search & Rescue: Identify subjects, reduce response times and maximize search area with automated mission planning. |
 |
 |
| Chemical: Inspect plants more efficiently while also improving worker's safety, and lowering inspection costs. | Solar: Increase solar farm inspection efficiency with automated mission planning to reduce field time. |
-
Thermal Drones In Search and Rescue operations
Autel EVO II 640T Thermal Drone is a versatile and reliable tool for search and rescue operations. With its high-resolution thermal imaging camera, long flight time, and accurate positioning capabilities, this drone is designed to assist search and rescue teams in finding and rescuing victims in a timely and effective manner.
The high-resolution thermal imaging camera on the Autel EVO II 640T provides clear images of targets, making it easier to identify and locate the target for rescue. Additionally, the drone has the capability to store infrared images, allowing search and rescue teams to analyze and evaluate the images after the operation.
The Autel EVO II 640T also has a long flight time, ensuring that the drone can be used for extended periods without the need for a recharge. This is especially important in search and rescue operations, where the drone may need to fly for hours in order to cover a large area.
The Autel EVO II Dual 640T is equipped with GPS functionality that provides real-time data and location information for the device. This GPS feature allows the drone to accurately determine its location, altitude, speed, and direction of flight. Additionally, it can also be used to create a flight plan, record flight data, and automatically return to its starting point in case of a lost signal or low battery.
The GPS system can also be used to perform precision hovering, automatic landing and take off, and other advanced flight functions. With the help of GPS, the Autel EVO II Dual 640T can provide stable and safe flight performance, making it a reliable and efficient tool for aerial photography and mapping applications.
Finally, the Autel EVO II 640T is built to be reliable, with good stability and reliability. This is essential in search and rescue operations, where the drone must be able to perform in demanding conditions and under high stress. With its combination of features and capabilities, the Autel EVO II 640T is a valuable tool for search and rescue teams looking to enhance their operations.
Thermal Drones In Wildlife Management
In 2022, wild pigs continued to have a significant impact in several states within the United States, causing widespread damage to crops, spreading diseases, and posing a threat to native wildlife. The affected states include Texas, Florida, California, and several others in the Southeast and West regions. The population of wild pigs in the US was estimated to be between 2 to 6 million, with populations growing at an alarming rate. Wildlife management agencies and farmers were concerned about the issue, as the pigs' destructive behavior caused economic losses and ecological harm. Efforts to control the wild pig population through hunting, trapping, and other means were ongoing.
|
Crops |
Pasture |
|
Livestock |
Horticulture |
Why Autel EVO II Dual 640T?
-
High-resolution imaging - The EVO II Dual 640T features a dual-camera system with a 64-megapixel sensor that provides high-resolution images and video, making it easier to identify and track wild boars.
-
Long flight time - With a maximum flight time of 40 minutes, the EVO II Dual 640T allows hunters to cover large areas and stay in the air longer.
-
Stable flight - The EVO II Dual 640T features advanced stability systems, including obstacle avoidance and advanced image stabilization technology, making it easier to fly in challenging environments.
- Real-time transmission - The EVO II Dual 640T features a low-latency video transmission system that allows hunters to see what the drone is seeing in real-time, making it easier to track and identify wild boars.
Thermal Drones in Hunting
The EVO II Dual 640T is a highly advanced drone that can greatly assist hunters in their pursuits. With a dual 640T thermal camera and high-resolution imaging capabilities, hunters can locate and track game from the air. The drone's long flight time and stable flight performance also allow for extended monitoring and observation of wildlife. This cutting-edge technology can help hunters plan and execute successful hunting trips, increasing their chances of making a successful catch.
Thermal Drones In Residential Roof Inspection
Inspect and document the exterior condition of shingle, tile, or slate roof structures with ease using the high-resolution visible imaging capabilities of the Autel EVO II Dual 640T drone. Utilizing unmanned aerial vehicle (UAV) technology, this drone provides a detailed view of the roof, allowing you to easily observe hail damage, wind damage, openings in the roof, cracked tiles, and much more. When water gets on the surface of the membrane, it creates a higher temperature that can be easily detected using the infrared imaging capabilities of the Autel 640T. This versatile tool makes roof inspections quicker, safer, and more efficient, delivering reliable results every time.
Thermal Drone in Industrial Inspection
Streamline your roof inspection process with the advanced technology of the Autel EVO II 640T drone. Equipped with an 8K Visual Spectrum Sensor and a 640 Radiometric Thermal Sensor, this drone enables inspectors to perform multiple roof inspections in significantly less time compared to traditional methods. The drone kit not only allows for a visual inspection of the entire building, but also utilizes thermal technology to detect hot spots.
This allows for a safe and efficient check of the structure's status, enabling you to easily identify defects, leaks, and corrosion issues without incurring the cost of additional personnel or equipment. With the Autel EVO II 640T drone, you can be confident in delivering accurate and thorough inspection results every time
-
No production shutdown Without shutting down the production, a UAV thermal analysis enables us to detect leaks, structures’ heat problems and early signs of weaknesses.
-
Safer Autel EVO II Dual 640T thermal drone enables us to detect anomalies beforehand to avoid real problems, breakdowns or accidents.
-
Faster A thermal camera can detect oil and gas leaks and directly assess reliable assets.
-
More accurate 640T thermal drrone take accurate pictures
based on different detected temperatures.
-
Easier to operate EVO II Dual 640T drone teams operate with a
two-men team and one backpack carrying the intervention equipment. EVO II DUAL 640T interventions are fast, accurate and do not
require complex deployment.
-
More efficiently The EVO II Dual 640T with a 40-minute flight time and a 640 x 512 thermal camera can quickly find hidden dangers that were previously invisible to the naked eye.
Thermal Drones In Line Inspections
Prevent electrical network failures and the associated consequences of blackouts or destructive fires with advanced thermodiagnostic tools. The Autel EVO II Dual 640T thermal drone, combining cutting-edge thermal imaging and unmanned aerial vehicle (UAV) technology, serves as an early warning system for potential problems.
Thermography, the technical field concerned with the non-contact measurement of temperature distribution on the surface of an object, is at the forefront of these efforts. With the ability to quickly and accurately detect thermal anomalies, the Autel 640T provides an effective solution for maintaining the safety and reliability of electrical networks. Don't let failures compromise your infrastructure, invest in the power of thermodiagnostics with the Autel EVO II Dual 640T thermal drone.
The Autel EVO II Dual 640T thermal drone is a groundbreaking drone that integrates an infrared imaging camera with an 8K video camera. With thermal resolution up to 640x512 and an 8K sensor, the EVO II Dual 640T becomes a powerful tool for first responders, contractors, and business owners. It provides them with the high-quality data they need in a compact and portable package. With a range of advanced features, the Autel EVO II Dual 640T thermal drone is the perfect solution for professionals looking to streamline their workflow and increase efficiency.
Thermal Drones in Police Use
The Autel EVO II Dual thermal drone proved to be a valuable tool for the Nevada sheriff's department when they needed to locate a suspect who had fled into the darkness. The thermal camera on the EVO II allowed the deputy, Greenhut, to search the area and eventually spot the suspect hiding behind a tree. The ability to locate the suspect with the thermal camera made it possible for backup to arrive and make the arrest. This situation highlights the importance of thermal imaging technology in law enforcement and its ability to assist in capturing suspects in low light conditions.
Deputy Greenhut was able to get eyes on the suspect and provide intel to his responding partners to advise them on the suspect’s whereabouts and whether it appeared he had any weapons. This information is very helpful to ensure a safe and effective response when encountering an unknown individual in the dark of night
Thermal Imaging Function
-
Picture-in-Picture Mode
Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"
-
Spot Temperature Measurement
Tap the screen, and the temperature of the selected object will be displayed in real time.
-
Regional Temperature Measurement
Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.
The temperature measurement frame can be dragged to any position on the screen.
-
Temperature Warning
Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds
Note: The temperature alarm takes effects only in Regional temperature measurement mode
-
Image Enhancement
Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.
-
10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection
-
4x Lossless Zoom
-
Human Search
Powerful Infrared Thermal Analysis Tool(IRPC)
This free temperature measurement analysis tool is developed for the 640T, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and coolaboration.(Select the "Word" icon Export report. Generate analysis report)
All three camera modules support a variety of shooting modes, including: Single-shot; Burst shooting; Auto exposure bracketing (AEB); Time-lapse; High-dynamic-range (HDR) imaging; NIGHTBEAT (high signal-to-noise ratio)
Connect Autel Live Deck to display live on any device
A high-definition live feed from the EVO 2 drone camera can be displayed on your remote control’s screen or connect with Autel Live Deck to displayed on any device including computer, tv, phone, etc. Of course, Images and videos can be stored in the aircraft’s onboard memory or on a micro SD card.
Adjust field-of-view to any angle from 0° to 90° while flying
EVO II Dual Drone contains a high-precision 3-axis gimbal that keeps the camera steady while the aircraft is flying, ensuring image stability and clarity. Also, You can use the remote control's gimbal pitch dial to adjust the pitch axis to any angle from 0° to 90° at any time.
All Cameras interchangeable
Autel EVO II Series Dones is one aircraft with three camera options. All cameras for Evo II can be purchased separately and are interchangeable!
Autel EVO II Dual 640T RTK Module
Centimeter-Level Positioning System
The EVO II RTK series integrates an entirely new RTK module, which provides real-time centimeter-level positioning data and supports Post-Processing Kinematic (PPK). The EVO II RTK aircraft can record the original satellite observation data, camera exposure parameters and various other data. The positioning system supports A-RTK base station and RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
Mission Execution With Advanced Intelligence
EVO II RTK Series aircraft offer users a full range of intelligent features and solutions to suit a variety of mission needs. Using advanced flight control and the latest AI technology, the aircraft can significantly improve mission work flows and help reduce operating costs.
Creating Mission, Waypoint Flying, 720° Omnidirectional sensing & Obstacle avoidance, Photo Replication, No Need Ground Control Points, High Precision RTK/ PPK Positioning, Support A-RTK High Precision GNSS Base Station.
No Need for Ground Control Points
The EVO II RTK Series leverages a high precision RTK module, supports PPK and time synchronization, and is not limited by communication links or network coverage.
RTK / PPK
The Evo II RTK Series supports third party base stations with NTRIP capability
RTK High-precision GNSS Base Station
The EVO II RTK Series supports RTK high-precision GNSS base station to obtain real-time differential data, which makes it possible to obtain the accurate coordinates of the designated target point.
EVO II - AI Enhanced Dynamic Track
EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.
360° Obstacle Avoidance
EVO 2 Dual’s front, rear, left, right, top, and bottom binocular vision sensing systems use image data to calculate the distance between the aircraft and potential obstacles. Begin detecting potential hazards at up to 30m away and let EVO II accurately control the speed of the drone to avoid a collision.
Viewpoint
Viewpoint allows the user to send the aircraft to a selected destination by touching a point on the screen. Featured with the same waypoints function as EVO to program autonomous flight routes. EVO II Dual can even save multiple waypoint missions making it easy for surveying.
Auto go home & Accurate Landing
EVO 2 Dual will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.
Super Battery Life & 9KM Extended Range
Autel EVO 2 Dual comes standard with a 7100mAh rechargeable battery. Providing up to 38min of flight time in forward motion to up to 9km away and 35min at a hover. And top speed up to 45MPH, additionally There is no geofencing or cellular service restrictions on any of EVO II Dual.
Need More EVO II 640T RTK details and more discounts,Just Contact Us
Detailed Specifications
Camera: 8K Camera + FLIR BOSON Thermal Camera
Thermal Camera
| Sensor | FLIR BOSON Sensor 640*512/ 320*256 |
| Pixels | EVO II Dual (640) 640*512 EVO II Dual (320) 320*256 |
| Pixel Pitch | 12 µm |
| Wavelength | 7.5 - 13.5µm |
| FOV | EVO II Dual (640) 32° EVO II Dual (320) 34° |
| Lens | EVO II Dual (640) 14 mm EVO II Dual (320) 6.3 mm |
| Zoom | 1 ~ 8x |
| Still Image Resolution | Infrared Mode:640x512 Picture in Picture Mode: 1920x1080, 1280x720 |
| Still Image Format | JPEG |
| Still Photography Modes | Single shot, Burst shooting, Time |
| Video Resolution | Infrared Mode: 640x512 (US) Picture in Picture Mode: 1920x1080 p30, 1280x720 p30 |
| Video Format | MOV/MP4 (H.264/H.265 supported) |
8k Camera
| Sensor | 1/2" CMOS Effective Pixels: 48 MP Performance temperature: -20~60°C |
| Lens | FOV: about 79° 35mm Format Equivalent: 25.6 mm Aperture: f/1.8 Shooting Range: 0.5 m to ∞ |
| ISO Range | Video: ISO100~3200 (Auto) Video: ISO100~3200 (Manual) Photo: ISO100~3200 (Auto) Photo: ISO100~3200 (Manual) |
| Shutter Speed | Electronic Shutter: 8 ~ 1/8000s |
| Digital Zoom | 1 ~ 8x (Max. 4x lossless zoom) |
| Still Image Resolution | 8000x6000 (4:3) 7680x4320 (16:9) 4000x3000 (4:3) 3840x2160 (16:9) |
| Still Image Format | JPEG / DNG / JPEG+DNG |
| Still Photography Modes | Single Shot Burst Shooting: 3/5 frames |
| Video Resolution | 7680x4320 p25/p24 5760x3240 p30/p25/p24 3840x2160 p60/p50/p48/p30/p25/p24 2720x1528 p120/p60/p50/p48/p30/p25/p24 1920x1080 p120/p60/p50/p48/p30/p25/p24 |
| Video Format | MOV / MP4 |
| Codecs | H.264 / H.265 |
| Max Video Bitrate | 120Mbps |
| HDR Video Recording | Supports 3840x2160, 2720x1528, 1920x1080 HDR video recording |
Gimbal
| Weight | 0.30 lbs (135 grams) |
| Mechanical Range | Pitch: -135° to +45 Yaw: -100° to +100° |
| Controllable Range | Pitch: -90° to +30° Yaw: -90° to +90° |
| Stabilization | 3-Axis (Tilt, Roll, Pan) |
| Max Control Speed (Tilt) | 300°/s |
| Angular Vibration Range | ±0.005° |
Aircraft
| Takeoff Weight | 2.5 lbs (1150 g) |
| Max Takeoff Weight | 4.4 lbs (2000 g) |
| Dimensions | Folded: 8.98 x 5.24 x 4.33 inch (L x W x H) (228 x 133 x 110 mm) Unfolded: 16.69 x 13.94 x 4.33 inch (L x W x H) (424 x 354 x 110 mm) |
| Diagonal Distance | 15.63 in (397 mm) |
| Max Service Ceiling Above Sea Level | 22,965 ft (7000 m) |
| Max Flight Time (no wind) | EVO II Dual (640) 38min EVO II Dual (320) 40min |
| Max Hovering Time (no wind) | EVO II Dual (640) 33min EVO II Dual (320) 35min |
| Max Flight Distance (no wind) | 15.53 miles (25 km) |
| Max Wind Speed Resistance | 39-46 mph (Level 8) |
| Max Tilt Angle | Standard mode: 28° Ludicrous mode: 33° |
| Max Angular Velocity | 120°/second |
| Max Ascent Speed | Standard mode: 11.18 mph (5 m/s) Ludicrous mode: 17.89 mph (8 m/s) |
| Max Descent Speed | Standard mode: 6.71 mph (3 m/s) Ludicrous mode: 8.94 mph (4 m/s) |
| Max Speed (near sea level, no wind) | Standard mode: 33.55 mph (15 m/s) Ludicrous mode: 44.73 mph (20 m/s) |
| Operating Temperature Range | 14°F to 104°F (-10°C to 40°C) |
| Operating Frequency | 2.4~2.4835GHz |
| Transmission Power (EIRP) |
2.4~2.4835GHz |
| GNSS | GPS/GLONASS/VIO/ATTI |
| Hovering Accuracy Range | Vertical: ± 0.78 in (when vision positioning is active) ± 7.87 in (with GPS positioning) Horizontal: ± 0.78 in (when vision positioning is active) ± 3.28 ft (with GPS positioning) |
| Internal Storage | 8 GB |
| SD Storage | Standard: 32 GB Max Micro SD Card Supported: 256 GB |
Sensing System (Obstacle Avoidance)
| Sensing System | Omnidirectional Binocular Obstacle Sensing System |
| Forward | Precision Measurement Range: 0.5-20 m Detectable Range: 0.5-40m Effective Sensing Speed: <15m/s FOV: Horizontal: 60°, Vertical: 80° |
| Backward | Precision Measurement Range: 0.5-16 m Detectable Range: 0.5-32m Effective Sensing Speed: <12m/s FOV: Horizontal: 60°, Vertical: 80° |
| Upward | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <6m/s FOV: Horizontal: 60°, Vertical: 50° |
| Downward | Precision Measurement Range: 0.5-11 m Detectable Range: 0.5-22m Effective Sensing Speed: <6m/s FOV: Horizontal: 100°, Vertical: 80° |
| Sides | Precision Measurement Range: 0.5-12 m Detectable Range: 0.5-24m Effective Sensing Speed: <10m/s FOV: Horizontal: 60°, Vertical: 50° |
| Operating Environment | Forward, Backward, Upward and Sides: Surface with clear pattern and adequate lighting (lux > 20) Downward: Surface with clear pattern and adequate lighting (lux > 20) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
Remote Controller
| Max Transmission Distance | FCC: 5.59 miles (9 km) CE: 3.10 miles (5 km) |
| Real-Time Transmission Quality | 1080p@30fps 720p@30fps |
| Max Bitrate of Real-time Transmission | 40Mbps |
| Operating Frequency | 2.4~2.4835GHz |
| Transmission Power (EIRP) | 2.4~2.4835GHz FCC: ≤26 dBm ISED: ≤26 dBm CE: ≤20 dBm RCM: ≤20 dBm SRRC: ≤26 dBm |
| Operating Temperature Range | 14°F to 104°F (-10°C to 40°C) |
| Battery | 5000 mAh |
| Weight | 0.82 lbs (370 grams) |
| Operating Current/Voltage | 1.7A @ 3.7V |
| Charging Temperature Range | 32°F to 104°F (0 to 40°C) |
| Supported Mobile Device Size | Max Length: 3.30" (84mm) Max Thickness: 0.51" (13mm) |
| Supported USB Port Types | Lightning, Micro USB (Type-B), USB-C |
| Operating Hours | 3 hours |
| Display | 3.26-inch OLED screen 854 (W)*480 (H) pixels Preview video without the need for connecting to a mobile phone |
Battery
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Max Charging Voltage | 13.2 V |
| Battery Type | LiPo 3S |
| Energy | 82 Wh |
| Net Weight | 0.81 lbs (365 grams) |
| Charging Temperature Range | 41°F to 104°F (5°C to 40°C) |
| Max Charging Power | 93 W |
| Charging Time | 90min |
