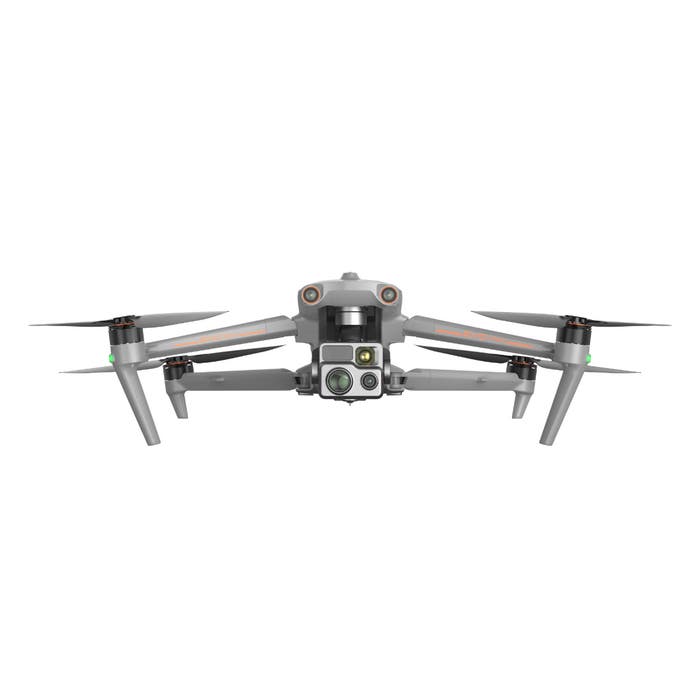

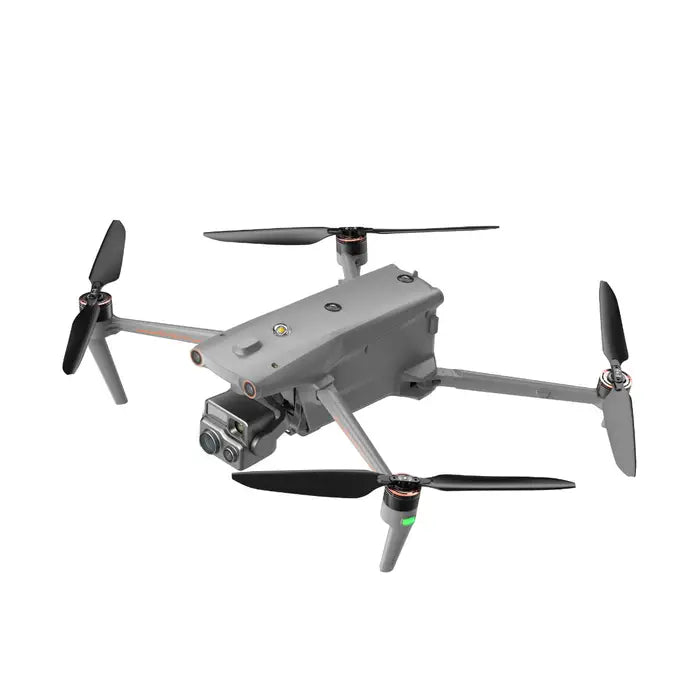

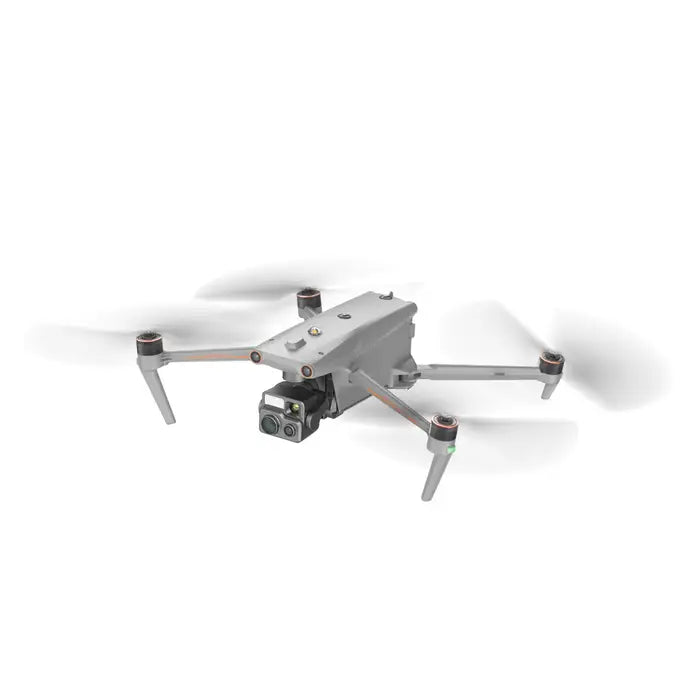

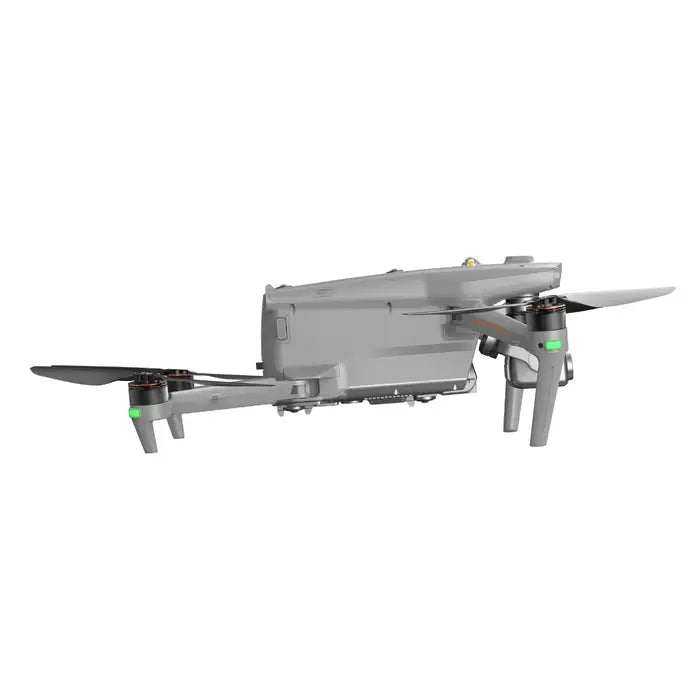

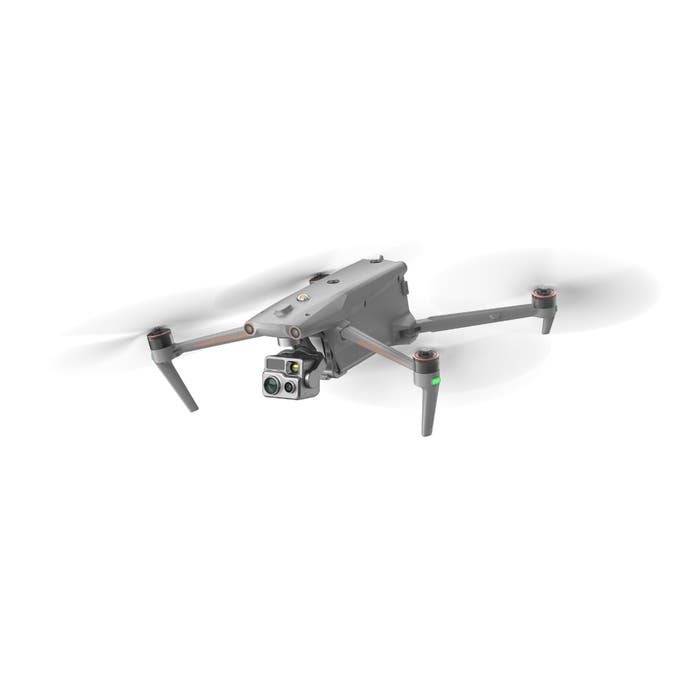

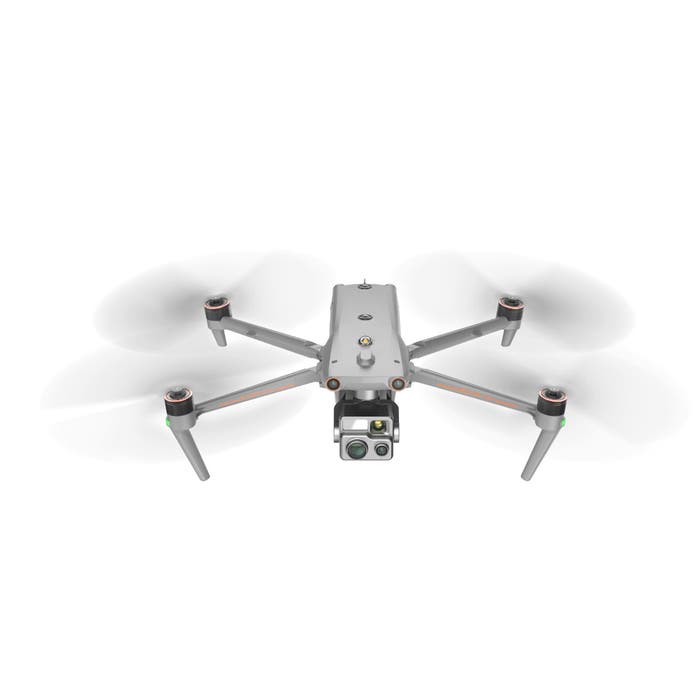

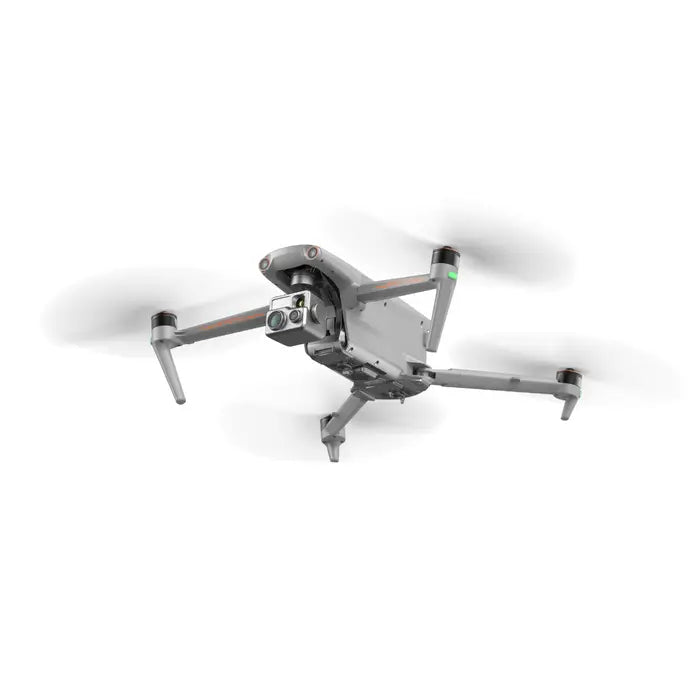

Autel-Robotics EVO MAX 4T XE: Industrial-Grade Precision Drone | Maximum Propeller Rotational Speed 8,000 RPM
Description
The Autel EVO MAX 4T XE is a professional-grade drone specifically engineered for high-stakes industries where precision, durability, and advanced imaging capabilities are paramount. This industrial-grade aerial performance redefines the standards for demanding fields such as energy, public safety, and infrastructure inspection.
What's in the Box:
- Autel EVO Max 4 Aircraft
- Autel EVO Max 4T XE Camera/Gimbal
- Autel EVO Max 4 Series Intelligent Flight Battery
- Autel EVO Max 4 Series Gimbal Cover
- Autel EVO Max 4 Series Battery Charger & Power Cable
- 3x Autel EVO Max 4 Series Propellers (Pair) x3 (3-CW/3-CCW)
- Autel Smart Controller V3
- Autel Smart Controller Lanyard
- Autel Smart Controller Cover
- Autel Smart Controller Joysticks (Spare Pair) x1
- Autel RC Charger
- Autel RC Charging Cable

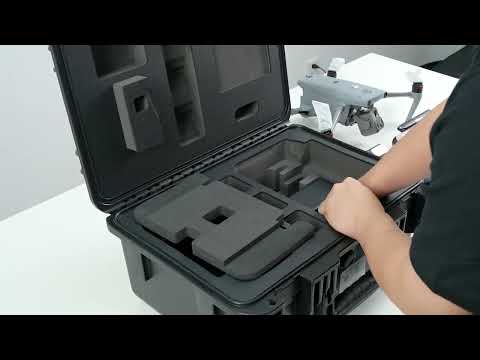

- Autel EVO Max 4 Series Rugged Case
- 64GB MicroSD Card
- Screwdriver
- Data Cable
- Manual
- Quick Start Guide
- Packing List
- Limited 1-Year Manufacturer Warranty
Key Features
- Autonomous Flight Technology: Navigate with accuracy using global path planning, autonomous obstacle avoidance, and return-to-home features.
- High-Precision Visual Navigation: Reliable in obstructed or low-signal environments, perfect for urban and mountainous operations.
- SLAM Visual Navigation: Smooth indoor and outdoor navigation, ensuring data consistency and safety in all settings.
- FusionLight Camera Suite: Capture a remarkable level of detail and data from the air with a 4K 10x zoom, ultra-sensitive wide-angle, thermal imaging, and laser rangefinder.
- A-Mesh Networking: Seamless multi-drone connectivity for coordinated operations, enabling "one-to-many control" and "dual control" modes for flexible mission coordination.
- Extended Range & Collaboration: Conduct missions over vast distances with uninterrupted HD transmission, allowing for "autonomous communication" over 15 km.
Detailed Specifications
| Category | Specification |
|---|---|
| Aircraft Weight | 1640 g (3.62 lbs) |
| Maximum Take-off Mass | 1999 g (4.41 lbs) |
| Dimensions | 562 × 651 × 147 mm (unfolded, incl. propellers) |
| Propeller Dimension | 11 inches |
| Propeller Weight | 10.5 g |
| Maximum Propeller Rotational Speed | 8000 RPM |
| Maximum Ascent Speed | 8 m/s (Ludicrous mode) |
| Maximum Descent Speed | 6 m/s (Ludicrous mode) |
| Maximum Horizontal Flight Speed | 23 m/s (forward, Ludicrous mode) |
| Maximum Service Ceiling | 4000 m (13,123 ft) |
| Maximum Flight Altitude | 800 m (2625 ft) |
| Maximum Flight Time | 42 minutes |
| Maximum Hovering Time | 38 minutes |
| Maximum Wind Resistance | 12 m/s (27 mph) |
| IP Rating | IP43 (custom service) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Internal Storage | 128 GB (64 GB available) |
Gimbal Specifications:
| Category | Specification |
|---|---|
| Mechanical Range | Pitch: -135° to 45°, Yaw: -45° to 45°, Roll: -45° to 45° |
| Controllable Range | Pitch: -90° to 30° |
| Stabilization System | 3-axis mechanical gimbal (pitch, yaw, roll) |
| Max Control Speed (Pitch) | 100º/s |
| Angular Vibration Range | < 0.005° |
EVO Max 4T XE Zoom Camera Specifications:
| Category | Specification |
|---|---|
| Sensor | 1/2" CMOS, 48M effective pixels |
| Lens | Focal length: 11.8-43.3 mm, 35 mm equivalent: 64-234 mm, Aperture: f/2.8-f/4.8 |
| ISO Range | Normal mode: Auto: ISO 100 ~ ISO 6400, Manual: Photo: ISO 100 ~ ISO 6400 |
| Shutter Speed | 1/8 s ~ 1/10000 s |
| Digital Zoom | 2.7-10x continuous optical zoom, 160x hybrid zoom |
| Max Photo Resolution | JPG: 4000 × 3000, 8192 × 6144, DNG: 4000 × 3000 |
| Max Video Resolution | 4000 × 3000 30P |
EVO Max 4T XE Infrared Thermal Imaging Camera Specifications:
| Category | Specification |
|---|---|
| Image Sensor | Uncooled VOx Microbolometer |
| Lens | FOV: 61°, Focal length: 9.1 mm, Aperture: f/1.0, Focusing distance: 2.2 m ~ ∞ |
| Radiometric Measurement Accuracy | ±2°C or ±2% of reading (using the larger value) @ ambient temperature range -20°C to 60°C (-4°F to 140°F) |
| Video Resolution | 640 × 512 30P |
| Photo Size | 640 × 512 |
| Pixel Pitch | 12 µm |
| Radiometric Measurement Methods | Center measurement, spot measurement, rectangular measurement |
| Temperature Measurement Range | -20°C to 150°C (-4°F to 302°F), 0°C to 550°C (32°F to 1022°F) |
Benefits:
- Unleash precision and power in motion with the Autel EVO MAX 4T XE
- Experience advanced imaging capabilities with the FusionLight camera suite
- Enjoy seamless multi-drone connectivity with A-Mesh networking
- Conduct long-range operations with uninterrupted HD transmission
- Operate in challenging environments with IP43 weather rating and comprehensive 720° obstacle avoidance
