Product Description
Autel Robotics EVO MAX Nest | Operation Range 4.4 Miles | Operating Temperature −30°C to 55°C
Description

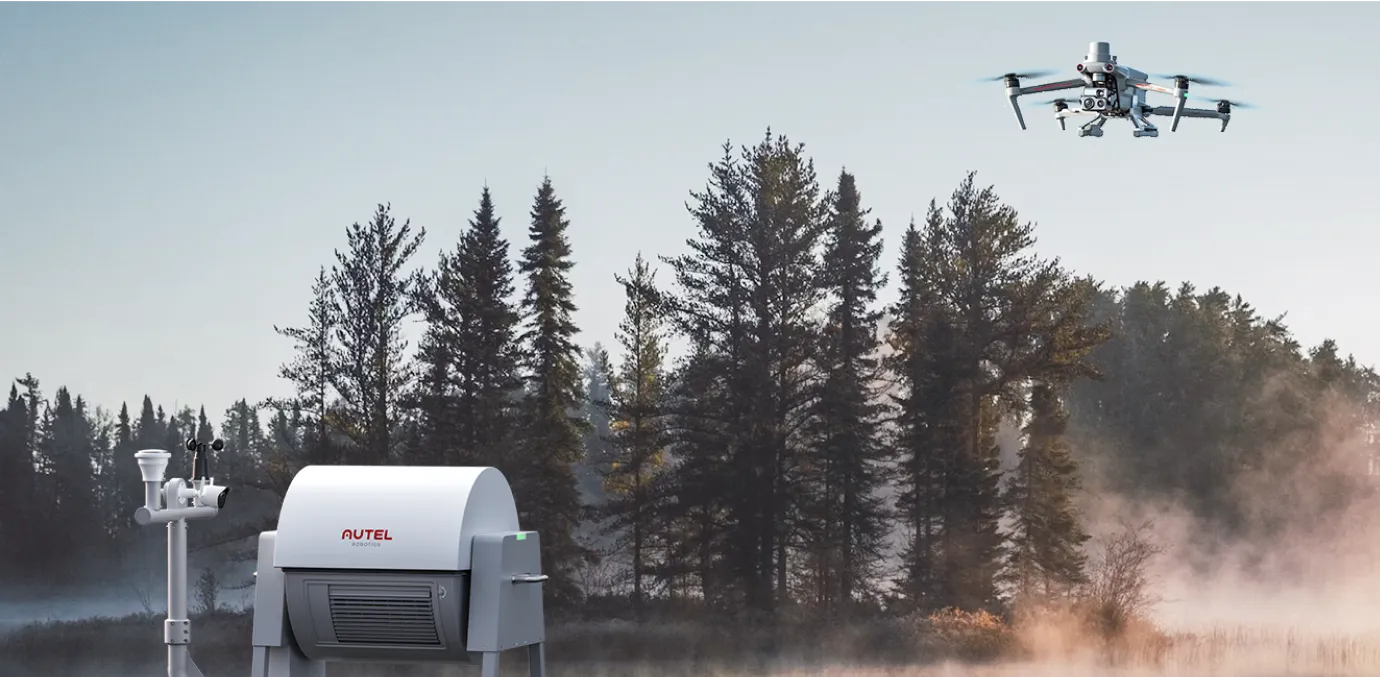

The Autel EVO Max Nest is a rugged, transportable base station designed to simplify remote drone operations for the Autel EVO series. Built for all-weather performance, it enables automatic takeoff, landing, charging, and mission planning, making it ideal for industrial inspection, public safety, and surveillance.
With its drum-style protective design, the Nest minimizes moving parts for easier maintenance and durability. Lightweight enough for two people to carry and compact enough to fit in a pickup truck bed, it offers unmatched portability. Paired with the Autel Integrated Command System (AICS), the EVO Max Nest supports autonomous, semi-autonomous, or remote piloting, providing centralized management of multiple drones across large areas.
Key Features
- 4.4-Mile Operation Range – Supports extended patrol and inspection missions.
- Ultra-Fast Charging – Charges drone batteries from 10% to 90% in just 25 minutes*.
- All-Weather Performance – Operates between −22°F and 131°F with IP55 dust and water resistance.
- Drum-Style Protective Design – Single-piece housing reduces maintenance and increases reliability.
- Lightweight & Portable – Weighs 154 lbs with a footprint under 1 yd²; fits in pickup truck bed.
- AES-256 Encryption – Ensures secure image transmission and mission data protection.
- Autonomous Operation – Automatic takeoff, landing, charging, and mission execution.
- Flexible Mission Control – Supports wired, 4G, and 5G networks for route, waypoint, and target planning.
- AI Target Recognition – Identifies people, vehicles, ships, smoke, and fire during missions.
- Cloud Data Management – Uploads flight and mission data for easy access and storage.
- SDK Solutions – Customizable for industry-specific applications and payload integration.
\*Battery temperature must be between 77°F and 86°F for optimal fast charging.
Detailed Specifications
| Category | Specification |
|---|---|
| Model | Autel EVO Max Nest |
| Weight | 154 lbs (70 kg) |
| Footprint | < 1 yd² |
| Setup | Two-person deployment |
| Operation Range | 4.4 miles |
| Charging Time | 10%–90% in 25 minutes (at 77°F–86°F) |
| Weather Resistance | IP55 rating |
| Operating Temperature | −22°F to 131°F (−30°C to 55°C) |
| Design | Drum-style protective housing |
| Network Support | Wired, 4G, 5G |
| Encryption | AES-256 image transmission |
| Autonomy | Automatic takeoff, landing, charging, mission planning |
| Data Management | Cloud upload for flight and mission logs |
| Integration | Autel Integrated Command System (AICS) |

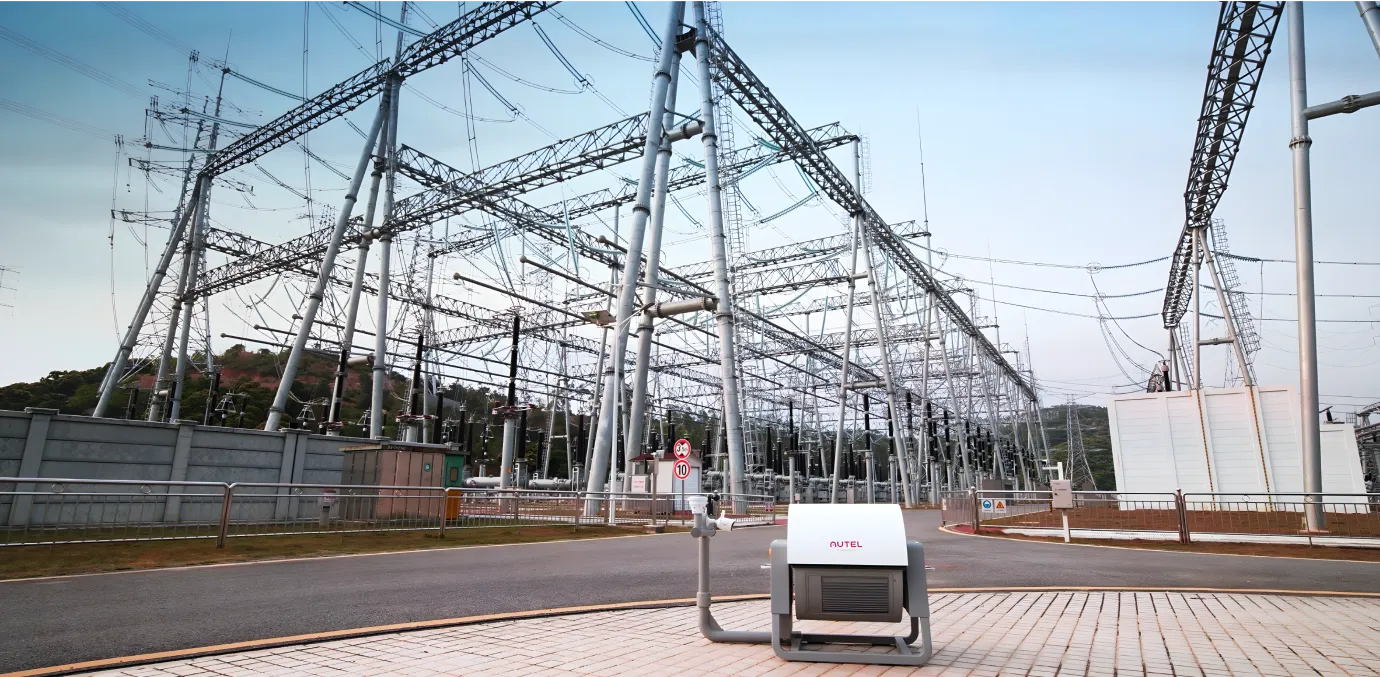

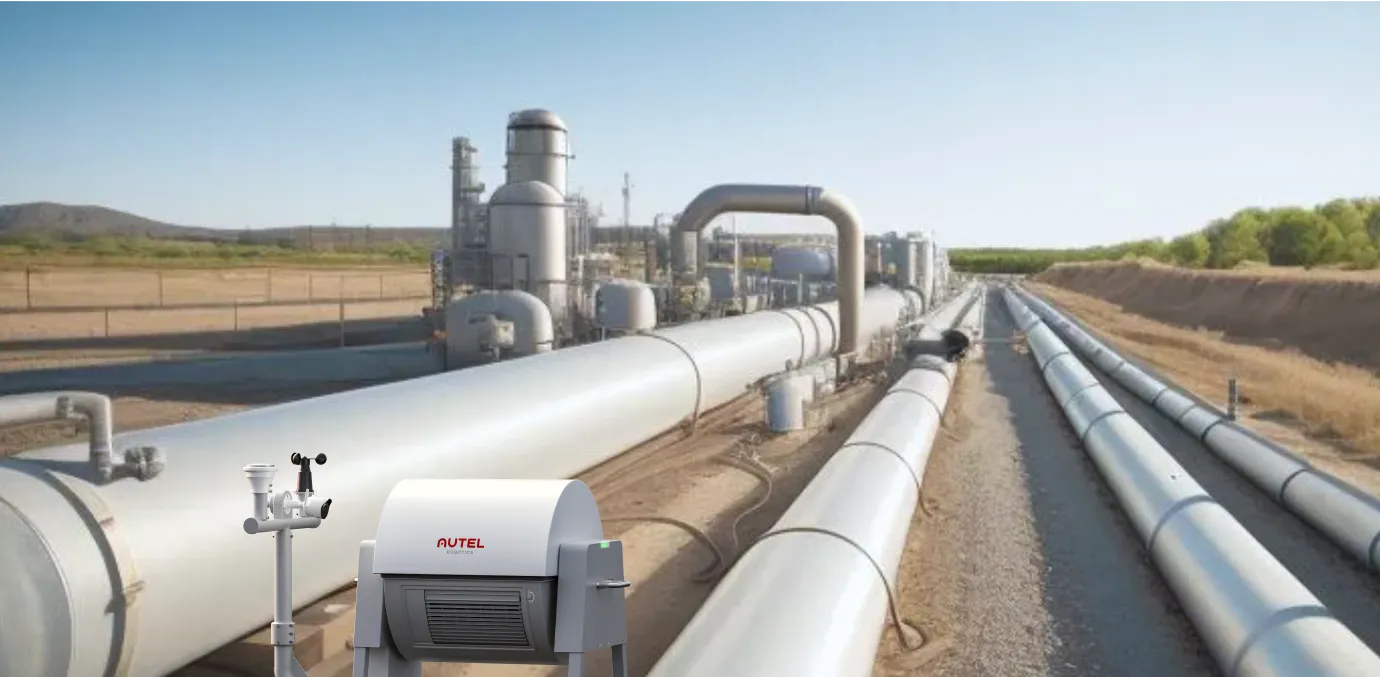

| Applications | Surveillance, pipeline inspection, powerline inspection, forestry monitoring |
