Product Description
Barko Rough Terrain Loader | Model 495B RTC | Width 9' 11" Ft | Horsepower 173 HP | For Logging and Loading
Ripping It has partnered with Quality Equipment to provide you the best pricing and service on all your Barko's needs!
DESCRIPTION

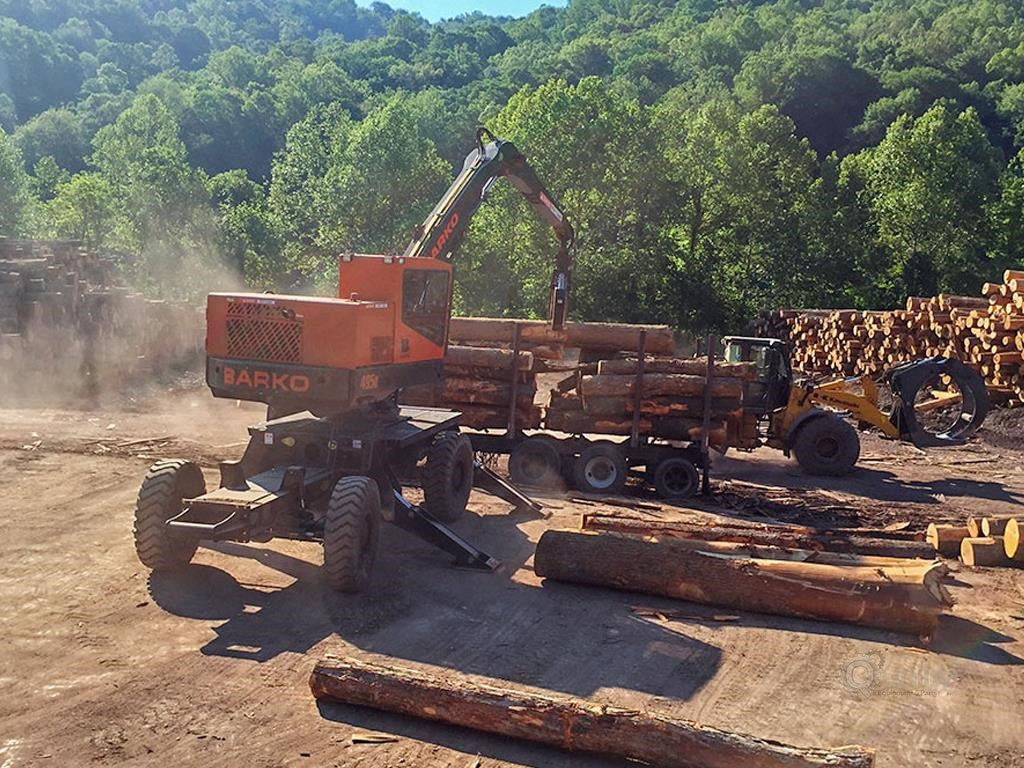

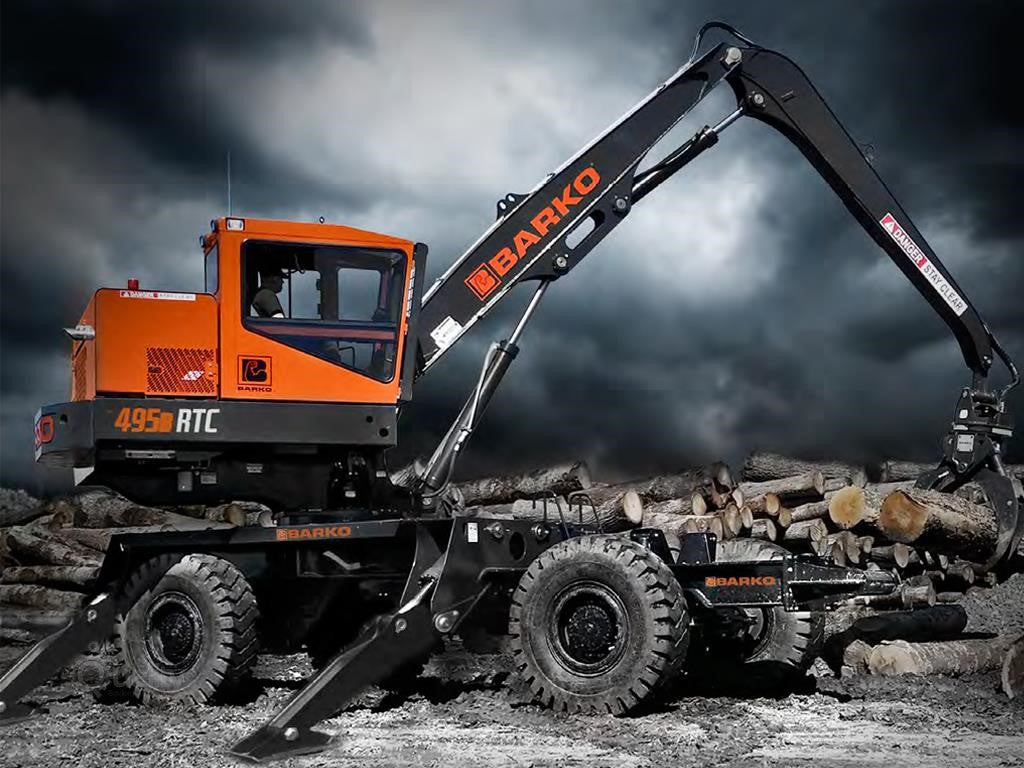

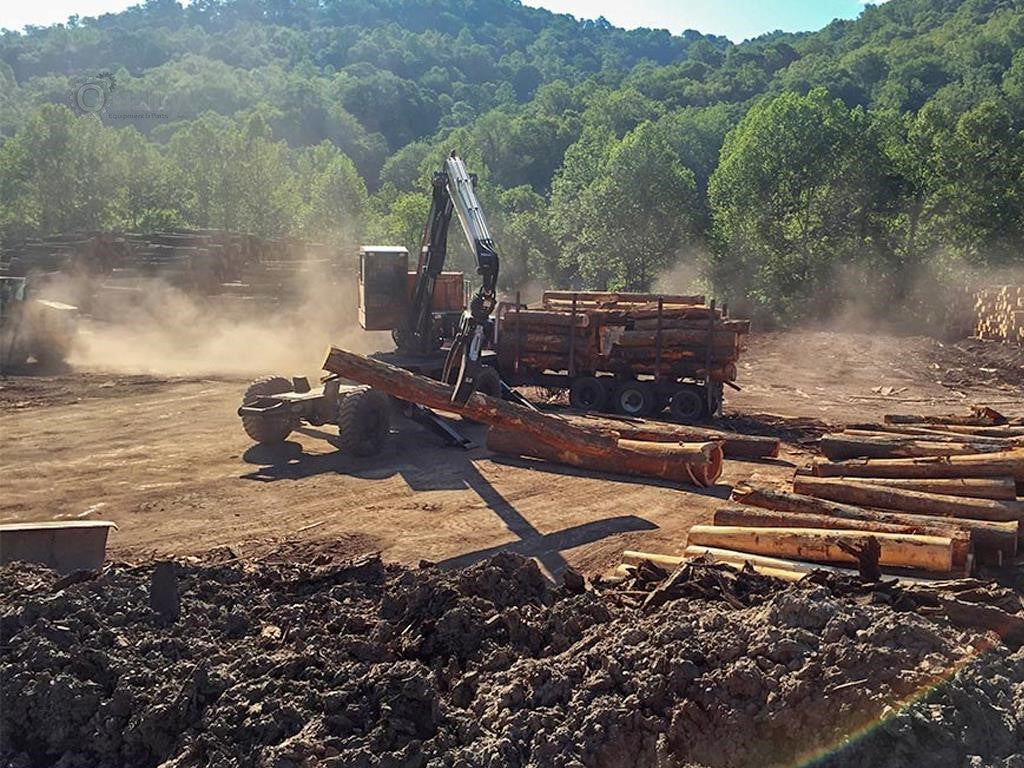

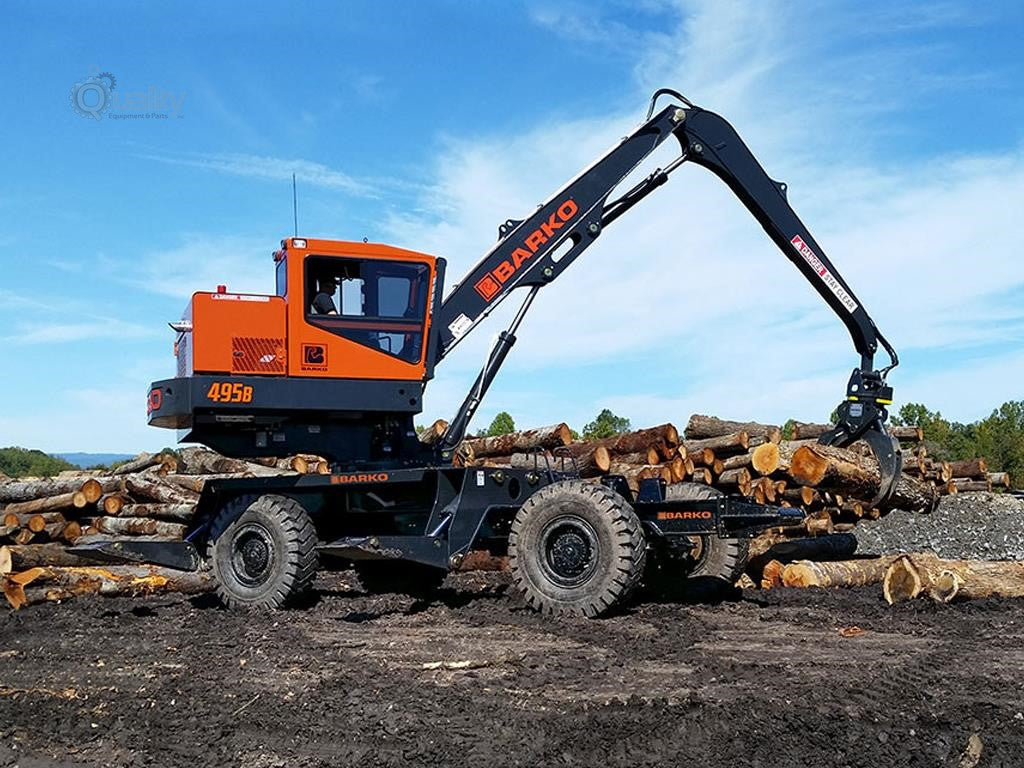

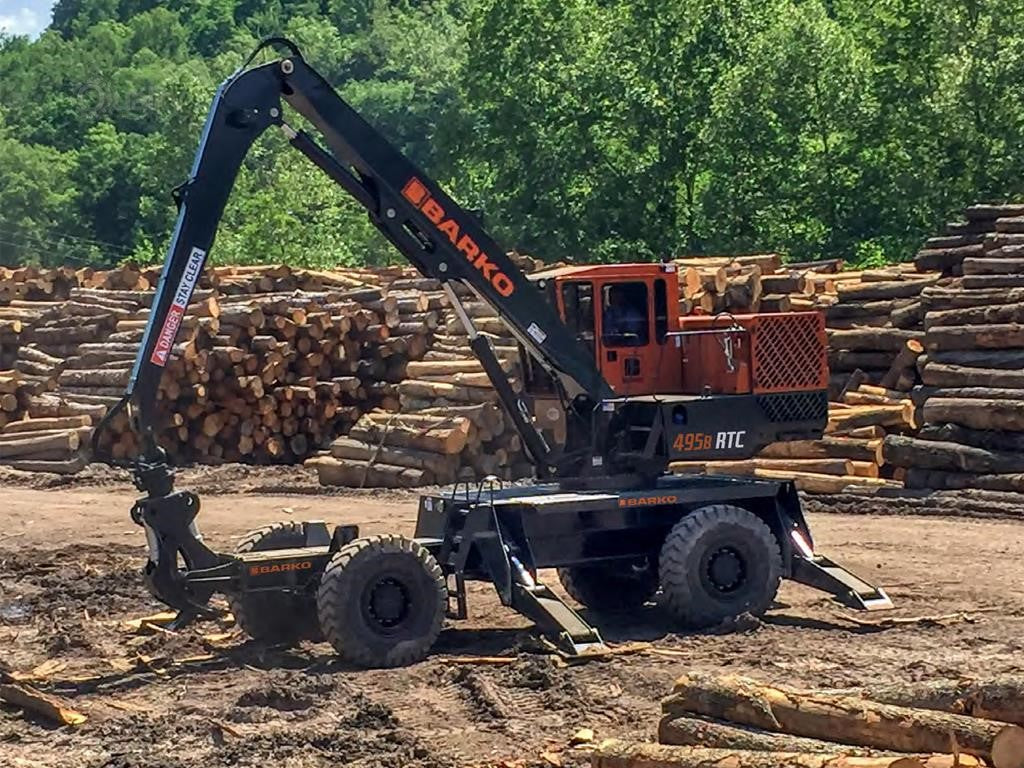

The Barko 495B RTC Rough Terrain Carrier Loader is engineered to combine agility, productivity, and durability for even the toughest operations. Whether in log yards or on construction sites, this machine excels with a powerful 173 HP Cummins QSB6.7 Tier 4 diesel engine, delivering efficient performance while maintaining reliability. The rough terrain carrier frame ensures unmatched stability, while 4-wheel, 2-wheel, and crab steering modes offer ultimate maneuverability in tight or challenging spaces. With load-sensing hydraulics, ergonomic joystick controls, and a robust boom construction, the 495B RTC is designed to save time, optimize tasks, and withstand demanding conditions.
Key Features
- Engine Efficiency: Features a 173 HP Cummins QSB6.7 Tier 4 diesel engine with SCR aftertreatment for clean, powerful performance.

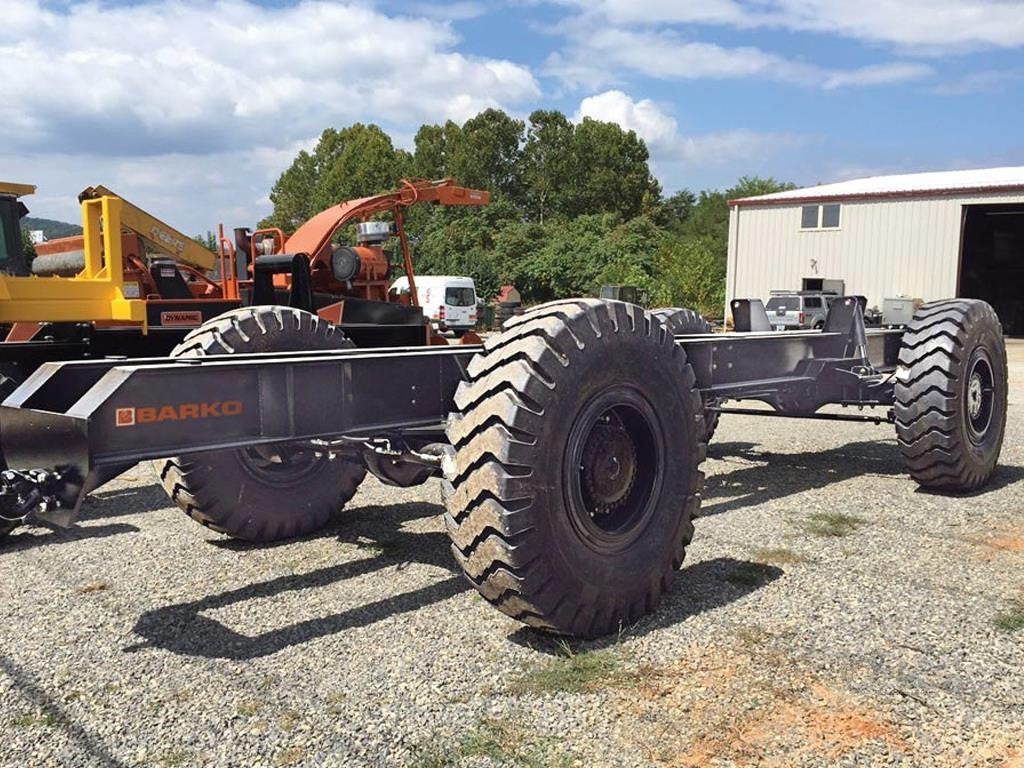

- Frame Stability: Rigid rough terrain carrier frame ensures safe and steady operation in demanding applications.
- Drawbar Pull: Provides 21,000 lbf, enough to pull a log trailer, navigate mud, and conquer 45% grades.
- Steering Options: 4-wheel, 2-wheel, and crab steering for navigating piles, tight spots, or rough terrain.
- Speed and Maneuverability: Reaches speeds up to 12 mph in high gear, with a sharp 18-foot turning radius in 4-wheel steer.
- Boom Strength: All-welded box-type boom design with a 32' horizontal reach and maximum lift capacity of 28,720 lbs.
- Operator Comfort: Floating cab with climate control, ergonomic seating, and 360-degree tinted windows for a safe and comfortable work environment.
- Hydraulic Precision: Load-sensing hydraulics adapt power usage for fuel efficiency and reduced operator fatigue.
- Service-Friendly: Centralized grease points, removable service panels, and bolt-on cylinder glands streamline maintenance.
Detailed Specifications
| Category | Details |
|---|---|
| Overall Height | 14' 2" (432 cm) |
| Overall Length | 41' 4" (1,260 cm) with 32’ boom extended |
| Overall Width | 9' 11" (302 cm) |
| Ground Clearance | 19" (48 cm) |
| Stabilizer Width | 15' 11" (485 cm) |
| Tail Swing | 9' 3" (282 cm) with 7,000 lbs counterweight |
| Operating Weight | 48,200 lbs (21,863 kg) without attachment |
| Maximum Speed | 12 mph (19.3 km/h) high gear, 3.4 mph (5.5 km/h) low gear |
| Tractive Effort | 25,000 lbf (111.2 kN) |
| Gradeability | 45% |
| Horizontal Reach | 32' (975 cm) |
| Vertical Reach | 38' 4" (1,168 cm) |
| Maximum Lift Capacity | 28,720 lbs (13,027 kg) |
| Pump Flow Rate | 88 GPM (333 LPM), variable displacement piston |
| Operating Pressure | 3,600 psi (248 bar) |
| Tank Capacity | 112 gal. (424 L) |
| Swing Torque | 44,000 ft-lbf (59,656 Nm) |
| Rotation Speed | 9 RPM |
| Operator Comfort | Vibration-isolated floating cab, climate-controlled, ergonomic design |
| Instrument Panel | Digital display with enhanced monitoring |
