Baumalight Industrial Tree Spade | Model DR-438 | Ball Attachment Size 38" | Horsepower 70To 85 HP | Hydraulic Flow 5 To 20 GPM | For Tractors & Skid Steers
Baumalight Industrial Tree Spade | Model DR-438 | Ball Attachment Size 38" | Horsepower 70To 85 HP | Hydraulic Flow 5 To 20 GPM | For Tractors & Skid Steers
Regular price
$19,560.00
Regular price
Sale price
$19,560.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Baumalight Industrial Tree Spade | Model DR-438 | Ball Attachment Size 38" | Horsepower 70 To 85 HP | Hydraulic Flow 5 To 20 GPM | For Tractors & Skid Steers
Description

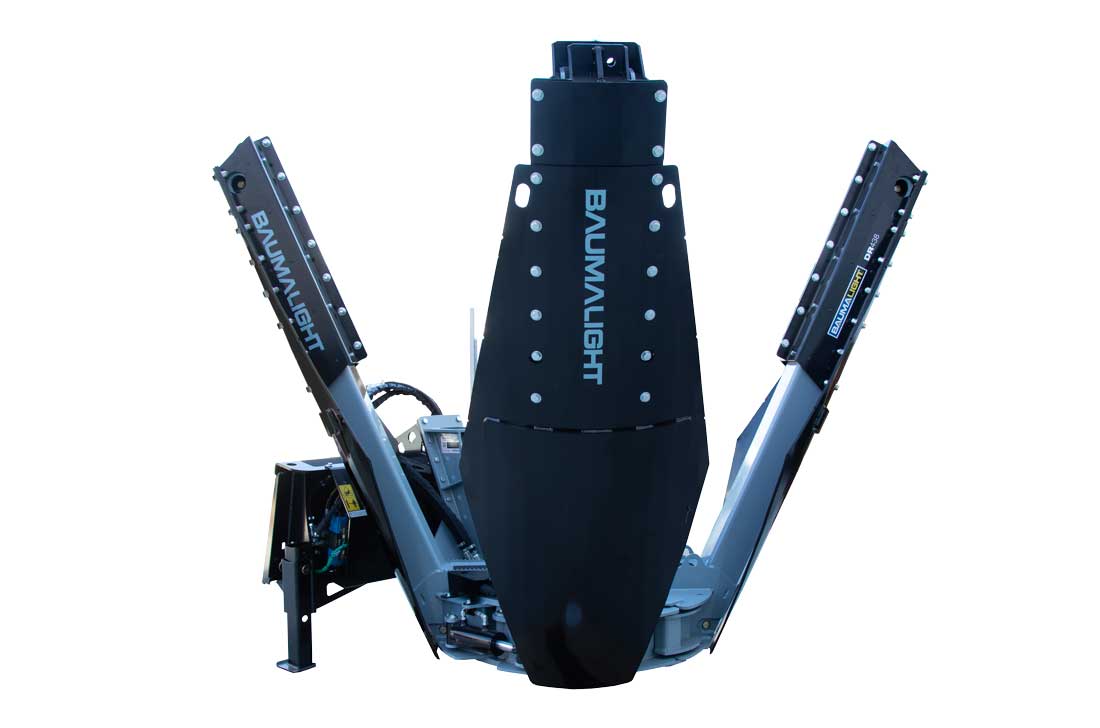

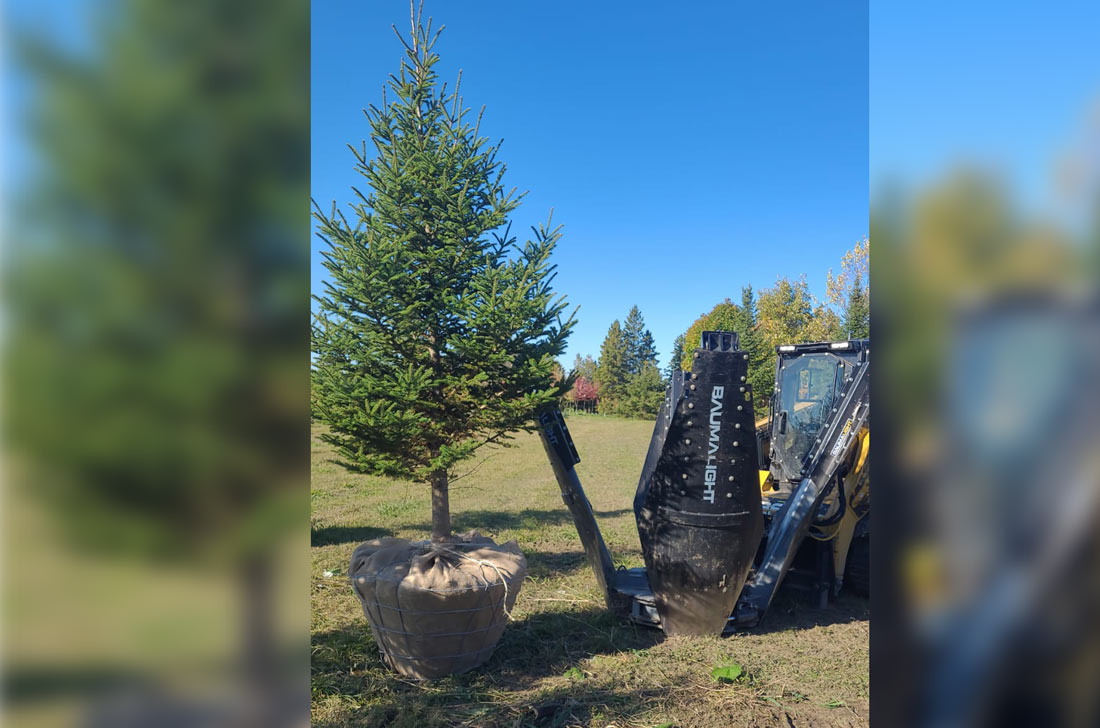

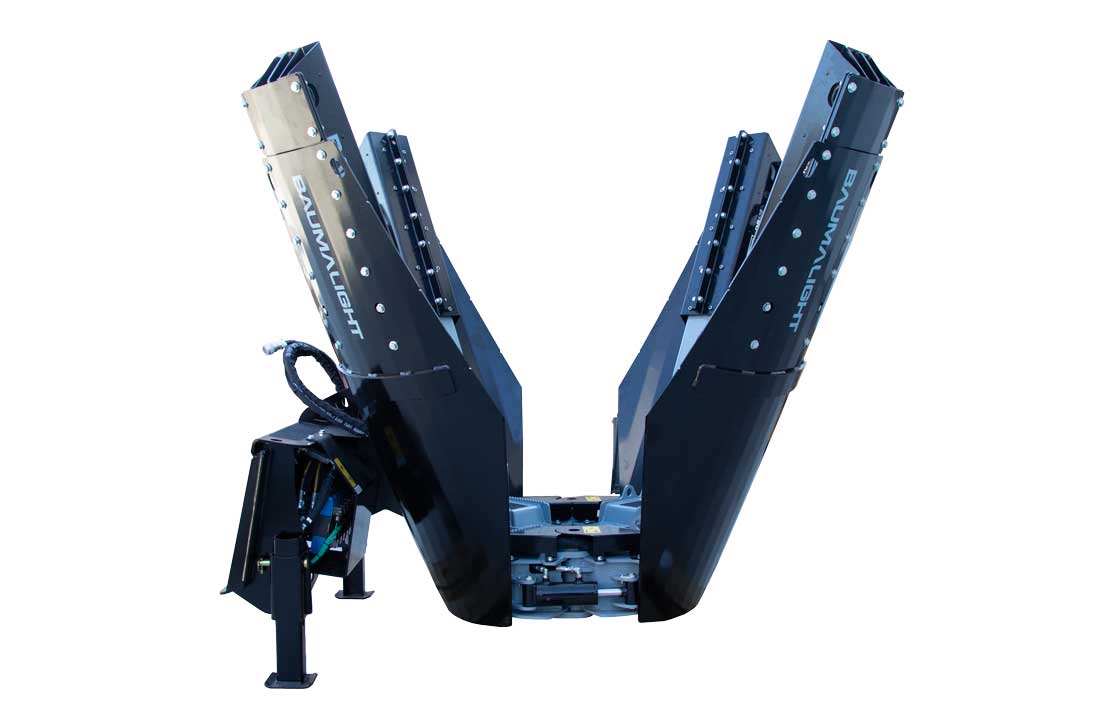

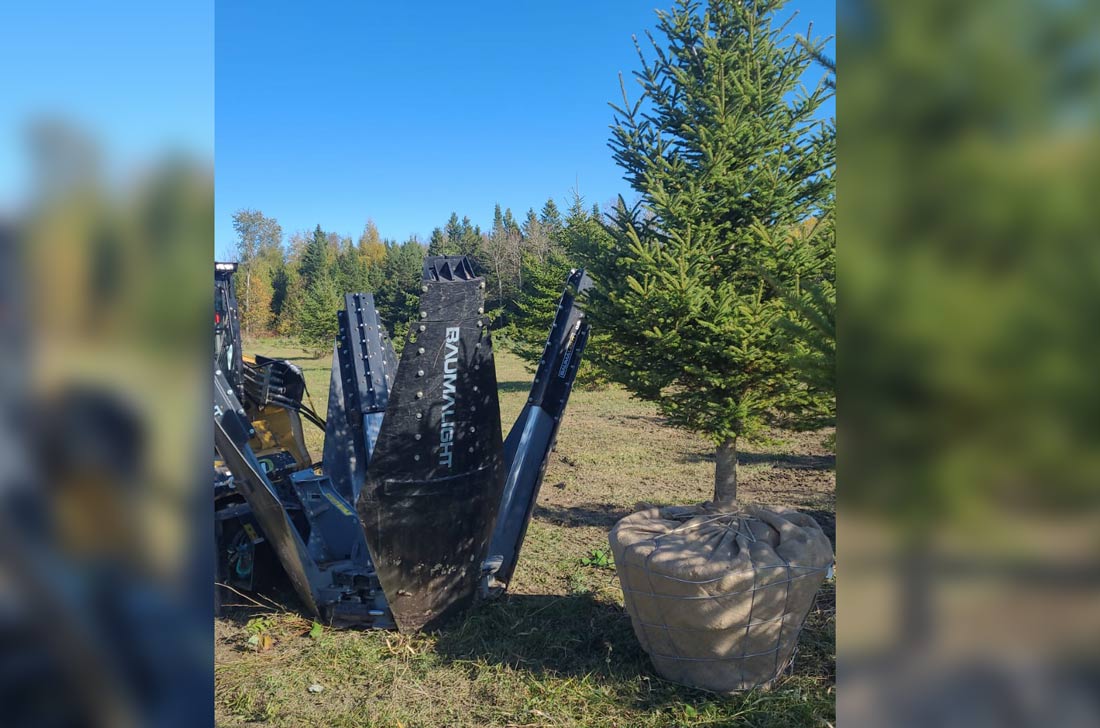

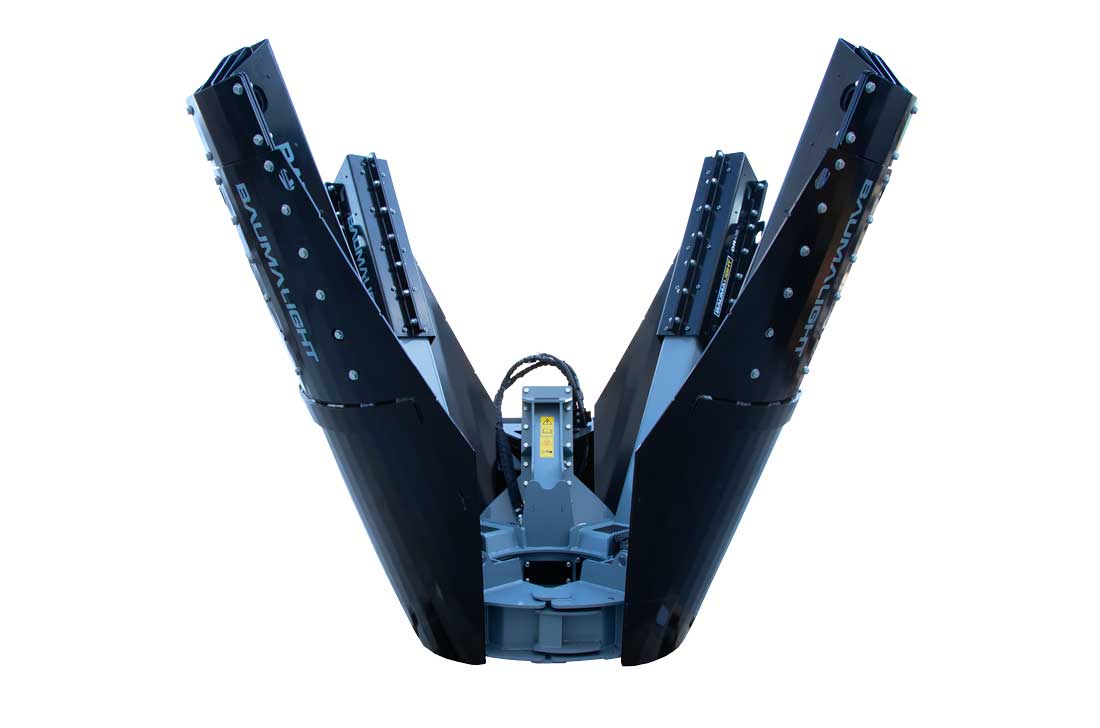

Engineered for precision, power, and reliability, the Baumalight DR-438 Industrial Tree Spade is your ultimate partner for heavy-duty tree relocation. Whether you're managing a commercial landscaping project, operating a tree nursery, or tackling ambitious property upgrades, the DR-438 empowers you to dig, lift, and transplant trees with efficiency and ease.
Built from ultra-durable 5/16" T1 steel, this 38" root ball spade is crafted for penetrating dense soils—clay, sand, or loam. It features four rugged truncated blades driven by powerful hydraulic cylinders that offer consistent spading performance powered by your tractor (70–85 HP) or skid steer (5–20 GPM hydraulic flow).
The DR-438 doesn’t just move trees it moves your productivity forward. With intuitive control options (electric, wireless, or AUX hydraulic), anti-slip step pads, and universal mounting compatibility, it’s designed with operators in mind. Long-life nylon sliders, greasable pins, and JIC hydraulic fittings ensure smooth operation and minimal maintenance.
If you’re serious about tree relocation, trust the machine that’s built to last through seasons, soil types, and job sites. The Baumalight DR-438 tough where it counts, smooth where it matters.
Key Features
- Heavy-Duty T1 Steel Blades 5/16” thick, made to withstand harsh digging environments.
- 38" Root Ball Diameter Ideal for relocating evergreens up to 4" and hardwoods up to 3.5".

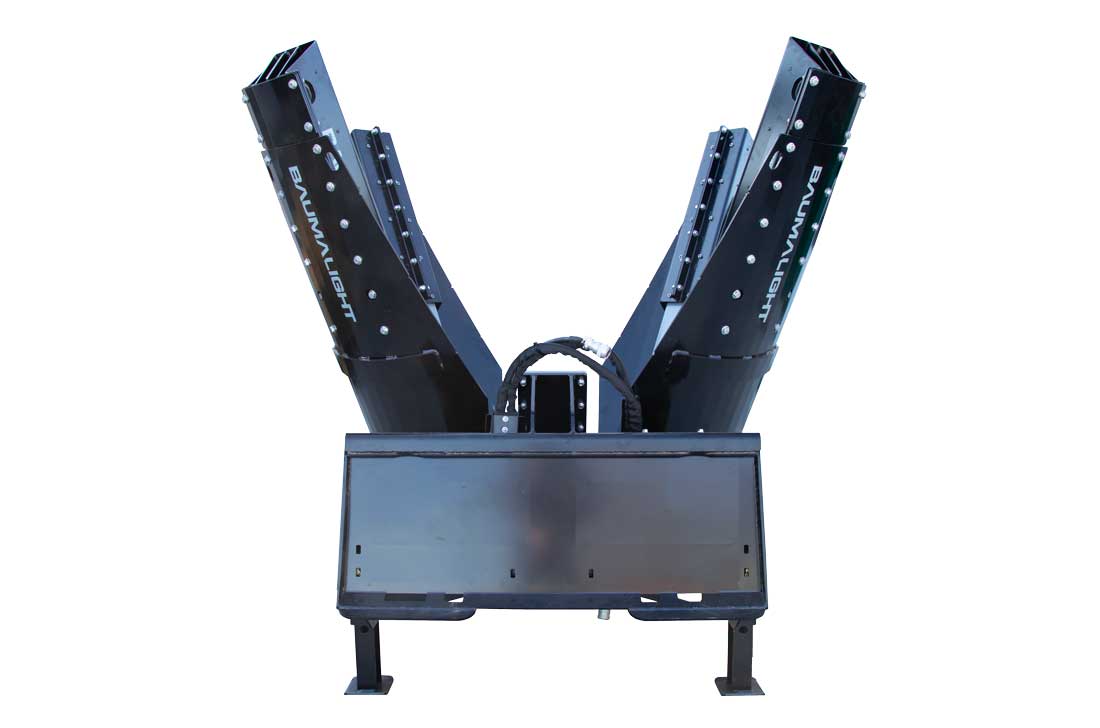

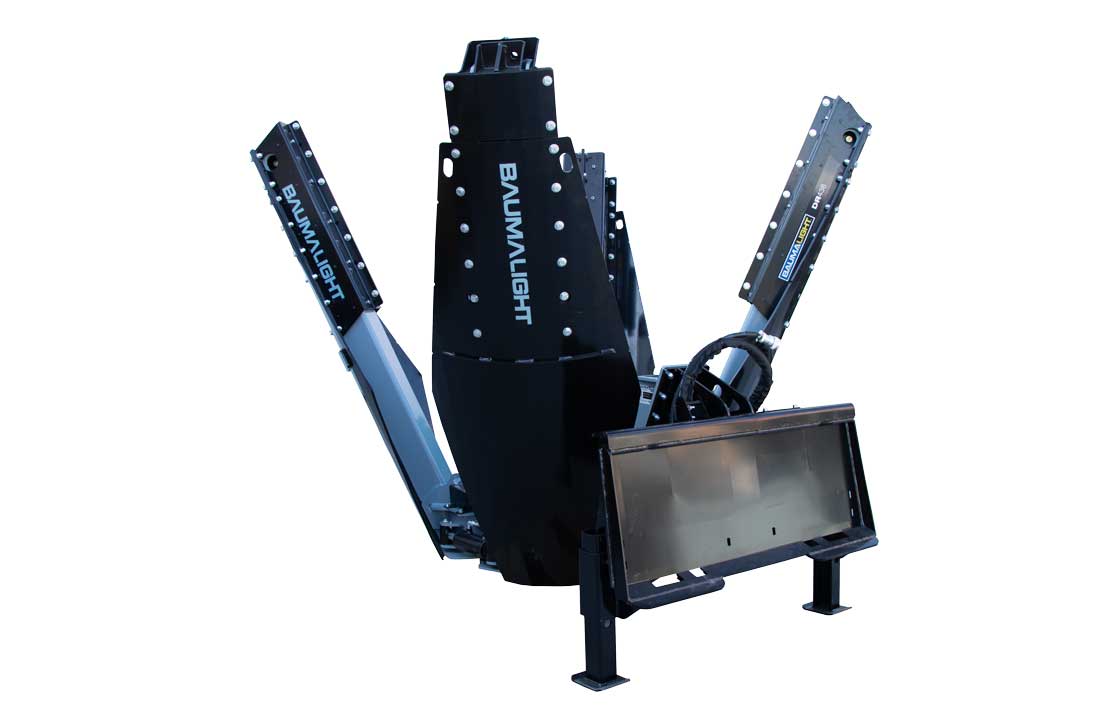

- Universal Skid Steer Adapter Easily fits most standard skid steers for quick setup.
- Tractor Compatibility (70–85 HP) Perfectly matched for medium-duty tractors with adequate lifting capacity.
- Hydraulic Flow Range: 5–20 GPM Compatible with a wide variety of skid steers and auxiliary systems.
- Three Control Options Choose from electric, wireless, or AUX hydraulic controls for maximum flexibility.
- Anti-Slip Step Pads Designed for safe mounting and dismounting in all weather conditions.
- Adjustable Stabilizers Two field-adjustable stabilizers adapt to different root ball sizes on the fly.
- Truncated Blades Narrower bottom cuts for better soil penetration and compaction in various soil types.
- Sleeved Hydraulic Hoses Built-in protection for long life and operator safety.
- Lockable Latch System Hands-free operation that adds structural rigidity during use.
- Nylon Sliders Grease-free, long-lasting sliders on all four towers ensure smooth blade movement.
- Greaseable, Zinc-Plated Pins Corrosion-resistant and built for long-term smooth articulation.
- Lifting Eye for Storage & Transport Safe, convenient lifting point for trailering or warehouse storage.
- Powder-Coated Finish Long-lasting protection against corrosion, chips, and UV damage.
Detailed Specifications
| Category | Specification |
|---|---|
| Brand | Baumalight |
| Model | DR-438 |
| Attachment Type | Universal Skid Steer Adapter / Optional Bolt-in Tractor Loader Adapter |
| Root Ball Diameter | 38 inches |
| Root Ball Depth | 27 inches |
| Compatible Equipment | Skid Steers, Tractors, Backhoes, Wheel Loaders, Telehandlers |
| Horsepower (Tractor) | 70–85 HP |
| Hydraulic Flow (GPM) | 5–20 GPM (Skid Steer/AUX Hydraulic Systems) |
| Tree Size (Evergreen) | Up to 4 inches |
| Tree Size (Hardwood) | Up to 3.5 inches |
| Blade Material | 5/16" T1 Steel |
| Blade Count | 4 |
| Blade Type | Semi-Truncated |
| Control Options | Electric (20' wire), Wireless (20' range), AUX Hydraulic |
| Equipment Weight Min. | 6,260 – 9,260 lbs (varies by attachment type) |
| Unit Weight | 2,500 lbs |
| Weight w/ Root Ball | 3,410 lbs |
| Finish | Industrial-grade Powder Coat |
| Tower Slides | Nylon, Maintenance-Free |
| Hydraulic Pressure | 2900–4000 PSI |
Tree Spade Control Options
| Feature | Electric Controls | Aux Connection | Wireless Controls |
|---|---|---|---|
| Control Type | Wired Electric | Hydraulic Aux | Wireless Remote |
| Wire Length | 20 ft | Requires Harness | 20 ft |
| Tree Size (Evergreen) | Up-to 4" | Up-to 4" | Up-to 4" |
| Tree Size (Hardwood) | Up-to 3.5" | Up-to 3.5" | Up-to 3.5" |
| Minimum Equipment Weight | 6,260-9,260 lbs (varies by equipment type) | 6,260-9,260 lbs (varies by equipment type) | 6,260-9,260 lbs (varies by equipment type) |
Comparison Chart
| Feature | DR434 | DR438 |
|---|---|---|
| Tree Size (Evergreen) | 3.5" | 4" |
| Tree Size (Hardwood) | 3" | 3.5" |
| Root Ball Diameter (inches) | 34" | 38" |
| Root Ball Depth | 23" | 27" |
| Opening (Width) | 10" | 17" |
| Hydraulic Flow (GPM) | 5-20 | 5-20 |
| Blade Truncation | Semi | Semi |
| Weight | 2480 | 2500 |
| Weight with Root Ball (lbs) | 2865 | 3410 |
| Feature | DR444 | DR448 |
|---|---|---|
| Tree Size (Evergreen) | 5" | 6" |
| Tree Size (Hardwood) | 4" | 5" |
| Root Ball Diameter (inches) | 44" | 48" |
| Root Ball Depth | 31" | 38" |
| Opening (Width) | 27" | 30" |
| Hydraulic Flow (GPM) | 5-20 | 5-20 |
| Blade Truncation | Semi | Full |
| Weight | 2950 | 3785 |
| Weight with Root Ball (lbs) | 4150 | 6020 |
