Baumalight Log Splitter | Model RSX380, RSX580 & RSX780 | Diameter 16" To 20" | Machine Size 5 To 20 Tons | For Excavators
DESCRIPTION
Unlock the full potential of your excavator with the Baumalight RSX Series Log Splitters the heavy-duty, high-performance wood splitting and stump planing attachments engineered for 5 to 20-ton excavators. Whether you're managing dense forestry operations, clearing land, or handling municipal wood waste in tight urban spaces, the RSX Series delivers unmatched power, efficiency, and control.

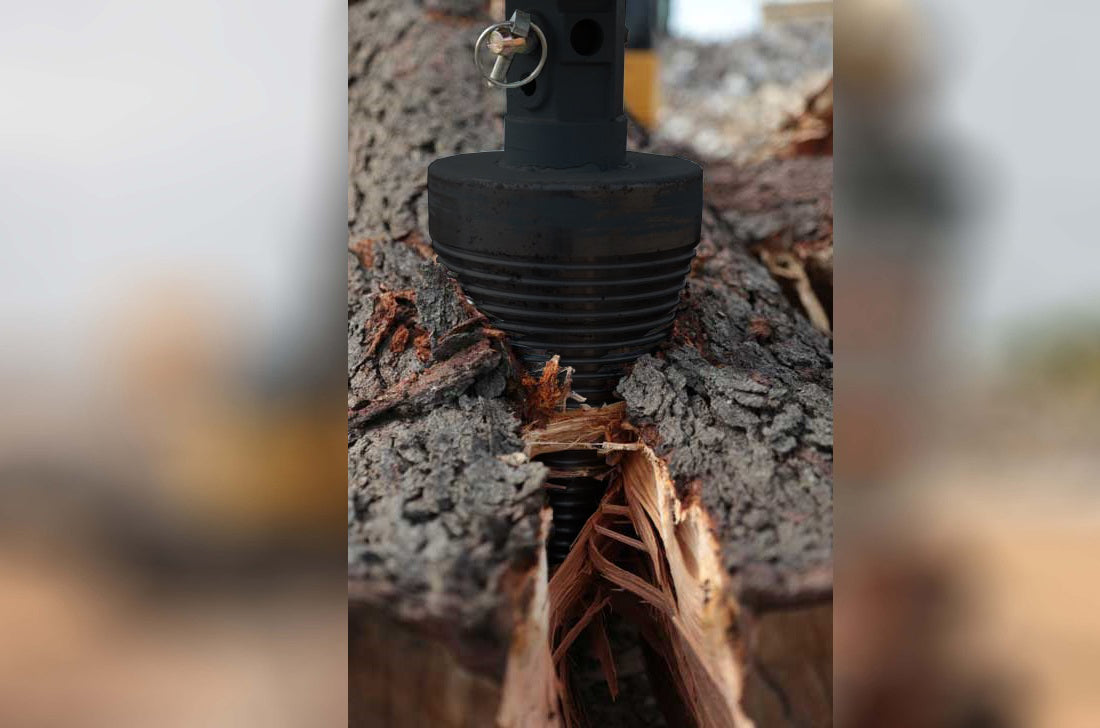

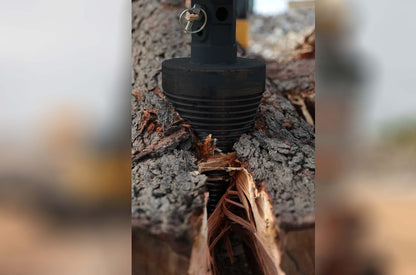

At the heart of every RSX model is a planetary hydraulic drive system producing up to 3,800 ft/lbs of torque, allowing the hardened, helical screw cone to bite deep into logs and stumps with precision and ease. With no 12V wiring needed, setup is simple, and bolt-on adaptors make it easy to switch between carriers boosting flexibility and resale value for contractors and equipment rental yards.
Designed for durability and low-maintenance operation, each RSX unit is powder-coated, vibration-dampened, and equipped with field-replaceable tips. The low-RPM design reduces flying debris, making this attachment ideal for clean worksites and residential zones.
Key Features
- 3,800 ft/lbs Hydraulic Torque Delivers high splitting force through a powerful planetary drive for efficient log processing.
- For 5–20 Ton Excavators Designed to fit compact to full-size machines with the right torque-to-weight balance.
- No 12V Wiring Required Fast and hassle-free installation with no electrical connections.

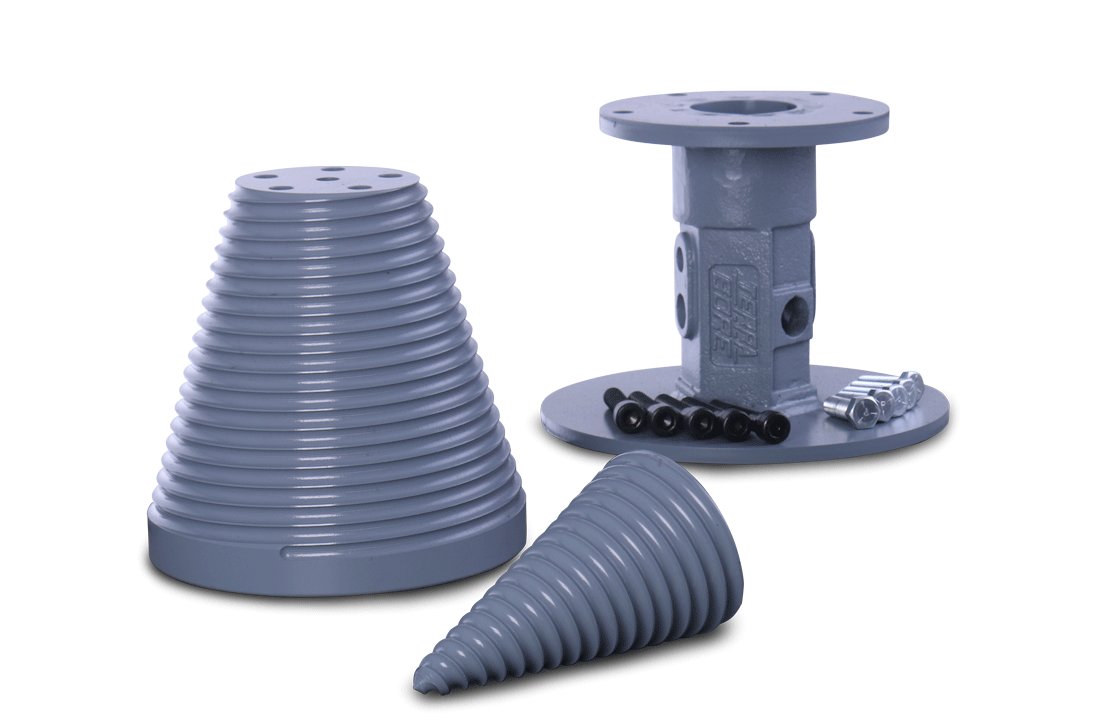

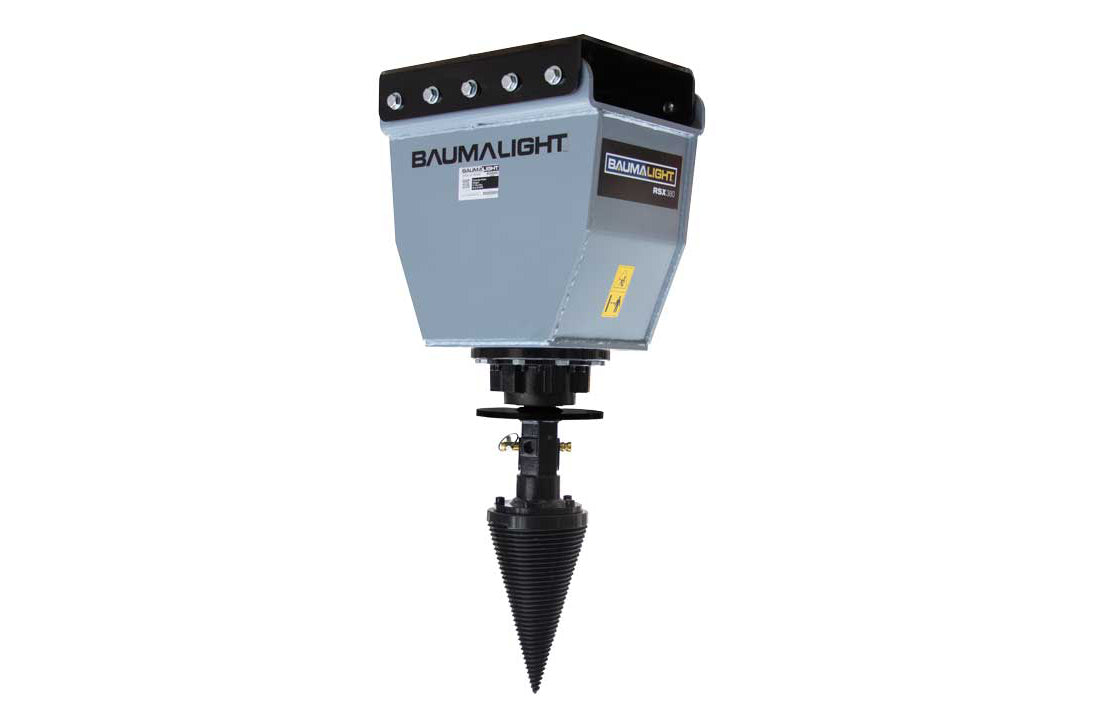

- Quick-Change Attachments Easily switch between log splitter cone and stump planer with bolt-on design.

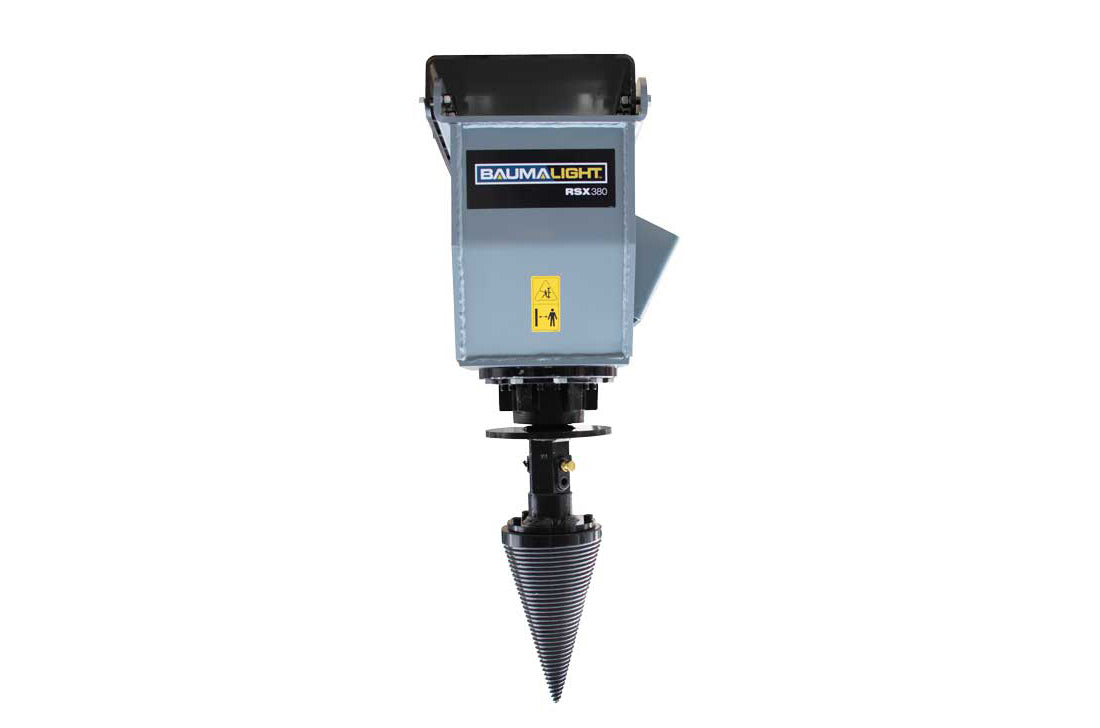

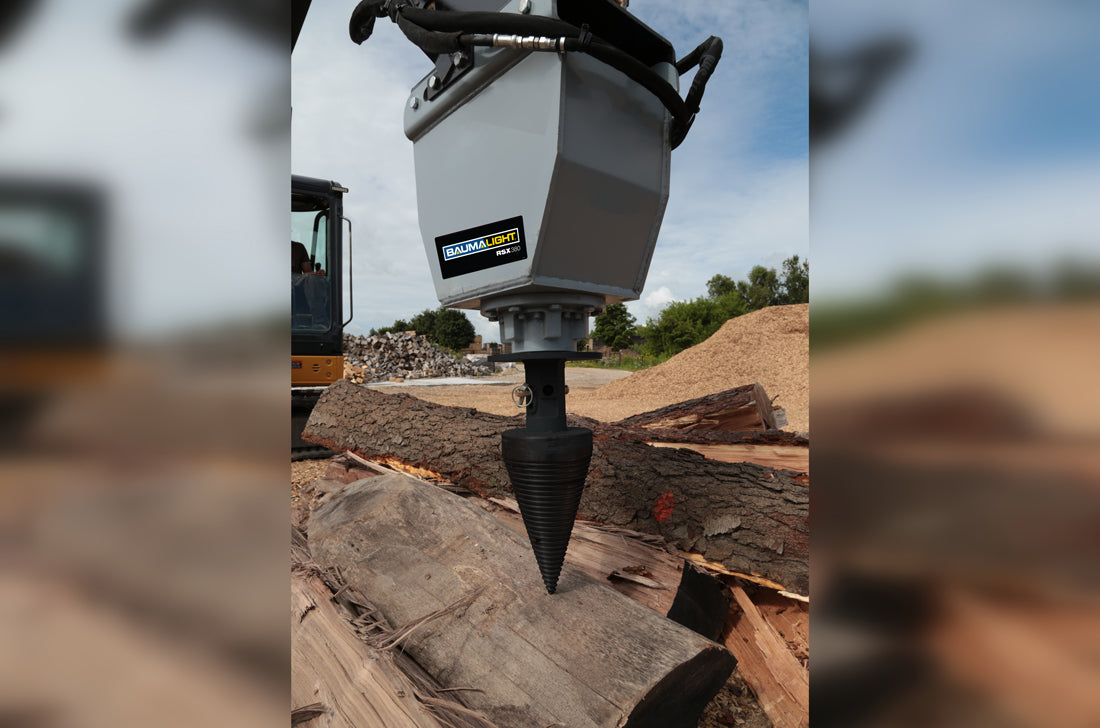

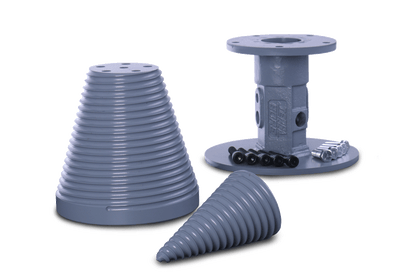

- Hardened, Replaceable Tip Long-lasting steel tip boosts lifespan and reduces downtime.
- Low RPM, High Control Minimizes flying debris for cleaner, safer operation in urban zones.
- Durable Powder-Coated Finish Corrosion-resistant steel stands up to harsh forestry environments.
- Rubber Isolation Mounts Absorb vibration, protecting the hydraulic drive and operator comfort.
- 2” Hex or 8-Bolt Flange Drive Options Compatible with industry-standard excavator outputs.

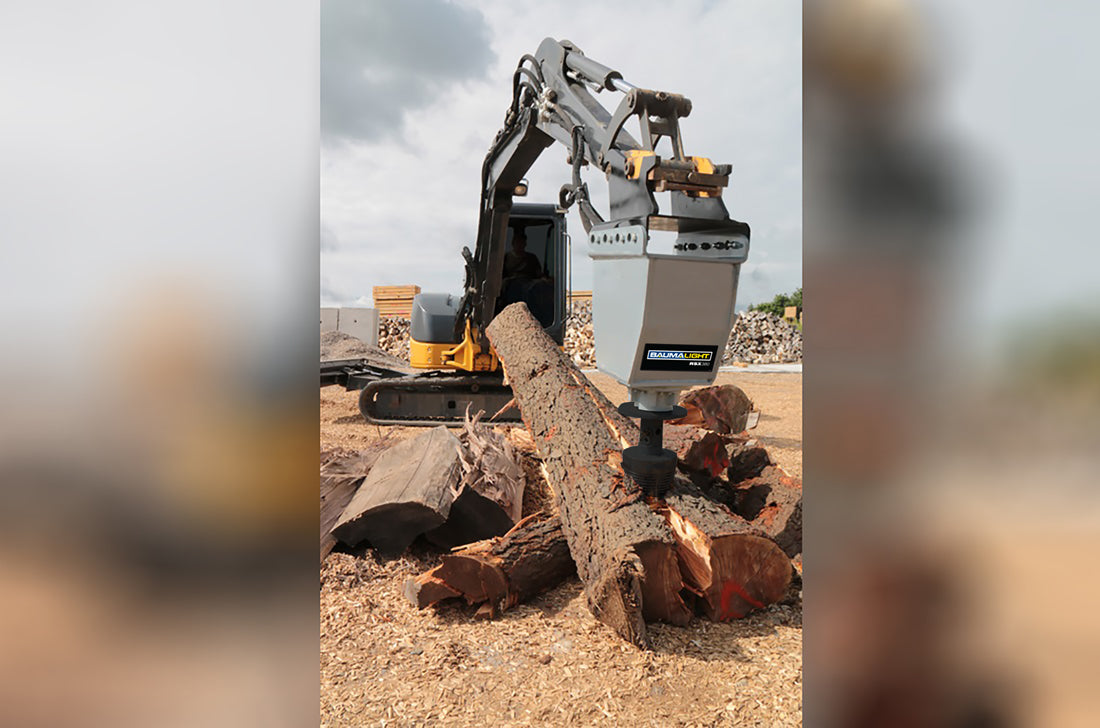

- One-Person Operation Partial drilling lets you lift and move logs without exiting the cab.
- Auger Compatibility Optional Pengo auger for dual use in stump grinding and deep boring.
- Planer Conversion Easily transforms from splitter to stump planer with tool-free swap.
- High Flow Compatibility Handles hydraulic flows from 20 to 65 GPM and PSI up to 5,000.
- Compact Profile Ideal for tight spaces or right-of-way clearing in residential or utility areas.
- Bolt-On Excavator Adaptor Maximize fleet utility by swapping between machines.
Detailed Specifications

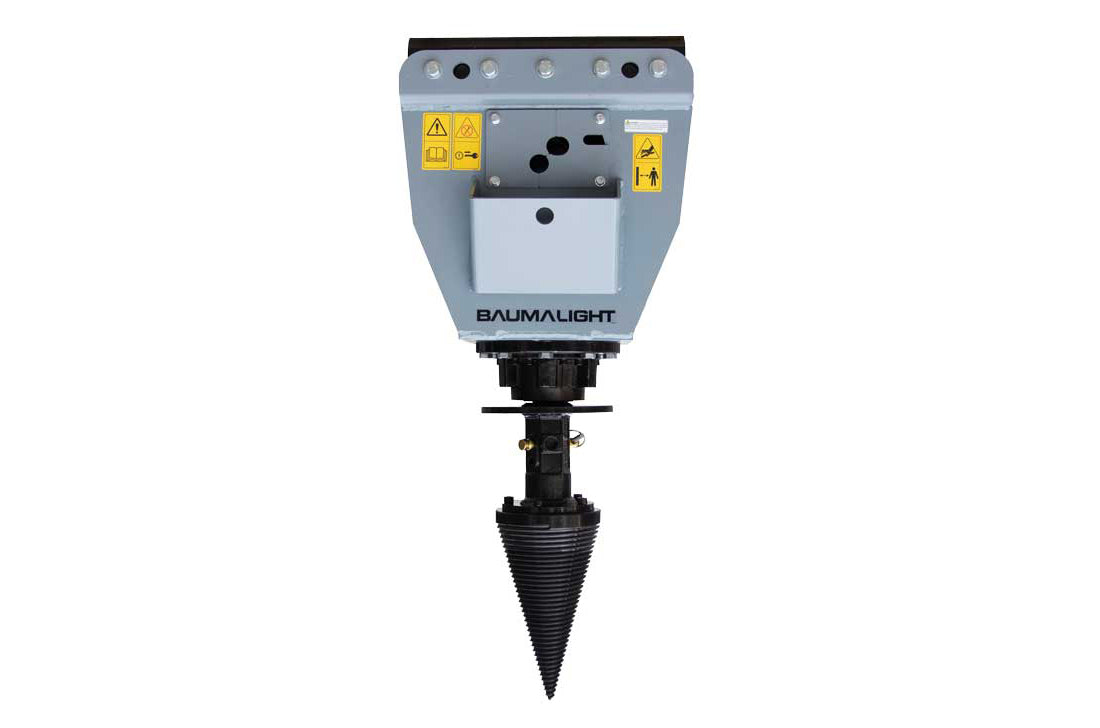

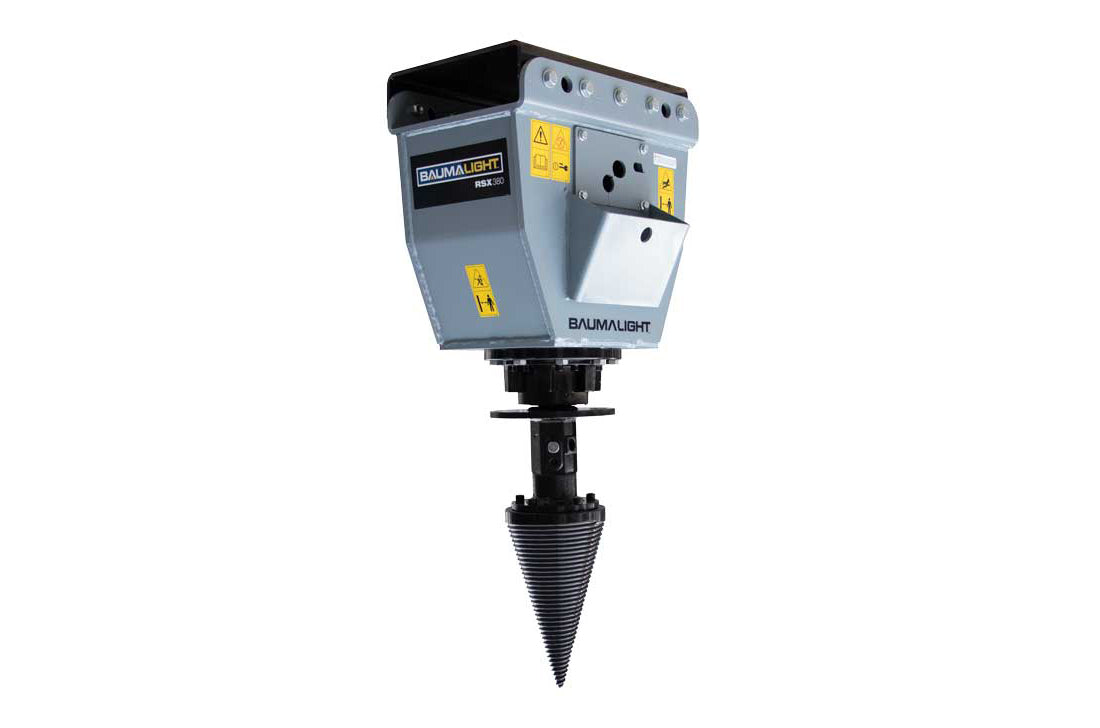

| Feature | RSX380 |
|---|---|
| Recommended Excavator Size | 5–10 tons |
| Splitter Tool | 2" Hex 14x8 Splitter Cone |
| Splitter Cone Diameter (Width) |
~16 inches |
|
Splitter Cone Length |
14 inches |
| Splitting Capacity | Logs up to 20 ft long |
| Adaptor Type | Bolt-on |
| Hydraulic Flow (GPM) | 20–40 (Max 45) |
| Operating Pressure (PSI) | 2,500–3,000 (Max 3,500) |
| Drive Size | 2" Hex |
| Drive Type | Planetary |
| Max Carrier Weight (Planer) | 5 tons |
| Max Carrier Weight (Splitter) | 10 tons |
| Torque Output | Up to 3,800 ft/lbs |
| Hoses Included | No |
| Cone Length | 14 inches |
| Splitting Capacity | Logs up to 20 ft long |

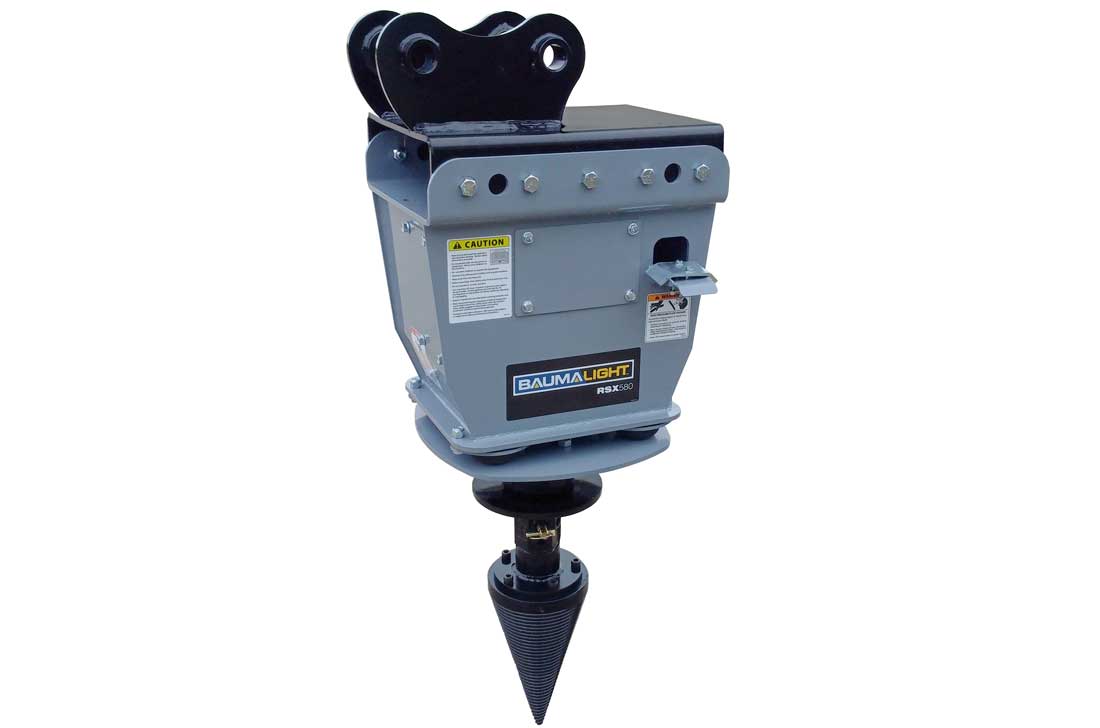

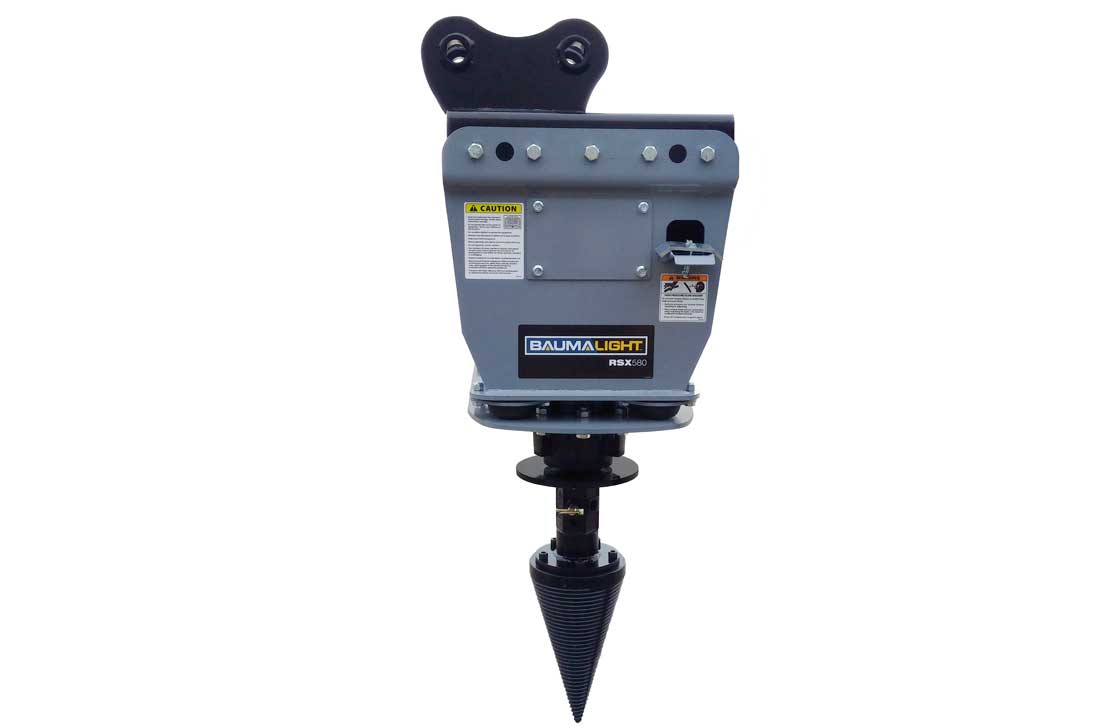

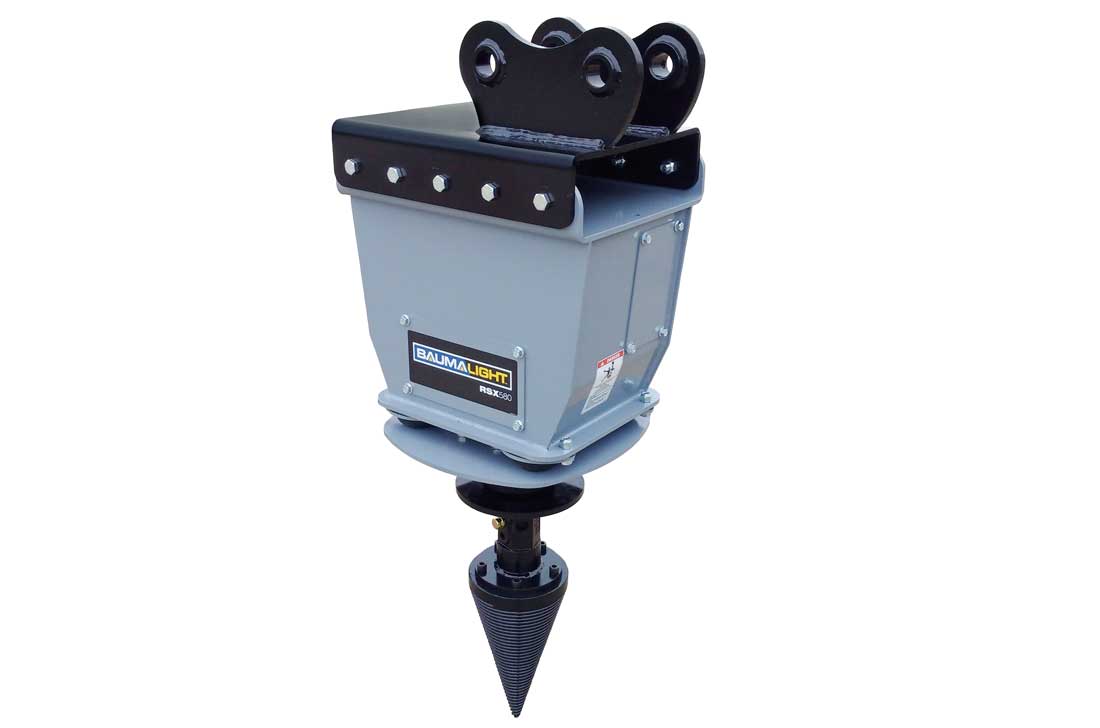

| Feature | RSX580 |
|---|---|
| Recommended Excavator Size | 8–10 tons |
| Splitter Tool | 2" Hex 14x8 Splitter Cone |
| Splitter Cone Diameter (Width) |
~16 inches |
|
Splitter Cone Length |
14 inches |
| Splitting Capacity | Logs up to 20 ft long |
| Adaptor Type | Bolt-on |
| Hydraulic Flow (GPM) | 20–45 (Max 45) |
| Operating Pressure (PSI) | 2,500–3,000 (Max 3,500) |
| Drive Size | 2" Hex |
| Drive Type | Planetary |
| Max Carrier Weight (Planer) | 8 tons |
| Max Carrier Weight (Splitter) | 10 tons |
| Torque Output | Up to 3,800 ft/lbs |
| Hoses Included | No |
| Cone Length | 14 inches |
| Splitting Capacity | Logs up to 20 ft long |

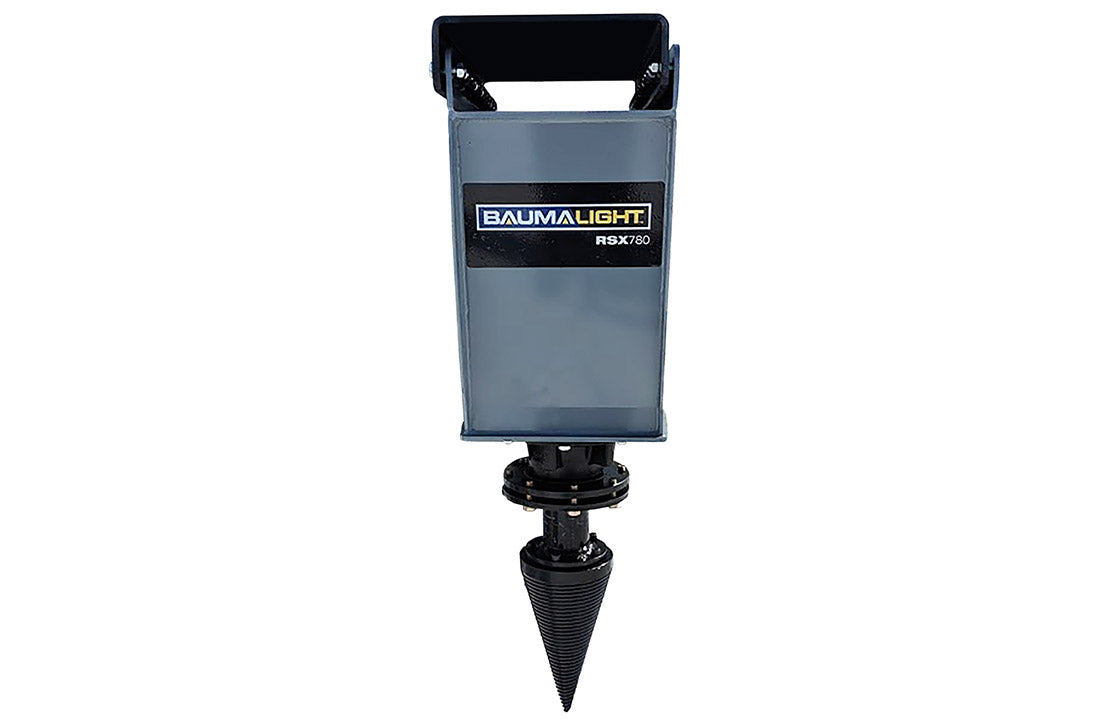

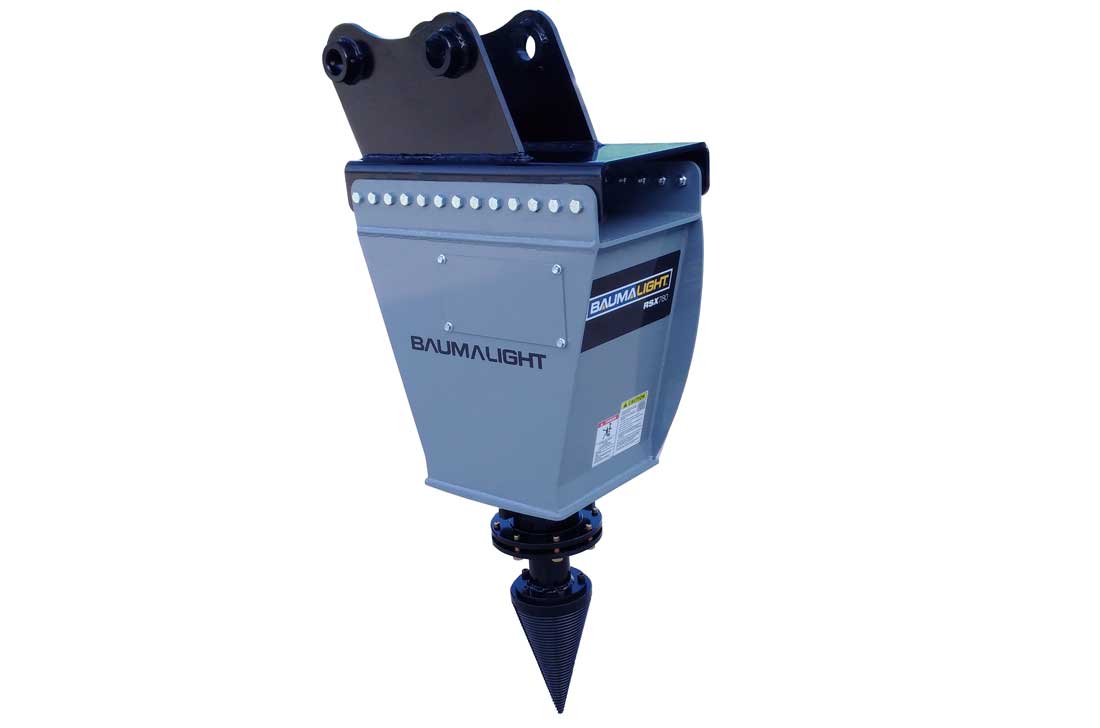

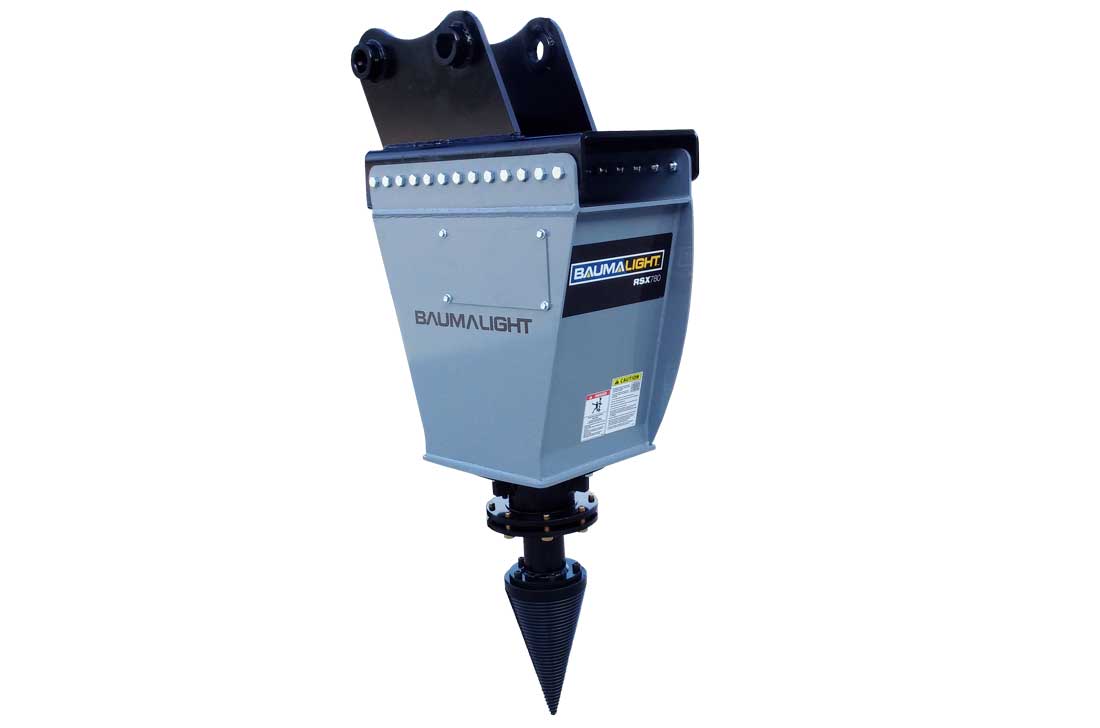

| Feature | RSX780 |
|---|---|
| Recommended Excavator Size | 10–20 tons |
| Splitter Tool | 8-Bolt Flange 14x8 Splitter Cone |
| Splitter Cone Diameter (Width) |
~18 inches |
|
Splitter Cone Length |
14 inches |
| Splitting Capacity | Logs up to 20 ft long |
| Adaptor Type | Bolt-on |
| Hydraulic Flow (GPM) | 20–55 (Max 65) |
| Operating Pressure (PSI) | 2,500–4,500 (Max 5,000) |
| Drive Size | 8-Bolt Flange |
| Drive Type | Planetary |
| Max Carrier Weight (Planer) | 18 tons |
| Max Carrier Weight (Splitter) | 20 tons |
| Torque Output | Up to 3,800 ft/lbs |
| Hoses Included | No |
| Cone Length | 14 inches |
| Splitting Capacity | Logs up to 20 ft long |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

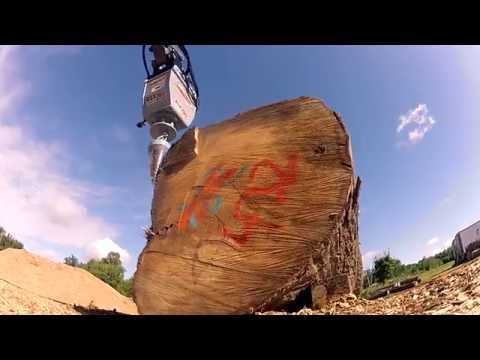

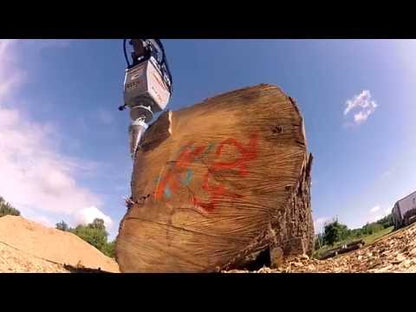

Videos
