Baumalight Manual Rotation Tree Saw | Model DSM-230 & DSM-530 | Blade Diameter 30" | Hydraulic Flow Range 6 To 30 GPM | For Mini Skid Steers
DESCRIPTION
Whether you're a landowner, rancher, utility contractor, or professional landscaper, the Baumalight DSM Series Tree Saws offer the perfect balance of power, precision, and performance for clearing small trees and overgrown brush with ease.

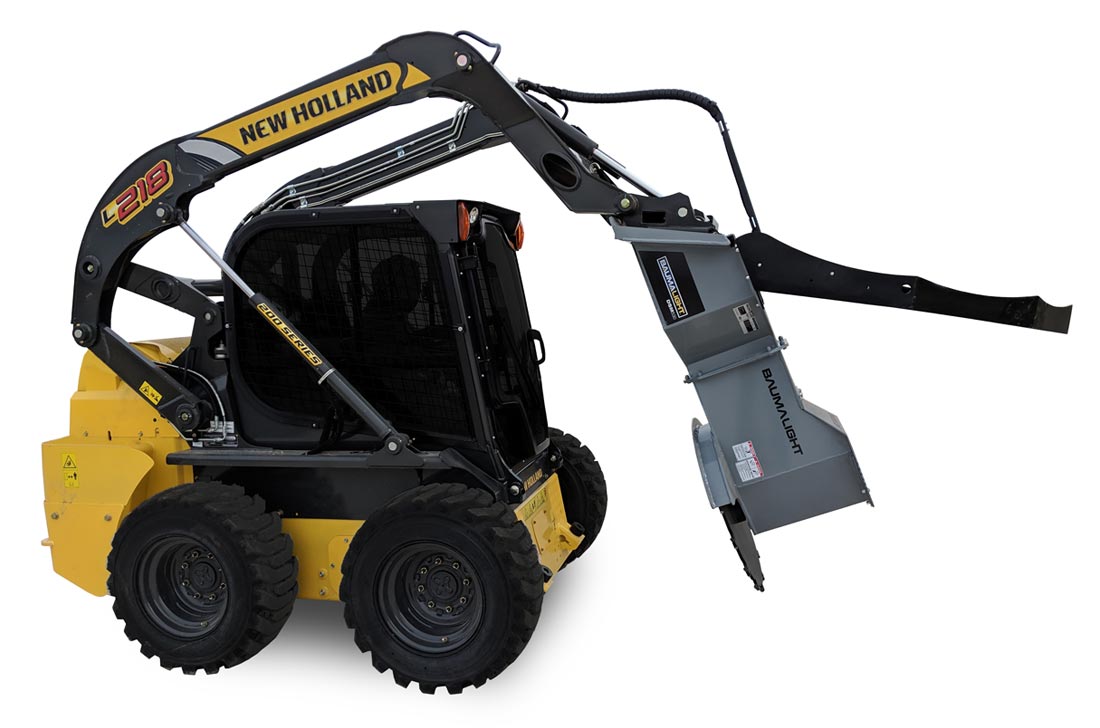

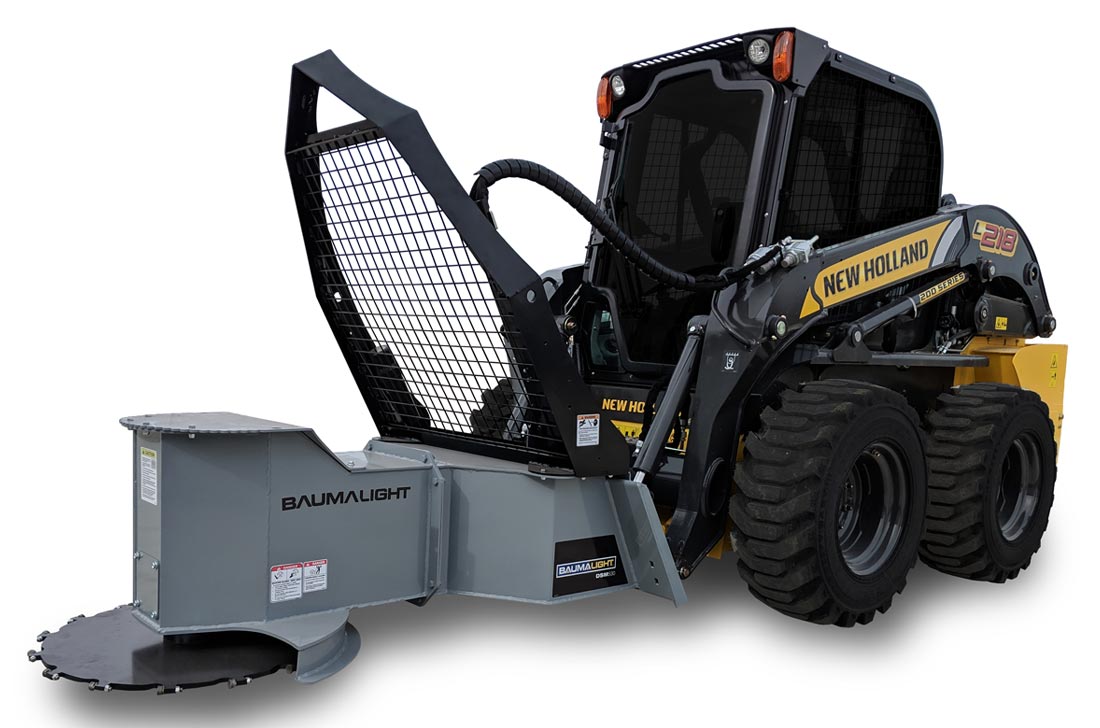

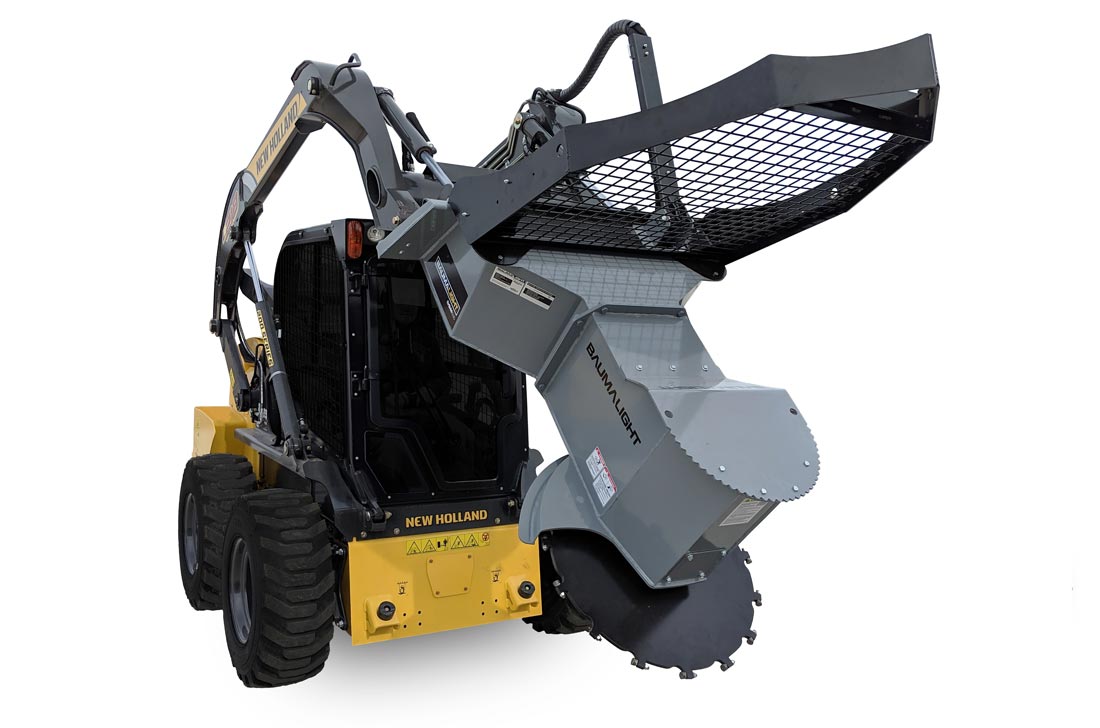

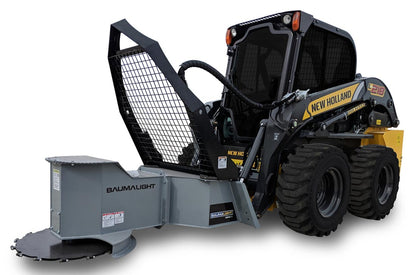

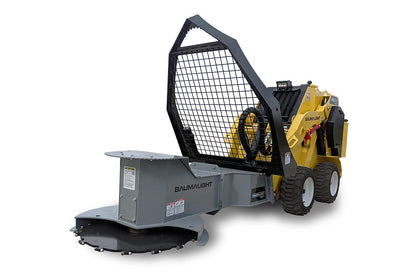

Built for mini skid steers (DSM230) and standard skid steers (DSM530), these hydraulically driven tree saws feature a 30-inch AR400 steel blade, manually rotatable head, and high-speed carbide-tipped teeth for clean, controlled, and fast cuts even in tight, rugged conditions. From horizontal cutting to vertical limb trimming, the DSM Series gives you the flexibility to clear fence lines, trails, pastures, and construction sites without switching tools.
With manual bolt-on blade rotation, robust bent axis piston motors, and heavy-duty construction, the DSM230 and DSM530 are ideal for operators who demand durability, easy maintenance, and high productivity. A case drain system, internal hose routing, and protective blade shielding ensure both your machine and operator are protected throughout the job.
Key Features
- 30-Inch AR400 Steel Blade Built from abrasion-resistant AR400 steel for long-lasting, high-impact cutting power in forestry and land clearing applications.

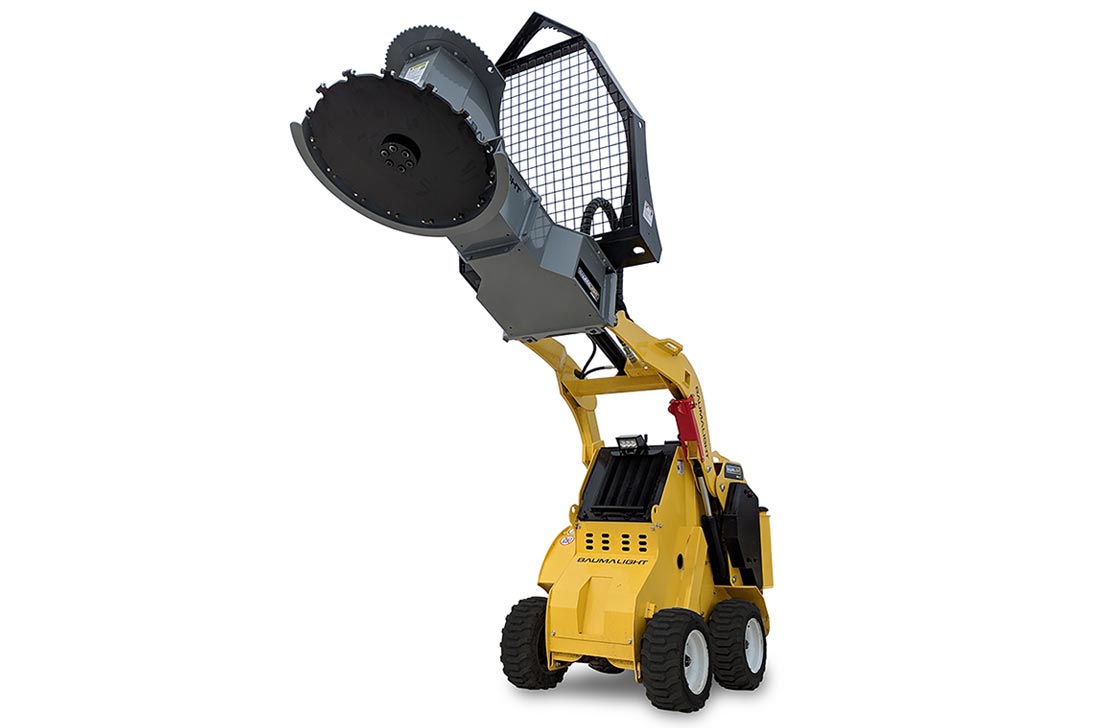

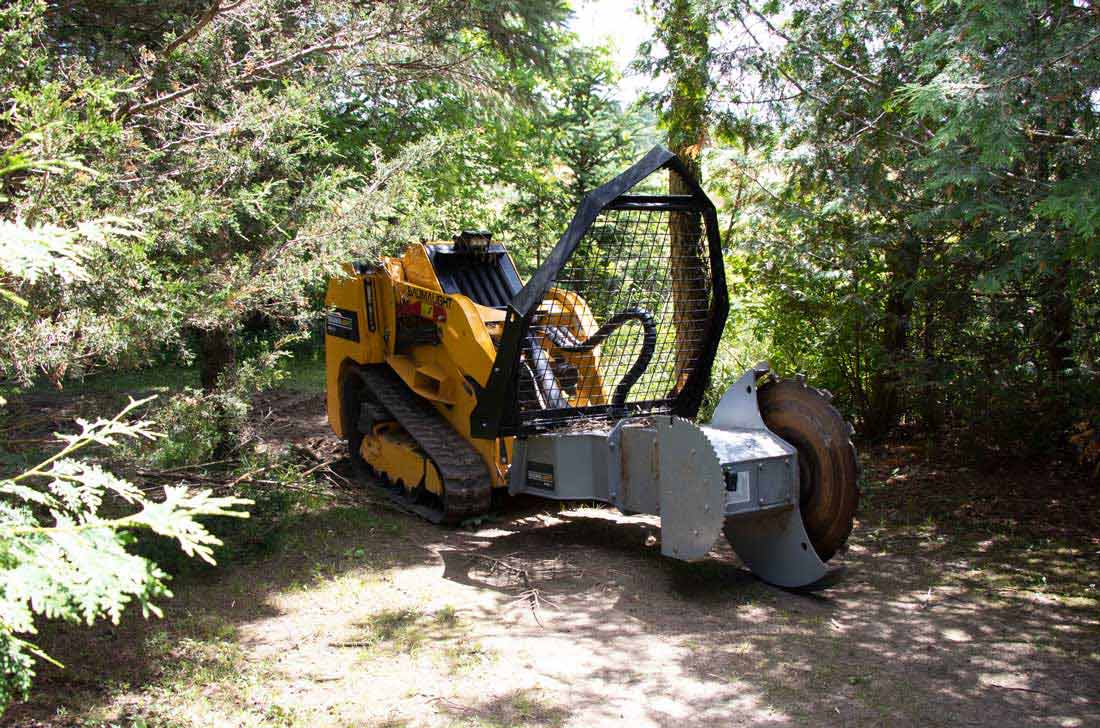

- Manual 90° Rotating Cutting Head Switch from horizontal to vertical cutting in minutes for maximum versatility in tree removal and limb trimming.
- High-Speed Carbide-Tipped Teeth (H3000) 12 replaceable, triple-edge teeth deliver aggressive, precision cuts through dense brush and hardwoods.
- Bent Axis Piston Motor Delivers efficient hydraulic power transfer for consistent performance across a range of GPM outputs.
- Optimized for 6–30 GPM Hydraulic Flow Compatible with a wide range of skid steer machines, from compact to full-size models.
- Clean, Controlled Cuts Perfect for pruning, limbing, and cutting up to 10" diameter trees with minimal operator fatigue.

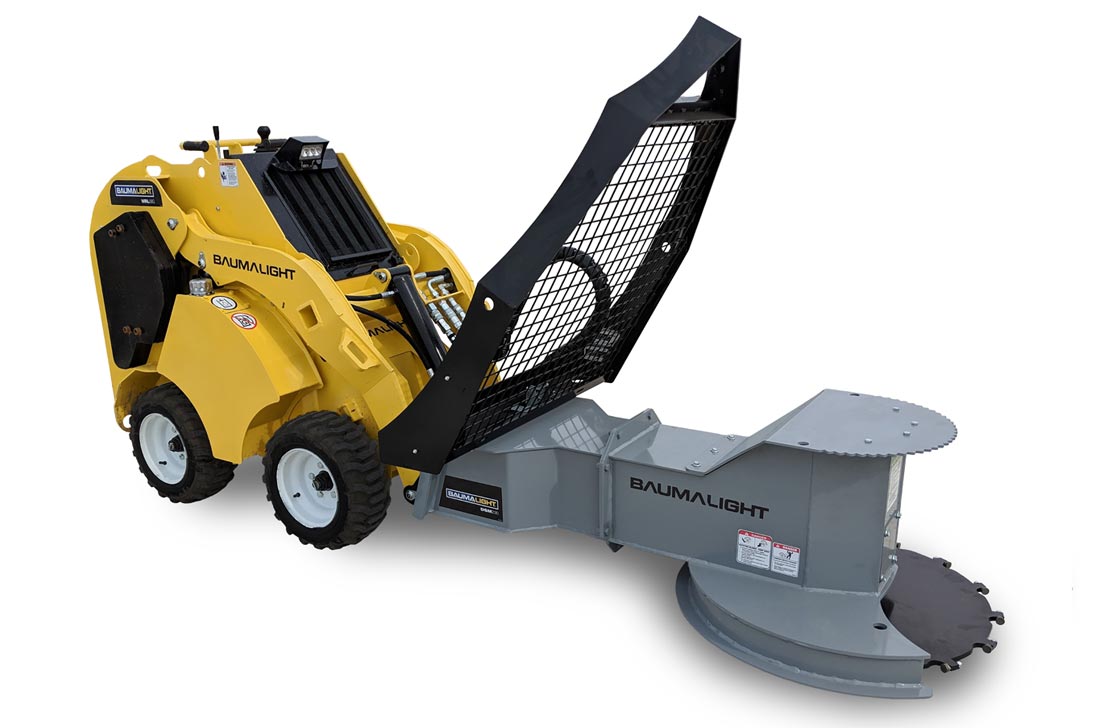

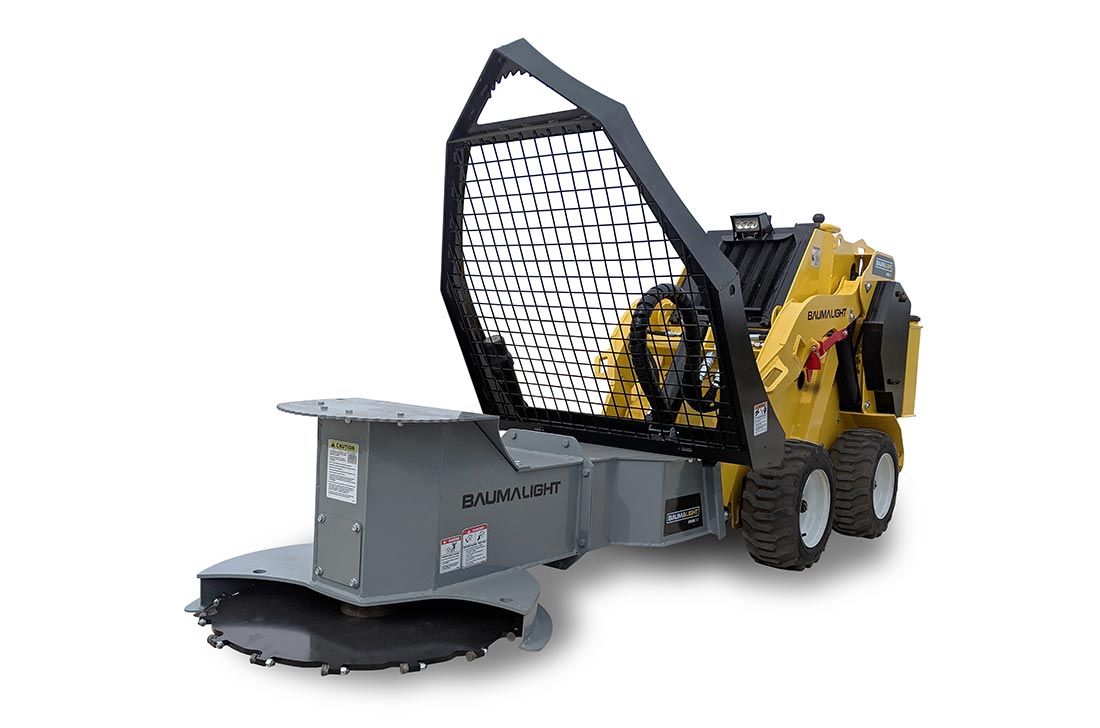

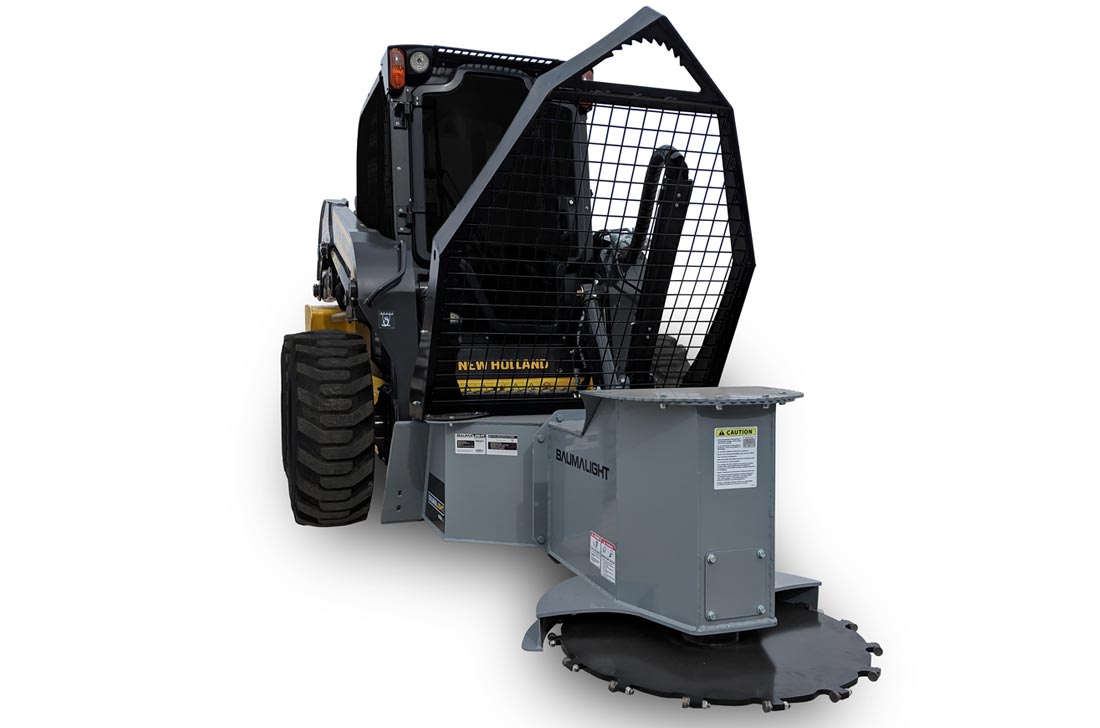

- Heavy-Duty Push Bar with Safety Mesh Directs debris away from the operator while guiding limbs safely into the blade.

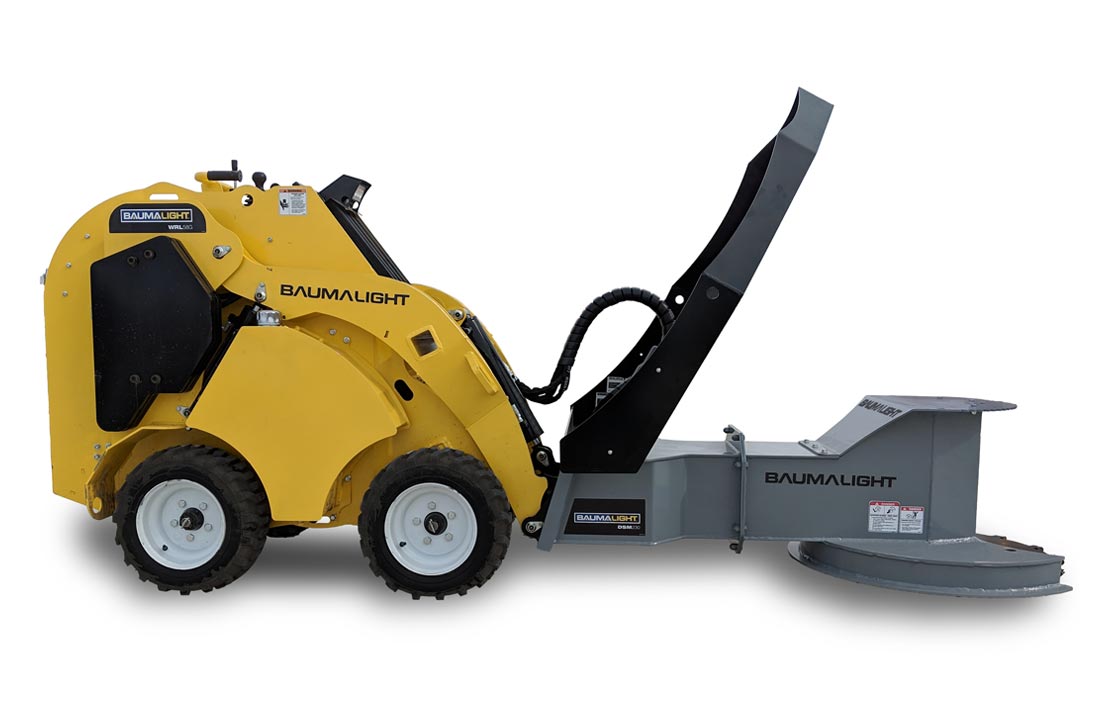

- Compact Design for Tight Spaces Ideal for navigating wooded areas, fence lines, and trails with ease.
- Protective Blade Shielding Keeps chips contained while protecting the blade from impact.
- Zinc-Plated Greaseable Pins Corrosion-resistant joints ensure smooth, long-term operation with easy maintenance.
- Case Drain Line with Vent to Atmosphere Extends motor life and prevents hydraulic pressure damage for worry-free performance.
- Internal Hose Routing & Hose Armor Shields hydraulic hoses from pinching, abrasion, and wear.
- Designed for Maximum Visibility Open frame design ensures you see every cut clearly for improved accuracy and safety.
- Durable Powder-Coated Finish Withstands harsh outdoor conditions while resisting rust and corrosion.
- Includes 6 Free Replacement Teeth Convenient on-frame storage box keeps spare teeth at your fingertips.

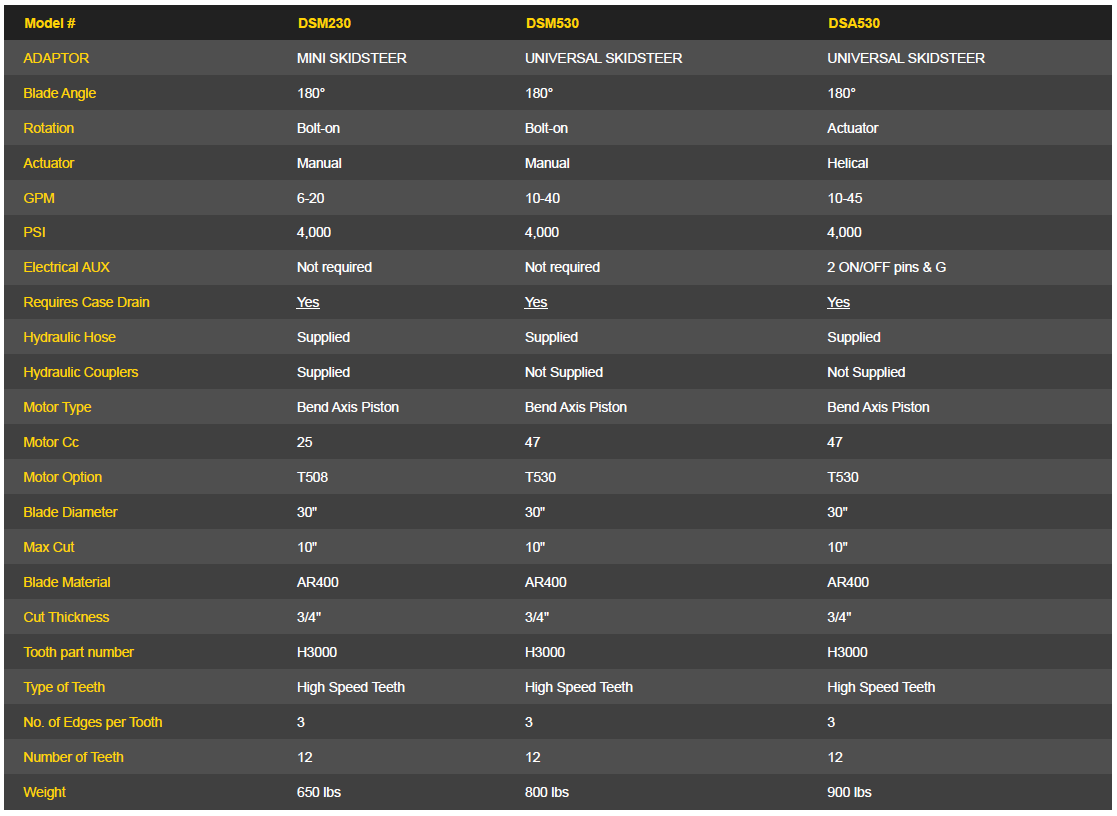

Detailed Specifications
| Feature | DSM230 | DSM530 |
|---|---|---|
| Machine Compatibility | Mini Skid Steer | Mini Skid Steer |
| Blade Diameter | 30" | 30" |
| Max Cutting Diameter | 10" | 10" |
| Blade Material | AR400 Steel | AR400 Steel |
| Rotation | Manual, 90° Bolt-On | Manual, 90° Bolt-On |
| Blade Angle | 180° | 180° |
| Motor Type | Bent Axis Piston | Bent Axis Piston |
| Motor Size (cc) | 25 | 47 |
| Hydraulic Flow Range | 6–20 GPM | 10–30 GPM |
| Operating Pressure (Max) | 4,000 PSI | 4,000 PSI |
| Case Drain Required | Yes | Yes |
| Electrical AUX | Not Required | Not Required |
| Hydraulic Hoses | Supplied | Supplied |
| Hydraulic Couplers | Supplied | Not Supplied |
| Tooth Type | High-Speed Carbide Teeth | High-Speed Carbide Teeth |
| Number of Teeth | 12 | 12 |
| Teeth Cutting Edges | 3 Edges per Tooth | 3 Edges per Tooth |
| Cut Thickness | ¾" | ¾" |
| Weight | 650 lbs | 800 lbs |
