Product Description
Baumalight PTO Generator 4 Pole | Model Q Series | Power Range 12 To 113 Kilowatt | Horsepower 21 To 153 HP | For Tractors
DESCRIPTION

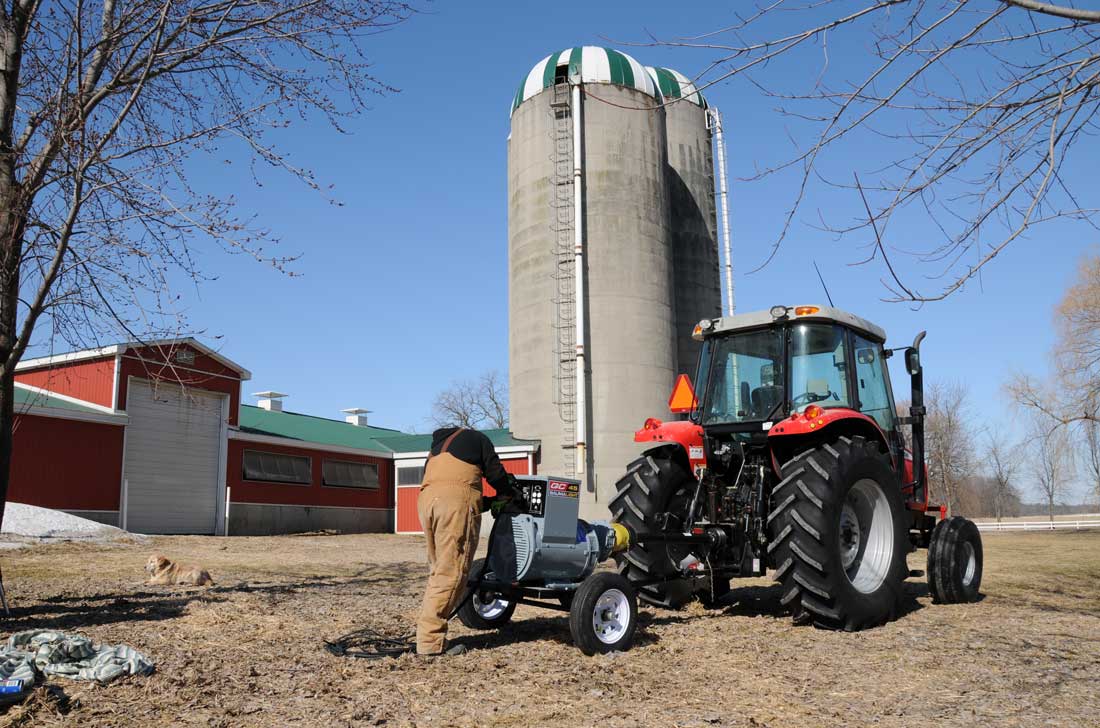

The Baumalight PTO Generator Q Series is the ultimate backup and mobile power solution for farmers, ranchers, and rural property owners who rely on dependable, high-capacity electricity in the field or during outages. Designed to harness the horsepower of your tractor, this 4-pole, tractor-driven generator converts your PTO (Power Take-Off) into clean, stable power ranging from 12 kW to 113 kW.
Whether you're running a milking parlor, powering tools in remote locations, or keeping critical systems operational during grid failures, the Q Series is engineered for continuous duty, minimal maintenance, and user-friendly operation. Built with a durable cast-iron body, brushless copper windings, and an intuitive DisplayMaster1 interface, this generator is built for life on the farm and beyond.
Key Features
- Tractor-Powered Efficiency — Save on fuel and maintenance by utilizing your existing tractor engine.
- Power Range from 12 kW to 113 kW — Covers everything from essential backup power to large operational loads.
- Horsepower Compatibility from 21–153 HP — Fits a wide range of tractors, from compact utility to full-size ag units.
- Brushless Alternator Design — Delivers efficient, quiet, low-maintenance operation without sparking risks.
- Four Oversized Copper Windings — Ensures stable power output and supports high momentary surges up to 3x the rated power.
- Multiple Receptacles — Equipped with 120V duplex, 240V range-style, and 240V welder-style outlets for maximum versatility.

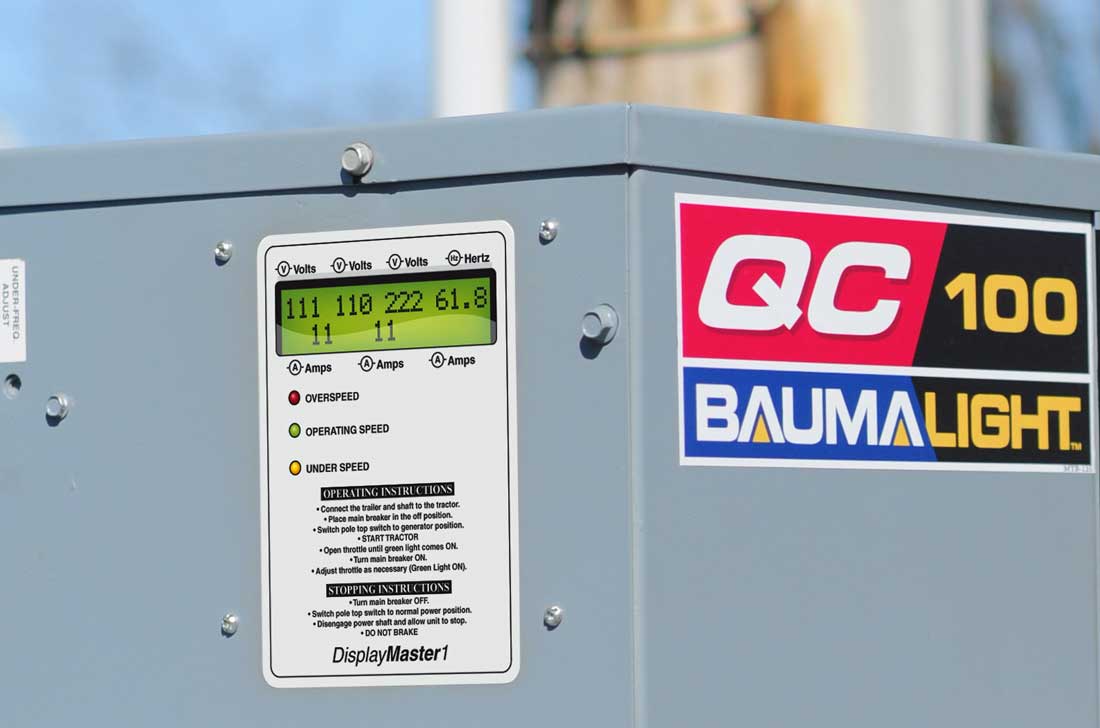

- DisplayMaster1 Interface — Shows voltage, frequency, power factor, amps, kilowatts, KVA, run time, and more.
- Automatic Voltage Regulation (AVR) — Keeps voltage steady within ±1%, protecting sensitive equipment.
- Resettable Circuit Breakers — No fuses to replace—just reset and go.
- Internal Cooling Fans — Designed for 24/7 use with active front and rear ventilation.
- Heavy-Duty Gearbox — Converts PTO RPM to 1,800 RPM, reducing wear and extending service life.

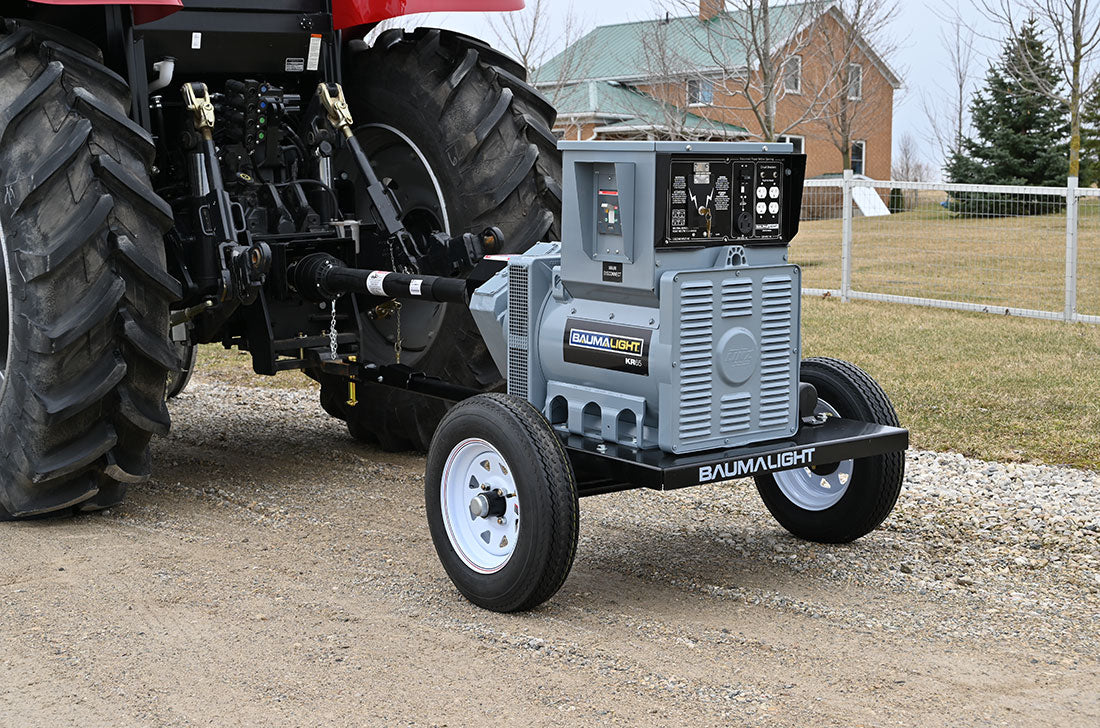

- Trailer-Mounted or 3-Point Hitch Option — Easy transport and flexible mounting on your farm or worksite.
- Drip-Proof Enclosure — Protects against moisture while allowing proper ventilation.

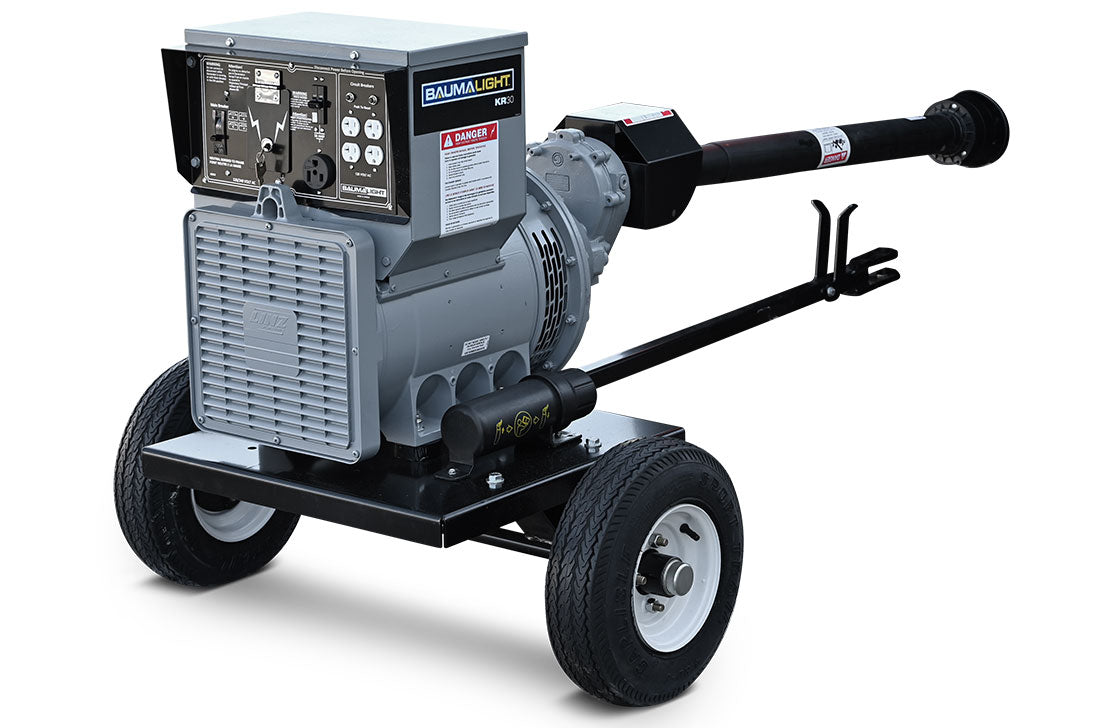

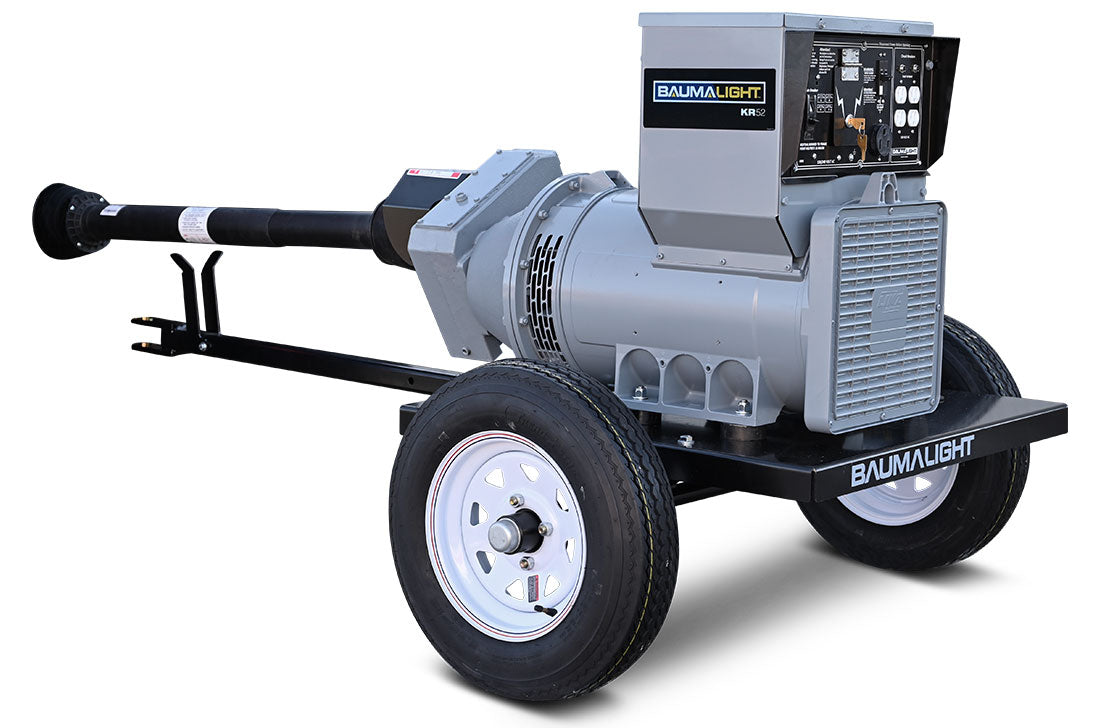

- Pneumatic Tires & Shielded PTO Shaft — For safe, stable movement and transport, even across uneven terrain.
- Crated & Pre-Tested — Professionally assembled and tested before shipping with a grounded neutral for safety.
Detailed Specifications
| Specification | Details |
|---|---|
| Model | QC100 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Power Range | 12 KW - 100 KW |
| Machine Size | 71 HP 50% LOAD, 153 HP 100% LOAD |
| Attachment Size | 100 KW |
| SKU | ELL-BAU-QC100 |
| Weight | 1450 lbs |
| Identifier | BAU-2570 |
| Output | 100 KW (100,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 400 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Black |
PTO GENERATOR 9 HP 50%LOAD 21 HP 100%LOAD 12KW
| Specification | Details |
|---|---|
| Part # | QC12 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 9 HP 50% LOAD, 21 HP 100% LOAD |
| Attachment Size | 12 KW |
| SKU | ELL-BAU-QC12 |
| Weight | 645 lbs |
| Identifier | BAU-2560 |
| Output | 12 KW (12,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 50 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Gray |
PTO GENERATOR 16 HP 50%LOAD 34 HP 100%LOAD 19KW
| Specification | Details |
|---|---|
| Part # | QC19 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 16 HP 50% LOAD, 34 HP 100% LOAD |
| SKU | ELL-BAU-QC19 |
| Weight | 685 lbs |
| Identifier | BAU-2564 |
| Output | 19 KW (19,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 90 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Gray |
PTO GENERATOR 20 HP 50%LOAD 49 HP 100%LOAD 30KW
| Specification | Details |
|---|---|
| Part # | QC30 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 20 HP 50% LOAD, 49 HP 100% LOAD |
| SKU | ELL-BAU-QC30 |
| Weight | 725 lbs |
| Identifier | BAU-2565 |
| Model | QC30 / QC30-2 / QC30-3 / QC30-4 |
| Output | 30 KW (30,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 125 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Black |
PTO GENERATOR 23 HP 50%LOAD 45 HP 100%LOAD 30KW
| Specification | Details |
|---|---|
| Part # | KR30 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 23 HP 50% LOAD, 45 HP 100% LOAD |
| SKU | ELL-BAU-KR30 |
| Weight | 750 lbs |
| Identifier | BAU-3977 |
| Output | 30 KW (30,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 125 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Gray |
PTO GENERATOR 34 HP 50%LOAD 55 HP 100%LOAD 44KW
| Specification | Details |
|---|---|
| Part # | KR44 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 34 HP 50% LOAD, 55 HP 100% LOAD |
| SKU | ELL-BAU-KR44 |
| Weight | 990 lbs |
| Identifier | BAU-3978 |
| Output | 44 KW (44,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 175 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Gray |

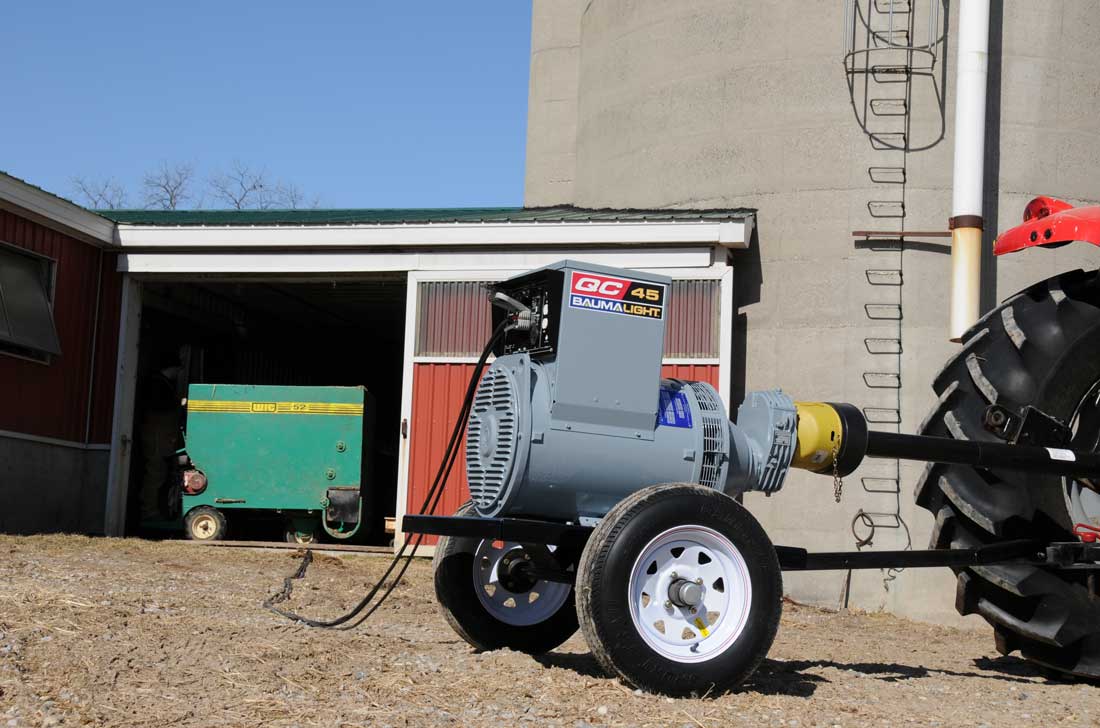

PTO GENERATOR 31 HP 50%LOAD 75 HP 100%LOAD 45KW
| Specification | Details |
|---|---|
| Part # | QC45 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 31 HP 50% LOAD, 75 HP 100% LOAD |
| SKU | ELL-BAU-QC45 |
| Weight | 941 lbs |
| Identifier | BAU-2566 |
| Output | 45 KW (45,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Breaker Capacity | 175 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Black |
PTO GENERATOR 39 HP 50%LOAD 76 HP 100%LOAD 55KW
| Specification | Details |
|---|---|
| Part # | KR52 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 39 HP 50% LOAD, 76 HP 100% LOAD |
| SKU | ELL-BAU-KR52 |
| Weight | 1060 lbs |
| Identifier | BAU-3979 |
| Output | 52 KW (52,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 225 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Gray (Other Colors Available/Optional) |
PTO GENERATOR 42 HP 50%LOAD 89 HP 100%LOAD 55KW
| Specification | Details |
|---|---|
| Part # | QC55 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 42 HP 50% LOAD, 89 HP 100% LOAD |
| SKU | ELL-BAU-QC55 |
| Weight | 1037 lbs |
| Identifier | BAU-2567 |
| Output | 55 KW (55,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 225 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Gray |
PTO GENERATOR 52 HP 50%LOAD 97 HP 100%LOAD 65KW
| Specification | Details |
|---|---|
| Part # | KR65 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 52 HP 50% LOAD, 97 HP 100% LOAD |
| SKU | ELL-BAU-KR65 |
| Weight | 1210 lbs |
| Identifier | BAU-3980 |
| Output | 65 KW (65,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 250 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Gray (Other Colors Available/Optional) |
PTO GENERATOR 48 HP 50%LOAD 102 HP 100%LOAD 65KW
| Specification | Details |
|---|---|
| Part # | QC65 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 48 HP 50% LOAD, 102 HP 100% LOAD |
| SKU | ELL-BAU-QC65 |
| Weight | 1156 lbs |
| Identifier | BAU-2568 |
| Output | 65 KW (65,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 250 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Black |
PTO GENERATOR 55 HP 50%LOAD 122 HP 100%LOAD 80KW
| Specification | Details |
|---|---|
| Part # | QC80 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 55 HP 50% LOAD, 122 HP 100% LOAD |
| SKU | ELL-BAU-QC80 |
| Weight | 1358 lbs |
| Identifier | BAU-2569 |
| Output | 80 KW (80,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 320 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Gray |
PTO GENERATOR 71 HP 50%LOAD 153 HP 100%LOAD 100KW
| Specification | Details |
|---|---|
| Part # | QC100 |
| Manufacturer | Baumalight |
| Category | Tractor Attachments |
| SubCategory | Generator PTO 4 Pole |
| Industry | Agricultural |
| Machine Size | 71 HP 50% LOAD, 153 HP 100% LOAD |
| Attachment Size | 100 KW |
| SKU | ELL-BAU-QC100 |
| Weight | 1450 lbs |
| Identifier | BAU-2570 |
| Output | 100 KW (100,000 Watts) |
| Voltage | 120V / 240V |
| Phase | Single (1) Phase |
| Starting Capacity | Not Specified |
| Breaker Capacity | 400 Amps |
| Voltage Regulation | Capacitor |
| Panel Outlets | 1 @ Range Style, 240V, 50A |
| 1 @ Welder Style, 240V, 50A | |
| 4 @ Duplex, 120V, 20A | |
| Color | Black |

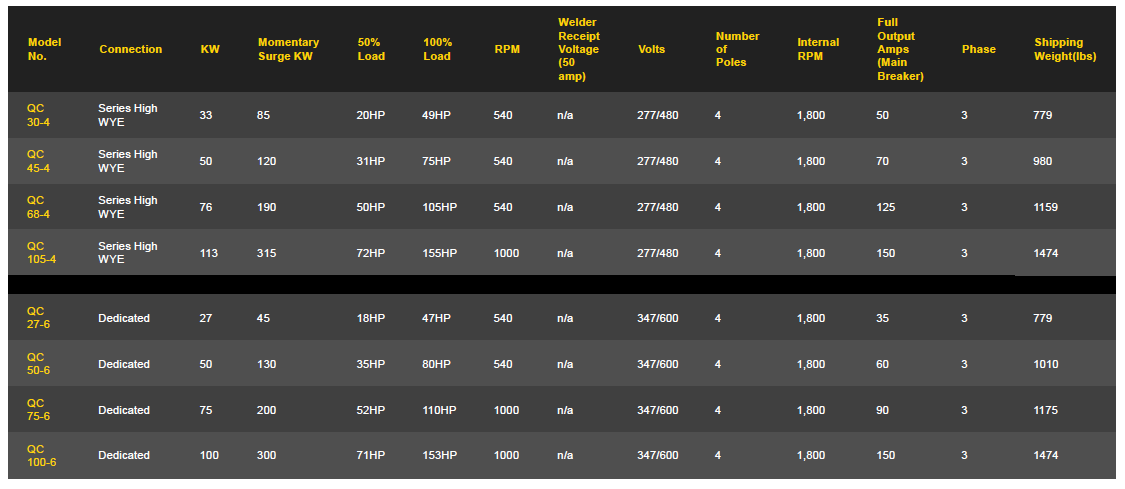

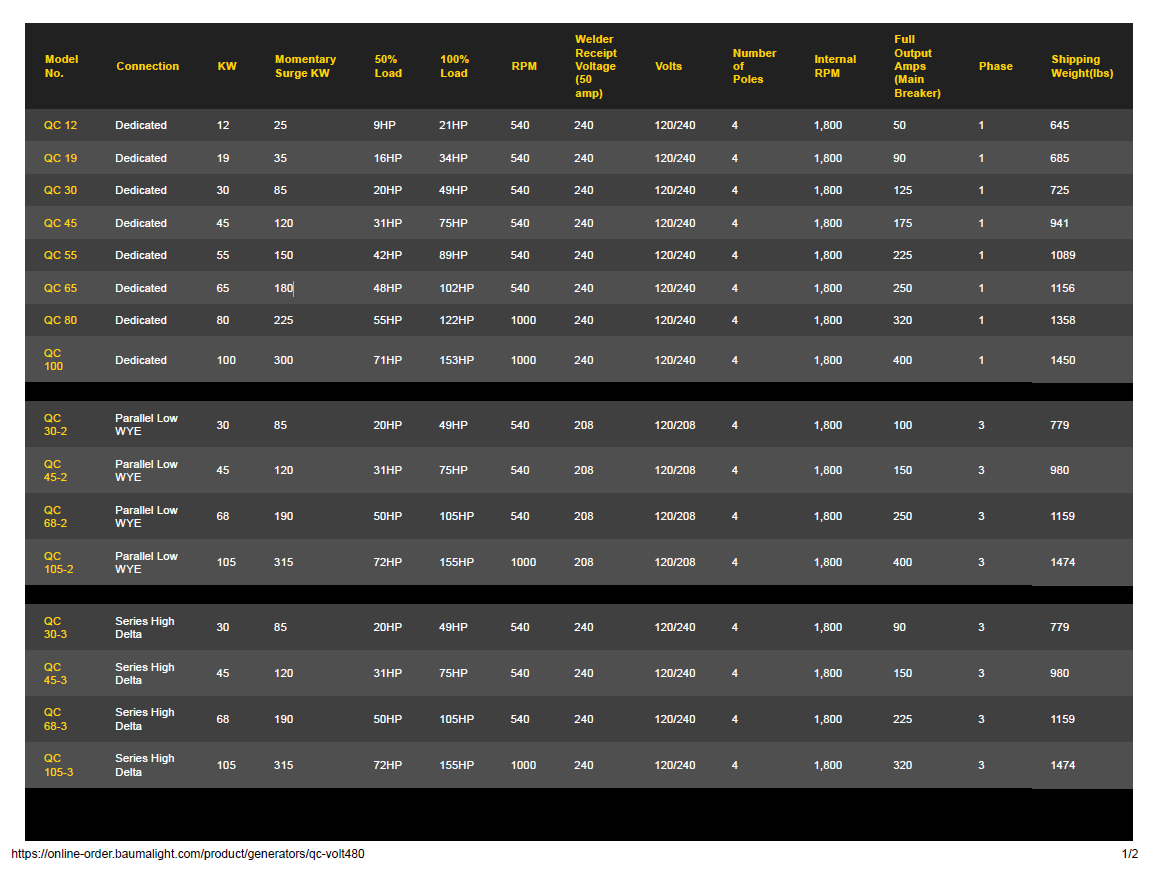

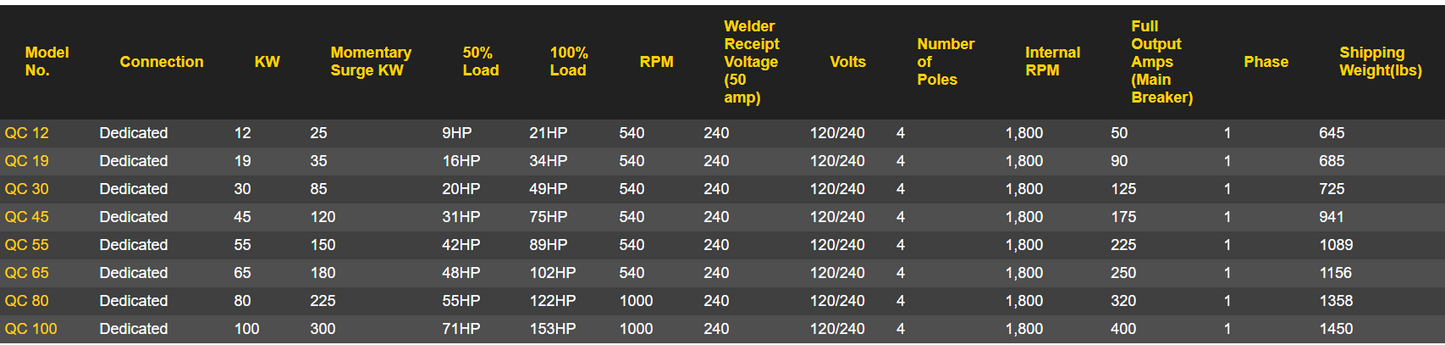

Comprison Chart
| Specification | QC 12 | QC 19 |
|---|---|---|
| Connection | Dedicated | Dedicated |
| KW | 12 | 19 |
| Momentary Surge KW | 25 | 35 |
| 50% Load | 9HP | 16HP |
| 100% Load | 21HP | 34HP |
| RPM | 540 | 540 |
| Welder Receipt Voltage (50 amp) | 240 | 240 |
| Volts | 120/240 | 120/240 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 50 | 90 |
| Phase | 1 | 1 |
| Specification | QC 30 | QC 45 |
|---|---|---|
| Connection | Dedicated | Dedicated |
| KW | 30 | 45 |
| Momentary Surge KW | 85 | 120 |
| 50% Load | 20HP | 31HP |
| 100% Load | 49HP | 75HP |
| RPM | 540 | 540 |
| Welder Receipt Voltage (50 amp) | 240 | 240 |
| Volts | 120/240 | 120/240 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 125 | 175 |
| Phase | 1 | 1 |
| Specification | QC 55 | QC 65 |
|---|---|---|
| Connection | Dedicated | Dedicated |
| KW | 55 | 65 |
| Momentary Surge KW | 150 | 180 |
| 50% Load | 42HP | 48HP |
| 100% Load | 89HP | 102HP |
| RPM | 540 | 540 |
| Welder Receipt Voltage (50 amp) | 240 | 240 |
| Volts | 120/240 | 120/240 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 225 | 250 |
| Phase | 1 | 1 |
| Specification | QC 80 | QC 100 |
|---|---|---|
| Connection | Dedicated | Dedicated |
| KW | 80 | 100 |
| Momentary Surge KW | 225 | 300 |
| 50% Load | 55HP | 71HP |
| 100% Load | 122HP | 153HP |
| RPM | 1000 | 1000 |
| Welder Receipt Voltage (50 amp) | 240 | 240 |
| Volts | 120/240 | 120/240 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 320 | 400 |
| Phase | 1 | 1 |
| Specification | QC 30-2 | QC 45-2 |
|---|---|---|
| Connection | Parallel Low WYE | Parallel Low WYE |
| KW | 30 | 45 |
| Momentary Surge KW | 85 | 120 |
| 50% Load | 20HP | 31HP |
| 100% Load | 49HP | 75HP |
| RPM | 540 | 540 |
| Welder Receipt Voltage (50 amp) | 208 | 208 |
| Volts | 120/208 | 120/208 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 100 | 150 |
| Phase | 3 | 3 |
| Specification | QC 68-2 | QC 105-2 |
|---|---|---|
| Connection | Parallel Low WYE | Parallel Low WYE |
| KW | 68 | 105 |
| Momentary Surge KW | 190 | 315 |
| 50% Load | 50HP | 72HP |
| 100% Load | 105HP | 155HP |
| RPM | 540 | 1000 |
| Welder Receipt Voltage (50 amp) | 208 | 208 |
| Volts | 120/208 | 120/208 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 250 | 400 |
| Phase | 3 | 3 |
| Specification | QC 30-3 | QC 45-3 |
|---|---|---|
| Connection | Series High Delta | Series High Delta |
| KW | 30 | 45 |
| Momentary Surge KW | 85 | 120 |
| 50% Load | 20HP | 31HP |
| 100% Load | 49HP | 75HP |
| RPM | 540 | 540 |
| Welder Receipt Voltage (50 amp) | 240 | 240 |
| Volts | 120/240 | 120/240 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 90 | 150 |
| Phase | 3 | 3 |
| Specification | QC 68-3 | QC 105-3 |
|---|---|---|
| Connection | Series High Delta | Series High Delta |
| KW | 68 | 105 |
| Momentary Surge KW | 190 | 315 |
| 50% Load | 50HP | 72HP |
| 100% Load | 105HP | 155HP |
| RPM | 540 | 1000 |
| Welder Receipt Voltage (50 amp) | 240 | 240 |
| Volts | 120/240 | 120/240 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 225 | 320 |
| Phase | 3 | 3 |
| Specification | QC 30-4 | QC 45-4 |
|---|---|---|
| Connection | Series High WYE | Series High WYE |
| KW | 33 | 50 |
| Momentary Surge KW | 85 | 120 |
| 50% Load | 20HP | 31HP |
| 100% Load | 49HP | 75HP |
| RPM | 540 | 540 |
| Welder Receipt Voltage (50 amp) | n/a | n/a |
| Volts | 277/480 | 277/480 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 50 | 70 |
| Phase | 3 | 3 |
| Specification | QC 68-4 | QC 105-4 |
|---|---|---|
| Connection | Series High WYE | Series High WYE |
| KW | 76 | 113 |
| Momentary Surge KW | 190 | 315 |
| 50% Load | 50HP | 72HP |
| 100% Load | 105HP | 155HP |
| RPM | 540 | 1000 |
| Welder Receipt Voltage (50 amp) | n/a | n/a |
| Volts | 277/480 | 277/480 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 125 | 150 |
| Phase | 3 | 3 |
| Specification | QC 27-6 | QC 50-6 |
|---|---|---|
| Connection | Dedicated | Dedicated |
| KW | 27 | 50 |
| Momentary Surge KW | 45 | 130 |
| 50% Load | 18HP | 35HP |
| 100% Load | 47HP | 80HP |
| RPM | 540 | 540 |
| Welder Receipt Voltage (50 amp) | n/a | n/a |
| Volts | 347/600 | 347/600 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 35 | 60 |
| Phase | 3 | 3 |
| Specification | QC 75-6 | QC 100-6 |
|---|---|---|
| Connection | Dedicated | Dedicated |
| KW | 75 | 100 |
| Momentary Surge KW | 200 | 300 |
| 50% Load | 52HP | 71HP |
| 100% Load | 110HP | 153HP |
| RPM | 1000 | 1000 |
| Welder Receipt Voltage (50 amp) | n/a | n/a |
| Volts | 347/600 | 347/600 |
| Number of Poles | 4 | 4 |
| Internal RPM | 1,800 | 1,800 |
| Full Output Amps (Main Breaker) | 90 | 150 |
| Phase | 3 | 3 |
Manuals & Documents
The Product Manual
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!
Videos
Shipping
General Shipping Info:
- Instantly calculate shipping quotes to the lower 48 states by 1. adding this product to your cart, 2. click continue to the checkout page and 3. enter your shipping address to check rates. Contact us for quotes for shipping to Hawaii, Alaska, Canada, Mexico and Internationally.
- Complimentary lift gate service on all freight shipments where it’s possible. We guarantee safe delivery!
- Low shipping rates for customers. We have negotiated the best possible rates for customers from our trusted carriers (ODFL, ESTES, UPS, and FedEx) & Top Private Drivers.
- Negotiate shipping rates if you think we can do better please reach out. Keep in mind some shipping rates also include assembly & configuration as well!
