Product Description
Baumalight Rotating Tree Saw | Model DSA530 & DSM530 | Blade Diameter 30" | Hydraulic Flow Range 10 To 45 GPM | For Skid Steers
Description

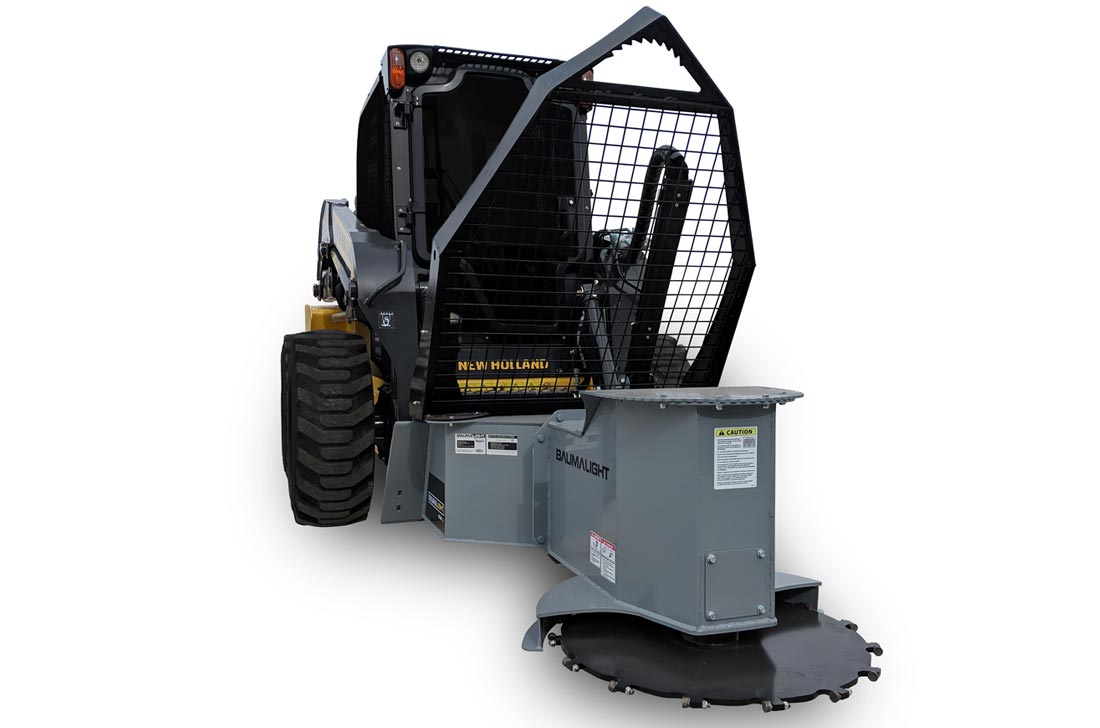

Transform your land clearing and brush removal tasks with the Baumalight DSM530 Rotating Tree Saw engineered specifically for skid steers. Whether you’re managing dense brush or removing small trees, this heavy-duty, hydraulically powered tree saw offers unmatched versatility and power. Its manually rotatable cutting head allows seamless switching between horizontal and vertical cuts, enabling precise limbing, trimming, and clearing in one compact attachment.
Crafted with abrasion-resistant AR400 steel and outfitted with replaceable carbide-tipped teeth, the DSM530 ensures a long-lasting, aggressive cutting performance that makes quick work of branches up to 10 inches thick. The robust serrated front push bar guides limbs safely away, protecting the operator and optimizing workflow. With a powerful bent axis piston motor that runs efficiently on 10-40 GPM hydraulic flow, this skid steer tree saw balances strength and precision for rural property maintenance, forestry, and land management professionals.
Designed for durability and ease of maintenance, the DSM530 features internal hose routing, protective powder coat finish, and convenient access panels, making it a reliable workhorse for demanding environments. Whether you’re a contractor, farmer, or landowner, the DSM530 is your go-to solution for efficient, clean, and safe tree cutting and brush clearing.
Key Features
- Manual Rotating Cutting Head: Quickly switch between horizontal and vertical cutting positions to tackle diverse pruning and limbing tasks with ease.
- Heavy-Duty Construction: Built with abrasion-resistant AR400 steel and a robust serrated front push bar for superior durability in tough conditions.
- Powerful Hydraulic Motor: Efficient bent axis piston motor operating on 10 To 45 GPM hydraulic flow delivers smooth, aggressive cutting power.
- 30-Inch Circular Blade: Large diameter blade with replaceable carbide-tipped teeth for long-lasting, high-speed cutting of trees and brush up to 10 inches thick.
- Safe Blade Shielding: Enclosed blade housing directs wood chips away from the operator, improving safety and visibility during operation.
- Roll Back Mount Angle: Skid steer plate with rollback angle enhances reach and access in tight or difficult-to-reach areas.
- High-Speed Carbide Teeth: Triple-edge teeth can be rotated and replaced easily, maximizing blade life and cutting efficiency.
- 6 Free Replacement Teeth Included: Comes with an onboard compartment storing extra teeth for quick swaps on the job.
- Internal Hose Routing with Double Shielding: Hydraulic hoses are armored and internally routed to prevent damage, reducing downtime.
- Case Drain with Vent to Atmosphere: Protects motor seals by relieving pressure spikes, minimizing maintenance needs.
- Greaseable Zinc-Plated Pins: Corrosion-resistant pins ensure smooth pivot and rotation over extended use.
- Powder-Coated Finish: Protective coating guards against rust and corrosion for longer equipment life.
- Easy Service Access: Removable panels facilitate fast inspection, maintenance, and repairs on-site.
- Anti-Slip Mat for Cab Entry: Provides secure footing for operators entering and exiting the skid steer cab.
- Maximum Visibility Design: Open frame construction allows a clear line of sight for precise cutting.
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | DSM530 |
| Blade Diameter | 30 inches |
| Cutting Capacity | Up to 10 inches thick branches |
| Hydraulic Flow Range | 10 To 45 GPM |
| Hydraulic Motor Type | Bent Axis Piston Motor (T530) |
| Motor Displacement | 47 cc |
| Rotation Type | Manual rotation (bolt-on) |
| Mount Compatibility | Universal Skid Steer Plate |
| Maximum Operating PSI | 4,000 PSI |
| Unit Weight | 800 lbs |
| Blade Material | Abrasion-Resistant AR400 Steel |
| Teeth Type | High-Speed Carbide-Tipped (3 edges) |
| Number of Teeth | 12 teeth + 6 free replacement teeth |
| Cut Thickness | 3/4 inch |
| Protective Coating | Powder-Coated Finish |
| Hose Routing | Internal with double shielding |
| Safety Features | Blade shield, serrated push bar, protective mesh |
Comparison Chart
| Feature | DSM230 | DSM530 |
|---|---|---|
| Blade Angle | 180° | 180° |
| Rotation | Bolt-on | Bolt-on |
| GPM | 6-20 | 10-45 |
| Motor cc | 25 | 47 |
| Motor Option | T508 | T530 |
| Blade Diameter (inches) | 30" | 30" |
| Max Cut (inches) | 10" | 10" |
| Unit Shipping Weight (lbs) | 650 | 800 |
| Feature | DSA530 |
|---|---|
| Blade Angle | 180° |
| Rotation | Actuator |
| GPM | 10-45 |
| Motor cc | 47 |
| Motor Option | T530 |
| Blade Diameter (inches) | 30" |
| Max Cut (inches) | 10" |
| Unit Shipping Weight (lbs) | 900 |
