Baumalight Stump Grinder | GXM Series | Rotor Size 19" & 24" | Machine Size 1.5-18 Tons | For Excavators

Baumalight Stump Grinder | GXM Series | Rotor Size 19" & 24" | Machine Size 1.5-18 Tons | For Excavators

$10,820.00
$10,820.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Wearsharp® Teeth: Rotatable for a fresh edge up to three times, extending grinding duration.
  • Heavy Tooth Population: Produces finer mulch and ensures smoother operation.
  • Blast Shield: Equipped with a double row chain curtain to contain debris.
View full details

Product Description

Baumalight Stump Grinder | GXM Series | Rotor Size 19" & 24" | Machine Size 1.5-18 Tons | For Excavators

DESCRIPTION

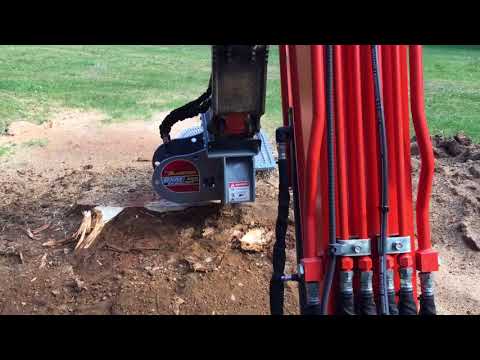

Baumalight offers a versatile range of excavator-mounted stump grinders, each designed to deliver exceptional performance and efficiency for different excavation needs. The  stump grinder is engineered for high performance with 7 to 18-ton excavators, operating with a flow range of 8 to 40 gallons per minute. It features 20 green carbide teeth, packed in groups of 5, that can be rotated up to three times using Wearsharp® technology to maintain a sharp edge. This configuration allows for extended grinding duration and finer mulch production, ensuring smoother operation. The 18" to 24" rotor, driven by a bent axis piston motor, provides effective stump grinding in various locations. Additionally, the blast shield with a double row chain curtain keeps debris contained, while the GXM750 offers three motor options to best match your excavator's flow.

Key Features

  • Wearsharp® Teeth: Rotatable for a fresh edge up to three times, extending grinding duration.
  • Heavy Tooth Population: Produces finer mulch and ensures smoother operation.
  • Blast Shield: Equipped with a double row chain curtain to contain debris.
  • Built-In Control and Precision: Allows for precise stump grinding around objects, whether in a ditch or overhead.
  • Relief Valve: Protects the motor and hydraulic systems from pressure spikes by relieving pressure when an obstacle is hit.
  • Motor Options: Offered with three motor options to best match your excavator's flow.

Feature Details
Excavator Mount Weld-on mounting plate allows custom fitting to your specific machine
Motor Type Bent axis piston motor for high torque and efficient use of hydraulic flow
High Speed Teeth 3-in-1 rotatable carbide teeth provide aggressive, long-lasting cutting
Tooth Count High number of teeth reduces wear per tooth and extends overall life
Free Teeth Included 3 replacement teeth + 1 holder, stored in on-frame tool compartment
Rotor Thickness Heavy-duty 1¼" steel rotor adds grinding momentum and rigidity
Clearance Design 1¼" tooth extension for improved chip ejection and cooling
Blast Shield Oversized debris shield with dual safety chain curtains and cleanup function



Detailed Specifications

Stump Grinder Model Comparison

Feature

GXM350

GXM550

GXM750
Baumalight Connection Code A02 A02 A02
Recommended Carrier Size 1.5–4.5 ton 3.5–8 ton 7–18 ton
Motor Type Bent Axis Piston Bent Axis Piston Bent Axis Piston
Hydraulic GPM Check Motor Options
Rotor Size 19" 24" 24"
Number of Teeth 24 12 12
Tooth Part Number H3000 H3000 H3000
Tooth Construction High Speed High Speed High Speed
Cutting Wheel Speed Depends on GPM
Cutting Height – Above Ground No Limit
Cutting Depth – Below Ground 16" 24" 24"
Max Cutting Depth per Pass ¾" 1" 1"
Maximum Horizontal Cut 12" 22" 22"
Over Torque Protection Relieve Valve
Hitch Bolt-On Bolt-On Bolt-On
No. of Remotes Required 1
Requires 12V DC No
Shipping Weight (lbs) 650 822 1300
