Product Description
Baumalight Stump Grinder | Model S14, S16 & S18 | Rotor Size 18" To 24" | Hydraulic Flow Range 10 To 22 GPM | For Mini Skid Steer
DESCRIPTION

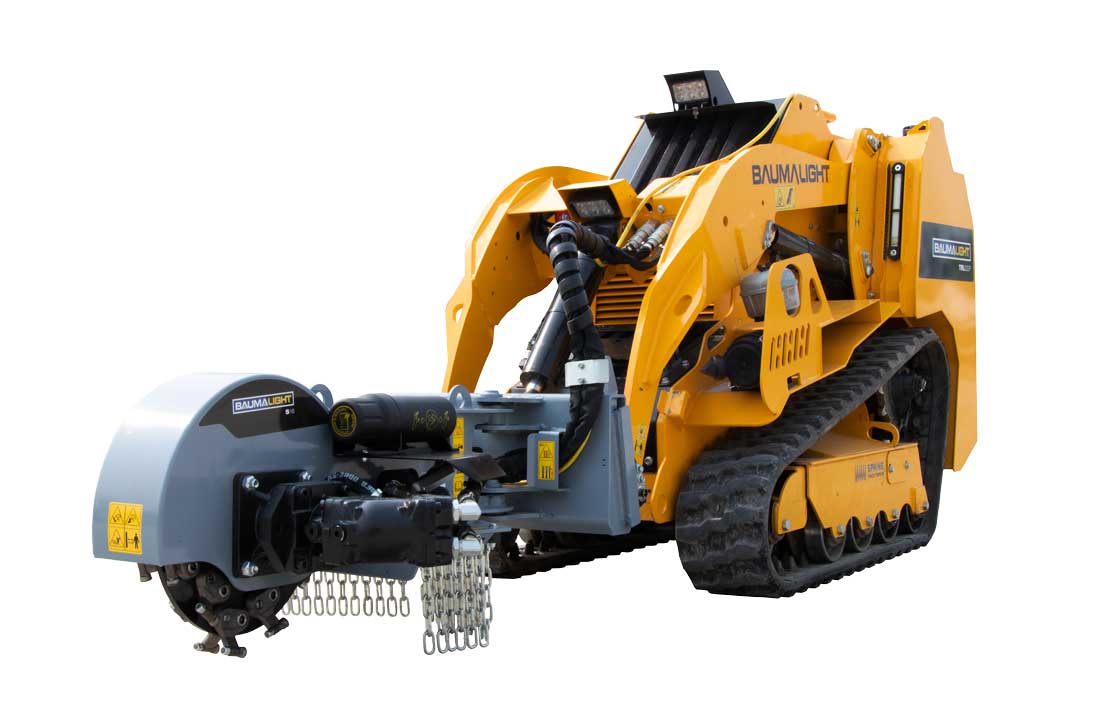

When you're tackling stubborn stumps in tight spaces, the Baumalight S14, S16, and S18 Mini Skid Steer Stump Grinders deliver unmatched performance, ease of use, and rugged durability. Whether you’re a landscaper needing a compact solution for residential jobs or a contractor grinding through dense hardwoods, Baumalight has a model perfectly suited for your hydraulic flow range and grinding depth needs.
Engineered specifically for mini skid steers, these stump grinders are designed to optimize torque, visibility, and operator control. With no unnecessary electronics in the S14 and S18 models and precision-controlled 12V actuator swing in the S16, each option offers unique advantages for the task at hand.
From low GPM skid steers like the Vermeer and Toro Dingo to higher-flow Bobcat and ASV platforms, the S-Series lineup allows you to customize based on machine specs, cutting depth, and site conditions. Choose your mount – from universal mini skid plates to Bobcat or RC30/PT30-specific adapters.
Key Features
- Designed specifically for Mini Skid Steers with hydraulic flows ranging from 10–22 GPM, ensuring optimal performance across multiple machine types and jobsite conditions.

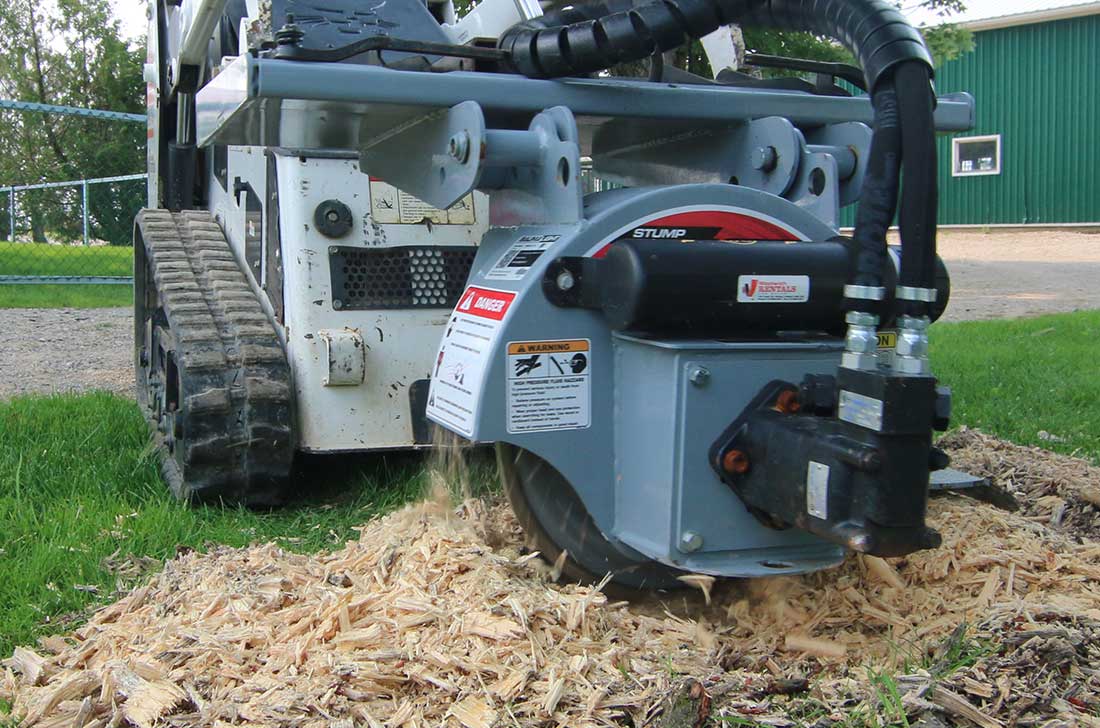

- Compatible with popular mini skid steer brands including Toro Dingo, Bobcat, ASV, Terex RC30 & PT30, providing flexible mounting options with dedicated plate adapters.

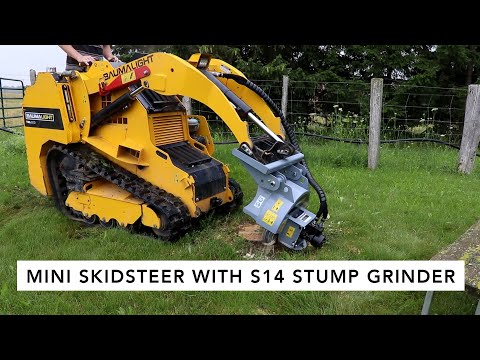

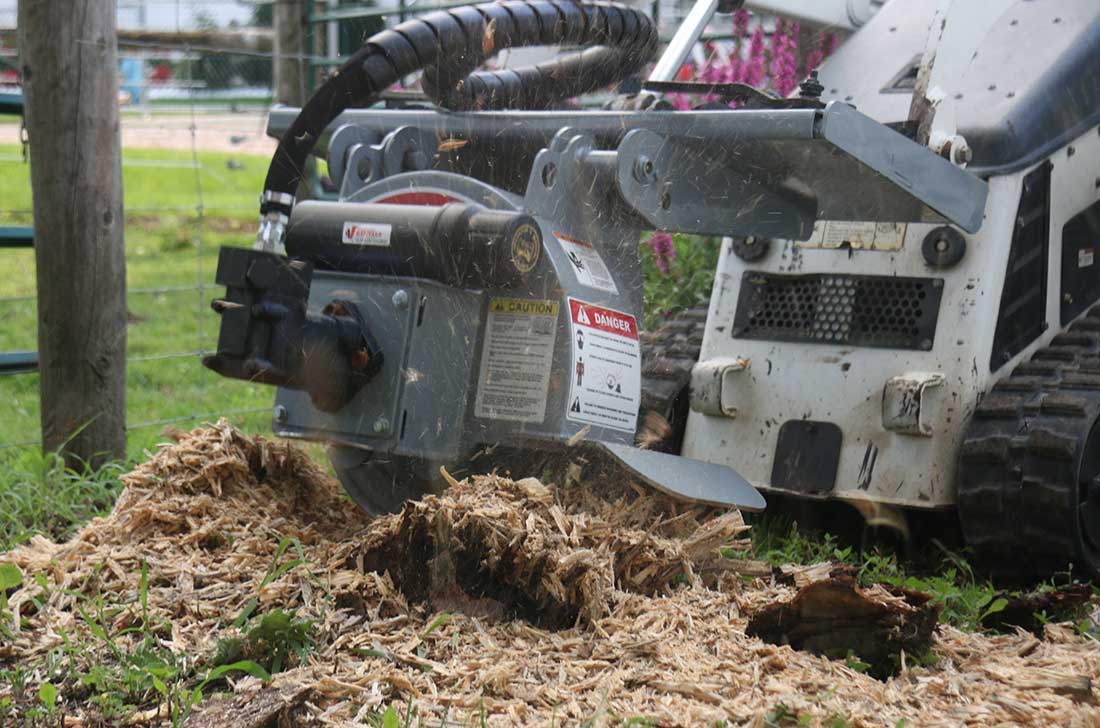

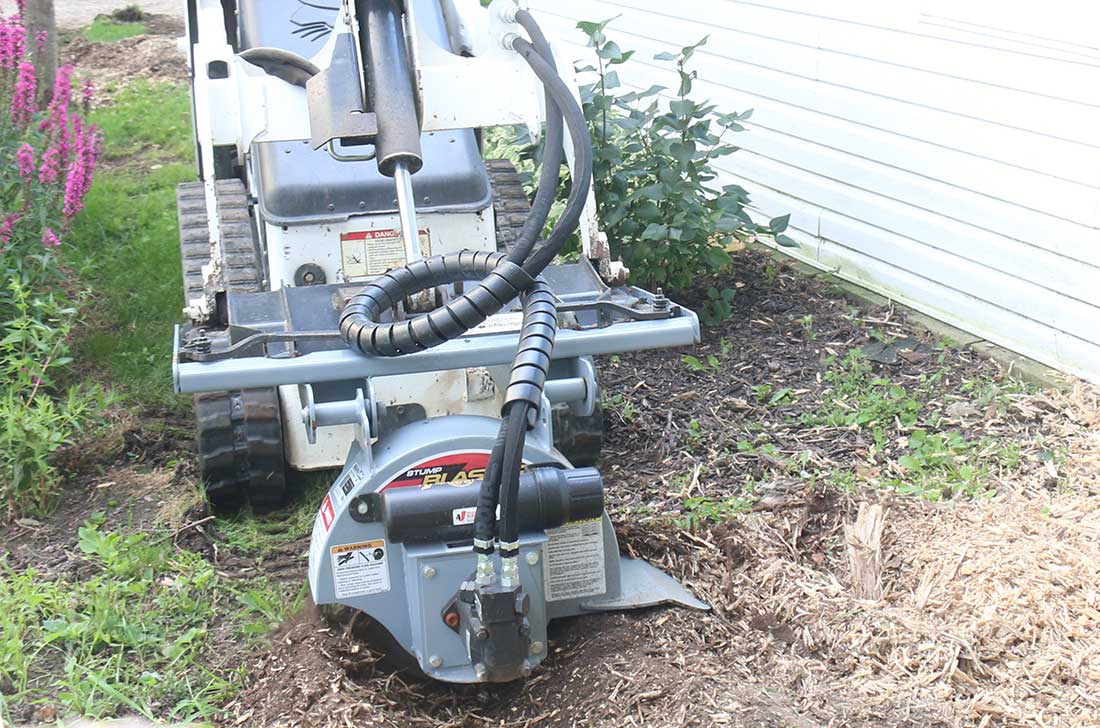

- S14 model delivers efficient stump removal with no electrical components, making it ultra-reliable and ideal for rental yards or users seeking simple plug-and-play functionality.

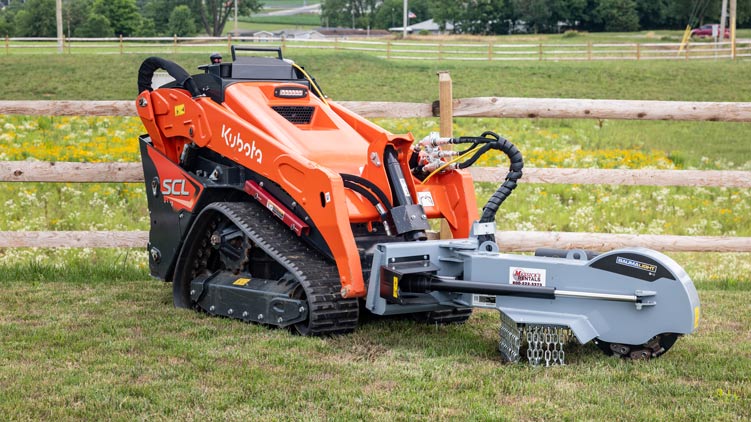

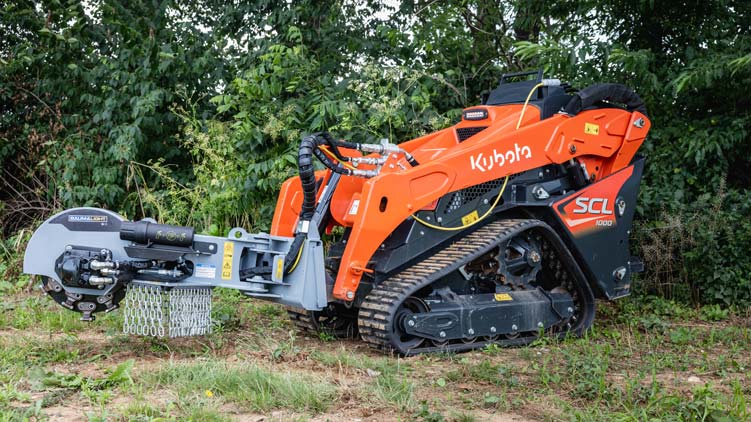

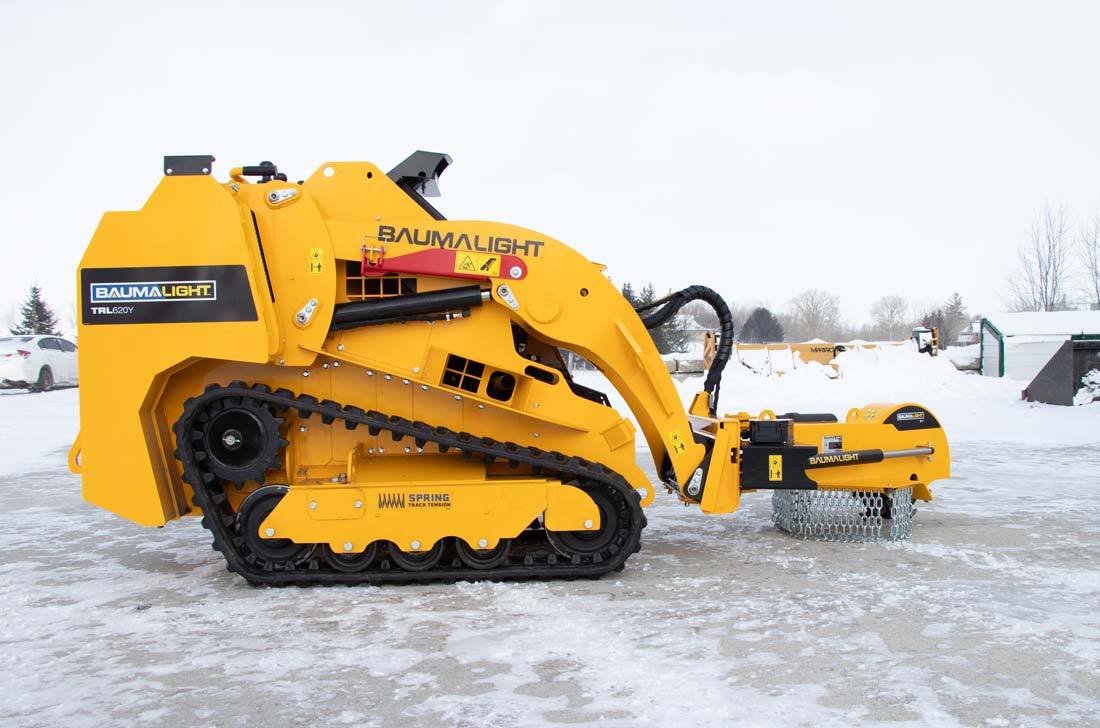

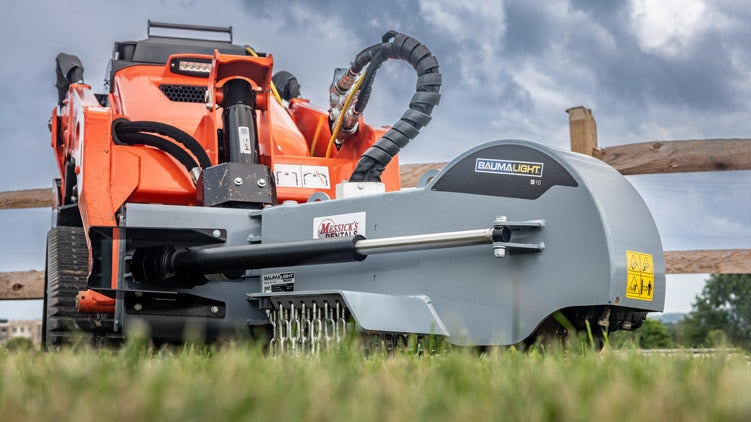

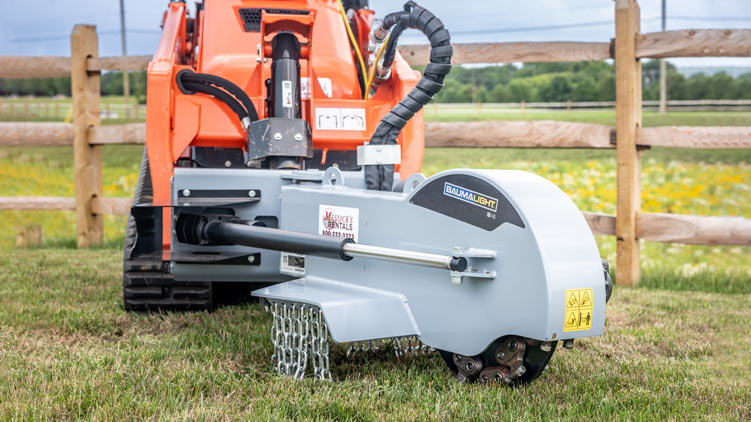

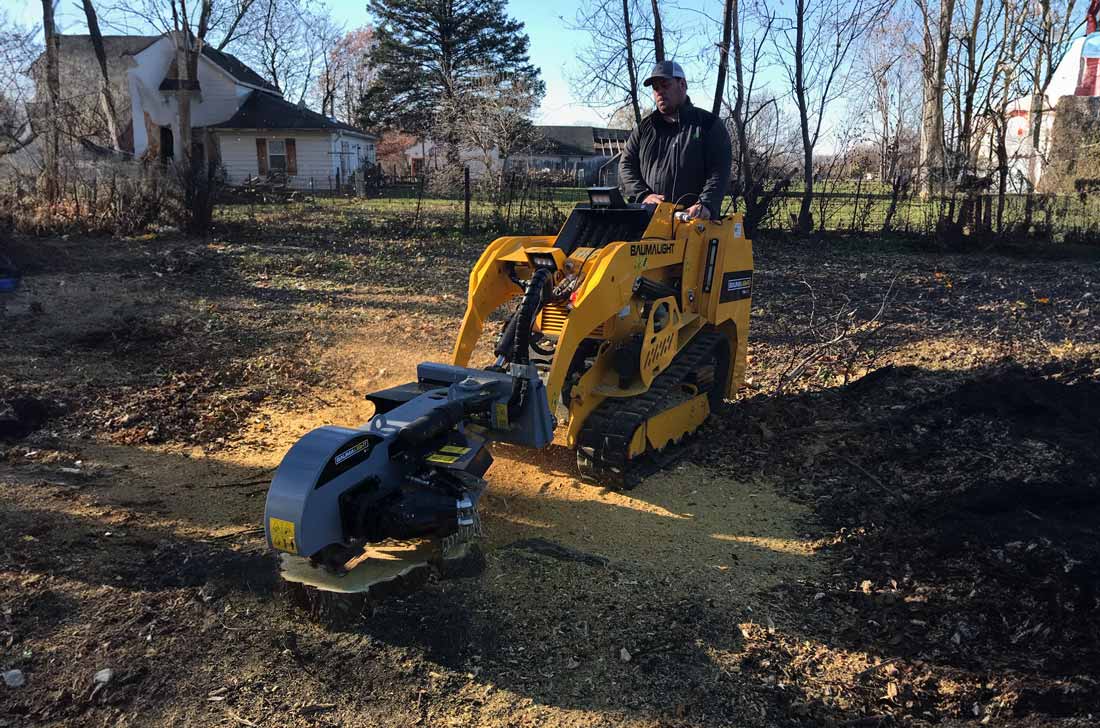

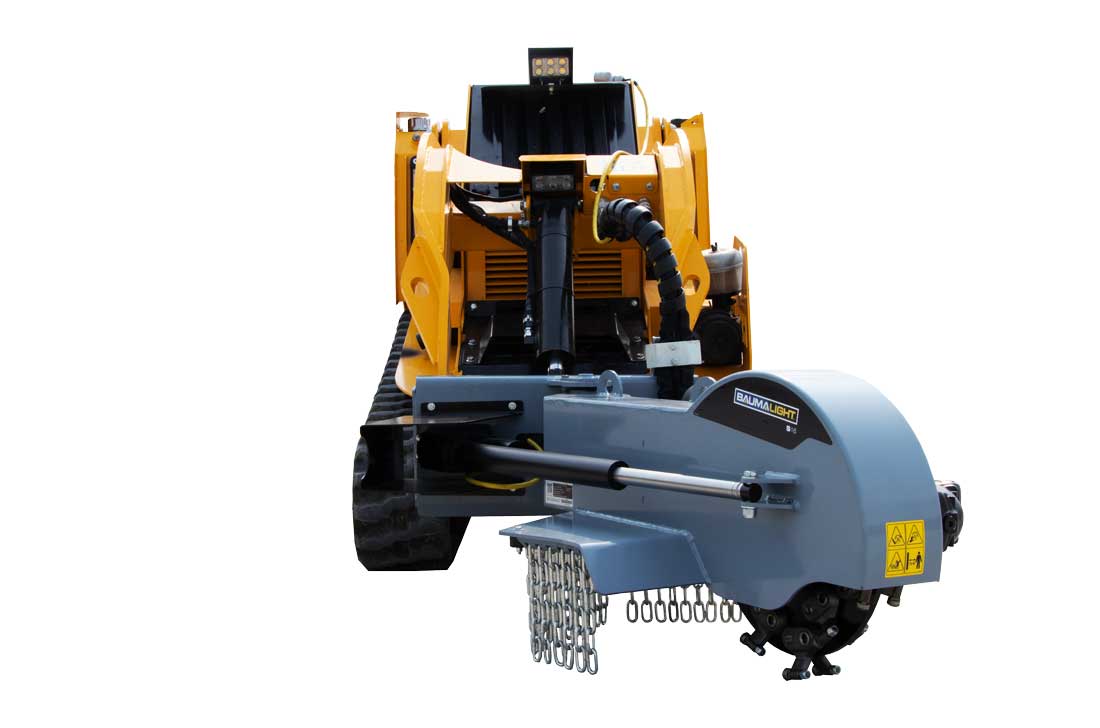

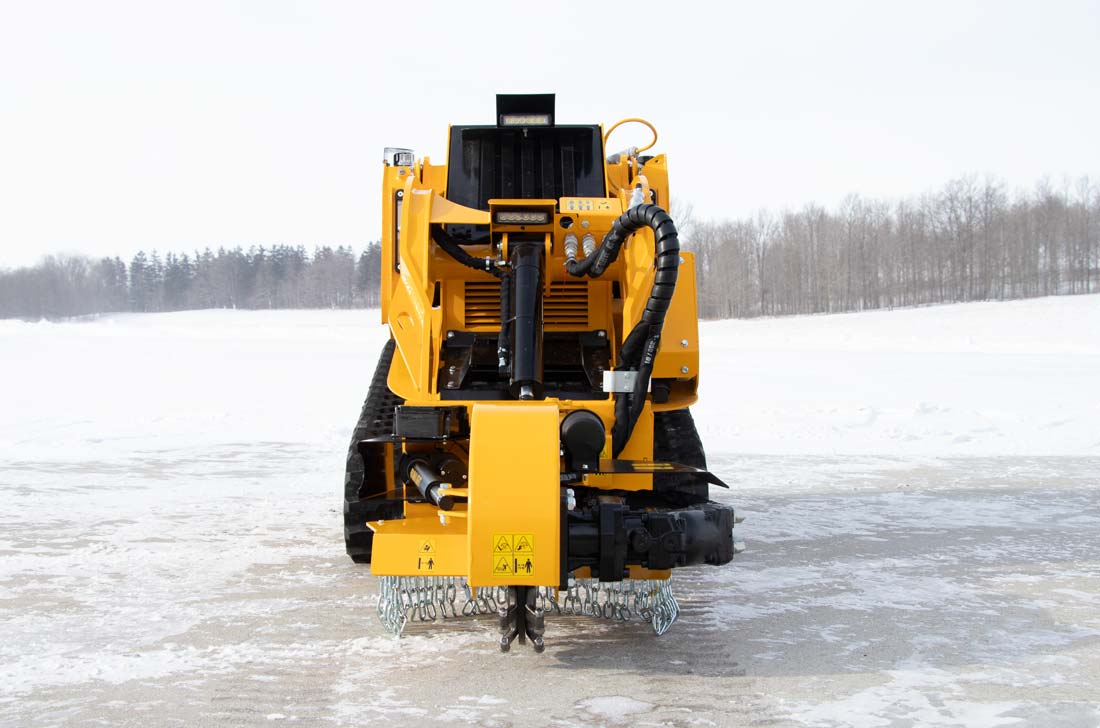

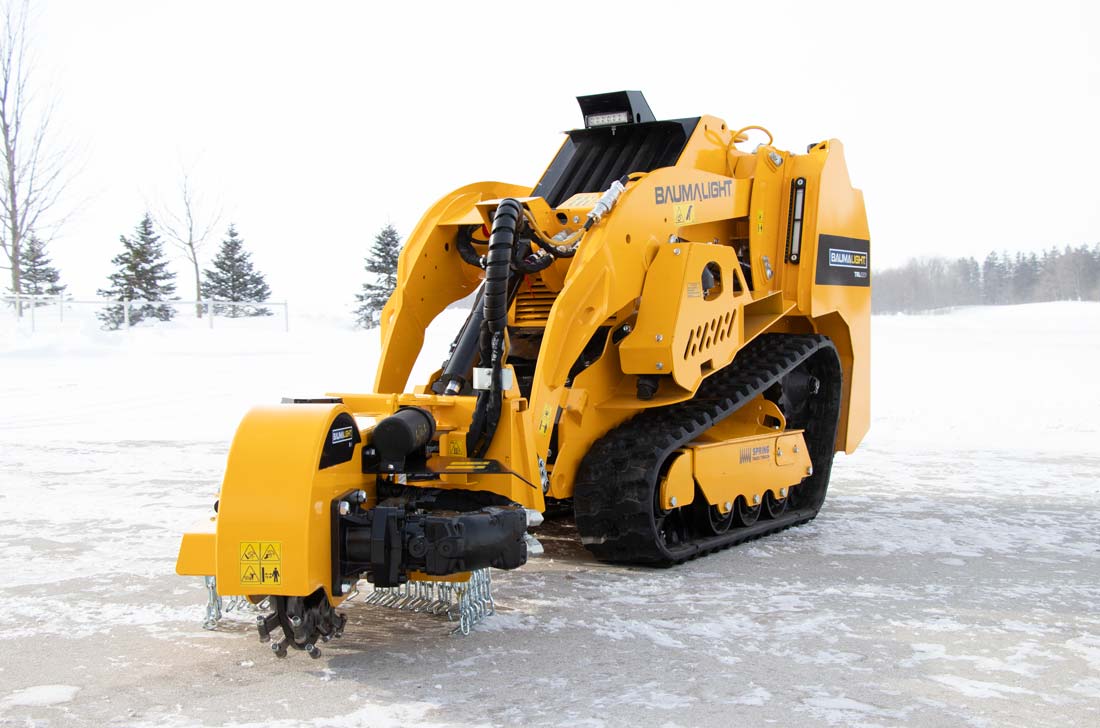

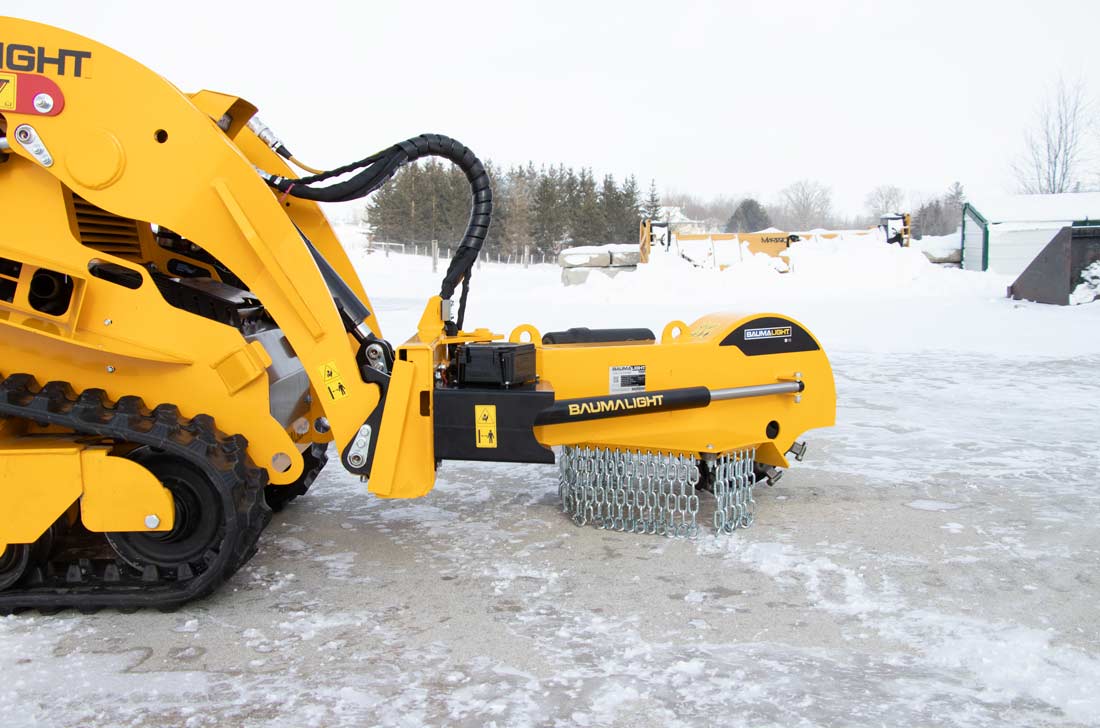

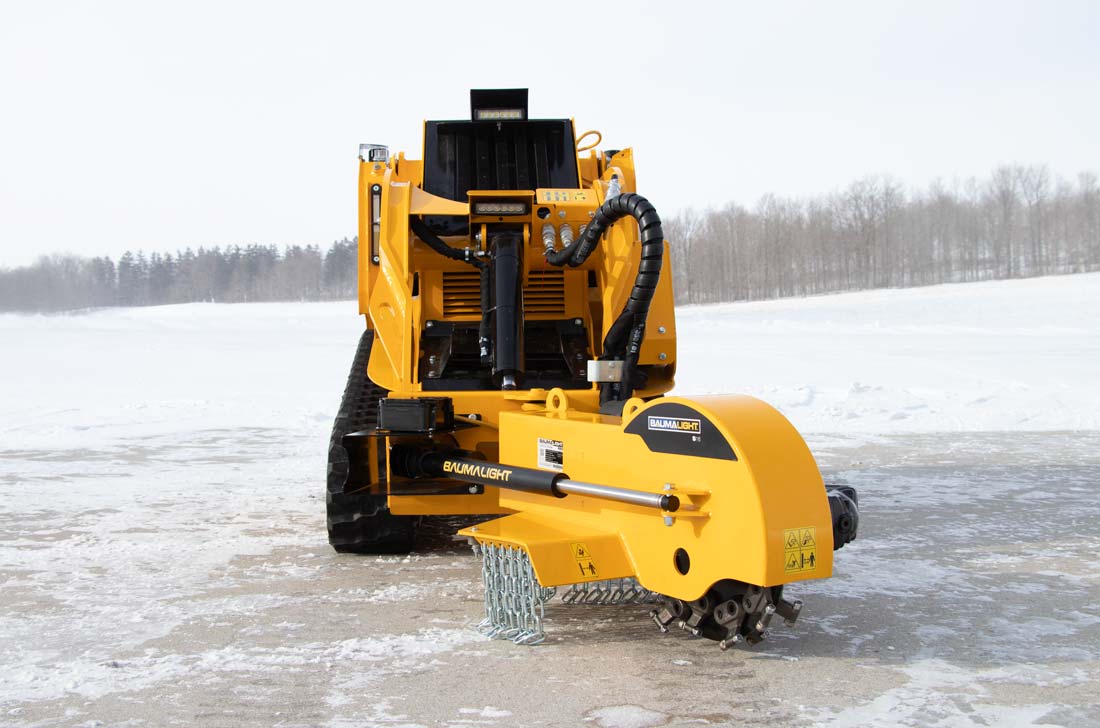

- S16 model features a precision 12V electric actuator-powered swing, enhancing side-to-side grinding control while maintaining full hydraulic flow to the cutting head for increased power.
- S18 model offers a deeper cutting depth of up to 10 inches below ground, paired with a massive ¾" thick rotor and 34 carbide teeth, built for heavy-duty stump grinding applications.

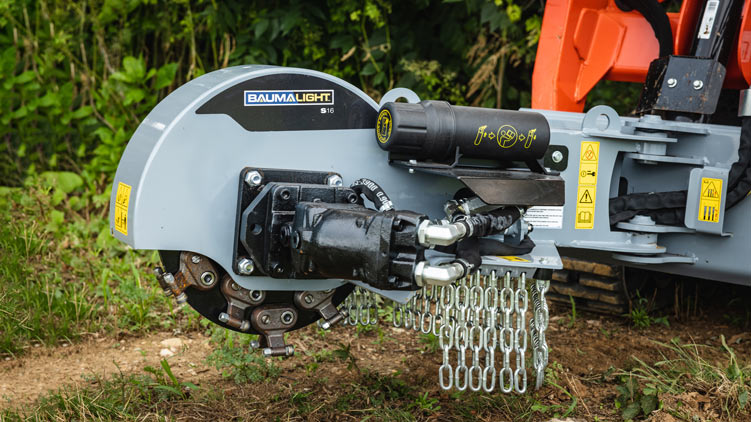

- High-efficiency direct-drive hydraulic motors (Gerotor or Bent Axis Piston, depending on model) minimize energy loss and increase torque, helping you grind faster even in dense hardwoods.
- Compact design and 42" x 40" footprint make these stump grinders perfect for tight-access areas like backyard gates, urban job sites, or landscaped environments.

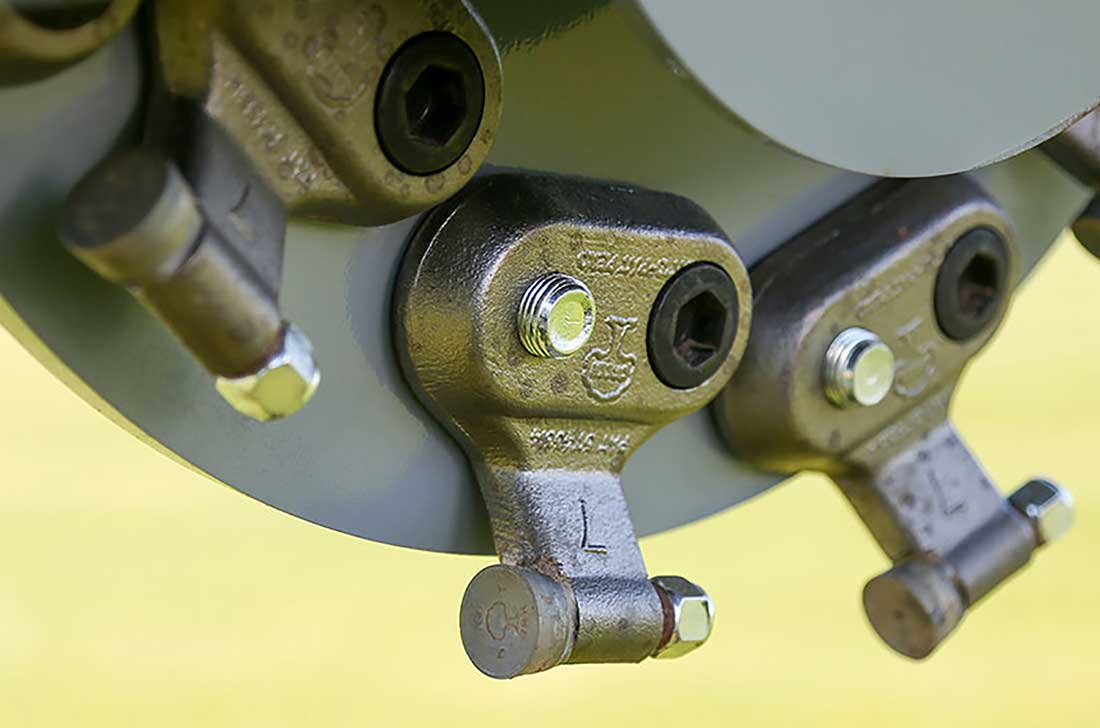

- Durable green carbide teeth (S14 & S16 use H3000 high-speed tips; S18 uses S1000 planer-style teeth) can be rotated or replaced, extending tool life and reducing maintenance costs.

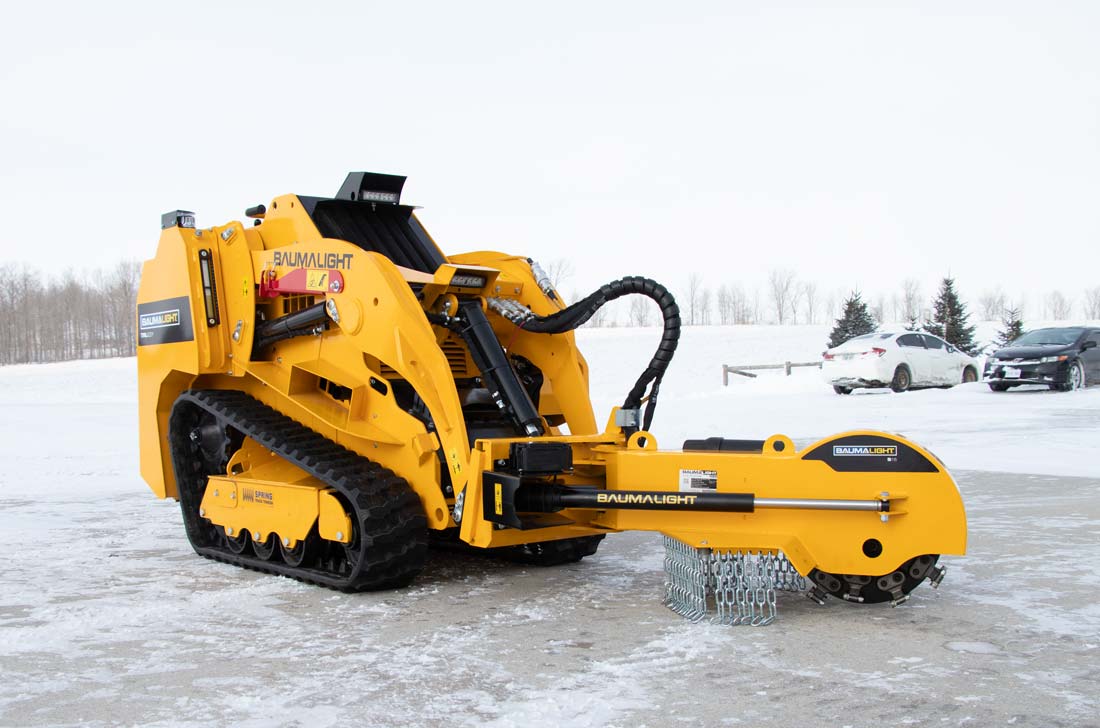

- Excellent operator visibility to the rotor and grinding area allows precise stump targeting, reducing the chance of damaging nearby structures or landscape elements.

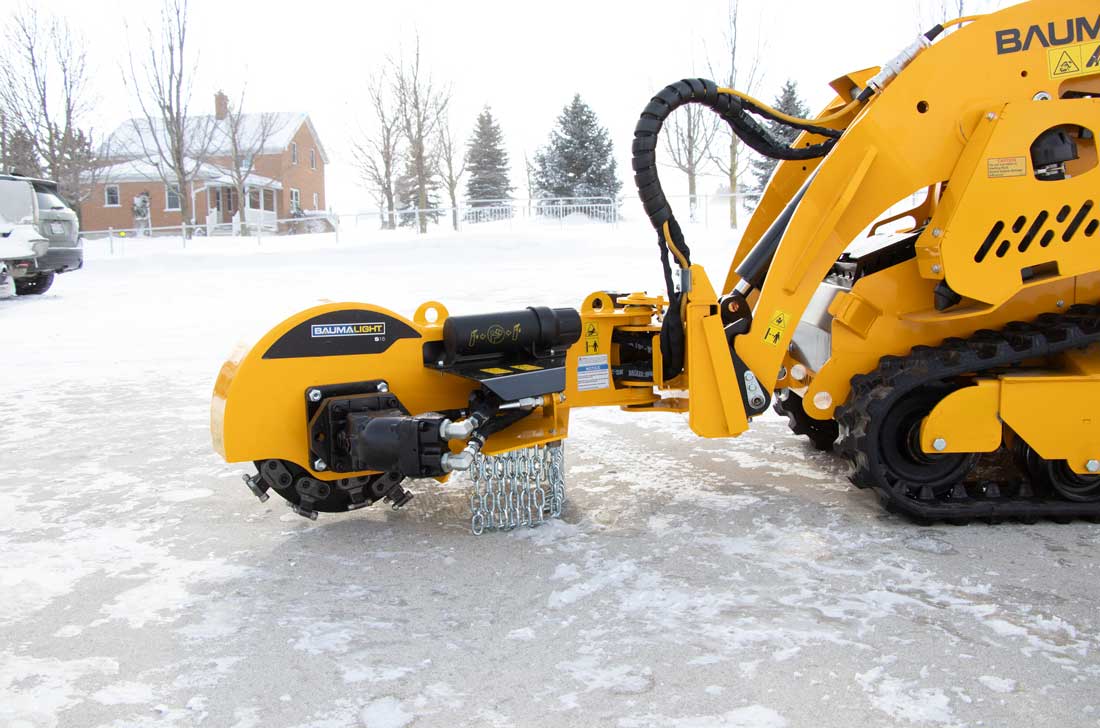

- Integrated heavy-duty deflector shield safely directs flying debris away from the operator and machine, improving on-site safety and cleanup time.
- Requires only 1 hydraulic remote circuit, simplifying setup and reducing operator fatigue no complex wiring or auxiliary power needed (except S16's 12V swing actuator).
- Weighs as little as 394 lbs (S14) and up to 642 lbs (S18), providing a balanced footprint for stability without overwhelming compact machines.
- Versatile cutting wheel with up to 24" rotor diameter and 58° swing radius (S16) lets you cover more ground in fewer passes, maximizing jobsite efficiency.
- Ideal for landscapers, arborists, property maintenance crews, and contractors looking for commercial-grade grinding performance in a compact, easy-to-maneuver package.
- All models are engineered in North America with rugged steel construction and premium components, ensuring long-term reliability in harsh work environments.
Detailed Specifications
| Specs |
Baumalight S14 |
Baumalight S16 |
Baumalight S18 |
|---|---|---|---|
| Attachment Type | Mini Skid Steer Stump Grinder | Mini Skid Steer Stump Grinder | Mini Skid Steer Stump Grinder |
| Hydraulic Flow Range | 10–15 GPM | 12–20 GPM | 12–22 GPM |
| Motor Type | Gerotor Motor | Bent Axis Piston Motor (C508, 26 cc) | Gerotor Motor |
| Hydraulic Pressure (Max) | Up to 3,000 PSI (est.) | Up to 5,000 PSI | Up to 4,000 PSI (est.) |
| Requires 12V DC Power | No | Yes (for electric actuator swing) | No |
| Minimum Amps Required | N/A | 30 Amps | N/A |
| Swing Type | Manual Swing | 12V Electric Actuator Swing | Manual Swing |
| Swing Arc | Self-Feeding (Operator-Controlled) | 58° Swing Arc | Self-Feeding (Operator-Controlled) |
| Rotor Size / Thickness | 18″ Diameter / ~½″ Thick | 18″ Diameter / ~½″ Thick | 24″ Diameter / ¾″ Thick |
| Cutting Wheel Speed | Dependent on GPM | Dependent on GPM | Dependent on GPM |

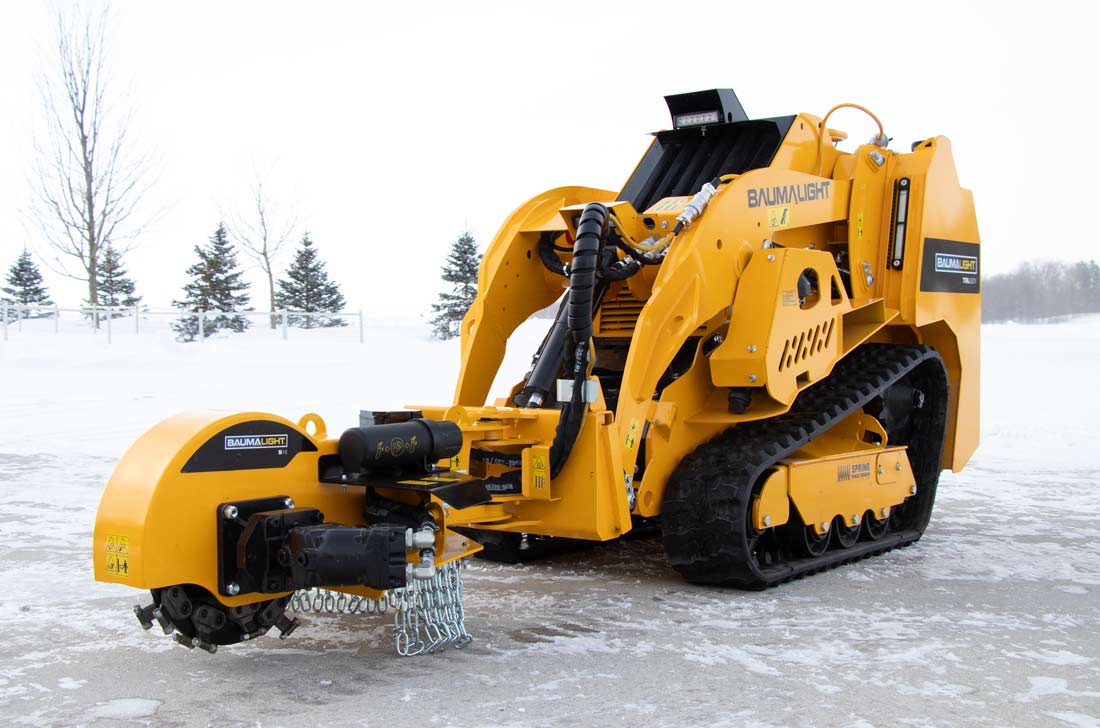

| Tooth Type | Green Teeth – High-Speed Carbide | High-Speed Concave Carbide Teeth (Double-Sided) | Planer Style Carbide Teeth |
| Number of Teeth | 12 Teeth (3-position rotational) | 24 Teeth (double-sided configuration) | 34 Teeth |
| Tooth Part Number | H3000 | H3000 | S1000 |
| Cutting Height (Above Ground) | Unlimited (Operator Controlled) | Unlimited | Unlimited |
| Cutting Depth (Below Ground) | Up to 6″ | Up to 6″ | Up to 10″ |
| Max Cutting Depth Per Pass | ~2″ | ~2″ | ~5″ |
| Max Horizontal Cutting Reach | 12″ | 12″ | 22″ |
| Over Torque Protection | Hydraulic Relief Valve | Hydraulic Relief Valve | Hydraulic Relief Valve |
| Weight (Shipping) | 394 lbs | 400 lbs | 642 lbs |
| Dimensions (L × W × H) | 42″ × 40″ × 36″ | 42″ × 40″ × 36″ | 42″ × 40″ × 36″ |
| Rotor Visibility | Excellent | Excellent | Excellent |
| Deflector Type | Heavy-Duty Fixed Steel Deflector | Heavy-Duty Fixed Steel Deflector | Heavy-Duty Fixed Steel Deflector |
| Mount Compatibility | Mini Skid Steer, Bobcat, RC30/PT30 Mounts | Mini Skid Steer (Electric-Ready Mount) | Mini Skid Steer, Bobcat Mounts Available |
| Hitch / Mounting Style | 1″ Pivot Pins / Mini Universal Mount Plate | Dedicated Mini Plate Mount | 1″ Pivot Pins / Mini Universal Mount Plate |
| Number of Hydraulic Remotes Required | 1 | 1 | 1 |
| Hydraulic Couplers Included | No | No | No |
| Ideal Machine Type | Mini Skid Steers (Low Flow) | Mini Skid Steers (High Flow / Precision Work) | Mini Skid Steers (Heavier, Rugged Use) |
| Typical Applications | Landscaping, Light Clearing, Rentals | Residential, Parks, Controlled Urban Use | Commercial, Construction, Heavy Clearing |
| Best For | Entry-Level Users, Rental Fleets | Precision Control Jobs, Light/Medium Workloads | Power Users, Contractors, Deep Root Clearing |
Comparison Chart
| Specification | S14 | S16 |
|---|---|---|
| Model No. | S14 | S16 |
| Recommended HP Size | Mini Skidsteer | Mini Skidsteer |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Chart | Check Stump Cutting Chart |
| Hydraulic Couplers | Included | Included |
| Rotor Size | 18" | 18" |
| Number of Teeth | 12 | 24 |
| Tooth Part Number | H3000 | H3000 |
| Tooth Construction | High Speed | High Speed |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No Limit | No Limit |
| Cutting Depth - Below Ground | 6" | 6" |
| Max Cutting Depth - Per Pass | 2" | 2" |
| Maximum Horizontal Cut | 12" | 12" |
| Swing Arc | Self-feeding | 56° |
| Over Torque Protection | Relief Valve | Relief Valve |
| Hitch | 1" Pivot Pins | Mini Plate |
| No. of Hydraulic Remotes Required | 1 | 1 |
| Requires 12V DC | No | Yes |
| Minimum Required Amps | – | 30 amps |
| Specification | S18 | S22 |
|---|---|---|
| Model No. | S18 | S22 |
| Recommended HP Size | 25–80 | 25–65 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Gerotor |
| Hydraulic GPM | Check Stump Cutting Chart | Check Stump Cutting Chart |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Rotor Size | 24" | 24" |
| Number of Teeth | 34 | 34 |
| Tooth Part Number | S1000 | S1000 |
| Tooth Construction | Planer | Planer |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No Limit | No Limit |
| Cutting Depth - Below Ground | 10" | 10" |
| Max Cutting Depth - Per Pass | 5" | 6" |
| Maximum Horizontal Cut | 22" | 22" |
| Swing Arc | Self-feeding | 60° |
| Over Torque Protection | Relief Valve | Relief Valve |
| Hitch | 1" Pivot Pins | Quick Attach |
| No. of Hydraulic Remotes Required | 1 | 1 |
| Requires 12V DC | No | Yes |
| Minimum Required Amps | – | 30 amps |
| Specification | S24 | S28 |
|---|---|---|
| Model No. | S24 | S28 |
| Recommended HP Size | 30–80 | 50–120 |
| Maximum Carrier Size | Check GPM & PSI | Check GPM & PSI |
| Motor Type | Gerotor | Gerotor |
| Hydraulic GPM | Check Stump Cutting Chart | Check Stump Cutting Chart |
| Hydraulic Couplers | Not Supplied | Not Supplied |
| Rotor Size | 24" | 24" |
| Number of Teeth | 34 | 34 |
| Tooth Part Number | S1000 | S1000 |
| Tooth Construction | Planer | Planer |
| Cutting Wheel Speed | Depends on GPM | Depends on GPM |
| Cutting Height - Above Ground | No Limit | No Limit |
| Cutting Depth - Below Ground | 10" | 10" |
| Max Cutting Depth - Per Pass | 6" | 6" |
| Maximum Horizontal Cut | 22" | 22" |
| Swing Arc | 60° | 63° |
| Over Torque Protection | Relief Valve | Relief Valve |
| Hitch | Quick Attach | Quick Attach |
| No. of Hydraulic Remotes Required | 1 | 1 |
| Requires 12V DC | Yes | Yes |
| Minimum Required Amps | 10 amps | 10 amps |
| Specification | S40 |
|---|---|
| Model No. | S40 |
| Recommended HP Size | 50–120 |
| Maximum Carrier Size | Check GPM & PSI |
| Motor Type | Bent Axis Piston |
| Hydraulic GPM | Check Stump Cutting Chart |
| Hydraulic Couplers | Not Supplied |
| Rotor Size | 24" |
| Number of Teeth | 12 |
| Tooth Part Number | H3000 |
| Tooth Construction | High Speed |
| Cutting Wheel Speed | Depends on GPM |
| Cutting Height - Above Ground | No Limit |
| Cutting Depth - Below Ground | 24" |
| Max Cutting Depth - Per Pass | 2" |
| Maximum Horizontal Cut | 22" |
| Swing Arc | 85° |
| Over Torque Protection | Relief Valve |
| Hitch | Quick Attach |
| No. of Hydraulic Remotes Required | 1 |
| Requires 12V DC | Yes |
| Minimum Required Amps | 10 amps |
Manuals & Documents
Product Manual S14 & S18
Product Manual S16
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

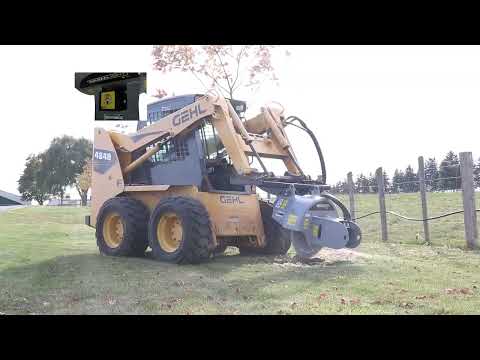

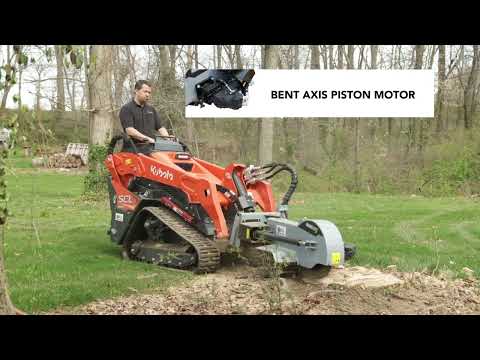

Videos
