Product Description
Baumalight Industrial Tree Spade | Model DR-434 | Ball Attachment Size 34" | Horsepower 60-75 HP | Hydraulic Flow 5-20 GPM | For Tractors & Skid Steers
Description
The DR434, our smallest Industrial Tree Spades uses the same high-quality components as the larger industrial spades.
In terms of design, the Baumalight DR434 is compact. This DR434 is capable of handling a variety of tasks in a variety of environments. The spade measures 34 inches in diameter and the blade thickness is 5/16-inch T1, a type of high-strength steel known for its toughness and durability.
Another key characteristic of the Baumalight DR434 tree spade is its ease of operation. The spade is designed to be simple and straightforward, with intuitive controls that allow the operator to adjust the depth and angle of the spade to suit the task at hand. The spade is also equipped with a locking mechanism that holds the tree in position for transport.
Whether you're a professional landscaper, a tree nursery owner, or a DIY enthusiast, the Baumalight DR434 Tree Spade is an excellent choice for all your tree-moving needs. With its powerful hydraulics, compact design, and intuitive controls, this tree spade is the perfect tool for getting the job done quickly and efficiently.
Control Options & Features
Baumalight offers the DR434 tree spade with three different control configurations to match user needs:
- Electric Controls (20' Wire) – Requires 12V wiring to the spade.
- Wireless Controls (Needs 12V to Spade) – Provides remote operation flexibility.
- AUX Hydraulic Controls (Requires Skid Steer Make/Model) – Hydraulic-powered control system requiring skid steer specification for proper integration.
Key Features
| Feature | Description | Image |
|---|---|---|
| Anti Slip Step Pads | Non-slip step pads for easy entry and safer operation. |  |
| Adjustable Stabilizers | Two adjustable stabilizers on the skid steer plate for adapting to different root ball sizes. |  |
| JIC Fittings | Secure hydraulic connections for improved servicing and durability. |  |
| Sleeved Hoses | All hoses are sleeved for protection against wear and operator safety. |  |
| Powder Coat Finish | Heavy-duty construction with a durable powder-coated finish for longevity. |  |
| Lockable Latch | Hands-free lockable latch ensures a sturdier frame while spading trees. |  |
| Lifting Eye | Integrated lifting eyes for easy storage and transport. |  |
| Truncated Blades | Provide narrower bottom cuts for better soil penetration and compression in clay and sand. |  |
| Nylon Sliders | Long-life nylon sliders cover all 4 sides of the towers, requiring no grease and allowing smooth blade movement. |  |

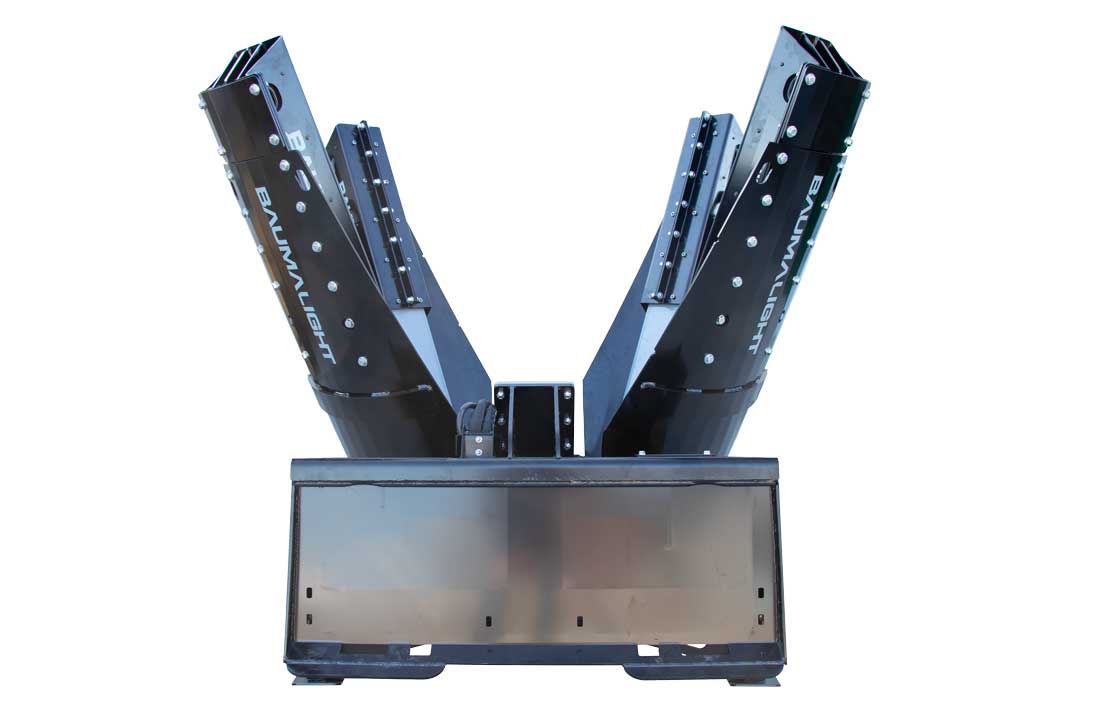

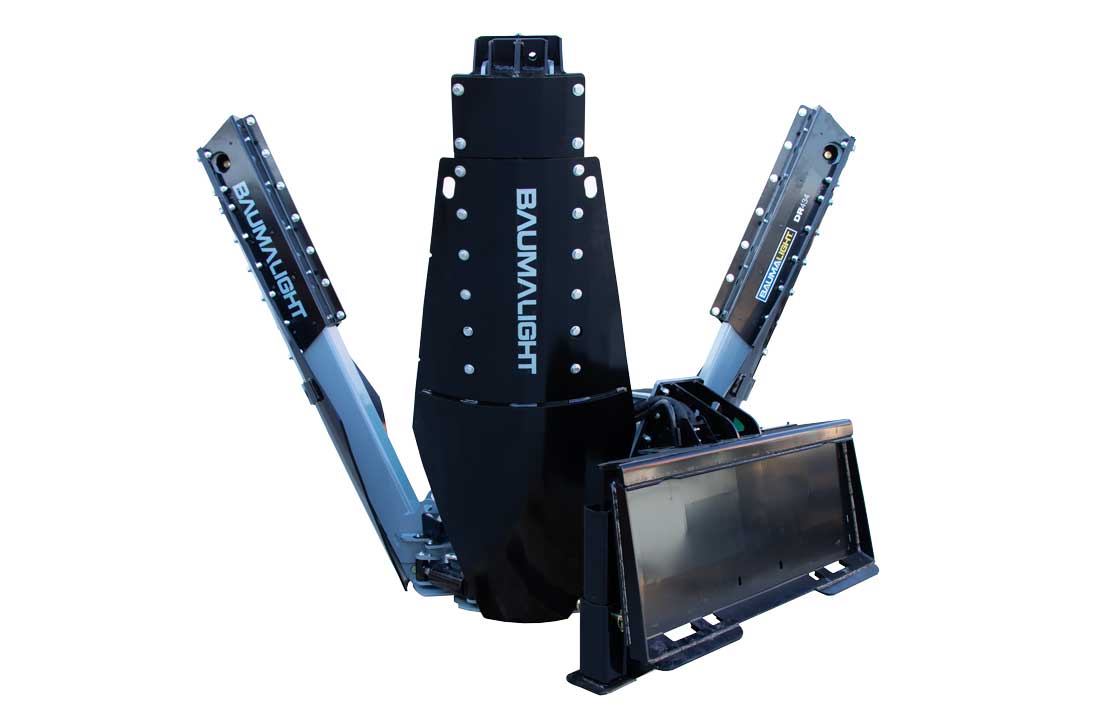

| Universal Skidsteer Adapter | Compatible with various skid steer models for easy attachment. |  |
| Bolt-in Tractor Loader Adapter | Optional feature (not included in the spade price). |  |
| Wide Range of Control Options | Baumalight remote control options improve tree spade efficiency. |  |
| Hardened Steel Bushings | Spring bushings made from chrome-vanadium AISI 6150 steel, ensuring durability at pivot points. |  |
| Greaseable Pins | Zinc-plated pins prevent corrosion for smooth operation over time. |  |
Detailed Specifications
Tree Spade Control Options |
|||
|---|---|---|---|
Feature |
Electric Controls |
Aux Connection |
Wireless Controls |
| Control Type | Wired Electric | Hydraulic Aux | Wireless Remote |
| Wire Length | 20 ft | Requires Harness | 20 ft |
| Tree Size (Evergreen) | Up-to 4" | Up-to 4" | Up-to 4" |
| Tree Size (Hardwood) | Up-to 3.5" | Up-to 3.5" | Up-to 3.5" |
| Minimum Equipment Weight | 6,260-9,260 lbs (varies by equipment type) | 6,260-9,260 lbs (varies by equipment type) | 6,260-9,260 lbs (varies by equipment type) |
Comparison Chart
DR Series Tree Spade Specifications |
||||
|---|---|---|---|---|
Feature |
DR434 |
DR438 |
DR444 |
DR448 |
| Tree Size (Evergreen) | 3.5" | 4" | 5" | 6" |
| Tree Size (Hardwood) | 3" | 3.5" | 4" | 5" |
| Root Ball Diameter (inches) | 34" | 38" | 44" | 48" |
| Root Ball Depth | 23" | 27" | 31" | 38" |
| Opening (Width) | 10" | 17" | 27" | 30" |
| Hydraulic Flow (GPM) | 5-20 | 5-20 | 5-20 | 5-20 |
| Blade Truncation | Semi | Semi | Semi | Full |
| Weight | 2480 | 2500 | 2950 | 3785 |
| Weight with Root Ball (lbs) | 2865 | 3410 | 4150 | 6020 |
