Product Description
Baumalight Tree Spade | Model PT-324 | Root Ball Diameter 24" | Horsepower 30 To 60 HP | For Tractors
DESCRIPTION

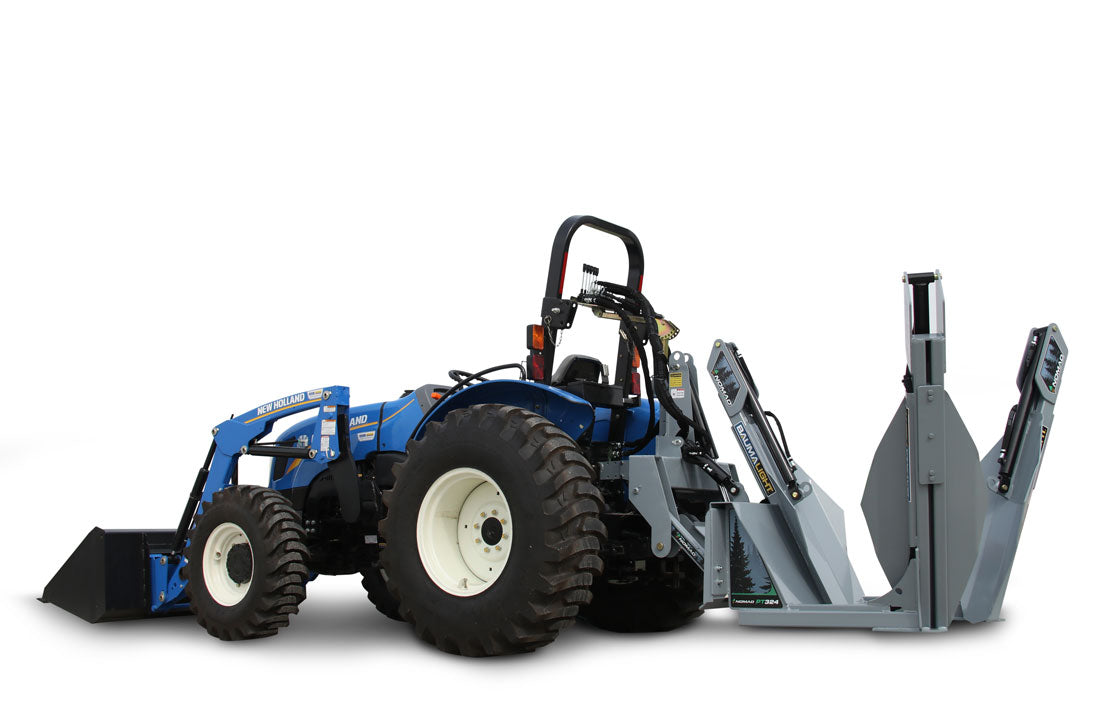

Transform your tree transplanting with the Baumalight PT-324 Tree Spade, expertly engineered for precision, power, and durability. This compact yet powerful tree spade is tailored for tractors with 30 to 60 horsepower, delivering seamless operation with a 24-inch root ball capacity perfect for landscaping professionals, nurseries, and forestry specialists.
The PT-324 features a robust three-blade hydraulic system designed to dig, cut, and compact root balls with minimal disturbance, ensuring healthier transplants and higher survival rates. Its versatile control options wireless, manual, or electric allow you to customize your workflow, improving efficiency and comfort on every job site.

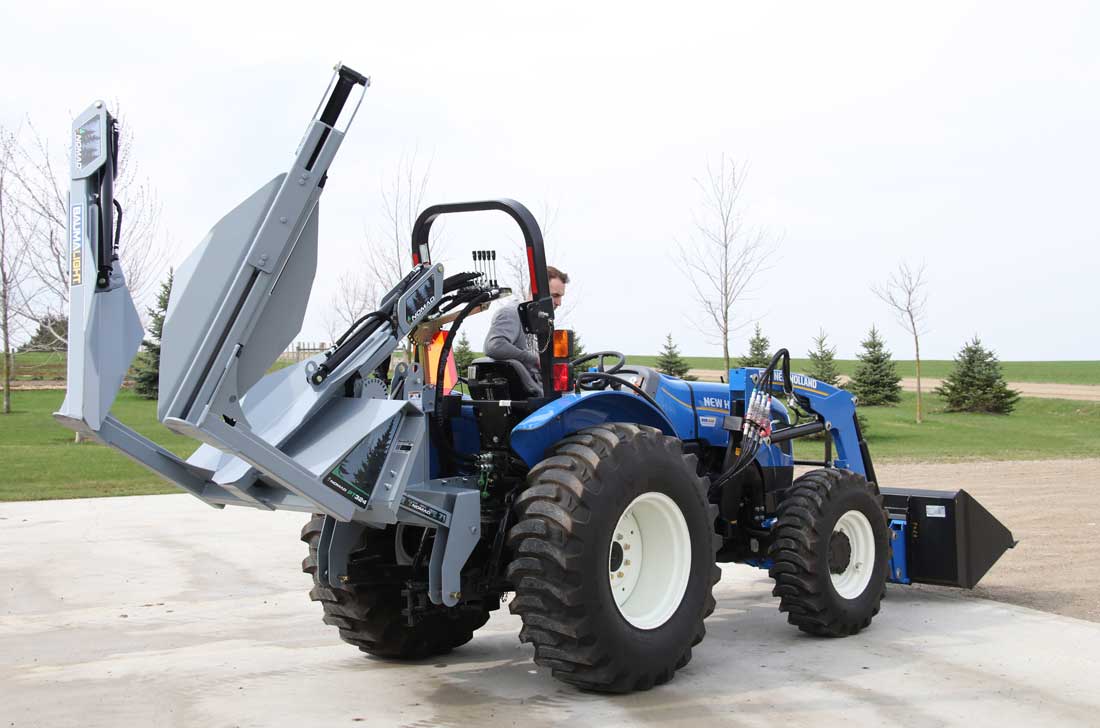

Built to last with heavy-duty steel construction and a durable powder-coated finish, this tree spade stands up to tough soil conditions and frequent use. Compact and easy to maneuver, it attaches effortlessly to your tractor’s 3-point hitch, making it the ideal tool for tight spaces and diverse terrains.
Whether you're transplanting evergreens or hardwoods, the PT-324 provides consistent power and precision, streamlining your tree moving projects and elevating your landscaping capabilities.
Key Features
- Optimal 24" Root Ball Diameter Designed to transplant medium-sized trees with minimal root shock and maximum root retention.
- Hydraulic Flow Range 5-20 GPM Smooth, powerful digging action compatible with standard tractor hydraulic systems.
- 30-60 HP Tractor Compatibility Perfectly sized for compact and mid-range tractors for flexible use on various farms and nurseries.
- Three-Blade Design Provides precise cutting and effective soil compaction to secure root balls during transplanting.

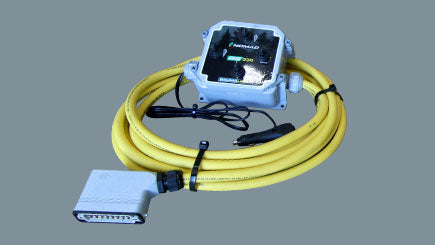

- Multiple Control Options Choose from wireless, manual, or electric controls for maximum operational versatility.
- Heavy-Duty Steel Construction Durable frame and blades built to withstand rugged terrain and harsh soil types.
- Powder-Coated Finish Corrosion-resistant coating extends the lifespan and maintains the spade’s professional look.
- 3-Point Hitch Mount Quick and easy tractor attachment ensures fast setup and improved maneuverability.
- Semi-Truncated Blade Shape Enhances soil penetration and compression, ideal for both clay and sandy soils.
- Anti-Slip Step Pads Safe and secure entry and exit for operators, reducing workplace hazards.
- Greaseable, Zinc-Plated Pins Ensures smooth blade articulation and long-lasting joint performance.
- Sleeved Hydraulic Hoses Protects hoses from abrasion and operator contact for safer, reliable operation.
- Lifting Eyes Included Simplifies transport and storage of the tree spade.
- Optional Stabilizers Available Adjustable stabilizers for precise root ball sizing and enhanced digging stability.
- Universal Skid Steer Adapter Compatible Expand your machine options with easy adapter integration.
Detailed Specifications
| Specification | PT-324 Tree Spade |
|---|---|
| Root Ball Diameter | 24 inches |
| Root Ball Depth | 23 inches |
| Opening Width | 20 inches |
| Number of Blades | 3 |
| Blade Thickness | 1/4" Mild Steel |
| Blade Angle | 25° |
| Hydraulic Flow Range | 5–20 GPM |
| Hydraulic Pressure | 2900–4000 PSI |
| Horsepower Compatibility | 30–60 HP Tractors |
| Mounting Type | 3-Point Hitch (CAT 1) |
| Control Options | Wireless, Manual, Electric |
| Weight (Without Root Ball) | 1,100 lbs |
| Weight (With Root Ball) | 1,400 lbs |
| Dimensions (LxWxH) | Compact design suited for tight spaces (specific dimensions available on request) |
| Finish | Durable Powder Coat |

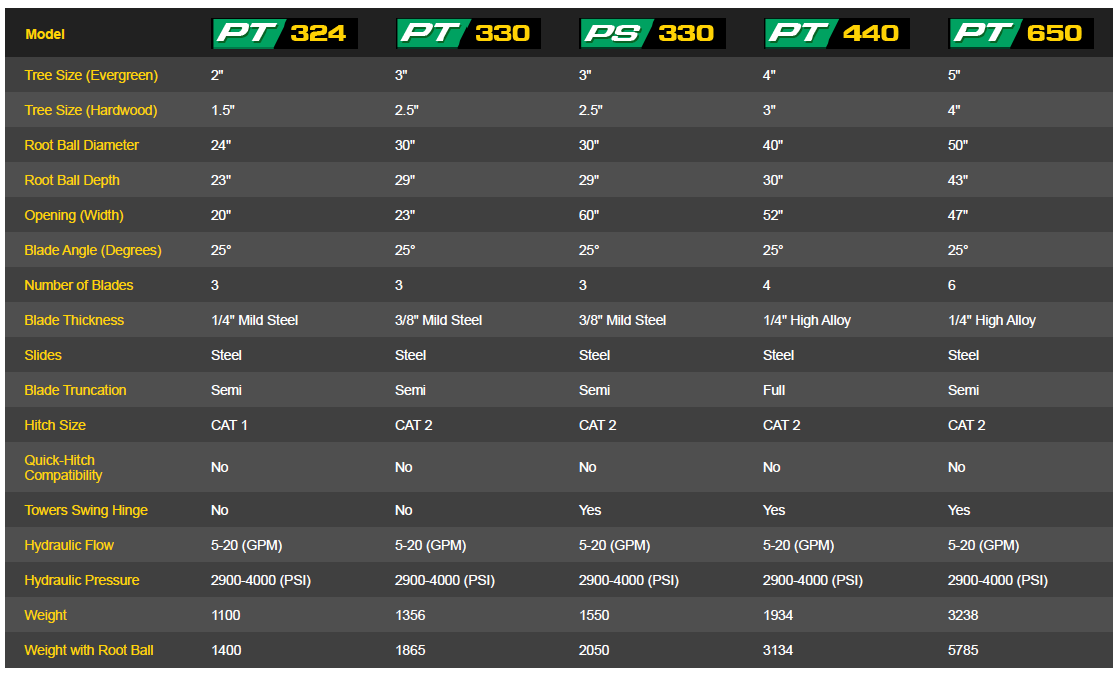

Comparison Chart
| Specification | PT324 | PT330 |
|---|---|---|
| Tree Size (Evergreen) | 2" | 3" |
| Tree Size (Hardwood) | 1.5" | 2.5" |
| Root Ball Diameter | 24" | 30" |
| Root Ball Depth | 23" | 29" |
| Opening (Width) | 20" | 23" |
| Blade Angle (Degrees) | 25° | 25° |
| Number of Blades | 3 | 3 |
| Blade Thickness | 1/4" Mild Steel | 3/8" Mild Steel |
| Slides | Steel | Steel |
| Blade Truncation | Semi | Semi |
| Hitch Size | CAT 1 | CAT 2 |
| Quick-Hitch Compatibility | No | No |
| Towers Swing Hinge | No | No |
| Hydraulic Flow | 5-20 GPM | 5-20 GPM |
| Hydraulic Pressure | 2900-4000 PSI | 2900-4000 PSI |
| Weight | 1100 lbs | 1356 lbs |
| Weight with Root Ball | 1400 lbs | 1865 lbs |
| Specification | PS330 | PT440 |
|---|---|---|
| Tree Size (Evergreen) | 3" | 4" |
| Tree Size (Hardwood) | 2.5" | 3" |
| Root Ball Diameter | 30" | 40" |
| Root Ball Depth | 29" | 30" |
| Opening (Width) | 60" | 52" |
| Blade Angle (Degrees) | 25° | 25° |
| Number of Blades | 3 | 4 |
| Blade Thickness | 3/8" Mild Steel | 1/4" High Alloy |
| Slides | Steel | Steel |
| Blade Truncation | Semi | Full |
| Hitch Size | CAT 2 | CAT 2 |
| Quick-Hitch Compatibility | No | No |
| Towers Swing Hinge | Yes | Yes |
| Hydraulic Flow | 5-20 GPM | 5-20 GPM |
| Hydraulic Pressure | 2900-4000 PSI | 2900-4000 PSI |
| Weight | 1550 lbs | 1934 lbs |
| Weight with Root Ball | 2050 lbs | 3134 lbs |
| Specification | PT650 |
|---|---|
| Tree Size (Evergreen) | 5" |
| Tree Size (Hardwood) | 4" |
| Root Ball Diameter | 50" |
| Root Ball Depth | 43" |
| Opening (Width) | 47" |
| Blade Angle (Degrees) | 25° |
| Number of Blades | 6 |
| Blade Thickness | 1/4" High Alloy |
| Slides | Steel |
| Blade Truncation | Semi |
| Hitch Size | CAT 2 |
| Quick-Hitch Compatibility | No |
| Towers Swing Hinge | Yes |
| Hydraulic Flow | 5-20 GPM |
| Hydraulic Pressure | 2900-4000 PSI |
| Weight | 3238 lbs |
| Weight with Root Ball | 5785 lbs |
