Product Description

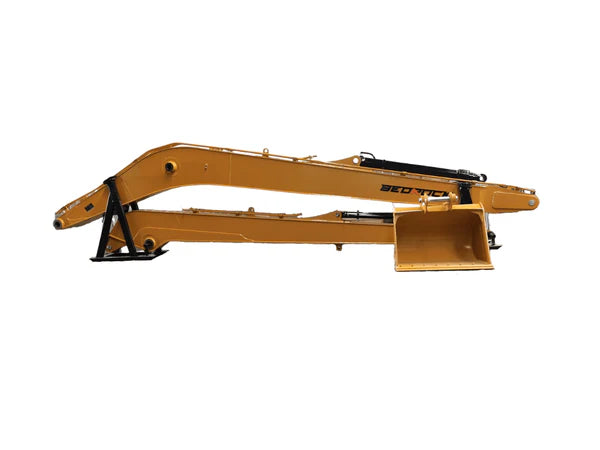

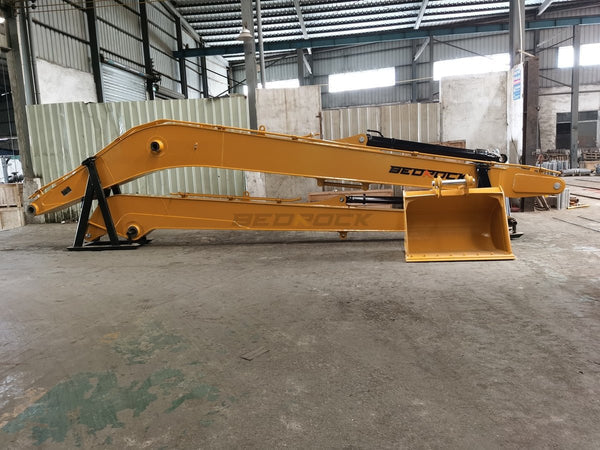

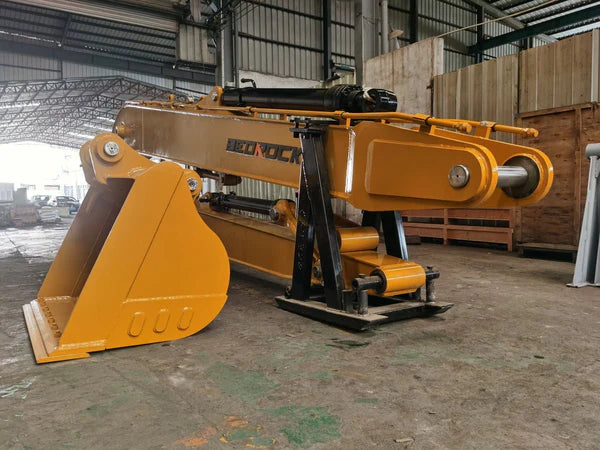

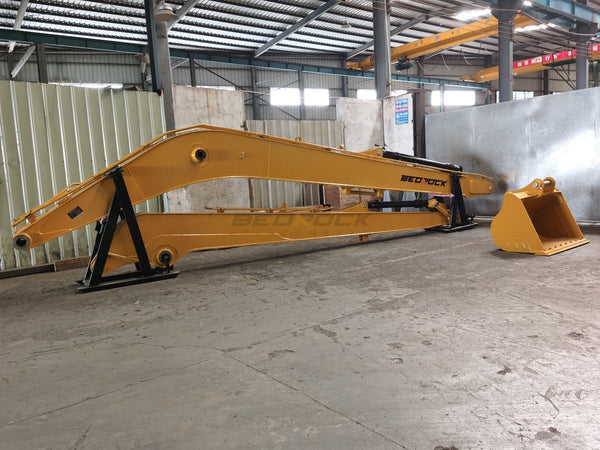

Bedrock Attachments Long Reach Arm and Boom | Model EL320D-15-SCN | Reach 49' Ft | Machine Size 20-23 Tons | For Excavators CAT 320-323D2L
DESCRIPTION
The Bedrock Attachments Long Reach Arm and Boom is designed to increase the digging reach of CAT 320, 320GC, 320GX, 320D, 320DL, 320D2, 320D2L, 320D2GC, 323, 323GC, 323GX, 323DL, and 323D2L excavators, making it ideal for deep excavation, dredging, and material handling. With a total reach of 15 meters, this attachment ensures superior hydraulic efficiency, structural integrity, and smooth performance in demanding job sites. Manufactured using high-quality materials and advanced robotic welding, this attachment guarantees maximum durability and ease of use. Additionally, the supporting structure simplifies transportation and packing, streamlining logistics.
Key Features
- Extended Reach: 15m total reach with 8.2m boom and 6.8m stick, improving excavation depth.
- High-Efficiency Bucket: 0.6m³ capacity, optimized for dredging and material handling.
- Precision Engineering: Computerized stress distribution analysis optimizes strength and durability.
- Advanced Manufacturing: Large-scale milling equipment enhances welding precision.
- Premium Hydraulic System: Cold-rolled precision steel pipes, finished with phosphoric acid washing, ensuring smooth oil flow and reducing hydraulic circuit contamination.
- Top-Tier Welding: Robotic ultrasonic-tested welding guarantees maximum structural integrity.
- Pin Hole Accuracy: High-quality boring machine ensures parallelism, securing flawless pin alignment.
- Surface Treatment: Fully sandblasted finish, delivering a clean and polished appearance.
- Reliable Cylinders: Equipped with Bucket Cylinder and Stick Cylinder for smooth hydraulic operation.
- Robust Linkage: 315 Linkage system with 2 x 70mm Pins for enhanced attachment stability.
- CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EL320D-15-SCN |
| Total Reach | 15m (49 ft) |
| Boom Length | 8.2m |
| Stick Length | 6.8m |
| Bucket Capacity | 0.6m³ |
| Pin Count | 8 |
| Pin Size | 2 x 70mm Pins |
| Hydraulic System | Cold-rolled precision steel pipes with phosphoric acid treatment |
| Welding Method | Robotic welding with ultrasonic non-destructive testing |
| Surface Treatment | Sandblasted for smooth finish |
| Transport Support | Supporting structure included for easier packing and shipment |
| Cylinder Type | Bucket Cylinder, Stick Cylinder |
| Linkage Type | 315 Linkage |
| Certification | CE Marked |
