Product Description

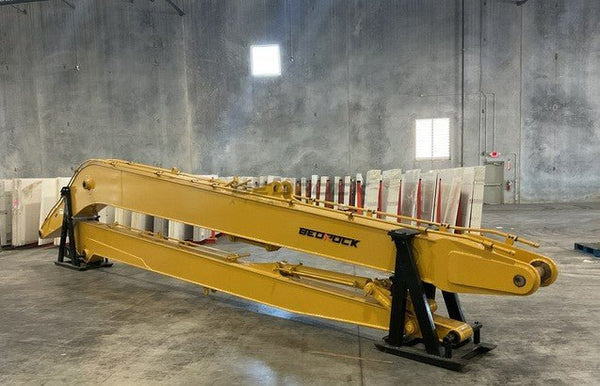

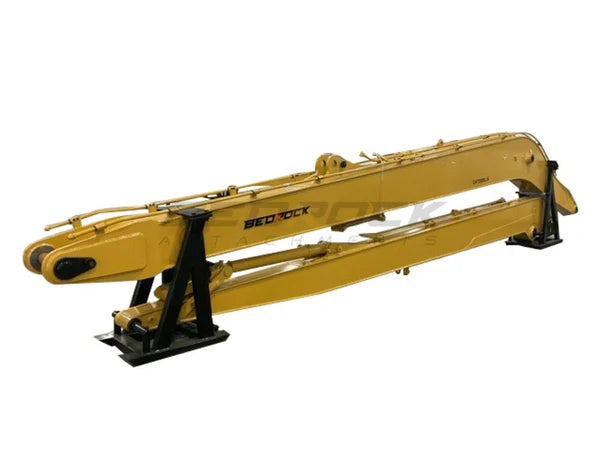

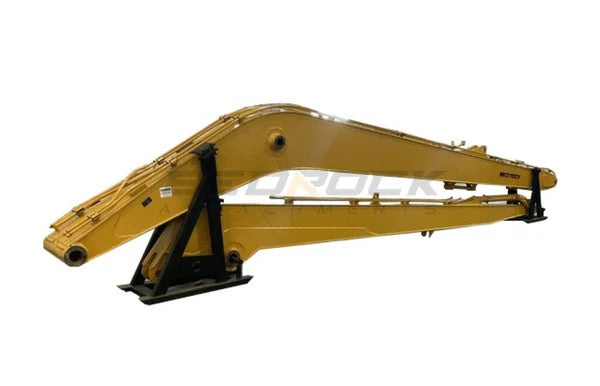

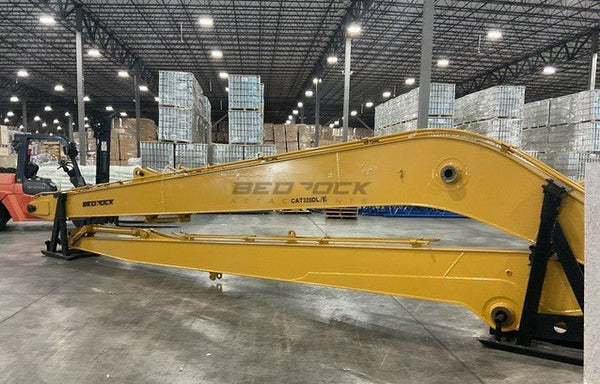

Bedrock Attachments Long Reach Arm and Boom | Model EL320D-18 | Reach 59' Ft | Machine Size 20-23 Tons | For Excavators CAT 320-323D2L
DESCRIPTION
The Bedrock Attachments Long Reach Arm and Boom is designed to optimize the reach and performance of CAT 320, 320GC, 320GX, 320D, 320DL, 320D2, 320D2L, 320D2GC, 323, 323GC, 323GX, 323DL, and 323D2L excavators, making it ideal for deep excavation, dredging, and material handling. With a total reach of 18 meters, this attachment ensures durability, hydraulic efficiency, and structural integrity, allowing seamless operation in demanding conditions. The supporting structure simplifies packing and transportation, making logistics more efficient.
Key Features
- Extended Reach: 18m total reach with 9.7m boom and 8.3m stick, improving excavation depth.
- High-Efficiency Bucket: 0.6m³ capacity, optimized for dredging and material handling.
- Precision Engineering: Computerized stress distribution analysis ensures strength and durability.
- Advanced Manufacturing: Large-scale milling equipment improves welding precision.
- Premium Hydraulic System: Cold-rolled precision steel pipes, finished with phosphoric acid washing, ensuring smooth oil flow and reducing hydraulic circuit contamination.
- Top-Tier Welding: Robotic ultrasonic-tested welding guarantees maximum structural integrity.
- Pin Hole Accuracy: High-quality boring machine ensures parallelism, securing flawless pin alignment.
- Surface Treatment: Fully sandblasted finish, delivering a clean and polished appearance.
- Reliable Cylinders: Equipped with CAT 312 cylinder for smooth hydraulic efficiency.
- Robust Linkage: 312 Linkage system with 2 x 65mm Pins for improved attachment stability.
-
CE Certified: Meets strict European safety standards, ensuring quality and reliability.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EL320D-18 |
| Total Reach | 18m (59 ft) |
| Boom Length | 9.7m |
| Stick Length | 8.3m |
| Bucket Capacity | 0.6m³ |
| Pin Count | 6 |
| Pin Size | 2 x 65mm Pins |
| Hydraulic System | Cold-rolled precision steel pipes with phosphoric acid treatment |
| Welding Method | Robotic welding with ultrasonic non-destructive testing |
| Surface Treatment | Sandblasted for smooth finish |
| Transport Support | Supporting structure included for easier packing and shipment |
| Cylinder Type | CAT 312 Cylinder |
| Linkage Type | 312 Linkage |
| Certification | CE Marked |
