Bedrock Attachments Long Reach Arm and Boom | Model EL320F-18-SC | Reach 59' Ft | Machine Size 20-23 Tons | For Excavators CAT 320E-323FL
Bedrock Attachments Long Reach Arm and Boom | Model EL320F-18-SC | Reach 59' Ft | Machine Size 20-23 Tons | For Excavators CAT 320E-323FL
Regular price
$35,947.00
Regular price
Sale price
$35,947.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description

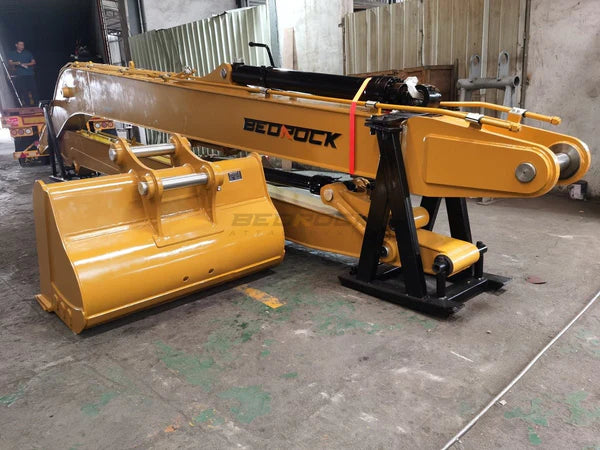

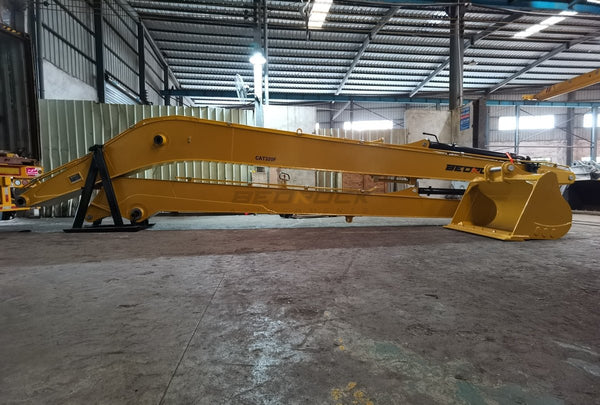

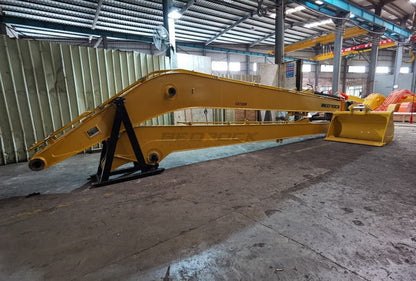

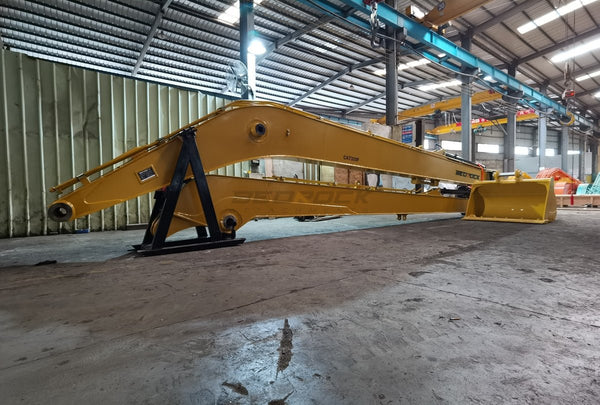

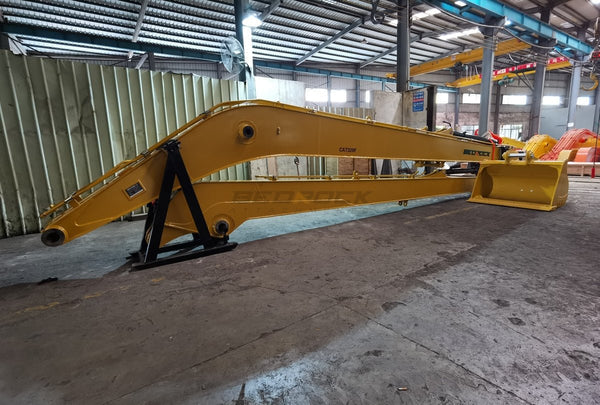

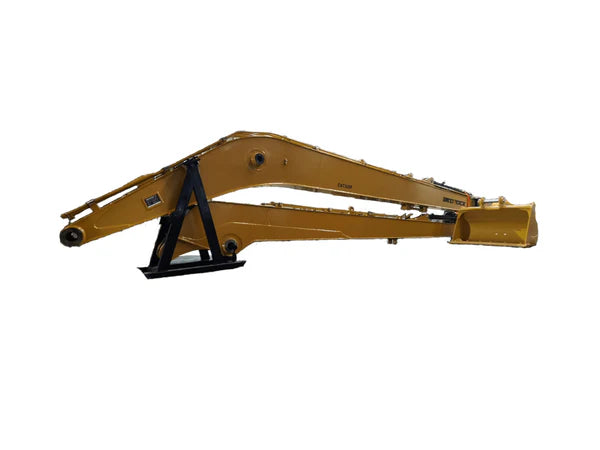

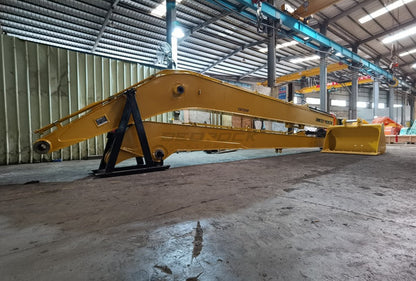

Bedrock Attachments Long Reach Arm and Boom | Model EL320F-18-SC | Reach 59' Ft | Machine Size 20-23 Tons | For Excavators CAT 320E-323FL
DESCRIPTION
The Bedrock Attachments Long Reach Arm and Boom is engineered to enhance the reach and efficiency of CAT 320E, 320EL, 320F, 320FL, 323F, and 323FL excavators, making it ideal for deep excavation, dredging, and material handling tasks. With an 18-meter total reach, this attachment optimizes durability, hydraulic efficiency, and structural integrity, ensuring seamless operation in demanding work conditions. It features a supporting structure for easier packing and transportation, making logistics more efficient.
Key Features
- Extended Reach: 18m total reach with 9.7m boom and 8.3m stick, ideal for deeper excavation.
- High-Efficiency Bucket: 0.6m³ capacity, enhancing material-handling precision.
- Precision Engineering: Computerized stress distribution analysis optimizes design strength.
- Advanced Manufacturing: Large-scale milling equipment improves welding precision.
- Premium Hydraulic System: Cold-rolled precision steel pipes, finished with phosphoric acid washing, ensuring smooth oil flow and reducing hydraulic circuit contamination.
- Top-Tier Welding: Robotic ultrasonic-tested welding guarantees maximum structural integrity.
- Pin Hole Accuracy: High-quality boring machine ensures parallelism, securing flawless pin alignment.
- Surface Treatment: Fully sandblasted finish, delivering a clean and polished appearance.
- Reliable Cylinders: Equipped with Bucket Cylinder, Stick Cylinder for optimized hydraulic efficiency.
- Robust Linkage: 315 Linkage system with 2 x 70mm Pins for improved attachment stability.
-
CE Certified: Complies with strict European safety standards, ensuring reliability and efficiency.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | EL320F-18-SC |
| Total Reach | 18m (59 ft) |
| Boom Length | 9.7m |
| Stick Length | 8.3m |
| Bucket Capacity | 0.6m³ |
| Pin Count | 8 |
| Pin Size | 2 x 70mm Pins |
| Hydraulic System | Cold-rolled precision steel pipes with phosphoric acid treatment |
| Welding Method | Robotic welding with ultrasonic non-destructive testing |
| Surface Treatment | Sandblasted for smooth finish |
| Transport Support | Supporting structure included for easier packing and shipment |
| Cylinder Type | Bucket Cylinder, Stick Cylinder |
| Linkage Type | 315 Linkage |
| Certification | CE Marked |
