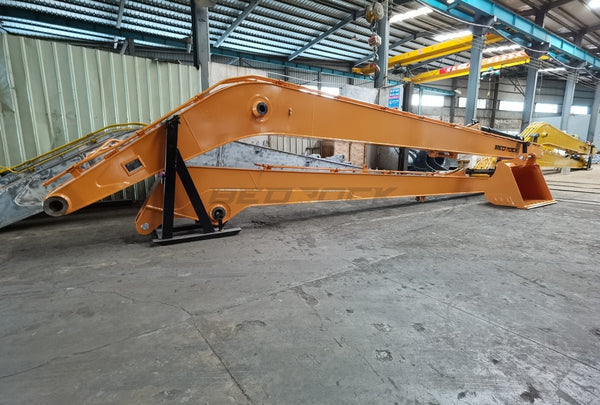

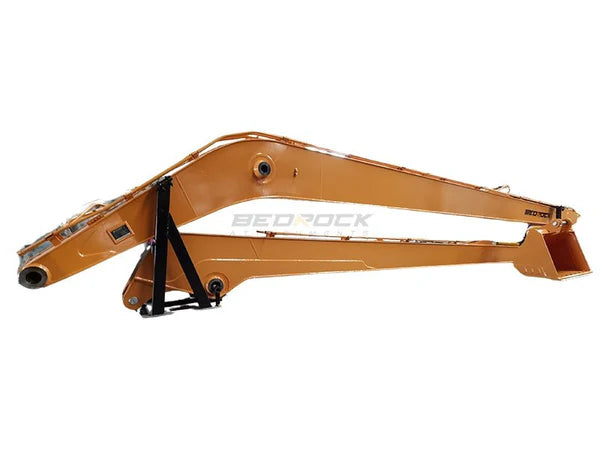

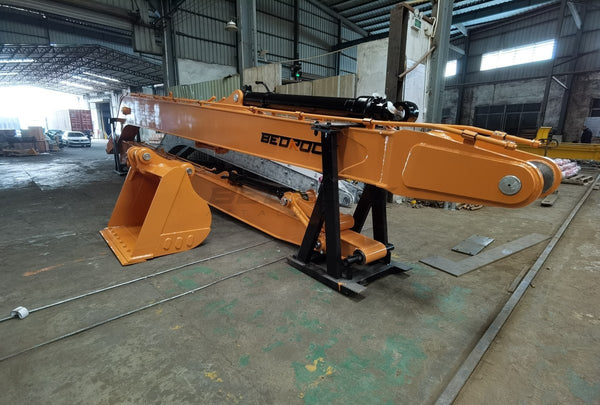

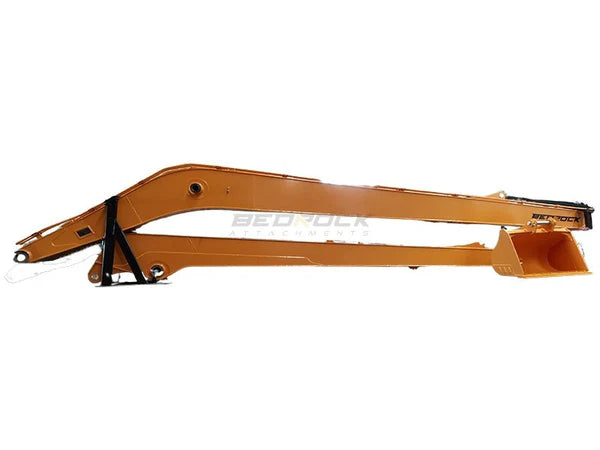

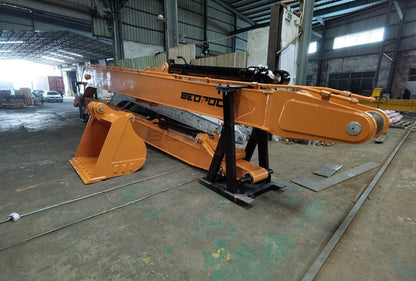

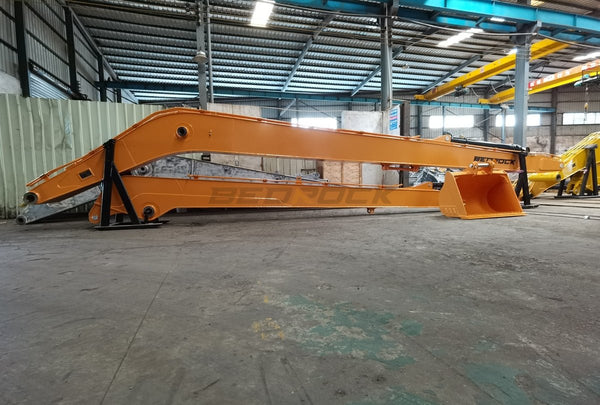

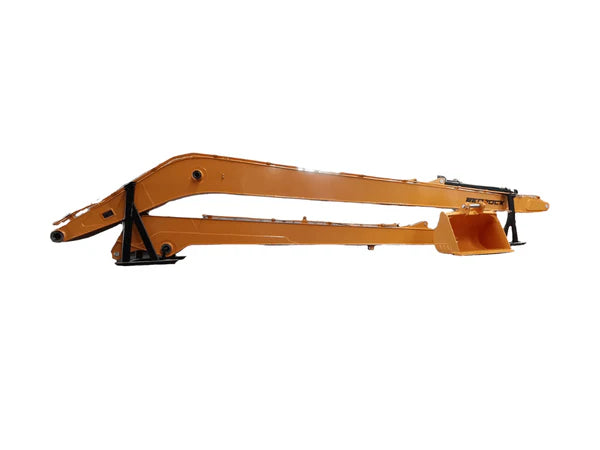

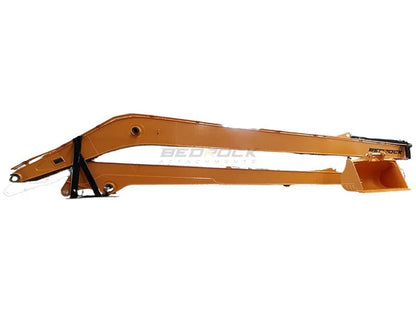

Bedrock Attachments Long Reach Arm and Boom | Model ELCASE240-20-SC | Reach 65' Ft | Machine Size 24-26 Tons | For Excavators CASE 240/260
DESCRIPTION
The Bedrock Attachments Long Reach Arm and Boom is a premium extension designed for CASE 240 and CASE 260 Excavators, allowing for deep excavation, dredging, and material handling with precision and efficiency. With a total reach of 20 meters, this attachment ensures smooth operation, hydraulic efficiency, and structural durability in demanding work environments. Manufactured using advanced engineering and precision welding, it guarantees long-lasting performance while maintaining ease of transportation with the included supporting structure.
Key Features
- Extended Reach: 20m total reach with 11m boom and 9m stick, perfect for deep excavation.
- High-Efficiency Bucket: 0.6m³ capacity, optimized for dredging and material cleanup.
- Precision Engineering: Computerized stress distribution analysis enhances durability.
- Advanced Manufacturing: Large-scale milling equipment improves welding precision.
- Premium Hydraulic System: Cold-rolled precision steel pipes, finished with phosphoric acid washing, reducing oil flow resistance and hydraulic circuit contamination.
- Top-Tier Welding: Robotic ultrasonic-tested welding ensures maximum strength and longevity.
- Pin Hole Accuracy: High-quality boring machine ensures parallelism, maintaining flawless pin alignment.
- Surface Treatment: Fully sandblasted finish, offering a clean and polished appearance.
- Reliable Cylinders: Equipped with Bucket Cylinder, Stick Cylinder-2898112B for superior hydraulic efficiency.
- Robust Linkage: 315 Linkage system with 2 x 70mm Pins for improved attachment stability.
-
CE Certified: Meets strict European safety standards, ensuring reliability and efficiency.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | ELCASE240-20-SC |
| Total Reach | 20m (65 ft) |
| Boom Length | 11m |
| Stick Length | 9m |
| Bucket Capacity | 0.6m³ |
| Pin Count | 8 |
| Pin Size | 2 x 70mm Pins |
| Hydraulic System | Cold-rolled precision steel pipes with phosphoric acid treatment |
| Welding Method | Robotic welding with ultrasonic non-destructive testing |
| Surface Treatment | Sandblasted for smooth finish |
| Transport Support | Supporting structure included for easier packing and shipment |
| Cylinder Type | Bucket Cylinder, Stick Cylinder-2898112B |
| Linkage Type | 315 Linkage |
| Certification | CE Marked |
