Product Description
Checchi & Magli Smart Wolf Transplanter | SmartWolf+SeedPro 1-6 Rows | 79"-158" Frame Width For Tractor
Included Options:
- Perforating Cups: Standard, Long, 6x6, 8x8, and inserts for 4x4 clods.
- Rotary Tray Holders: 4-sided rigid/VEFI trays or single tray holder.

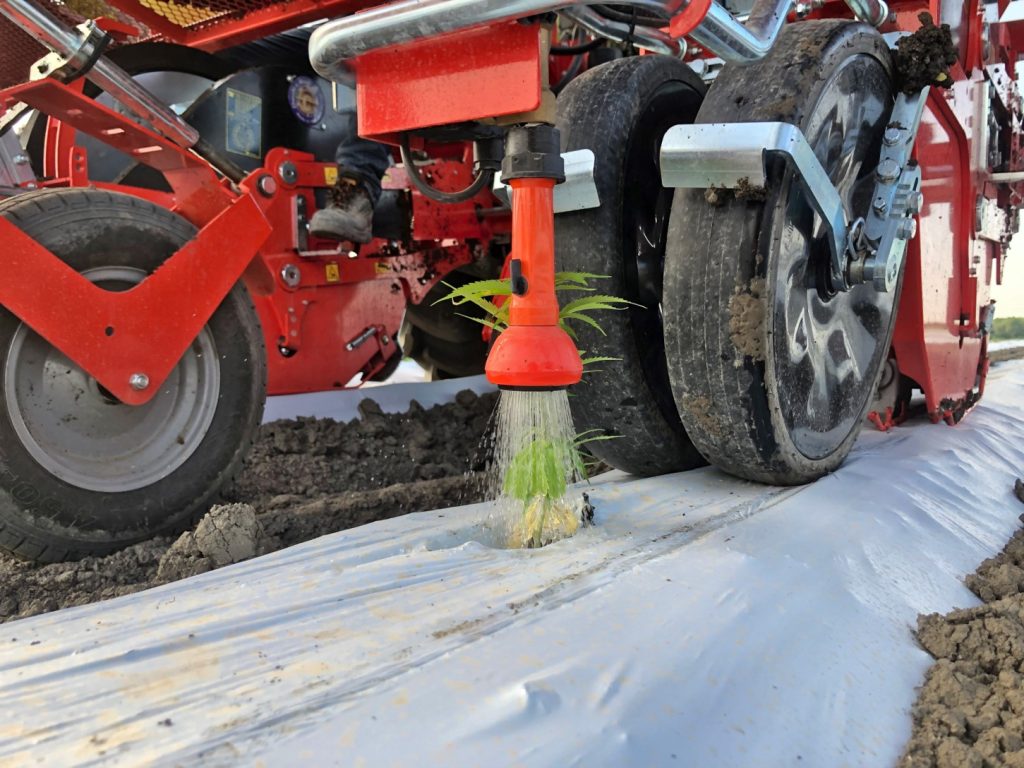

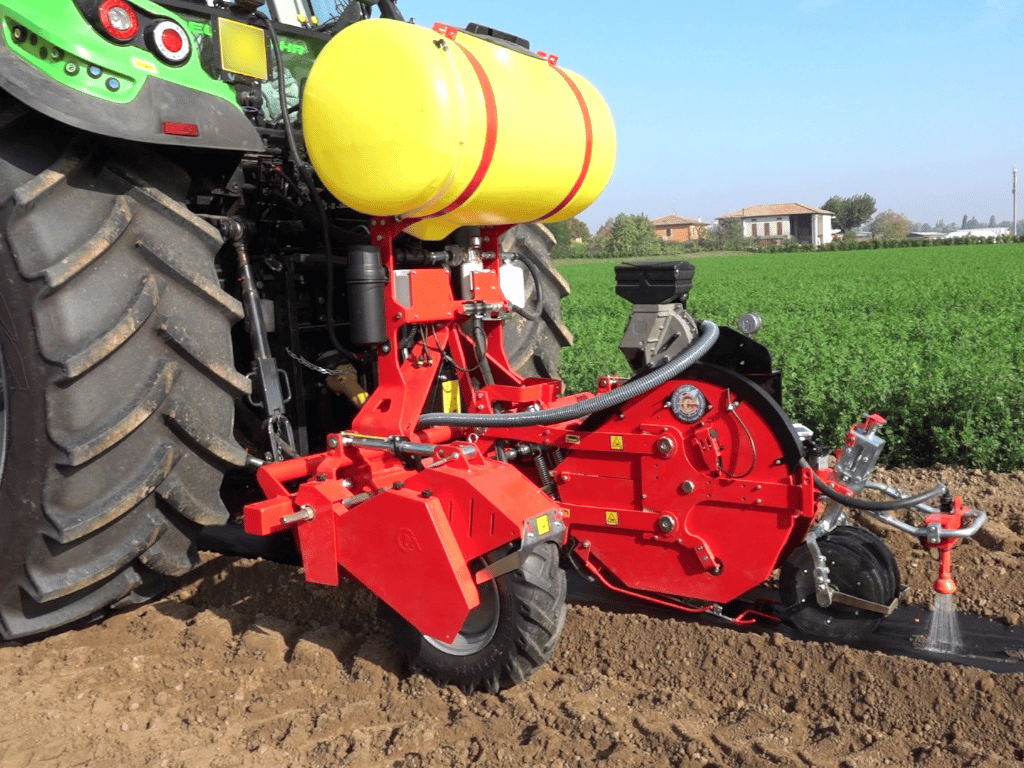

- Watering Devices: Electric watering synchronized per row and tanks (300L).
- Hydraulic Rear Ridging Discs: Ø 41 cm for enhanced soil management.
- Row Markers: Manual or hydraulic.

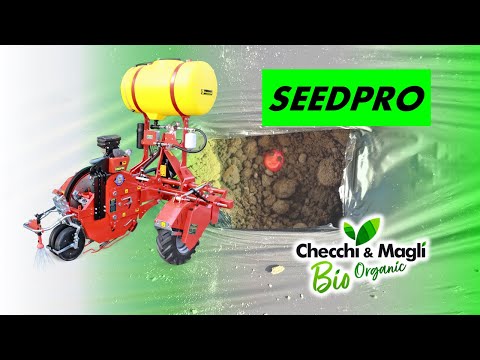

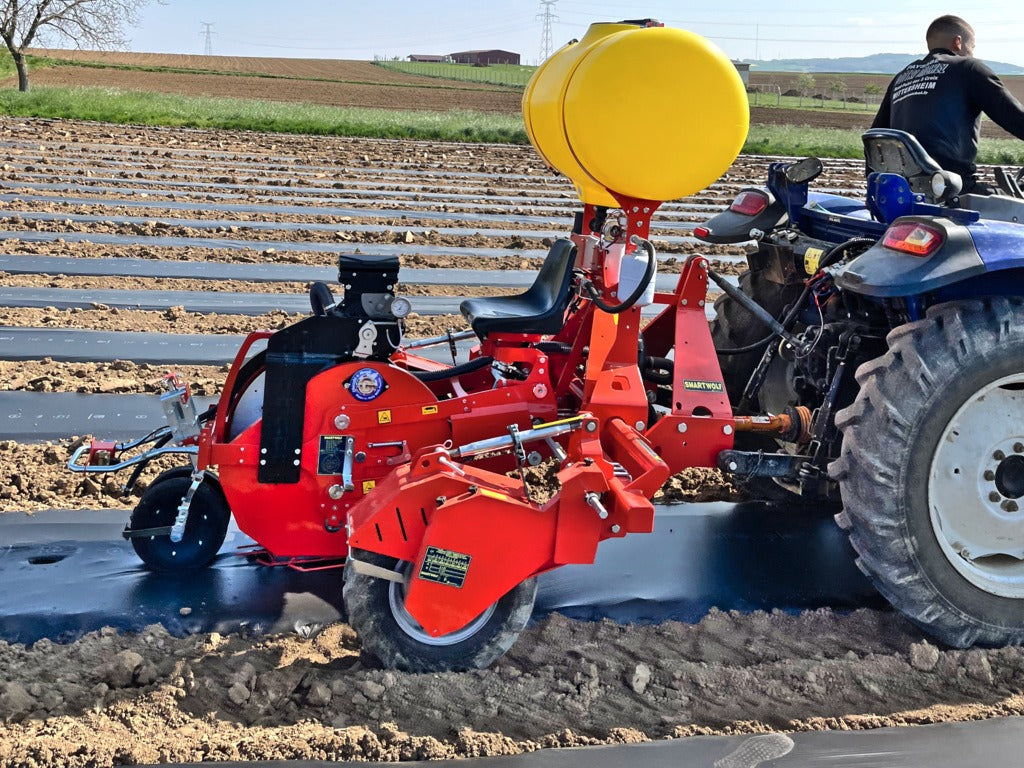

- SEEDPRO Planting Units: For combined seeding and transplanting.
- Padded Seats: Special seating for operator comfort.
- Hydraulically Adjustable Wheels: For precise adjustments in field conditions.
DESCRIPTION

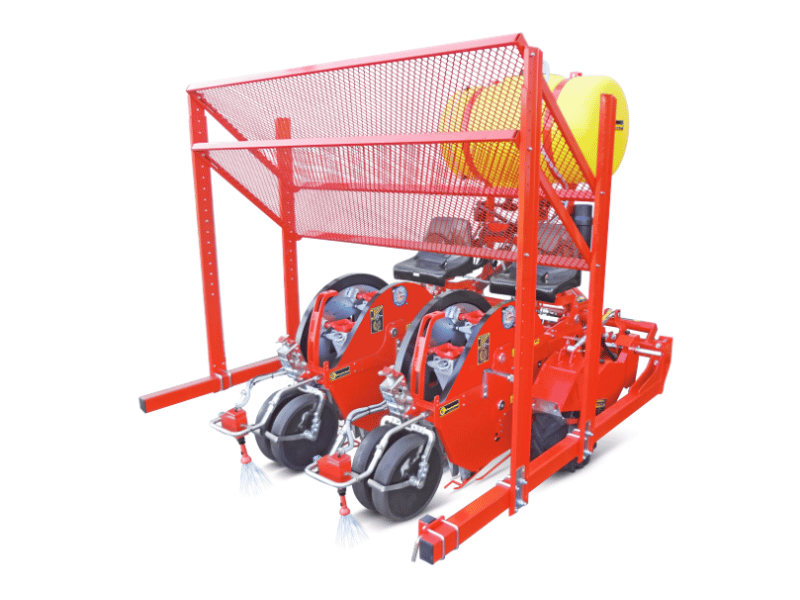

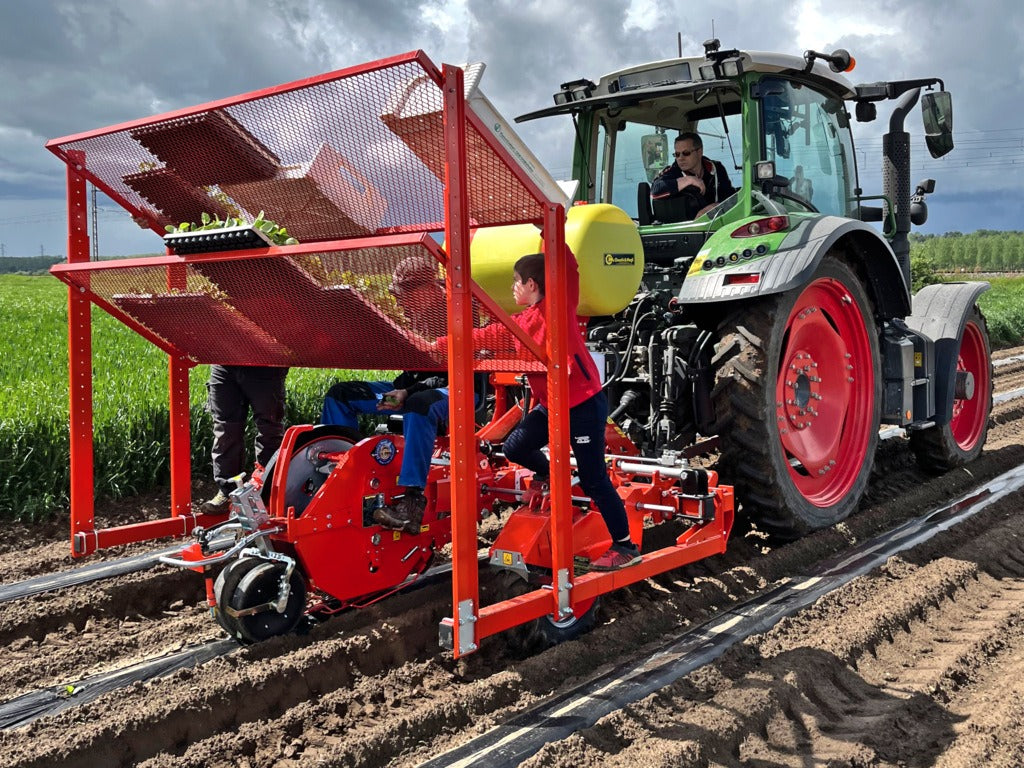

Professional Transplanter for Mulching and Open-Field Operations
The Checchi & Magli Smart Wolf Transplanter is engineered for precision planting in professional farming. Designed to handle peat clod-rooted conical, pyramidal, or cubic seedlings up to 8 cm (3"), it works efficiently on bare soil or with mulching films. Featuring floating transplanting units, a parallelogram system for consistent depth, and compacting wheels with bi-convergent regulation, this transplanter excels in heavy soils and with biodegradable films.
With a production capacity of up to 3,000 plants/hour per row, the Smart Wolf ensures maximum efficiency. It supports 1-6 rows with customizable frame widths (79"-158") and various perforating cup configurations for flexible spacing. Optional SEEDPRO units allow simultaneous seeding and transplanting, further enhancing its versatility.
Key Features
- Seedling Compatibility: Handles clod-rooted conical, pyramidal, or cubic seedlings up to 8 cm (3").
- Floating Transplanting Units: Maintain consistent depth with weight-lightening springs and a parallelogram system.
- Compacting Wheels: Flex rubber wheels (Ø 330 mm) ensure optimal earthing and soil compression.
- Safety Mechanism: Automatic safety disengagement protects mechanical components.

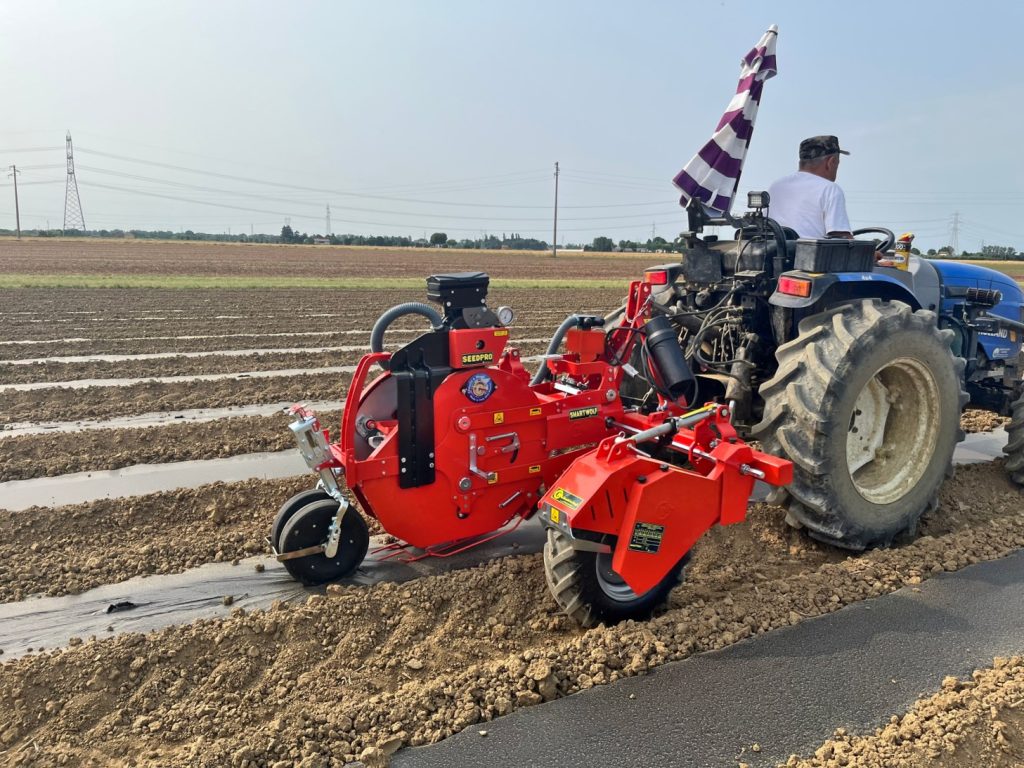

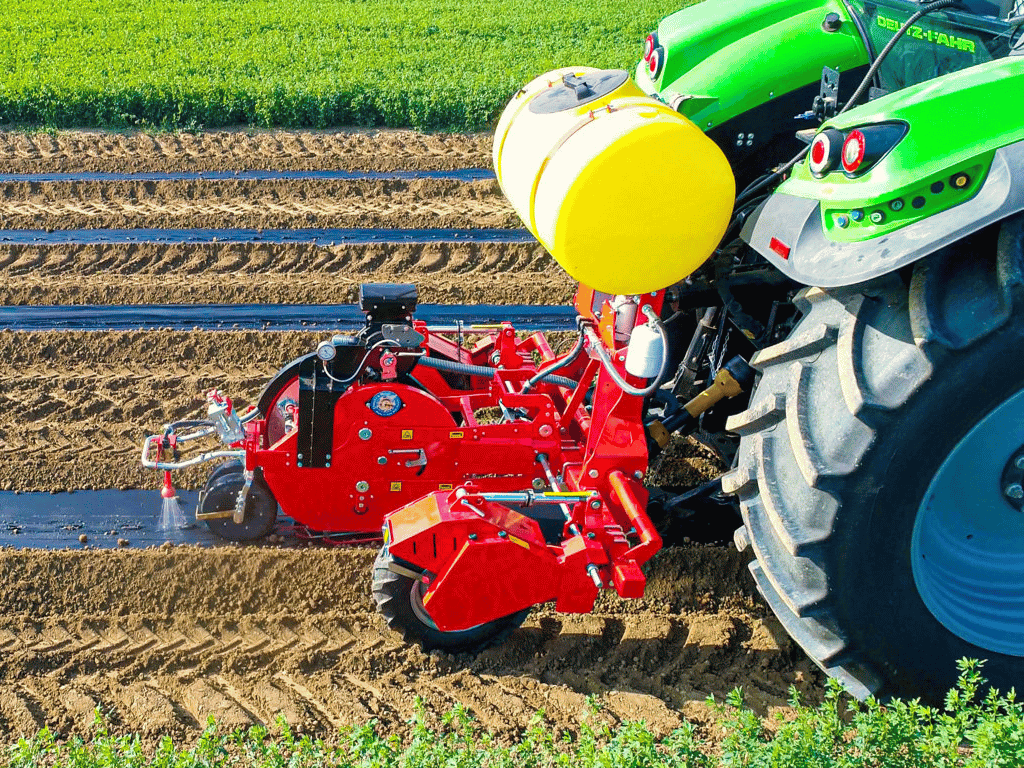

- Optional SEEDPRO: Adds seeding functionality to the transplanter.
- High Efficiency: Transplants up to 3,000 plants/hour per row.
- Flexible Spacing: Adjustable plant-to-plant spacing from 10 cm (4") to 150 cm (59").
- Mechanical Transmission: Operates without a PTO, using a hexagonal bar drive.
- Mulching Compatibility: Works efficiently with or without mulching films.
- Durable Design: Built for professional use in demanding farming conditions.
Detailed Specifications
| Specification | Details |
|---|---|
| Row Spacing | Minimum 50 cm (20”) |
| Plant-to-Plant Spacing | Adjustable from 10 cm to 150 cm |
| Frame Widths | 79" (1 row) to 158" (6 rows) |
| Production Capacity | 3,000 plants/hour per row |
| Compacting Wheels | Flex rubber wheels Ø 330 mm (13") |
| Transmission | Mechanical, hexagonal bar drive |
| Power Requirement | Tractor compatibility varies by row number |
| Frame Configuration | Frame Size (cm/inches) |
|---|---|
| 1-2 Rows (Standard) | 200 cm / 79” |
| 3 Rows (Reinforced) | 250 cm / 98” |
| 4 Rows (Reinforced) | 300 cm / 118” |
| 5 Rows (Reinforced Extra) | 350 cm / 138” |
| 6 Rows (Reinforced Extra) | 400 cm / 158” |
| Planting Unit Configurations | Plant-to-Plant Spacing |
|---|---|
| No. of Rows: 1 | No. of Cups: 6 |
| Frame Type: Standard | Spacing (cm): 25 |
| Frame Size: 200 cm / 79” | Spacing (in): 10 |
| Cat. No.: 1 | |
| No. of Cups: 5 | |
| No. of Rows: 2 | Spacing (cm): 30 |
| Frame Type: Standard | Spacing (in): 12 |
| Frame Size: 200 cm / 79” | |
| Cat. No.: 1 | No. of Cups: 4 |
| Spacing (cm): 37 | |
| No. of Rows: 3 | Spacing (in): 15 |
| Frame Type: Reinforced | |
| Frame Size: 250 cm / 98” | No. of Cups: 3 |
| Cat. No.: 2 | Spacing (cm): 50 |
| Spacing (in): 20 | |
| No. of Rows: 4 | |
| Frame Type: Reinforced | No. of Cups: 2 |
| Frame Size: 300 cm / 118” | Spacing (cm): 75 |
| Cat. No.: 2 | Spacing (in): 30 |
| No. of Rows: 5 | No. of Cups: 1 |
| Frame Type: Reinforced | Spacing (cm): 150 |
| Frame Size: 350 cm / 138” | Spacing (in): 59 |
| Cat. No.: 2 Extra | |
| No. of Rows: 6 | |
| Frame Type: Reinforced | |
| Frame Size: 400 cm / 158” | |
| Cat. No.: 2 Extra |
The 4x4 insert is compatible with Long Cup (B), 6x6 Cup (C), and 8x8 Cup (D).
In Package:
- Smart Wolf Transplanter Unit
- Operator’s Manual
- Set of perforating cups (optional)
- Side cleaning blades for perforating cups
- Automatic safety disengagement system
