Checchi & Magli Transplanter FOXDRIVE Plus | 79"-197" Frame Width | 25-150HP For Tractor

Product Description

Checchi & Magli Transplanter FOXDRIVE Plus | 79"-197" Frame Width | 25-150HP For Tractor

DESCRIPTION

High-Capacity Transplanter for Professional Agriculture

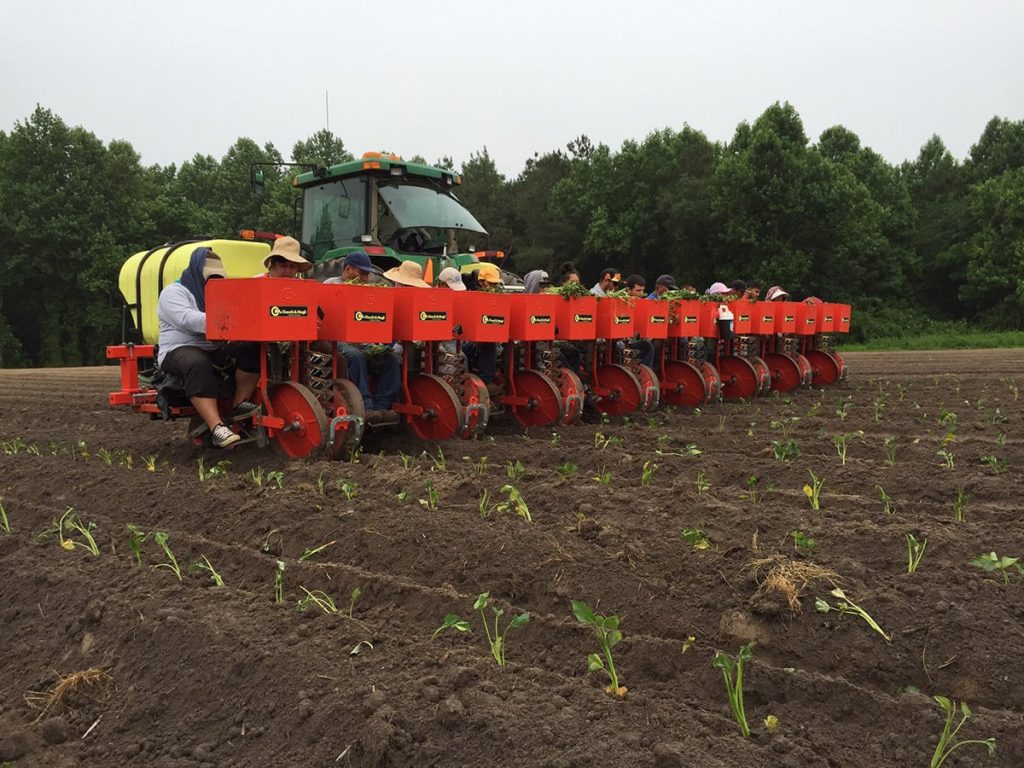

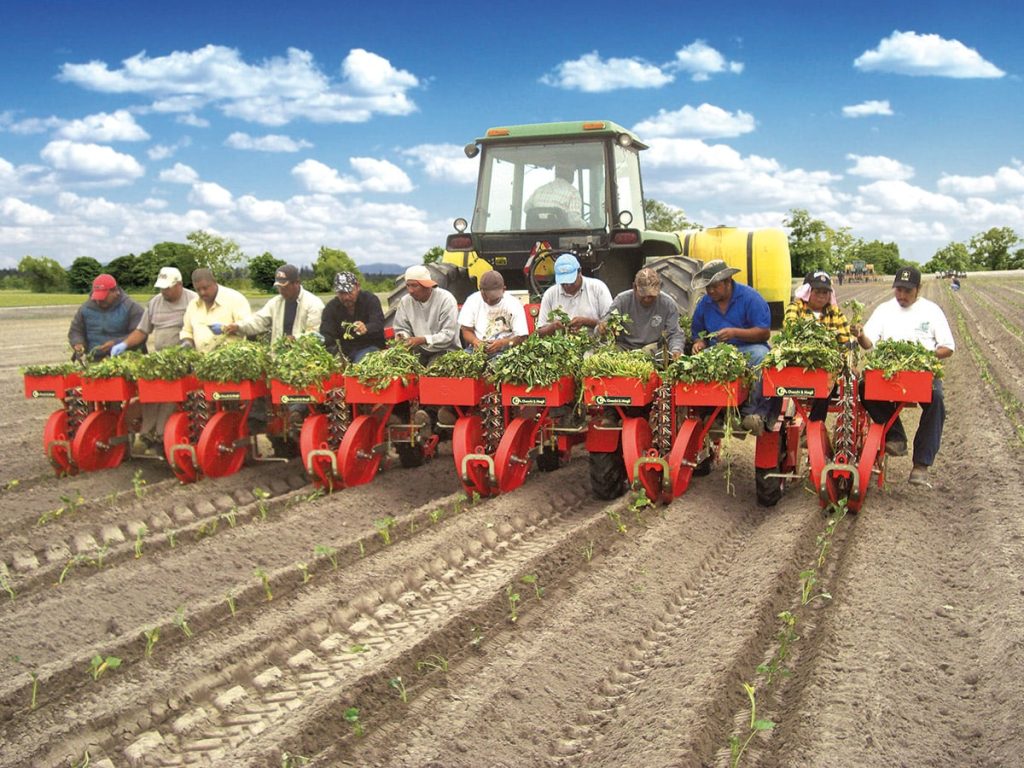

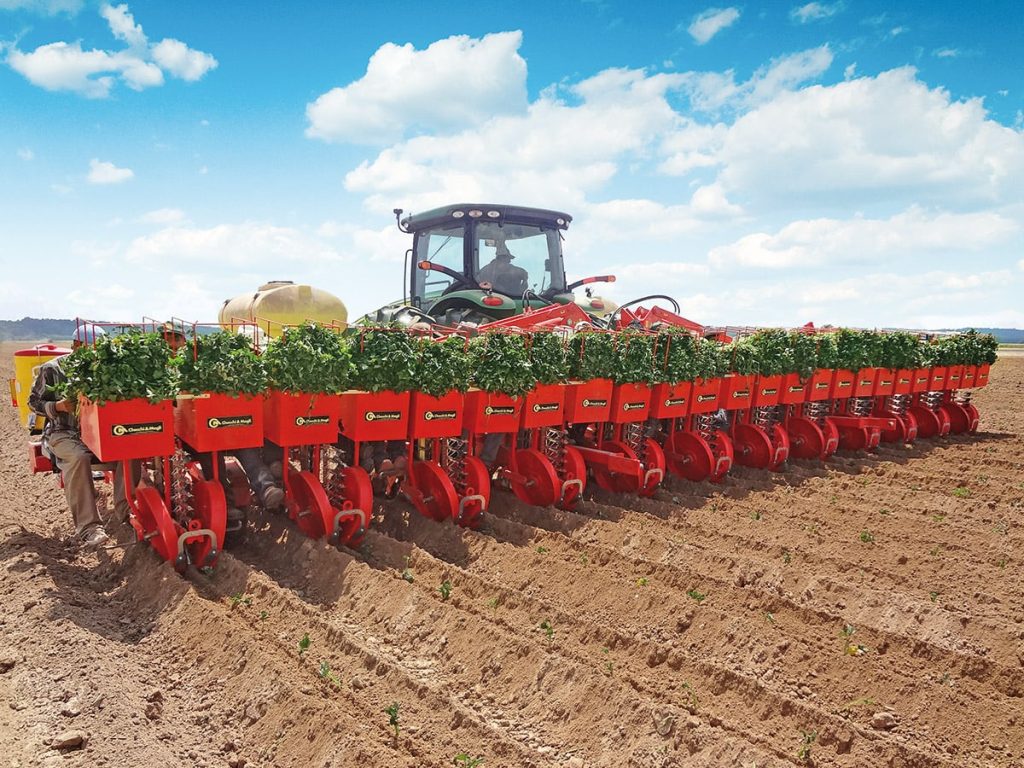

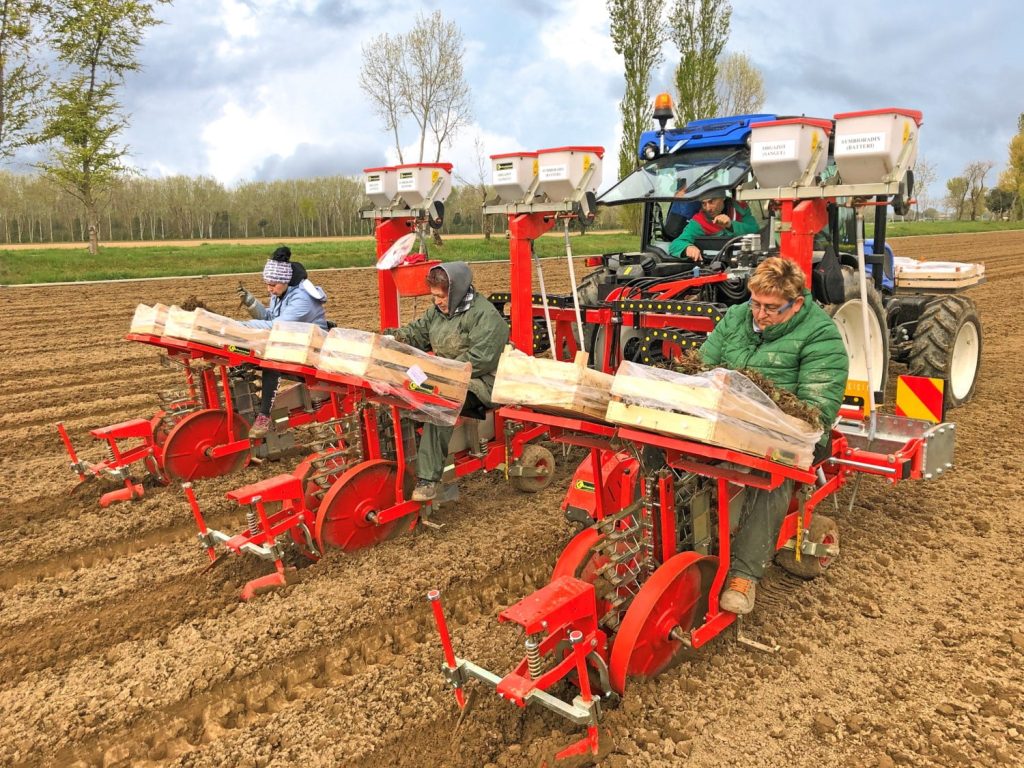

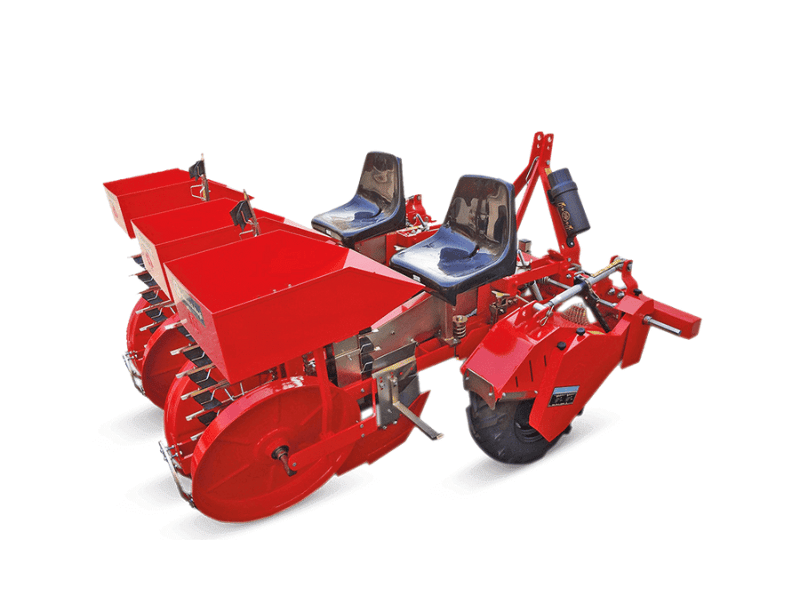

The Checchi & Magli FOXDRIVE PLUS is a semi-automatic transplanter designed to handle a wide range of crops for biomass and bioenergy cultivation. Ideal for bare-root and balled-root seedlings, this versatile machine offers unparalleled precision and speed, capable of planting 2,000-2,500 plants per hour per row.

Equipped with a STANDARD 10-gripper distributor, the FOXDRIVE PLUS ensures accurate inter-plant spacing from 9" to 32". Optional SPECIAL or MASTER gripper distributors allow for tighter spacing to suit various crop requirements. With independent floating transplant units, a mechanical drive system, and customizable row configurations, this transplanter is perfect for large-scale farming operations.

Key Features

• Versatile Grippers: STANDARD (10 fingers), SPECIAL (15 fingers), or MASTER (20 fingers) options for varying plant spacing needs.
• Precision Planting: Ensures consistent spacing and accurate planting depth.
• High Productivity: Plants up to 2,500 plants/hour per row.
• Adjustable Row Spacing: Supports 20"-35" spacing with options for narrower rows in the DT version.

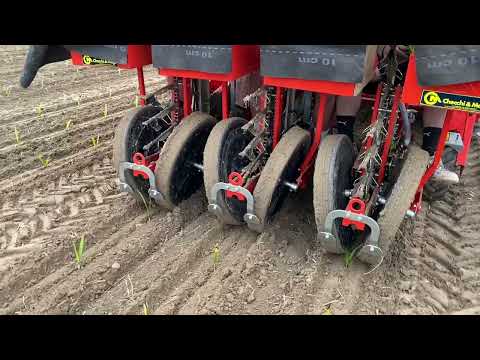

• Floating Transplant Units: Adapt to uneven soil for consistent planting results.
• Mechanical Transmission: Drive wheels eliminate the need for a PTO.
• Durable Frame Options: Available in standard or reinforced configurations for up to 8 rows.
• Customizable Planting Speed: Configurable grippers for plant spacing from 5" to 55".

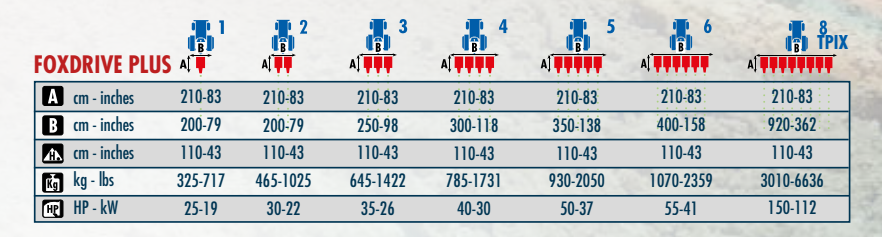

Detailed Specifications

In Package

• FOXDRIVE PLUS Transplanter Unit
• Floating transplant units with flex adjustable wheels
• Standard or reinforced frame depending on configuration
• User manual

Available Options

• Gripper Configurations: SUPER (5 fingers), STANDARD (10 fingers), SPECIAL (15 fingers), MASTER (20 fingers).
• Tray Holders: Rotary or horizontal racks for efficient seedling storage.
• Watering Device: Synchronizes watering for effective plant hydration.

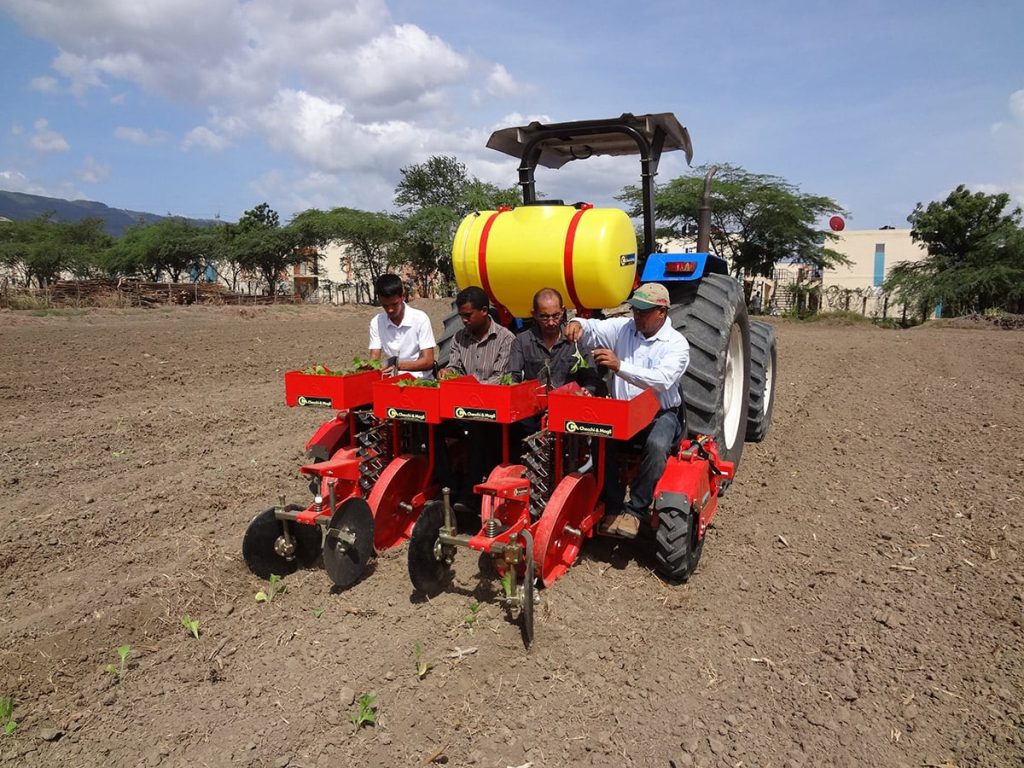

• 300-Litre Tank: Available with 1-4 outputs for liquid fertilizers.
• Ploughshares: Standard and adjustable mouldboards for various soil conditions.

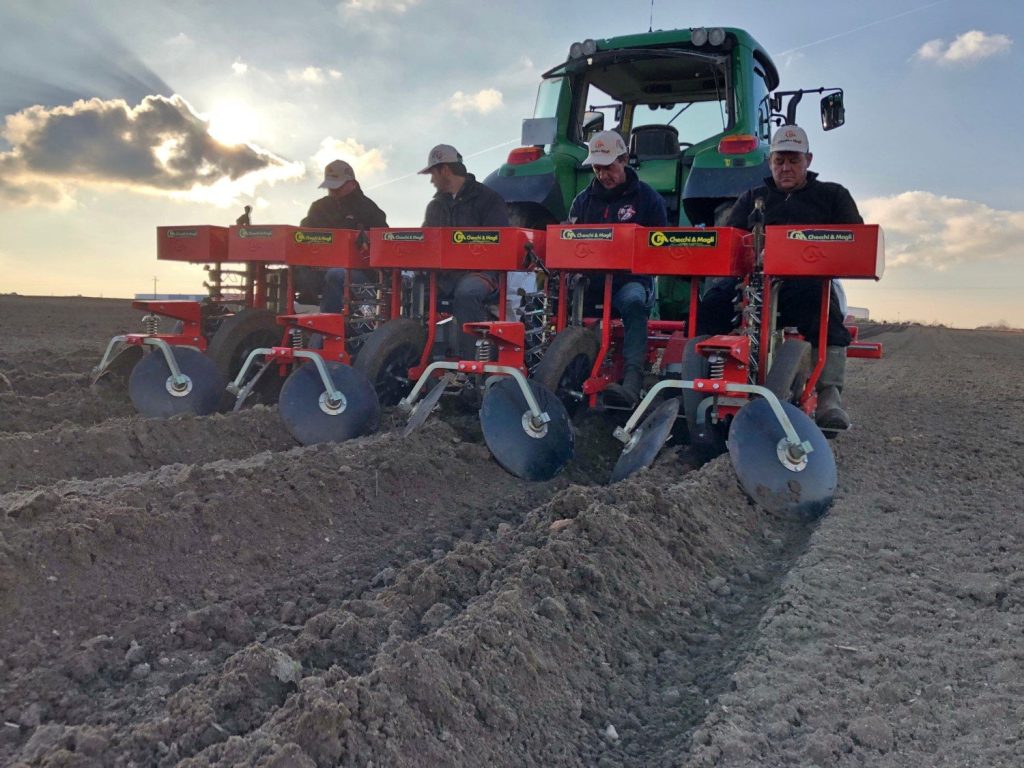

• Cutting Discs: Waved or smooth for precise soil preparation.
• Clod Separator: Enhances soil quality but not compatible with adjustable ploughshares.
• Drip Tape Dispenser: Available for surface or subsurface irrigation.

Manuals & Documents

General Warranty Info:

• Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
• The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
• Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
• Please reach out to us for any specific warranty information needed about products and parts you can’t find!

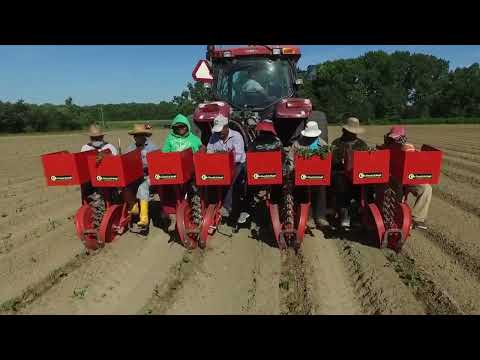

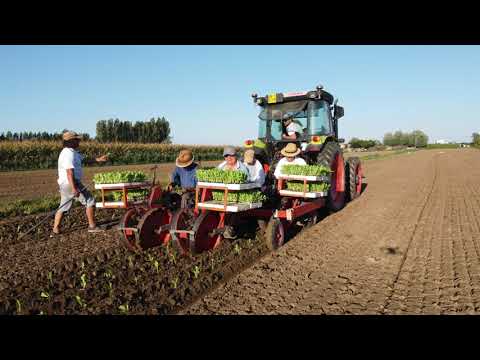

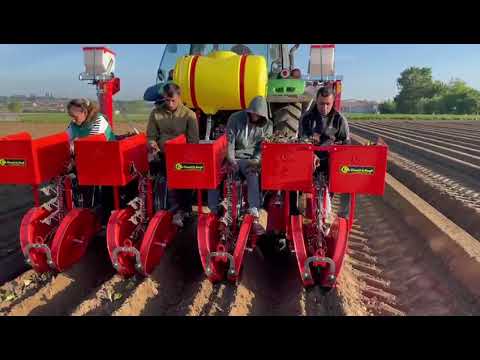

Videos
