Product Description
Checchi & Magli Transplanter TRIUM45 | 1-9 Rows | 79"-217" Frame Width | 19-95HP For Tractor
Included Options:
- Rotary Tray Holders: 4 or 6 sides, available for rigid and soft trays.
- Horizontal Racks: Available in lengths from 200 cm to 450 cm, with extra-reinforced options for heavier loads.
- Watering Device Synchro: Provides synchronized watering per row.
- 300-Litre Tank: Available with 1-4 outputs, ideal for larger-scale operations.

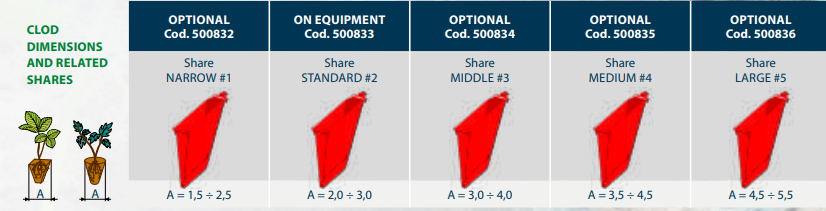

- Ploughshares and Cutting Discs: Available in narrow, standard, and large sizes, offering flexibility for various soil conditions.
DESCRIPTION
Add the TRANSPLANTER TRIUM45 to your equipment fleet for optimal planting precision and flexibility. Ideal for planting tobacco, tomatoes, cabbage, and hemp, this semi-automatic transplanter accommodates tapered and pyramid-shaped clod plants with diameters up to 3 cm (up to 6 cm with an optional kit). The adjustable distance between rows begins at a minimum of 18” (45 cm), offering versatility for various agricultural setups. The machine is available in 3, 4, and 6-row versions, including models with a foldaway hydraulic frame (TPI), making it suitable for plants with large leaves.
Distance between rows min. 45 cm (18”). Semiautomatic for tapered and pyramid-shaped clod plants up to 3 cm in diameter (6 cm only with special kit optional) driven by tyred driving wheels. 3,4,6 rows versions also with foldaway hydraulic frame (TPI). Suitable for plants with very developed leaves (e.g. tobacco, tomato, cabbage, hemp, etc).
The transplant units are independent and modular.
The 10-cup rotating distributor (12 on request) ensures high output and standards of comfort for the operator.
Estimated production: 4500-5000 plants per hour each row (6-7000 with 12 holes distributor).
Key Features
- High Production Efficiency: Each row can transplant 4,500–5,000 plants per hour (or 6,000–7,000 with a 12-hole distributor).
- Independent Transplant Units: Floating, modular transplant units ensure soil adaptability and uniform performance.
- Rotating Distributor: Features a 10-cup system (12 cups available upon request) for a smooth, continuous planting operation without jerking.
- Plant Control System: Ensures precise and consistent planting with automatic disengagement in case of stoppage and self-timing re-engagement.
- Adjustable Spacing: Plant-to-plant spacing is adjustable from 6” to 20” (14 cm to 50 cm), with optional configurations extending spacing up to 41” (103 cm).
Detailed Specifications
| Component | Detail |
|---|---|
| Row Distance | Minimum 18" (45 cm) |
| Planting Spacing | 6" to 20" (14 cm to 50 cm); Optional up to 41" (103 cm) |
| Drive System | Mechanical with drive wheels and hexagonal bar (no PTO required) |
| Production Rate | Up to 5,000 plants/hour per operator |
| Frame Options | Available in 78.74" (single-row) to 216.54" (9-row) configurations |
| Transmission | Mechanical with tired driving wheels |

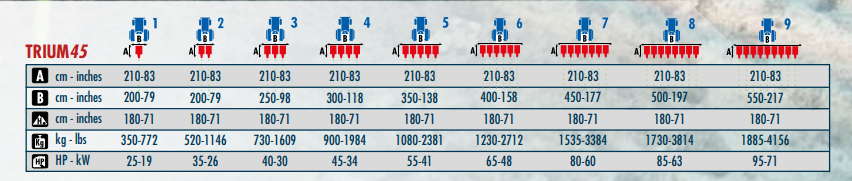

| Type | Values |
|---|---|
| A (inches) | 82.68 - 32.68 (for all) |
| B (inches) | 78.74 - 31.10, 78.74 - 31.10, 137.80 - 98.43, 157.48 - 124.02, 177.17 - 137.80, 196.85 - 77.56, 216.54 - 77.56, 220.47 - 77.56, 226.38 - 85.43 |
| C (inches) | 70.87 - 27.95 (for all) |
| Weight (lbs) | 772 - 1543, 1146 - 2293, 1609 - 3546, 1984 - 5247, 2381 - 5921, 2712 - 5974, 3384 - 7247, 3814 - 7940, 4156 - 8302 |
| Power (HP - kW) | 19 - 25, 26 - 35, 30 - 40, 34 - 45, 41 - 55, 48 - 65, 60 - 80, 63 - 85, 71 - 95 |
In Package:
- Base frame (varies by row configuration)
- 10-cup rotating distributor
- Independent floating transplant units
- Front flex adjustable wheel for soil adaptation
