Product Description
Checchi & Magli Transplanter WOLFPRO | 1-6 Rows | 79"-158" Frame Width | 19-70 HP For Tractor
DESCRIPTION

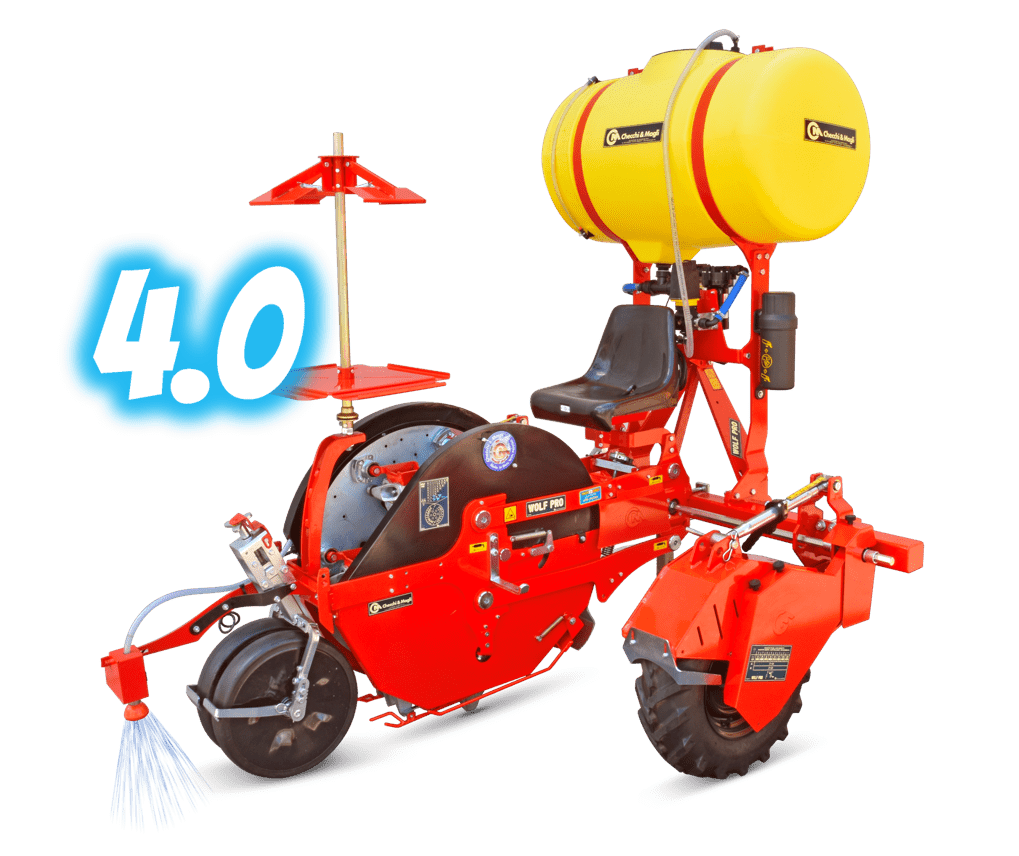

The Checchi & Magli WOLF PRO Transplanter is a professional-grade solution designed for seamless planting with or without mulching film. Featuring continuous rotation perforating cups, this machine ensures precise planting even in challenging soil conditions. With its advanced parallelogram system for consistent soil depth and large diameter compaction wheels, the WOLF PRO excels in both efficiency and adaptability.
Built for professional agricultural needs, the WOLF PRO supports planting of peat clod-rooted seedlings in conical, pyramidal, or cubic shapes up to 3” (8 cm). Its customizable frame options and operator-friendly design make it a reliable choice for large-scale operations.
Key Features

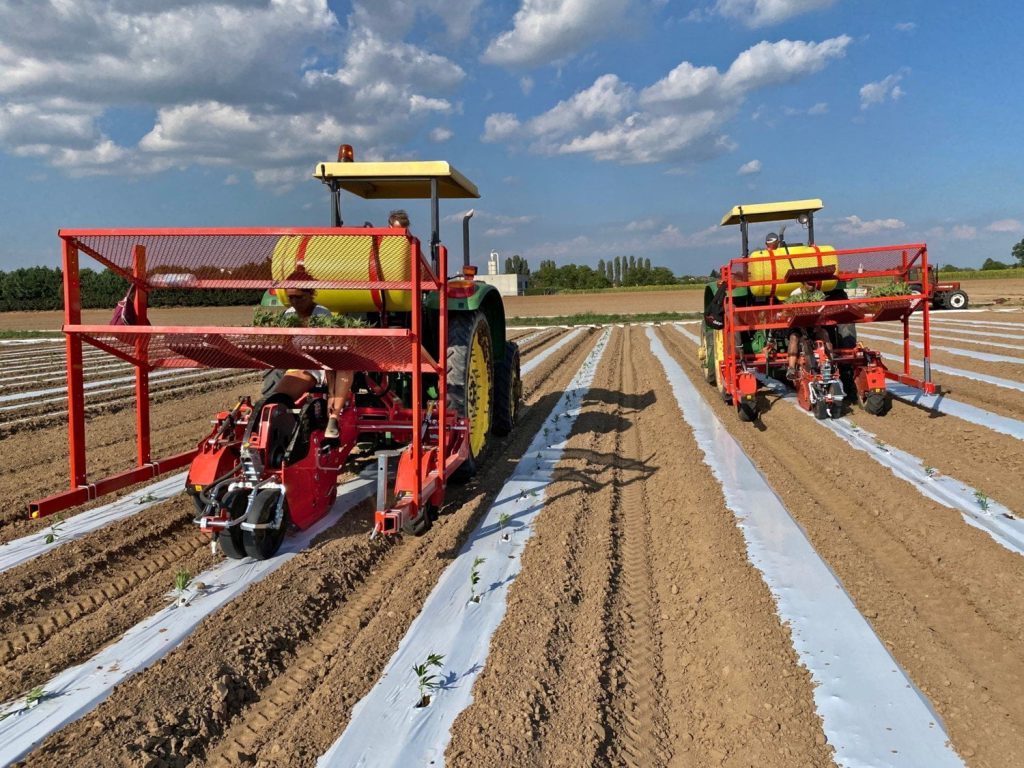

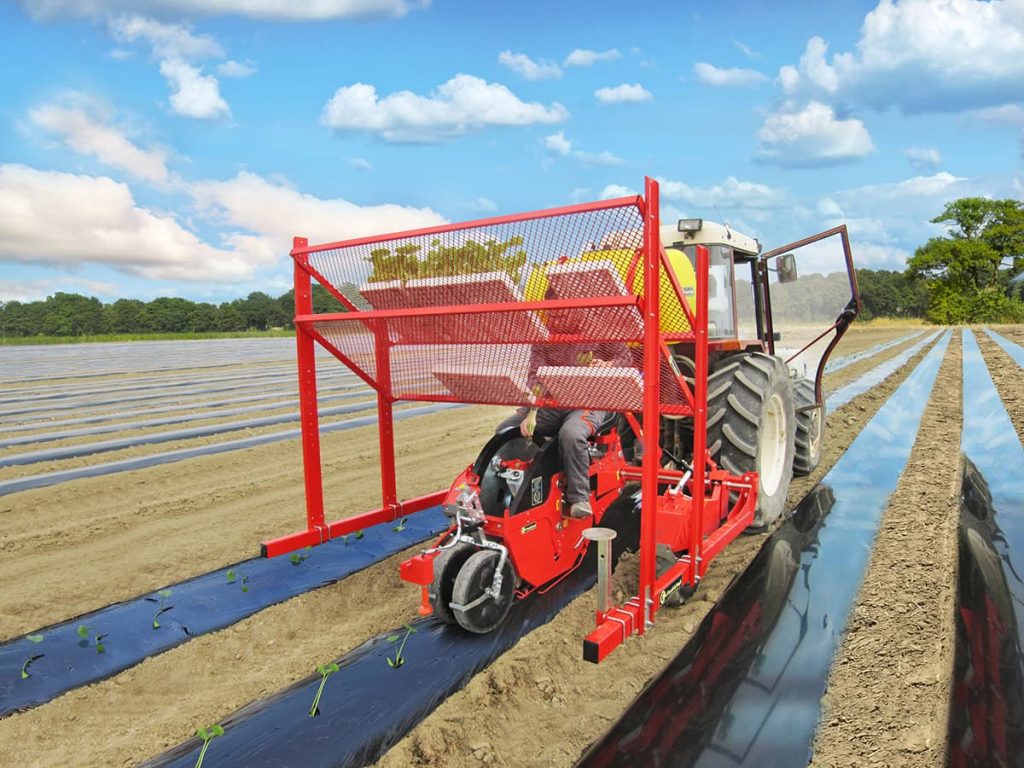

- Versatile Operation: Efficiently works with or without biodegradable mulching film.
- Precise Planting: Equipped with a continuous rotation distributor for accurate plant placement.

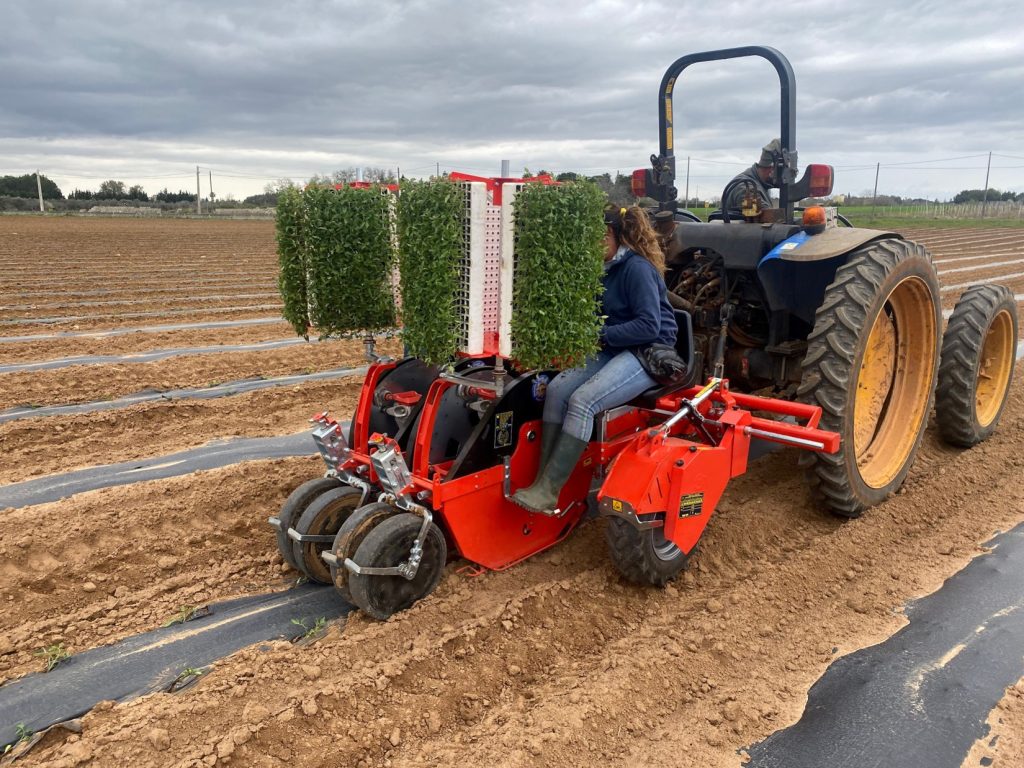

- Compact Design: Features independent, floating transplanting units for superior soil adaptation.
- Enhanced Soil Contact: Large 16.1” diameter compaction wheels ensure optimal earthing up.
- Safety Mechanism: Automatic safety disengagement to protect mechanical components.
- Seedling Compatibility: Transplants seedlings with conical, pyramidal, or cubic clods up to 3” in size.

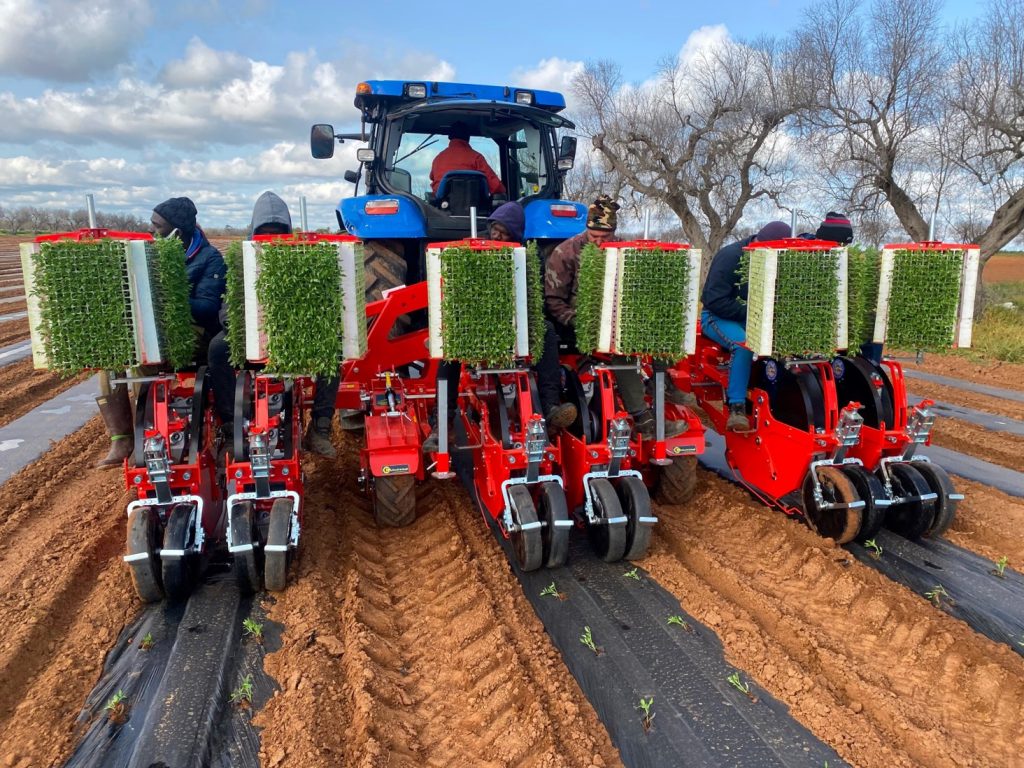

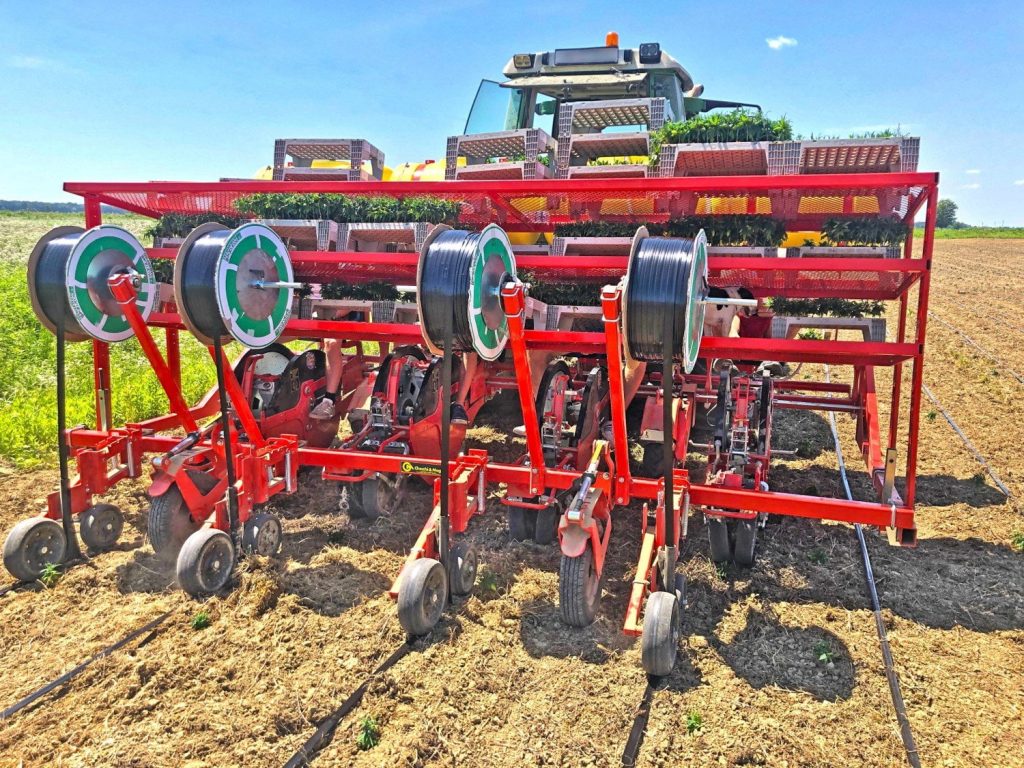

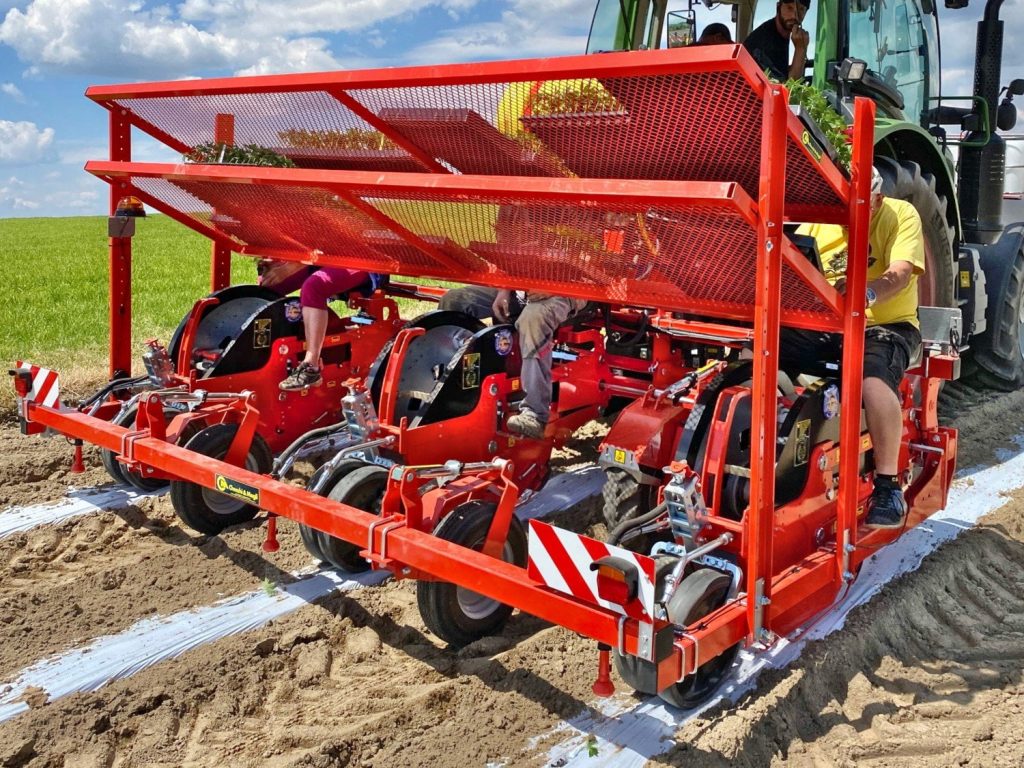

- Frame Options: Supports configurations for 1 to 6 rows with customizable row spacing.
- Durable Build: Reinforced frame and high-quality materials for longevity.
- Optional Attachments: Electric watering device and SEEDPRO unit available for added functionality.
- Operator Comfort: Weight supported by the frame, reducing strain on transplanting units.
Detailed Specifications
| Feature | Details |
|---|---|
| Rows | 1-6 rows |
| Frame Width | 79”-158” |
| Row Spacing | Minimum 20” |
| Seedling Size | Max. 3” (8 cm) |
| Compaction Wheels | 16.1” diameter, flex rubber |
| Transmission | Mechanical, no PTO required |
| Production Capacity | Up to 4,000 plants/hour per row |

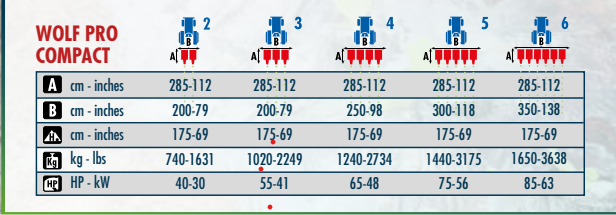

| Model | Specifications |
|---|---|
| WOLF PRO 1 | Frame Width: 78.7” (200 cm) |
| Rows: 1 | |
| Weight: 463 lbs | |
| Power Requirement: 19 HP | |
| WOLF PRO 2 | Frame Width: 78.7” (200 cm) |
| Rows: 2 | |
| Weight: 740 lbs | |
| Power Requirement: 30 HP | |
| WOLF PRO 3 | Frame Width: 98.4” (250 cm) |
| Rows: 3 | |
| Weight: 1,020 lbs | |
| Power Requirement: 41 HP | |
| WOLF PRO 4 | Frame Width: 118.1” (300 cm) |
| Rows: 4 | |
| Weight: 1,240 lbs | |
| Power Requirement: 48 HP | |
| WOLF PRO 5 | Frame Width: 137.8” (350 cm) |
| Rows: 5 | |
| Weight: 1,440 lbs | |
| Power Requirement: 56 HP | |
| WOLF PRO 6 | Frame Width: 157.5” (400 cm) |
| Rows: 6 | |
| Weight: 1,650 lbs | |
| Power Requirement: 70 HP |
In Package
- WOLF PRO Transplanting Unit
- Standard perforating cups (for conical/pyramidal clods)
- Reinforced frame (row configurations based on model)
- Side cleaning blades for perforating cups
- Packing wheels (16.1” diameter, bi-convergent)
- Operator manual
Available Options
- Tray Holders: Rotary (4 or 6 sides for rigid/soft trays), horizontal racks in various sizes.
- Row Markers: Manual lifting or hydraulic options with frame attachment.

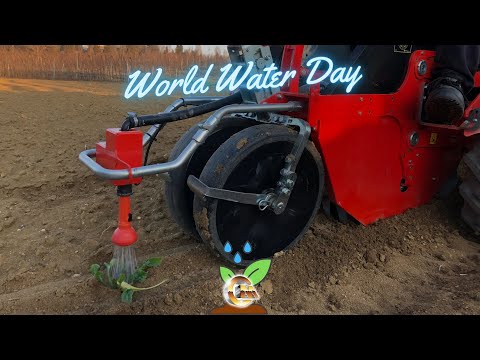

- Watering Device: Synchronized watering system for single or multiple rows with 1,300L tank options.
- Clod Separator: Enhances soil preparation for seamless planting.

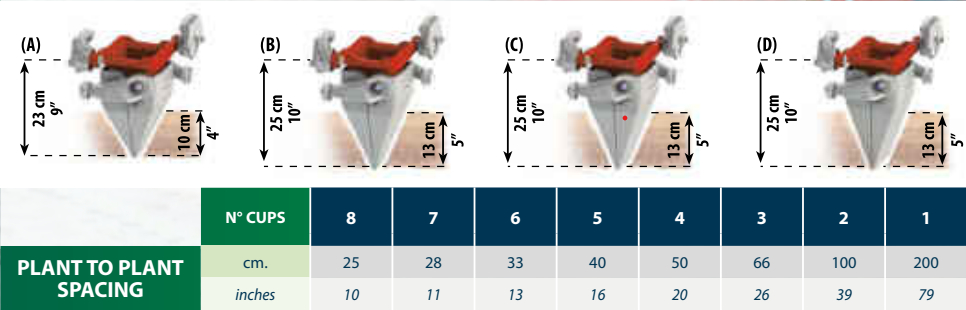

- Perforating Cups: Standard, long, 6X6, and 8X8 versions.

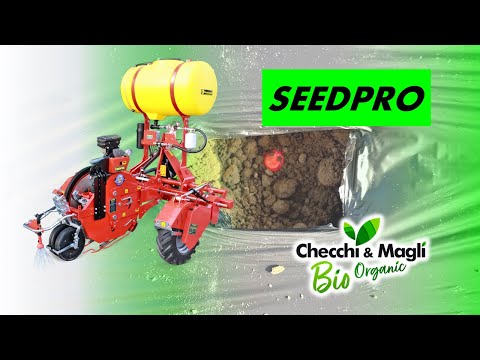

- SEEDPRO Unit: Integrated system for seeding and transplanting.

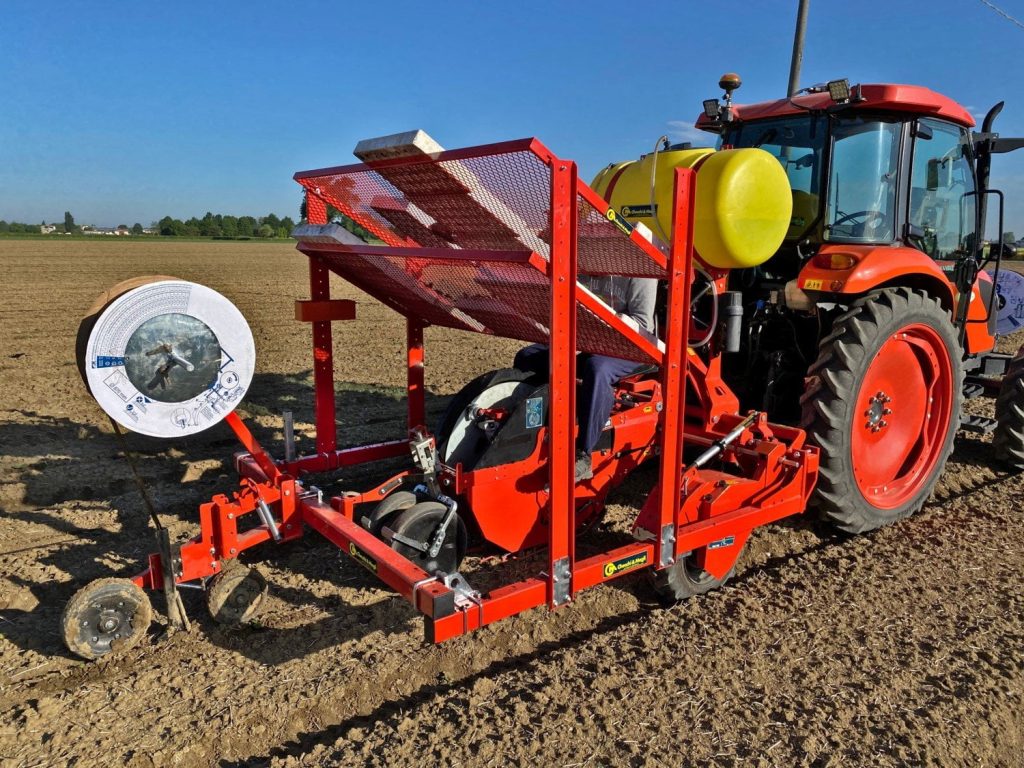

- Drip Tape Dispenser: Surface or sub-surface laying options for efficient irrigation.
