Product Description

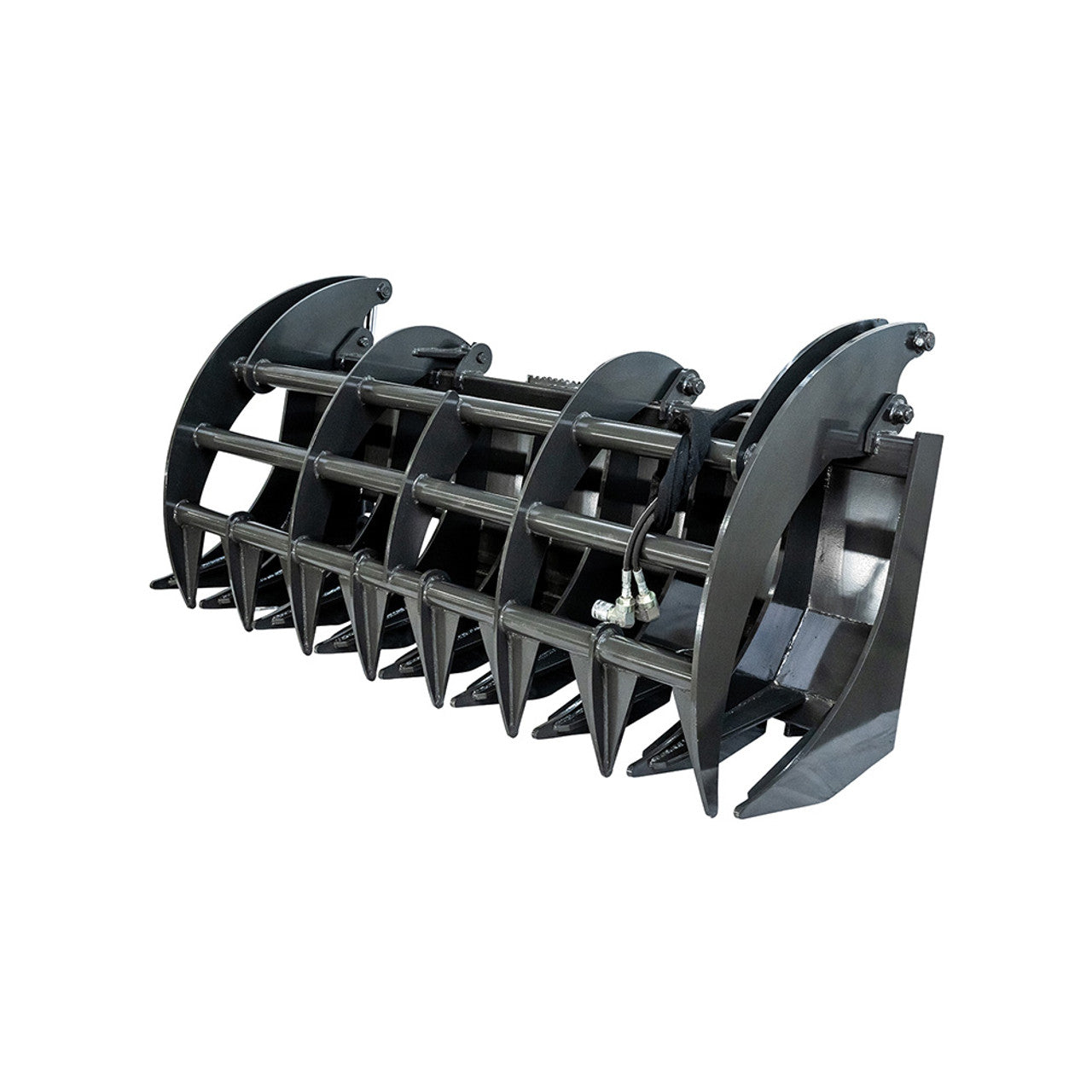

CID Heavy Duty Grapple Rake | 63" - 96" Width | For Skid Steer
DESCRIPTION
The CID Heavy Duty Root Grapple is your go-to attachment for handling tough materials efficiently. Whether you’re clearing land, preparing sites, or managing storm debris, this grapple is designed to tackle demanding tasks with ease. Its robust construction, made from reinforced steel, ensures reliability in any job site condition.

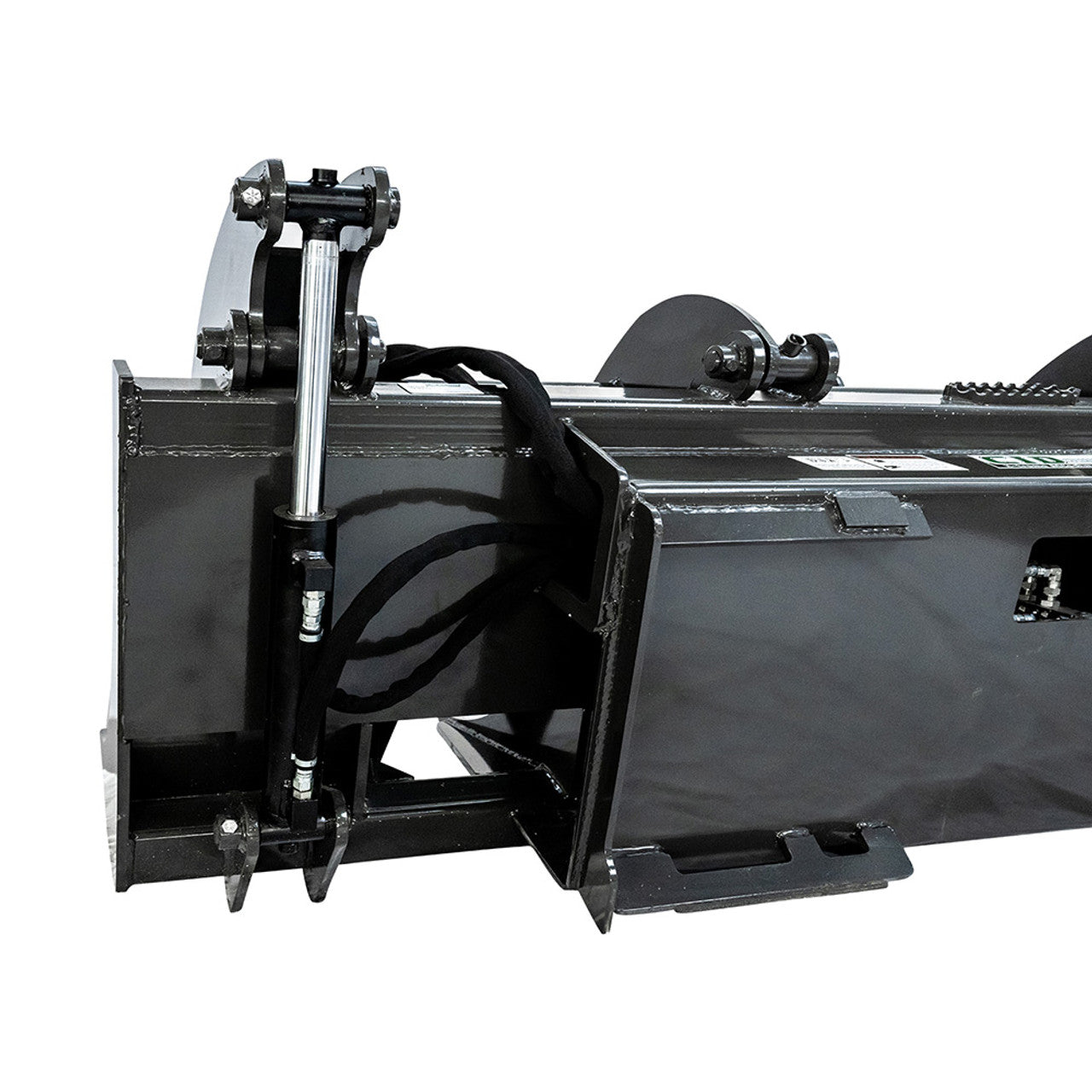

Featuring a frame constructed from 3-inch square tubing and hydraulic lines safely routed inside the tubing, this root grapple provides durability and safety during operation. The dual 2-inch bore x 10-inch stroke hydraulic cylinders deliver the gripping power needed to handle even the toughest materials.
Optional spacer tines add versatility, enabling operators to manage smaller debris without sacrificing efficiency. With a recommended machine power range of 45-65 HP, this grapple is ideal for landscaping, agriculture, and forestry professionals who demand a high-performing tool.
Key Features
- Design and Versatility: The grapple rake is designed for heavy-duty tasks, including brush and shrubbery removal, storm cleanup, demolition, and yard maintenance. Its ability to consolidate materials into tight, orderly piles makes it efficient.
- Material and Durability: Constructed with 1/2" top-quality steel, this grapple rake is built to withstand demanding applications. The teeth tines enhance its grip on debris and materials, ensuring longevity.
- Opening Width: The grapple fully opens up to 51", allowing you to handle larger loads effectively.
- Quick Attach System: The quick attach-system simplifies switching between different attachments, saving time for the operator.
- Powder Coating and Hose Protection: The powder-coated finish adds durability, and the included hoses come with protective sleeves for added safety.
- Compatibility: It’s compatible with skid steers rated between 45 and 65 hp.
Detailed Specifications
Heavy Duty 60" and Heavy Duty 63"
| Feature | Heavy Duty 60" | Heavy Duty 63" |
|---|---|---|
| Width (in) | 60 | 63 |
| Weight (lbs) | 645 | 645 |
| Cylinder Bore (in) | 2 | 2 |
| Cylinder Stroke (in) | 10 | 10 |
| Frame Material | 3" Square Tubing | 3" Square Tubing |
Heavy Duty 66" and Heavy Duty 72"
| Feature | Heavy Duty 66" | Heavy Duty 72" |
|---|---|---|
| Width (in) | 66 | 72 |
| Weight (lbs) | 662 | 698 |
| Cylinder Bore (in) | 2 | 2 |
| Cylinder Stroke (in) | 10 | 10 |
| Frame Material | 3" Square Tubing | 3" Square Tubing |
Heavy Duty 78" and Heavy Duty 81"
| Feature | Heavy Duty 78" | Heavy Duty 81" |
|---|---|---|
| Width (in) | 78 | 81 |
| Weight (lbs) | 730 | 742 |
| Cylinder Bore (in) | 2 | 2 |
| Cylinder Stroke (in) | 10 | 10 |
| Frame Material | 3" Square Tubing | 3" Square Tubing |
Heavy Duty 84"
| Feature | Heavy Duty 84" |
|---|---|
| Width (in) | 84 |
| Weight (lbs) | 804 |
| Cylinder Bore (in) | 2 |
| Cylinder Stroke (in) | 10 |
| Frame Material | 3" Square Tubing |
