Product Description

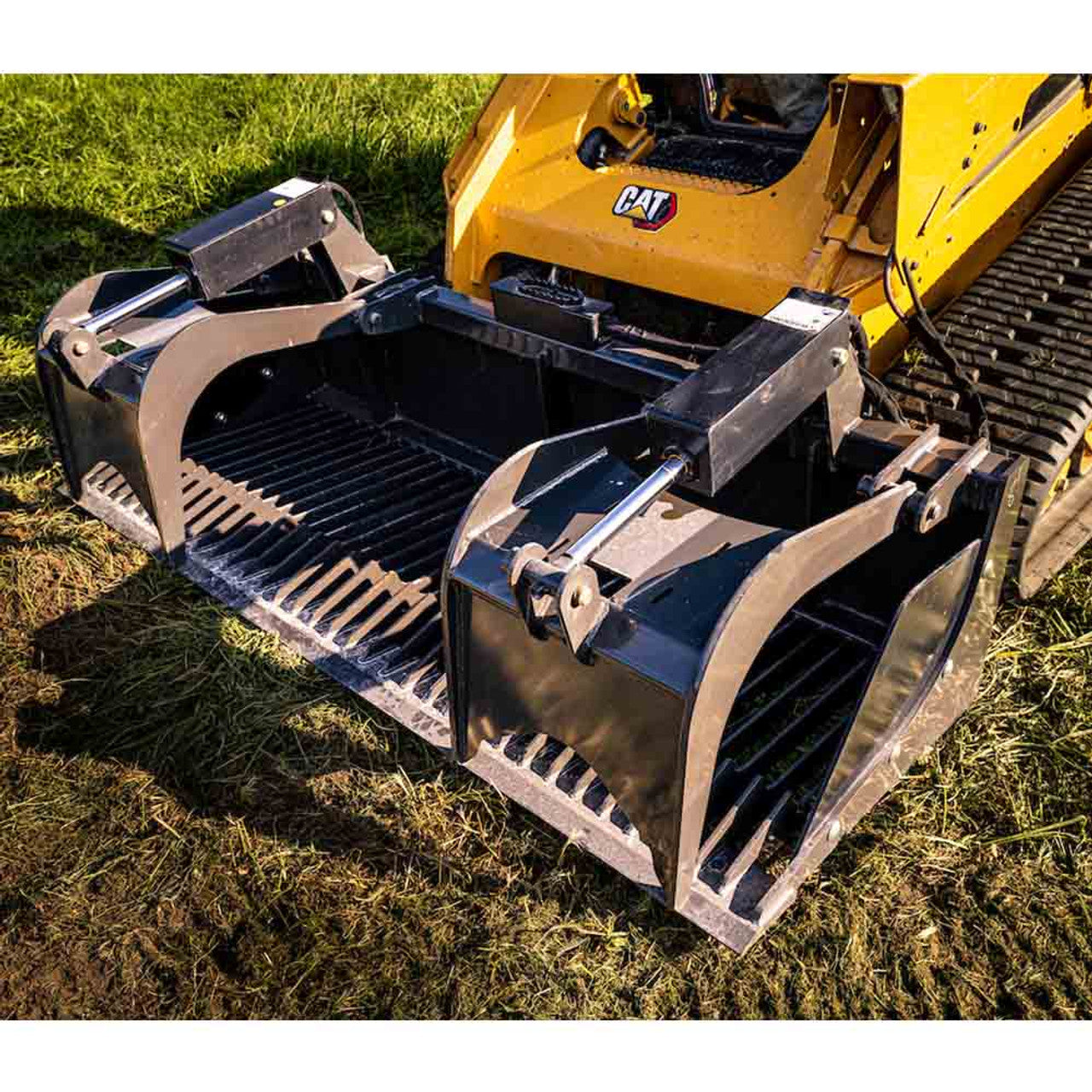

CID Heavy Duty Rock Grapple | 63" to 81" Multiple Working Widht | For Skid Steer
DESCRIPTION
The CID Heavy Duty Rock Grapple Attachment is the ultimate tool for tackling demanding cleanup jobs on properties, construction sites, and more. Built with versatility in mind, this grapple attachment is capable of handling rocks, logs, brush, and debris, making it a valuable addition to your skid steer.
Its heavy-duty yet lightweight design ensures that it doesn’t unbalance your machine while providing exceptional performance. The grapple’s specialized tines and secure grip technology ensure irregularly shaped objects are handled with ease.
Available in five size options (63", 66", 72", 78", and 81"), this attachment is tailored to your specific needs. It also includes bolt-on sides, a 3/4" x 6" cutting edge, and optional weld-on teeth for even greater durability and functionality.
Whether you’re sifting dirt to remove rocks or transporting heavy logs, the CID Heavy Duty Rock Grapple is built to get the job done efficiently.
Key Features
- Heavy Duty Design: Built for demanding jobs with American-made construction and powder-coated steel.
- Multiple Width Options: Choose from 63", 66", 72", 78", or 81" widths to suit your project needs.
- Powerful Cylinders: Equipped with 2" bore x 10" stroke hydraulic cylinders, providing superior grip and control.
- Cutting Edge: Features a 3/4" x 6" cutting edge, with an option to upgrade to weld-on teeth for increased durability.
- Universal Compatibility: Comes with a universal skid steer mounting plate for easy attachment.
Detailed Specifications
| Width (") | Weight (lbs.) | Tine Spacing (") | Cylinder Size (") | Cutting Edge | Compatible with Skid Steers up to (HP) | Cylinder Covers |
|---|---|---|---|---|---|---|
| 63" | 799 | 2-3/8" | Twin 2" bore by 10" stroke | 3/4 x 6 (standard); 1 x 8 (optional teeth) | 65 | Standard |
| 66" | 950 | 2-3/8" | Twin 2" bore by 10" stroke | 3/4 x 6 (standard); 1 x 8 (optional teeth) | 65 | Standard |
| 72" | 902 | 2-3/8" | Twin 2" bore by 10" stroke | 3/4 x 6 (standard); 1 x 8 (optional teeth) | 65 | Standard |
| 78" | 942 | 2-3/8" | Twin 2" bore by 10" stroke | 3/4 x 6 (standard); 1 x 8 (optional teeth) | 65 | Standard |
| 81" | 963 | 2-3/8" | Twin 2" bore by 10" stroke | 3/4 x 6 (standard); 1 x 8 (optional teeth) | 65 | Standard |
