Product Description

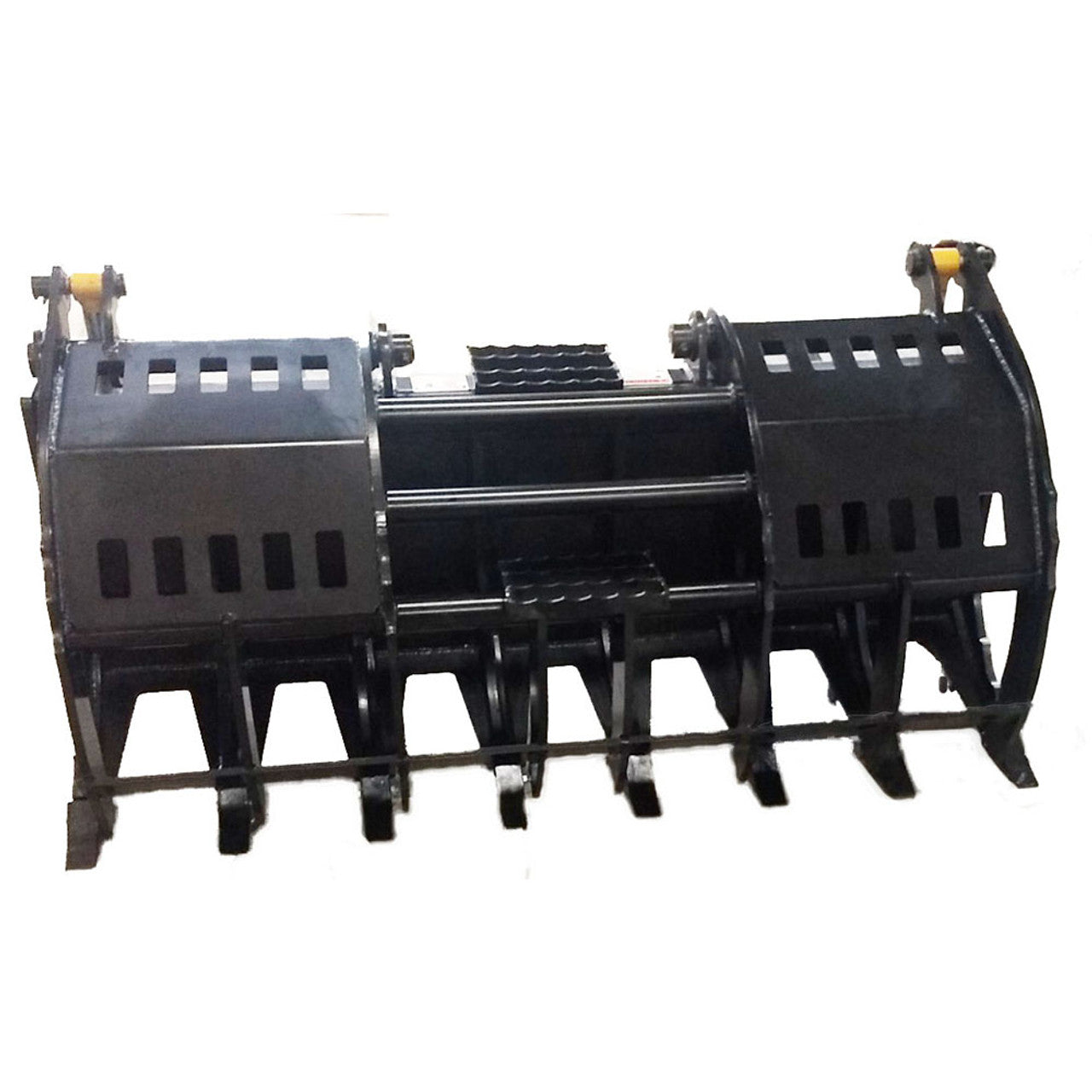

CID 72" and 84" Severe Duty Grapple Rake For Skid Steer
DESCRIPTION
The CID Severe Duty Grapple Rake for Skid Steer is an industrial-grade attachment designed for demanding land clearing, debris handling, and material transportation tasks. Constructed from premium 3/4-inch thick steel with a reinforced 4-inch frame, this grapple rake is built to endure the toughest conditions.
Powered by twin 2-inch bore x 10-inch stroke hydraulic cylinders, this attachment delivers reliable performance with a pressure tolerance of up to 4,000 PSI. The grapple’s 43-inch opening width allows for efficient handling of large debris, while the 6-inch tine spacing ensures precision in collecting and transporting materials.
Designed with the operator in mind, this rake includes an oversized step for easy access to the skid steer. Whether you’re clearing brush, piling logs, or raking debris, the CID Severe Duty Grapple Rake offers unmatched durability, efficiency, and versatility.
Key Features
- Durable Materials: Made with 3/4-inch steel tines and a robust 4-inch steel frame for heavy-duty applications.
- High-Performance Cylinders: Twin 2-inch bore x 10-inch stroke cylinders rated at 4,000 PSI for maximum lifting and grappling power.
- Flexible Configurations: Choose between single or dual grapple setups for optimal control and efficiency.

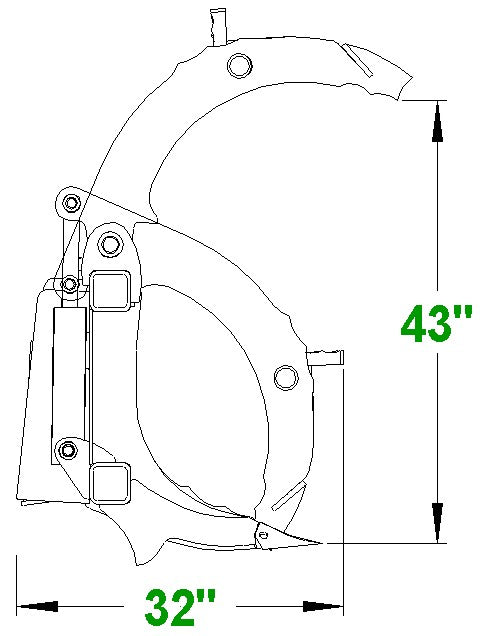

- Wide Debris Capacity: A 43-inch maximum opening width makes handling large materials seamless.
- Powder-Coated Finish: Protects the attachment from wear, rust, and corrosion, ensuring long-lasting durability.
Detailed Specifications
72" Rake
| Feature | 72" Rake |
|---|---|
| Width (in) | 72 |
| Weight (lbs) | 1,392 |
| Material Thickness (in) | 3/4 |
| Cylinder Bore x Stroke (in) | 2 x 10 |
| Tine Spacing (in) | 6 |
84" Rake
| Feature | 84" Rake |
|---|---|
| Width (in) | 84 |
| Weight (lbs) | 1,481 |
| Material Thickness (in) | 3/4 |
| Cylinder Bore x Stroke (in) | 2 x 10 |
| Tine Spacing (in) | 6 |
In Package
- Grapple Rake Attachment
- Universal Skid Steer Mount
- Hydraulic hoses
- Flat Faced Couplers
- Owner's Manual
