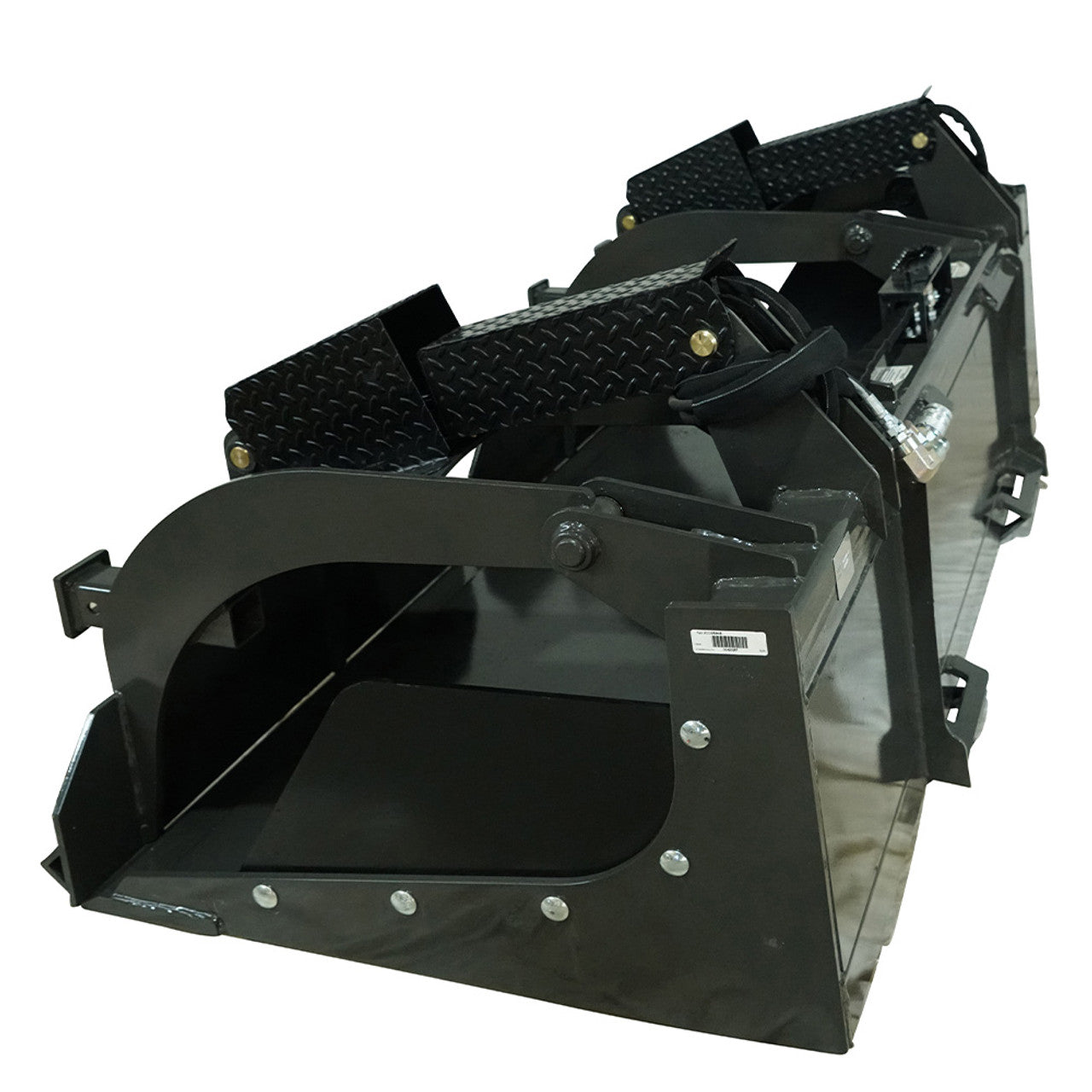

CID Heavy and X-Treme Demolition Grapple Bucket | Width 72", 78" & 84" inches | Horsepower 65+ HP | For Skid Steer

DESCRIPTION

Efficiently handle the rigorous demands of heavy-duty material handling with the CID Demolition Grapple Bucket. Crafted for versatility on your worksite, this bucket seamlessly integrates the features of dozer blades, grapples, and 4-N-1 buckets.

Whether you're working in construction, landscaping, or agriculture, this grapple bucket is a valuable addition to your equipment lineup. Designed with dual grapple arms and a wide jaw opening, this attachment excels in gripping and securing a variety of materials, from logs and brush to debris and rocks.

The wide jaw opening accommodates substantial loads, while serrated edges enhance the attachment's grip on uneven surfaces. Its hydraulic system ensures smooth and responsive control, giving operators more precise control to position materials for sorting, loading, and transport. Beyond its loading capabilities, the bucket offers adaptability with tool receivers, pre-drilled bolt-on edges, chain hooks, and removable sides, providing customization options to meet the unique needs of your projects. Be the master of adaptability with the definition of versatility, the CID Demolition Grapple Bucket.

The X-treme grapple bucket is built with high-quality steel and other materials, ensuring exceptional durability and long-lasting performance even in demanding work environments. This attachment incorporates independently operating 2-inch bore by 10-inch stroke cylinders in its design, allowing for adjustments to accommodate uneven loads. The grapple portion opens up to 41". An enclosed cylinder shaft protects the cylinder shaft from any debris that may damage or hit the shaft.

Key Features

• 2” Bore by 10” Stroke Cylinders Rated at 4000 PSI, ensuring robust performance.
• Top Tines: HD has 1/2″ top tines, while XD has 5/8″ top tines for added strength.
• Hydraulic Lines: Positioned on top and routed inside the tubing to enhance durability and prevent tears.
• Rod Covers: Included with Xtreme models, optional on HD models.
• Bolt-on Sides: Included, providing additional flexibility and customization.
• User-Friendly Controls: Allow for precise and convenient operation, ensuring efficient material handling on your worksite.
• Maintenance: Grease fittings at every pivot point make maintenance easier without the need to disassemble the attachment.
• Cutting Edge: 1” x 6” cutting edge with options to include weld-on teeth or an additional bolt-on edge.
• Machine Horsepower Requirement: Requires a machine horsepower rating of over 65.
