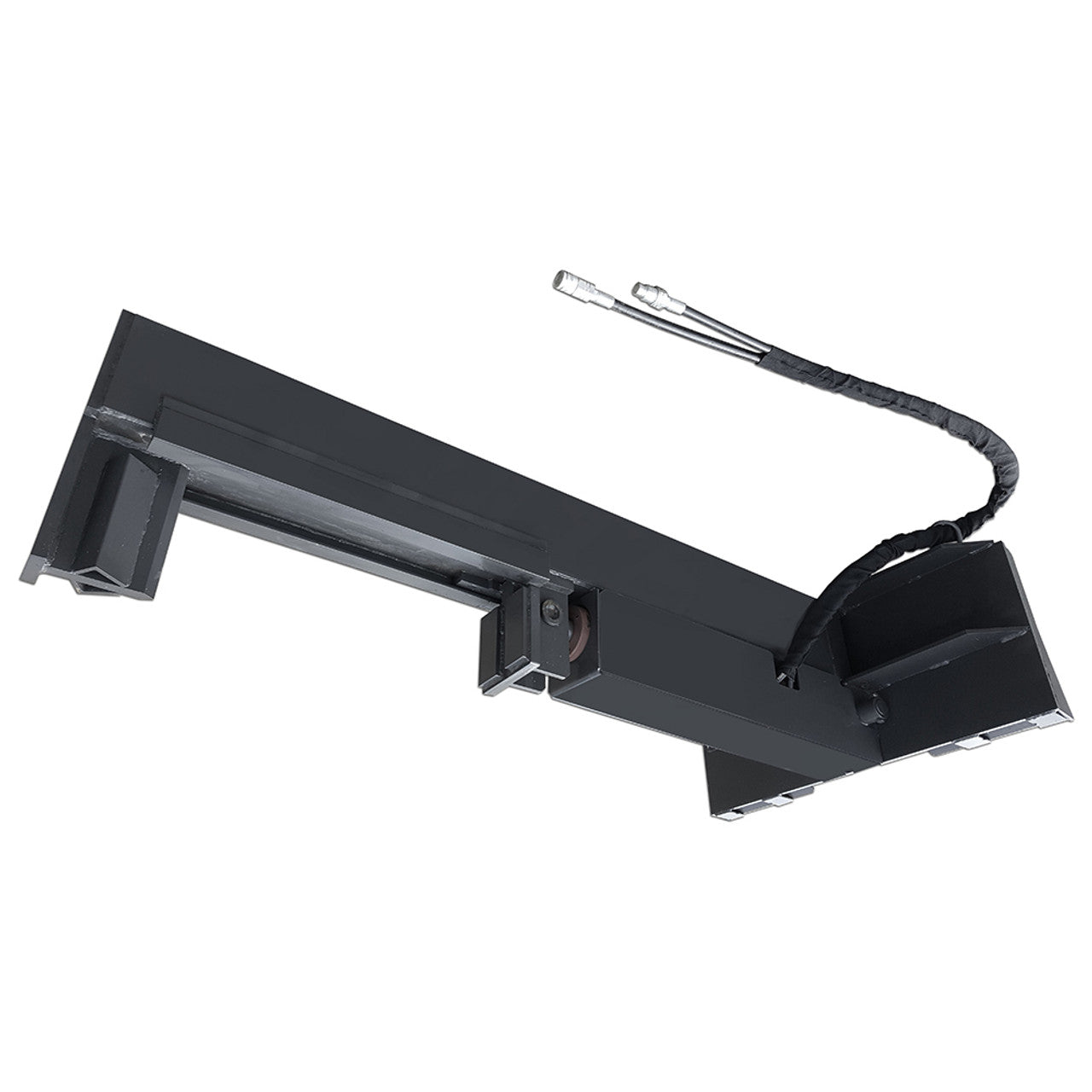

CID Horizontal & Inverted Log Splitter Attachment For Skid Steer
DESCRIPTION
The CID Horizontal & Inverted Log Splitter Attachment is the ultimate wood-splitting solution for skid steer operators, offering both 20-ton and 40-ton splitting force options. This attachment is designed for efficiency and convenience, allowing operators to manage heavy logs and tough hardwoods without manual handling.
The horizontal model is mounted perpendicular to the skid steer, splitting logs to the side of the machine, while the inverted model points straight out for quick and easy splitting. Constructed with AR400 and Grade 50 powder-coated steel, the splitter’s robust 10” I-beam frame ensures long-lasting durability.
Whether you’re handling dense hardwoods or lighter materials, the CID Log Splitter delivers reliable performance to maximize productivity. Optional 4-way and 2-way splitting heads are available to enhance your splitting capabilities further.
Key Features
- Efficient Cab Operation: Control the log splitter directly from the skid steer cab for safe, effortless operation.
- Durable I-Beam Frame: Built with a fully enclosed 10” AR400 steel I-beam for heavy-duty performance.
- Two Models: Choose between Horizontal (splits to the side) or Inverted (splits forward) configurations.
- Powerful Hydraulic Cylinders: Available with 20-ton (4” bore) or 40-ton (5” bore) cylinders for tough splitting tasks.
- Optional Heads: Upgrade to 4-way or 2-way splitting heads to handle larger quantities of wood more efficiently.
Detailed Specifications
| Feature | Horizontal Model | Inverted Model |
|---|---|---|
| Weight (lbs.) | 967 | 967 |
| Length (") | 86.5 | 18.65 |
| Width (") | 18.5 | 14.5 |
| Force (Tons) | 20-40 | 20-40 |
| Cylinder Size (") | 4” Bore (20 Ton) or 5” Bore (40 Ton) | 4” Bore (20 Ton) or 5” Bore (40 Ton) |
| I-Beam Width (") | 10 | 10 |
| Material | AR400 & Grade 50 Steel | AR400 & Grade 50 Steel |
In Package
- Skid Steer Log Splitter
- Universal Skid Steer Mounting Plate
- Hydraulic hoses
- Flat faced couplers
- Owner's manual
