Product Description
CPS | LWBD Tandem Axle Bottom Dump Trailer | 40' Length | 23 CY Capacity | 96" Width | For Bulk Material Hauling & Construction Use
Ripping It is Partnered with Western Truck to provide the best pricing and service for CPS.
DESCRIPTION

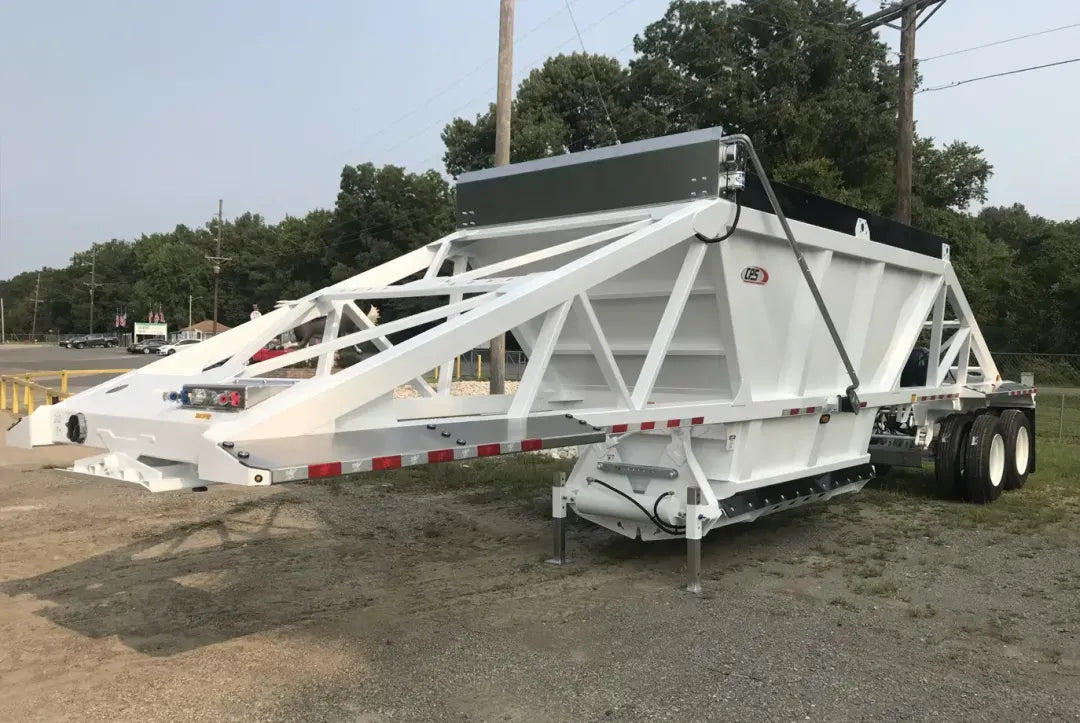

The CPS Lightweight Tandem Axle Bottom Dump Trailer is a premium bulk hauling solution, designed for efficiency, durability, and maximum material transport performance. Featuring a reinforced lightweight frame, air-ride suspension, and high-capacity hopper, this trailer ensures seamless operations for aggregate, construction, and industrial applications.
With a 40-foot overall length and a spacious 20 cubic yard capacity (expandable to 23 cubic yards with bangboards), the LWBD is optimized for superior load containment and secure transportation. Its commercial-grade steel gate system, oscillating fifth wheel, and air-assisted electric gate control allow for precision unloading and quick turnaround times.
Designed with power requirements (kW/HP optimized) for pneumatic transport integration, this trailer includes tandem air ride suspension, steel side supports, and a certified push block, ensuring long-term reliability and transport stability. Whether handling construction site debris or bulk freight, the CPS LWBD delivers industry-leading strength, efficiency, and hauling performance.
Key Features
- High-Capacity Hopper for Bulk Material Transport: 20 cubic yards standard capacity, 23 cubic yards with bangboards for maximum hauling efficiency.
- Optimized Power Requirements: Designed for efficient pneumatic operation (kW/HP optimized) ensuring controlled unloading cycles.
- Advanced Suspension & Stability Enhancements: Tandem air-ride suspension with 50" spread, Hub-piloted 25K axles, and reinforced undercarriage.
- Premium Wheels & High-Traction Tires for Long-Haul Reliability: Steel wheels paired with high-performance 11R24.5 radial tires for maximum stability and traction.
- Precision Gate System for Efficient Unloading: Gate side seals, 8" gate cylinders, and adjustable pin settings provide controlled material discharge.
- DOT-Approved Safety & Visibility Enhancements: LED lighting system, reflective conspicuity tape, and mid-flashers for enhanced transport security.
- Integrated Tarp System for Load Protection: CPS electric mesh tarp system ensures efficient load coverage and secure hauling.
Detailed Specifications
| Category | Details |
|---|---|
| Trailer Type | Lightweight Bottom Dump, Tandem Axle |
| Condition | New |
| Length | 40' |
| Width | 96" |
| Height | 10' (with bang boards), 9'1" (without) |
| Capacity | 20 cu/yd (standard), 23 cu/yd (to top of bang boards) |
| Coupler Height | 48" |
| Upper Hopper | 10 & 12GA Lightweight Steel |
| Lower Hopper | 10GA, 54" x 108" Opening |
| Door Material | 3/16" 80W Steel, Slide Lock Style |
| Push Block | Welded with certified underride protection |
| Top/Bottom Rail | 4" x 6" x 3/16" HSLA Tube |
| Axles | Tandem, 25K, 5" tubular, 1 ABS & 1 NON-ABS |
| Suspension | Tandem Air Ride, 50" Spread |
| Brakes | 16.5" x 7" Cam, TSE Omnibrake 30-30 |
| Wheels & Tires | 11R24.5 Radials on Steel Wheels, Sumitomo ST727 |
| Tarping System | CPS Flip Tarp, Roll Rite™ TM400, Electric Mesh (16') |
| Electrical System | LED, Sealed Beam, 7-Way + 6-Way (Gate Control) |
| Landing Gear | 4" x 4" Square Drop Legs (Galvanized) |
| Paint & Finish | White Polyurethane, Epoxy Primer, Shot Blasted & Treated |
| Reflective Tape | FMVSS/CMVSS 108 Compliant – Red & Gray Striping |
