Product Description
Danuser | Extreme Duty Auger Drive | Model EP615 & EP1020 | 24" & 30" Max Auger Diameter | 2" Hex Shaft | Horsepower 12.3 To 30.6 HP | For Tractors
DESCRIPTION

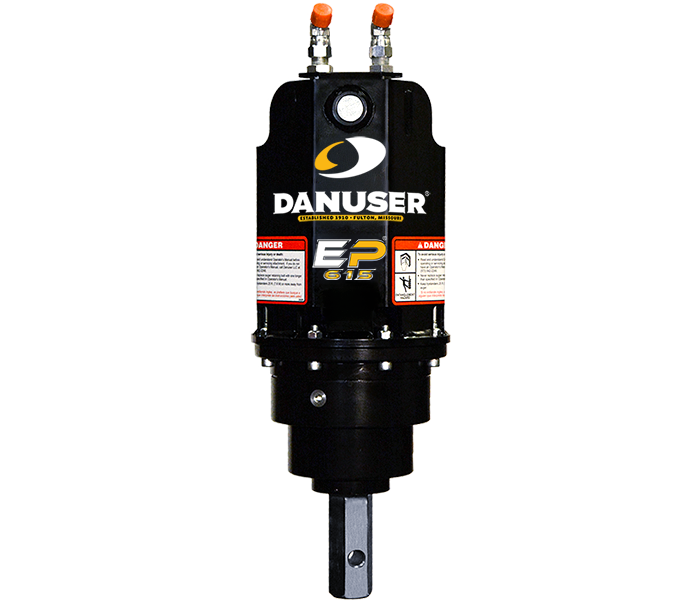

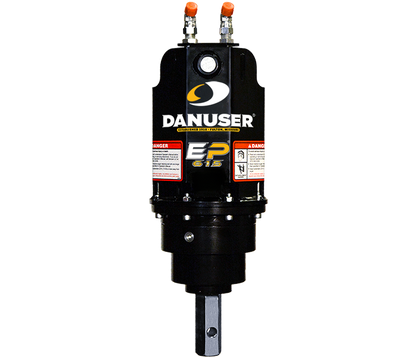

Dig deeper, faster, and with unwavering confidence using the Danuser EP615 Extreme Duty Auger Drive a plug-and-play powerhouse engineered for agricultural, construction, and landscaping professionals. Featuring a rugged 2" hex output shaft and superior torque, this auger drive is built for consistent, high-efficiency drilling across tough terrain.
Whether you’re installing fencing, planting trees, or setting utility poles, the EP615 delivers outstanding torque performance even in the most demanding soil conditions. It’s equipped with a Danuser-engineered planetary gearbox and a high-performance hydraulic motor capable of handling up to 3,500 PSI delivering 1,774 ft-lbs of torque at max flow.
Compatible with standard Skid Steer Loaders (SSL) and designed for 6–15 GPM hydraulic systems, this unit is ready to hit the ground running with no custom setup required. Built in the USA and trusted across industries, the EP615 is the last auger drive you’ll need for mid-size auger operations.
Key Features
- Extreme-Duty Performance Delivers up to 1,774 ft-lbs of torque at 3,500 PSI for powerful, consistent digging.
- Universal 2" Hex Output Industry-standard output shaft fits most commercial augers for ultimate flexibility.

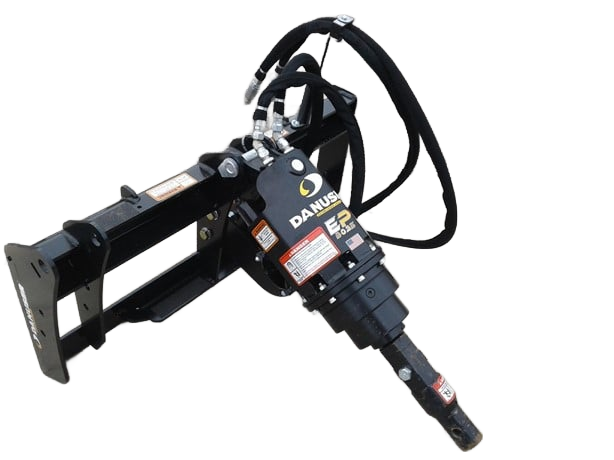

- Plug-and-Play Ready Installs in minutes with your skid steer loader (SSL Mount); no additional wiring or setup needed.
- Built for Durability Precision Danuser planetary gear design offers enhanced torque output and long-term reliability.
- Low Maintenance Design Easy-access check and fill plugs reduce downtime and extend life in the field.
- 24" Max Auger Compatibility Ideal for post-hole digging, fence building, and other medium-duty auger applications.
- Optimized Hydraulic Flow Range Performs at 6–15 GPM, making it compatible with a wide range of compact tractors and skid steers.
Detailed Specifications
| Feature | EP615 Auger Drive (24") | EP1020 Auger Drive (30") |
|---|---|---|
| Model | Danuser EP615 Auger Drive | Danuser EP1020 Auger Drive |
| Mounting Options | SSL Mount, Euro Mount, John Deere 200–500 | SSL Mount |
| Hydraulic Flow Range | 6–15 GPM | 10–20 GPM |
| Max Auger Diameter | 24" | 30" |
| Gearbox Ratio | 3.86:1 | 3.86:1 |
| Max Hydraulic Pressure | 3,500 PSI | 3,500 PSI |
| Back Pressure Limit | 1,500 PSI | 1,500 PSI |
| Auger Drive Type | Hydraulic, Planetary Gear | Hydraulic, Planetary Gear |
| Output Connection | 2" Hex Shaft | 2" Hex Shaft |
| Output Torque (Max) | 1,774 ft-lbs @ 3,500 PSI | 2,222 ft-lbs @ 3,500 PSI |
| Output RPM (Variable) | 36–91 RPM depending on flow | 48–97 RPM depending on flow |
| Ideal Applications | Fence posts, landscaping, agriculture | Tree planting, footings, large-scale agriculture |
Performance Specifications Torque by Flow Rate & Pressure
EP615 (24") Performance
|
Flow (GPM)/ Output RPM |
Torque @ 2,500 PSI | Torque @ 3,000 PSI | Torque @ 3,500 PSI |
|---|---|---|---|
| 6 / 36 | 1,267 ft-lbs | 1,520 ft-lbs | 1,774 ft-lbs |
| 8 / 48 | 1,267 ft-lbs | 1,520 ft-lbs | 1,774 ft-lbs |
| 10 / 60 | 1,267 ft-lbs | 1,520 ft-lbs | 1,774 ft-lbs |
| 15 /91 | — | — | 1,774 ft-lbs |
EP1020 (30") Performance
|
Flow (GPM)/ Output RPM |
Torque @ 2,500 PSI | Torque @ 3,000 PSI | Torque @ 3,500 PSI |
|---|---|---|---|
| 10 / 48 | 1,587 ft-lbs | 1,904 ft-lbs | 2,222 ft-lbs |
| 12 / 58 | 1,587 ft-lbs | 1,904 ft-lbs | 2,222 ft-lbs |
| 15 / 72 | 1,587 ft-lbs | 1,904 ft-lbs | 2,222 ft-lbs |
| 18 / 87 | 1,587 ft-lbs | 1,904 ft-lbs | 2,222 ft-lbs |
| 20 / 97 | 1,587 ft-lbs | 1,904 ft-lbs | 2,222 ft-lbs |
Available Configurations
| Model Part Number | Mount Type | Hydraulic Flow | Max Auger Size |
|---|---|---|---|
| 180405/180415/196027 | SSL Mount | 6–15 GPM | 24" |
| 180405/190052/196027 | Euro Mount | 6–15 GPM | 24" |
| 180405/190053/196027 | John Deere 200–500 Mount | 6–15 GPM | 24" |
| 180406/180415/196027 | SSL Mount | 10–20 GPM | 30" |
Manuals & Documents
Product Mannual
Product Brochure
