Product Description
Danuser | Hydraulic Post Driver | Model EM40 | 8.5" x 9.25" Max Post Size | 40" Stroke Length | 1,709 ft-lb Impact Energy | Euro Mount | Requires 75+ HP | For Tractor
DESCRIPTION

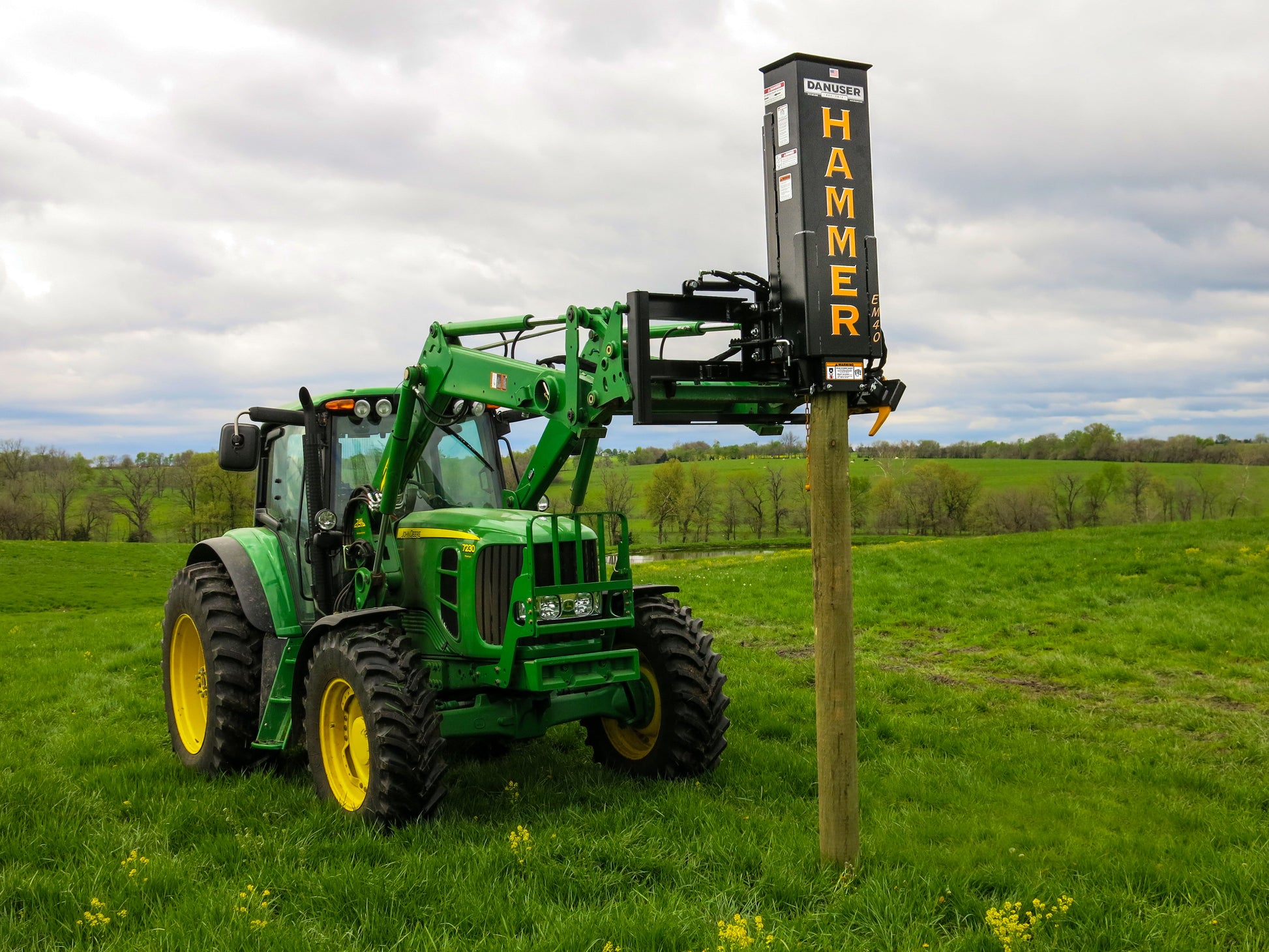

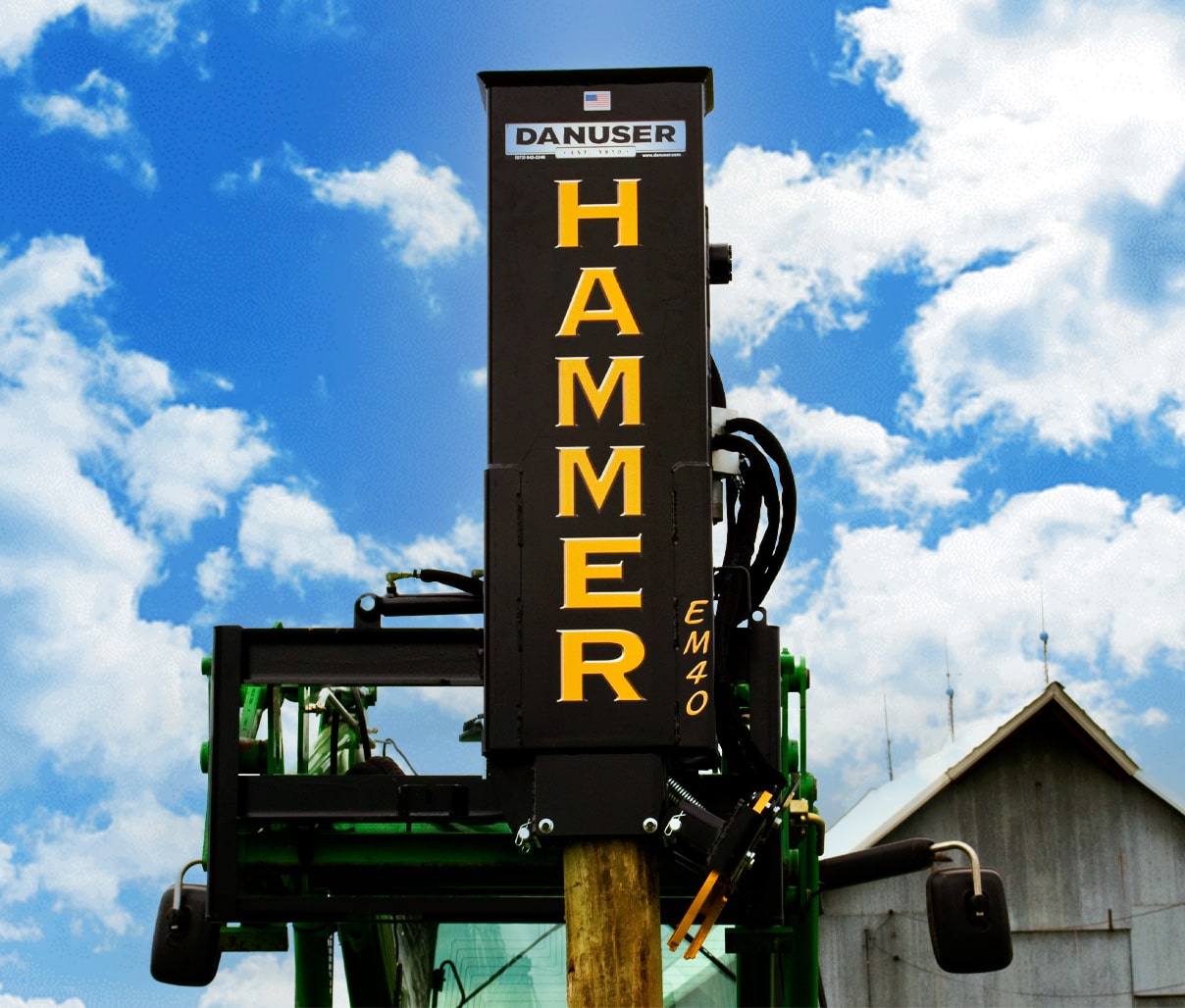

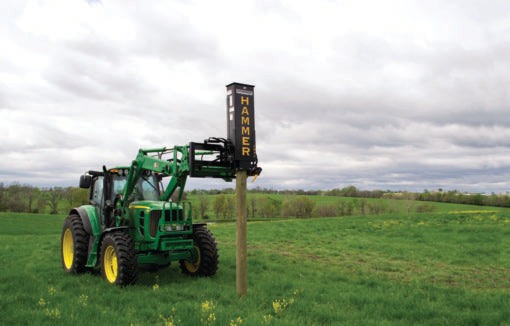

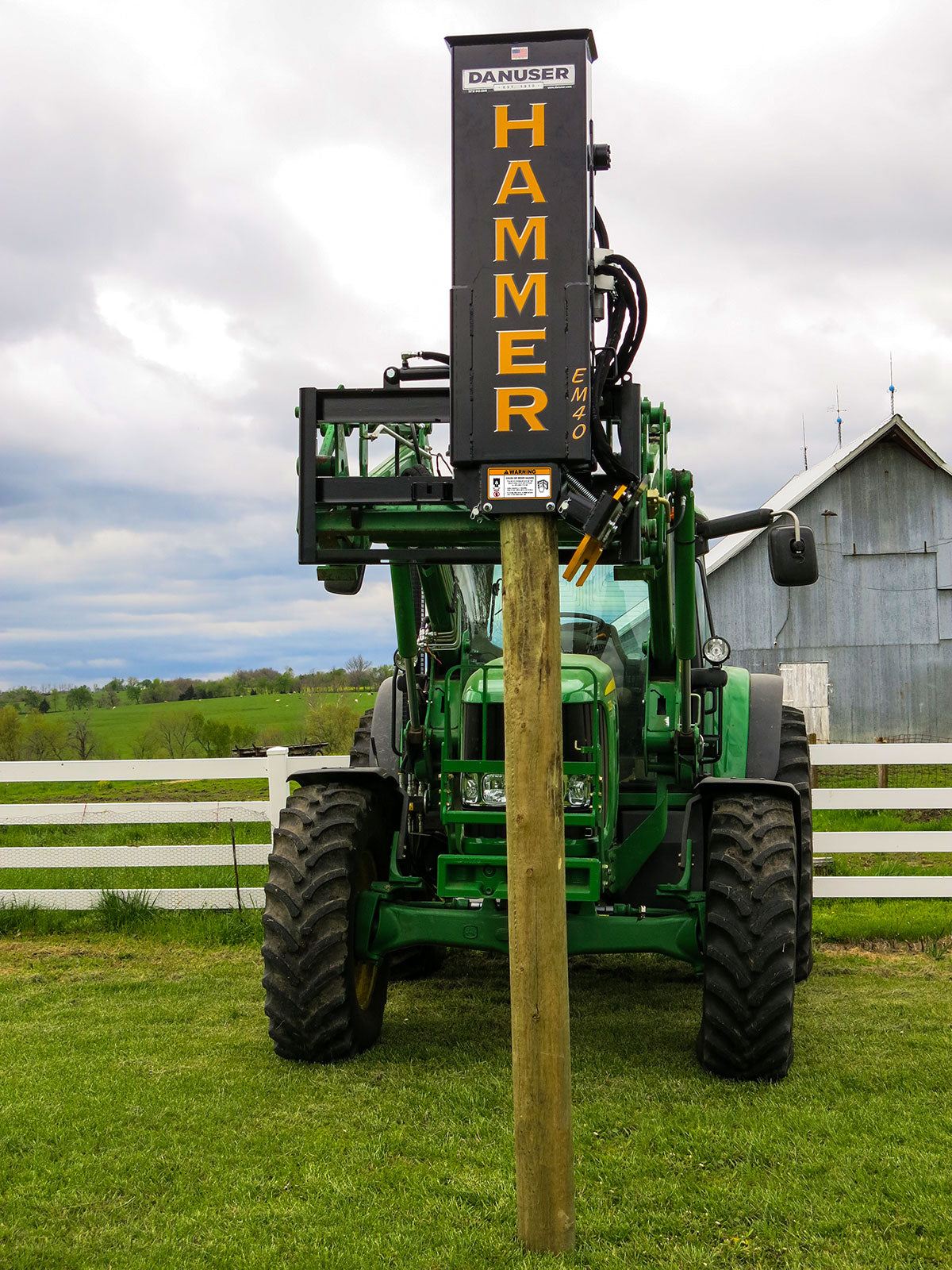

Take on rugged terrain and heavy-duty post installations with confidence. The Danuser EM40 Hydraulic Post Driver with Tilt and Grapple (Model 21013) delivers unmatched performance for contractors, ranchers, and fencing pros who demand durability, efficiency, and one-person operation.
Built to handle everything from t-posts to railroad ties, the EM40 makes post driving faster and safer with 49,000–82,000 lbs of impact force and a powerful 1,709 ft-lbs of energy per stroke. The tilt function provides up to 20° of adjustment, allowing you to work on sloped or uneven ground without compromising accuracy.

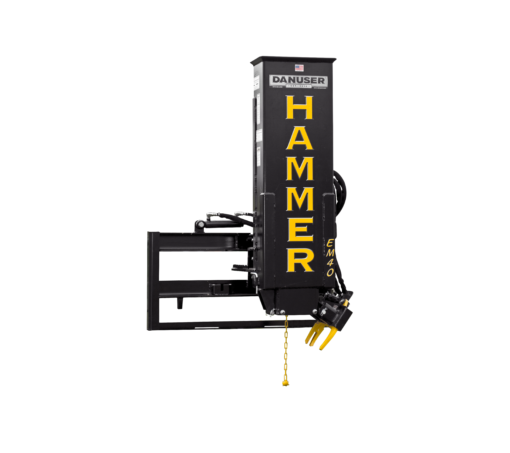

The integrated grapple system lets you grab, lift, and drive posts without ever leaving the operator seat. This eliminates the need for a second worker and significantly reduces fatigue. Engineered for Euro Mount tractors, it connects easily and works seamlessly with hydraulic systems rated between 1,500–3,000 PSI and 12–30 GPM flow.
Whether you're installing agricultural fencing, guardrails, or foundation posts, the EM40 with Tilt + Grapple is your all-in-one solution for professional-grade results.
Key Features
- Full Operator Control from the Cab Use the grapple to lift, load, and set posts without ever stepping off the machine.
- Handles Everything from T-Posts to Railroad Ties Versatile design accommodates post sizes up to 8.5" x 9.25" wide.
- Tilt Capability for Uneven Ground Achieve plumb drives even on sloped terrain with 20° left/right tilt.
- Massive Impact Energy Up to 1,709 ft-lbs of energy delivers fast, deep post installation in any soil type.
- Fast, Efficient Operation 35 strokes per minute at full hydraulic pressure keep jobs moving quickly.
- No Springs or Return Lines Simple, low-maintenance hydraulic hammer operation with fewer failure points.
- Built-In Post Puller Reverse functionality adds value by helping you remove stubborn posts as easily as you install them.
- Factory-Installed Weight Kit Equipped with a 300–500 lb hammer, easily adjusted for your driving needs.
Detailed Specifications
| Specification | 21011 | 21011L |
|---|---|---|
| Name | DANUSER | DANUSER |
| Model | 21011 | 21011L |
| Sub-Category | Post Driver Loader Euro Mount | Post Driver Loader Euro Mount |
| Description | EM40, No Tilt, With Grapple, No Additional Weight | EM40, No Tilt, With Grapple, With Additional Weight |
| Machine Size | Euro Mount | Euro Mount |
| Attachment Size | Max Post Width 8.5" x 9.25" | Max Post Width 8.5" x 9.25" |
| Industry | Agricultural | Agricultural |
| Impact Force (lb) | 49,000 | 49,000 |
| Impact Energy (ft-lb) | 1,025 | 1,025 |
| Stroke Length (in) | 40 | 40 |
| Hammer Weight (lb) | 300 | 300 |
| Strokes/Min | 35 | 35 |
| Dimensions (L x W x H in) | 46 x 27.5 x 64 | 46 x 27.5 x 64 |
| Tilt (°) | N/A | N/A |
| Machine Weight (lb) | 920 | 920 |
| Hydraulic Requirements (PSI / GPM) | 1,500–3,000 PSI; 12–30 GPM | 1,500–3,000 PSI; 12–30 GPM |
| Tractor Requirements (HP) | 75 HP Minimum | 75 HP Minimum |
| Specification | 21012 | 21012L |
|---|---|---|
| Name | DANUSER | DANUSER |
| Model | 21012 | 21012L |
| Sub-Category | Post Driver Loader Euro Mount | Post Driver Loader Euro Mount |
| Description | EM40, With Tilt, No Grapple, No Additional Weight | EM40, With Tilt, No Grapple, With Additional Weight |
| Machine Size | Euro Mount | Euro Mount |
| Attachment Size | Max Post Width 8.5" x 9.25" | Max Post Width 8.5" x 9.25" |
| Industry | Construction | Construction |
| Impact Force (lb) | 82,000 | 82,000 |
| Impact Energy (ft-lb) | 1,709 | 1,709 |
| Stroke Length (in) | 40 | 40 |
| Hammer Weight (lb) | 500 | 500 |
| Strokes/Min | 35 | 35 |
| Dimensions (L x W x H in) | 45.5 x 25.5 x 64 | 45.5 x 25.5 x 64 |
| Tilt (°) | 20° | 20° |
| Machine Weight (lb) | 1,245 | 1,245 |
| Hydraulic Requirements (PSI / GPM) | 1,500–3,000 PSI; 12–30 GPM | 1,500–3,000 PSI; 12–30 GPM |
| Tractor Requirements (HP) | 75 HP Minimum | 75 HP Minimum |
| Specification | 21013 | 21013L |
|---|---|---|
| Name | DANUSER | DANUSER |
| Model | 21013 | 21013L |
| Sub-Category | Post Driver Loader Euro Mount | Post Driver Loader Euro Mount |
| Description | EM40, With Tilt, With Grapple, No Additional Weight | EM40, With Tilt, With Grapple, With Additional Weight |
| Machine Size | Euro Mount | Euro Mount |
| Attachment Size | Max Post Width 8.5" x 9.25" | Max Post Width 8.5" x 9.25" |
| Industry | Construction | Construction |
| Impact Force (lb) | 82,000 | 82,000 |
| Impact Energy (ft-lb) | 1,709 | 1,709 |
| Stroke Length (in) | 40 | 40 |
| Hammer Weight (lb) | 500 | 500 |
| Strokes/Min | 35 | 35 |
| Dimensions (L x W x H in) | 45.5 x 25.5 x 64 | 45.5 x 25.5 x 64 |
| Tilt (°) | 20° | 20° |
| Machine Weight (lb) | 1,245 | 1,245 |
| Hydraulic Requirements (PSI / GPM) | 1,500–3,000 PSI; 12–30 GPM | 1,500–3,000 PSI; 12–30 GPM |
| Tractor Requirements (HP) | 75 HP Minimum | 75 HP Minimum |
| Specification | 21013 | 21013L |
|---|---|---|
| Name | DANUSER | DANUSER |
| Model | 21013 | 21013L |
| Sub-Category | Post Driver Loader Euro Mount | Post Driver Loader Euro Mount |
| Description | EM40, With Tilt, With Grapple, No Additional Weight | EM40, With Tilt, With Grapple, With Additional Weight |
| Machine Size | Euro Mount | Euro Mount |
| Attachment Size | Max Post Width 8.5" x 9.25" | Max Post Width 8.5" x 9.25" |
| Industry | Construction | Construction |
| Impact Force (lb) | 82,000 | 82,000 |
| Impact Energy (ft-lb) | 1,709 | 1,709 |
| Stroke Length (in) | 40 | 40 |
| Hammer Weight (lb) | 500 | 500 |
| Strokes/Min | 35 | 35 |
| Dimensions (L x W x H in) | 45.5 x 25.5 x 64 | 45.5 x 25.5 x 64 |
| Tilt (°) | 20° | 20° |
| Machine Weight (lb) | 1,245 | 1,245 |
| Hydraulic Requirements (PSI / GPM) | 1,500–3,000 PSI; 12–30 GPM | 1,500–3,000 PSI; 12–30 GPM |
| Tractor Requirements (HP) | 75 HP Minimum | 75 HP Minimum |
Manuals & Documents
General Warranty Info:
- Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
- The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
- Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
- Please reach out to us for any specific warranty information needed about products and parts you can’t find!

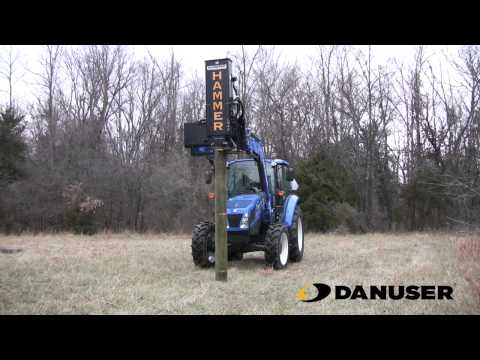

Videos
