DEMCO

Demco | 600 Gallon Pull Type Sprayer | Medium Capacity | 45′ To 66′ Boom Width | Hydraulic Front Fold or X-Fold | Horsepower 75 To 120 Hp | For Tractor

Demco | 600 Gallon Pull Type Sprayer | Medium Capacity | 45′ To 66′ Boom Width | Hydraulic Front Fold or X-Fold | Horsepower 75 To 120 Hp | For Tractor

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Tank Capacity: 600 Gallons with High-Volume Jet Agitation
  • Boom Width: 45' & 60' Hydraulic Front-Fold or X-Fold Options
  • Tractor Compatibility: 75 To 120 HP
  • Trailer Length: 130" Hitch to Axle, 28" Ground Clearance.
  • Intended Use: For Row Crop Tractors in Medium-Capacity Field Spraying.
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

Demco | 600 Gallon Pull Type Sprayer | Medium Capacity | 45′ To 66′ Boom Width | Hydraulic Front Fold or X-Fold | Horsepower 75 To 120 Hp | For Tractor



DESCRIPTION

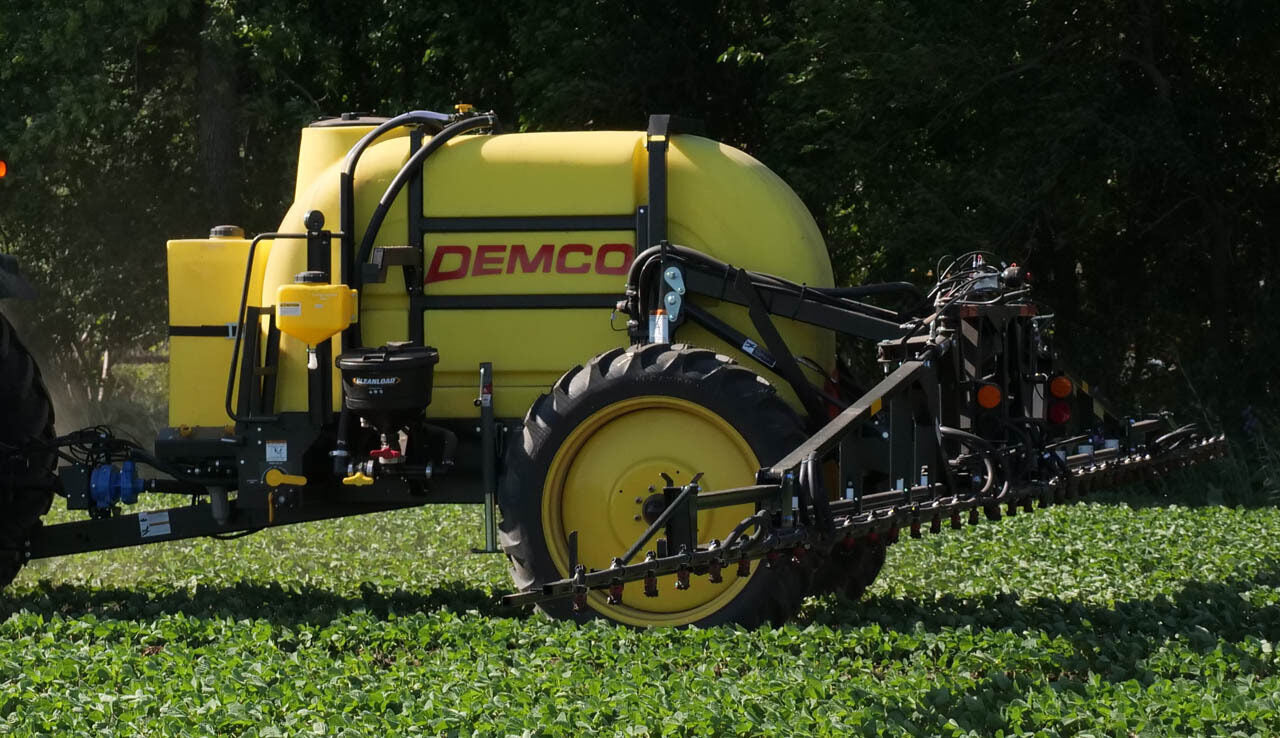

Engineered for versatility and built for performance, the Demco 600 Gallon Pull Type Sprayer is the ideal choice for farmers needing a medium-capacity, high-efficiency field sprayer. Whether you're covering large acreages or managing mixed field sizes, this sprayer is designed to deliver consistent application, superior handling, and reduced downtime all while being easy to operate and maintain.

With a rugged 600-gallon tank, choice of hydraulic front-fold or X-fold boom systems (up to 66'), and multiple pump configurations including gear drive PTO or hydraulic, this sprayer adapts to your application needs. Its compact 130" hitch-to-axle length ensures excellent tracking through the field, reducing crop damage and improving maneuverability.

Add in thoughtful features like an external liquid sight gauge, integrated rinse and hand wash tanks, and a front-mounted pump for fast servicing and you've got a sprayer that works as hard and smart as you do.

Key Features

  • 600 Gallon Polyethylene Tank with High-Volume Jet Agitator for consistent chemical mixing.
  • Boom Width Options: 45' or 60' Hydraulic Front-Fold or X-Fold for flexible field coverage.
  • Tractor Compatibility: Designed for 75 To 120 HP tractors, ideal for medium-acreage farms.
  • 130" Hitch-to-Axle Length ensures tight turning radius and superior field tracking.
  • 28" Ground Clearance minimizes crop damage during application.
  • 55 Gallon Rinse Tank and 2.5 Gallon Hand Wash Tank promote operator safety and easy cleanup.
  • Single Tube Hitch Frame with 7" Adjustable Tongue for improved maneuverability and fit.
  • 13.6 x 38 Bias Tires offer stability and flotation across varied terrain.
  • Pump Options include Hypro® Gear Drive, Hypro® Hydraulic, and Ace Hydraulic for tailored performance.
  • 50 Mesh Main Filter and 60 Mesh Feeder Line Filters reduce nozzle clogging and downtime.
  • Hydraulic Boom Features: Wing Fold, Height Adjust, Wing Leveling, and Breakaway for obstacle protection.
  • Transport Width of 9'6" allows for safe and legal road travel between fields.
  • Fold-Away Ladder and Large Work Platform provide safe, convenient access for tank filling.
  • 2" Quick Coupler for fast bottom filling and reduced loading time.
  • Optional Accessories: Foam Marker and Chemical Eductor enhance precision and efficiency.

Detailed Specifications

Feature Specification
Tank Capacity 600 Gallons
Boom Width Options 45', 60' (Front-Fold or X-Fold)
Tractor HP Required 75–120 HP
Trailer Hitch to Axle Length 130"
Ground Clearance 28"
Rinse Tank 55 Gallons
Hand Wash Tank 2.5 Gallons
Tires 13.6 x 38 Bias
Transport Width 9'6"
Boom Features Hydraulic Wing Fold, Height Adjust, Wing Leveling, Breakaway Tips
Boom Plumbing TeeJet® Drip-Free Nozzles (Optional)
Pump Options Hypro® Gear Drive, Hypro® Hydraulic, Ace Hydraulic
Frame Construction Single Tube Hitch Frame with 7" Tongue Adjustment
Fill Access Fold-Away Ladder & Work Platform
Filters 50 Mesh Main, 60 Mesh Feeder Line
Gauge 160 lb. Glycerin-Filled
Bottom Fill 2" Quick Coupler
Optional Accessories Foam Marker, Chemical Eductor
Boom Width Recommended HP Range
45′ 75–90 HP
60′ 90–110 HP
66′ 100–120 HP
