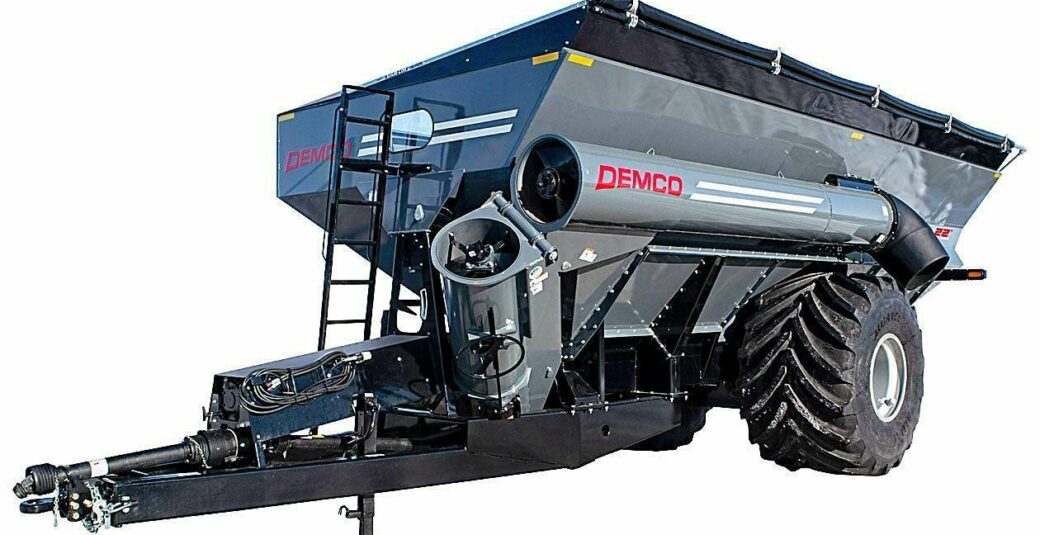

Demco | Grain Cart | Model 2200 | Dual Auger | 22" Vertical / 20" Horizontal | 14’ Transport Width | Horsepower 400 HP | For Tractor

Demco | Grain Cart | Model 2200 | Dual Auger | 22" Vertical / 20" Horizontal | 14’ Transport Width | Horsepower 400 HP | For Tractor

$1.00
$1.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Pricing Unavailable, Request Quote
  • Capacity: 2,200 To 2,350 Bushels
  • Tractor Power: Minimum 400 HP
  • Dimensions: 22" Vertical / 20" Horizontal | 14’ Transport Width
  • Total Weight: 35,080 To 42,440 lbs (Wheels or Tracks)
  • For High-Horsepower Tractors in Harvest Operations
View full details

How To Request A Quote

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

Product Description

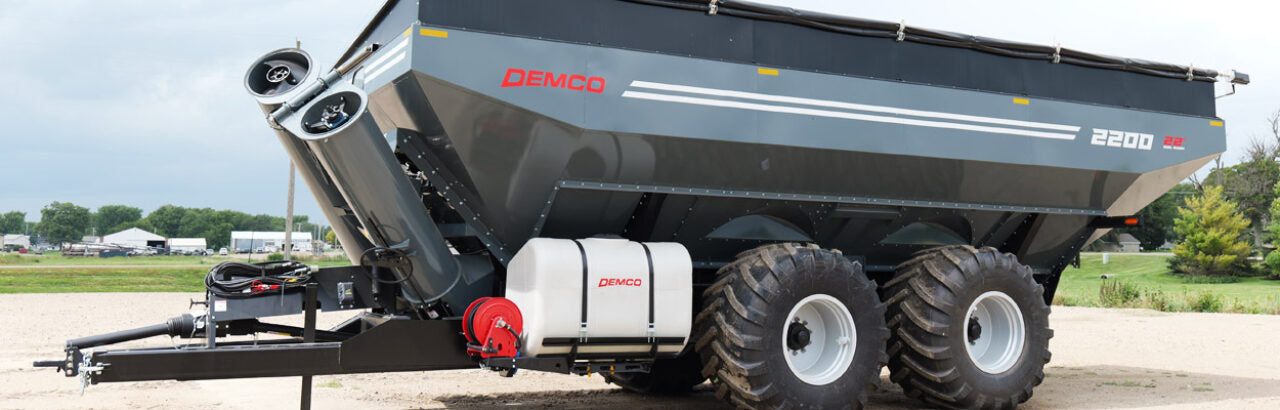

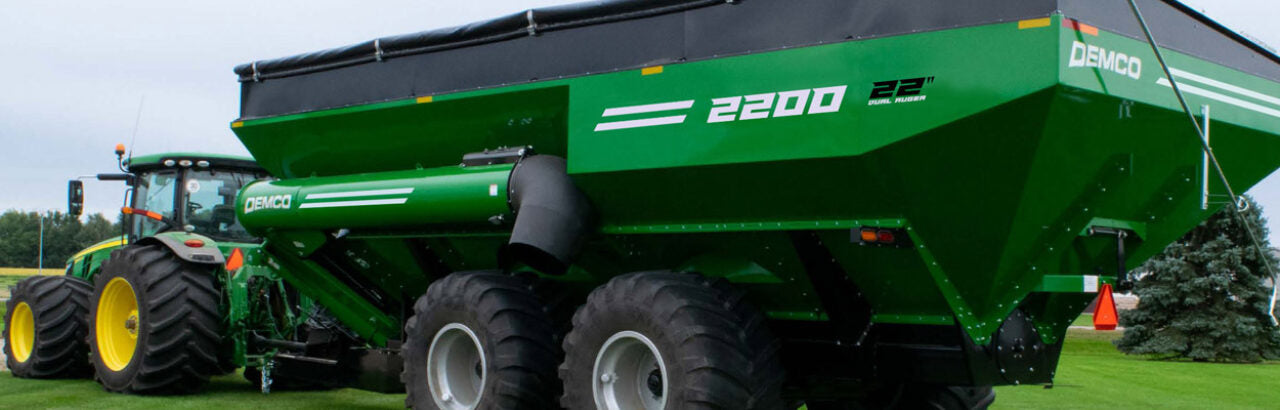

Demco | Grain Cart | Model 2200 | Dual Auger | 22" Vertical / 20" Horizontal | 14’ Transport Width | Horsepower 400 HP | For Tractor

DESCRIPTION

The Demco 2200 Dual Auger Grain Cart is the ultimate harvest companion for large-scale operations demanding efficiency, capacity, and operator control. With a massive 2,200-bushel level capacity and a 600 bu/min unload rate, this cart helps you get grain off the field faster with less downtime and more confidence in every pass.

Designed with a heavy-duty PTO-driven gearbox system (no belts or pulleys), this cart powers its 22" vertical auger and 20" horizontal drag auger with unmatched reliability. It’s built tough with UltraFlyte flighting, a low center of gravity, and an adjustable auger reach up to 16’ for safe, efficient unloading on uneven terrain.

Operators love the ergonomic controls, easy-access cleanouts, integrated 5-point scale system (monitor-ready), and optional upgrades like a hydraulic jack, electric tarp, or auto gate shutoff.

Whether you’re tackling thousands of acres or managing a high-speed harvest crew, the Demco 2200 delivers on every metric: performance, capacity, convenience, and durability.

Key Features

  • Massive Capacity: Holds up to 2,350 bushels heaped ideal for high-yield harvests.
  • Dual Auger System: 22" vertical auger + 20" horizontal drag auger for fast, efficient unloading.
  • UltraFlyte Auger Flighting: High-carbon steel with thicker edges for longer wear and faster grain flow.
  • Tractor Horsepower: Minimum 400 HP..
  • High-Speed Unloading: Up to 600 bu/min to keep your harvest moving.
  • PTO-Driven Gearbox: No belts or pulleys just reliable, direct power.
  • Cut-Out Clutch Protection: Automatic reset clutch safeguards your tractor PTO.
  • Adjustable Hitch: Fits Category 4 or 5 hammer strap drawbars.
  • Grain Viewing Windows: Monitor fill levels with ease.
  • LED Lighting & Reflective Decals: Enhanced safety and visibility during late harvests.
  • Low Profile Design: Cart height as low as 11'10" for better clearance and side-hill stability.
  • Ergonomic Pendant Control: Backlit and intuitive, requires only one remote outlet.
  • Roll Tarp & Hydraulic Options: Includes manual tarp with optional electric upgrade.
  • Scale-Ready: 5-point scale system (monitor sold separately).
  • Transport-Friendly: Auger folds within box width for compact storage and hauling.

Detailed Specifications

Grain Capacity & Auger System

Specification Detail
Level Full Capacity 2,200 Bushels
Heaped Full Capacity 2,350 Bushels
Vertical Unload Auger 22” Diameter (3/8” Flighting)
Horizontal Drag Auger 20” Diameter
Unloading Speed 600 Bushels/Minute

Tractor & Drivetrain Requirements

Specification Detail
PTO Type 1 ¾ – 1000 RPM PTO
Tractor HP Required 400 HP
Gearbox Dual PTO Outputs (Vertical & Drag)
Hitch Type Category 4 or 5 Hammer Strap
Spindle Size 5 ½”
Hub Size 10-Bolt

Dimensions & Clearances

Specification Detail
Total Length 42’11”
Box Length 33’11”
Transport Width (Wheels / Tracks) 14’
Box Height (Low Side / High Side) 11’10” / 13’
Auger Clearance Height 9’7” to 14’10”
Rear Ground Clearance 2’10”
Tongue Height (Adjustable) 1’6”

Build & Weight

Specification Detail
Tongue Weight (Empty / Loaded) 5,120 lbs / 6,500 lbs
Total Weight (Wheels / Tracks) 35,080 lbs / 42,440 lbs
Tread Width 13’9”
Clean-Out Doors 6 Lever-Operated
Pendant Control Backlit, Ergonomic (1 Remote Req.)



Manuals & Documents

General Warranty Info:

  • Ripping It Outdoors works closely with our manufacturers to supply and support your products warranty needs as best as possible!
  • The majority of products come with a manufacturer represented warranty against manufacturing defects for at least a 12 month period after the date of sale.
  • Expendable components and "wear parts" including but not limited to blades, knives, teeth, oil, chain sprockets, skid shoes, knife mounting discs, and similar components are usually excluded from manufacturer warranties.
  • Please reach out to us for any specific warranty information needed about products and parts you can’t find!

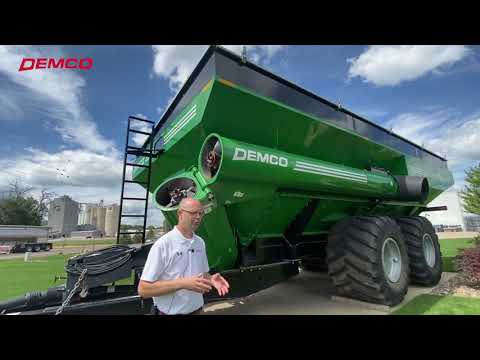

Videos
