Product Description
Dirt Dog Light Duty Rear Grader Blade | 20 Series | Working Width 48",60" & 72" inches | Horsepower 20-25 HP | For Tractors
Included Options:
DESCRIPTION
The Dirt Dog 20 Series Rear Grader Blade is an essential tool for small tractor owners looking to maintain driveways, fix drainage, grade land, or remove snow with ease. This simple yet versatile 3-point tool is designed to push or pull dirt, stone, or snow effortlessly.
Built with high-quality American steel, this rear blade features a 1/4” thick moldboard, 12” height, and a durable 3/8” x 3” welded cutting edge, ensuring long-lasting performance. With 5 forward angles (30°) and 3 reverse angles (15°), operators can adjust the blade to meet different grading needs.
Equipped with a heavy-duty A-frame, Category I Quick Hitch compatibility, and available in 4’, 5’, and 6’ widths, the Dirt Dog 20 Series Rear Grader Blade is the perfect grading solution for tractors up to 25 HP PTO.
Key Features
- Heavy-Duty A-Frame: Built with superior-grade materials, the A-frame ensures exceptional strength and durability, making it ideal for heavy-duty tasks while extending the equipment's lifespan.
- Multiple Blade Angles for Versatility: Offering 30° forward and 15° reverse adjustment, this feature allows precise grading, leveling, and customization of blade angles to suit various applications and terrains.
- High-Strength Cutting Edge: The 3/8” x 3” welded steel cutting edge ensures remarkable resilience, enabling it to withstand tough conditions and deliver clean, sharp cuts with ease.
- Quick Hitch Compatibility: Equipped to work seamlessly with Category I Quick Hitches, the tool allows for faster and more efficient tractor mounting, saving time and effort.
- Compact & Efficient Design: Specifically engineered for subcompact tractors up to 25 HP PTO, these models are optimized for performance in compact areas while maintaining operational efficiency.
- Available in Multiple Widths: Choose from 4', 5', and 6' width options to suit a variety of grading and soil preparation tasks, ensuring flexibility in different applications.
- Powder-Coated Finish for Durability: Available in a range of vibrant colors—Red, Green, Orange, Blue, and Yellow—the powder coating not only provides a professional and attractive finish but also adds a layer of rust and wear resistance.
- Made in the USA: Proudly crafted using premium materials and superior craftsmanship, these tools deliver reliable, long-lasting performance, adhering to the highest quality standards.

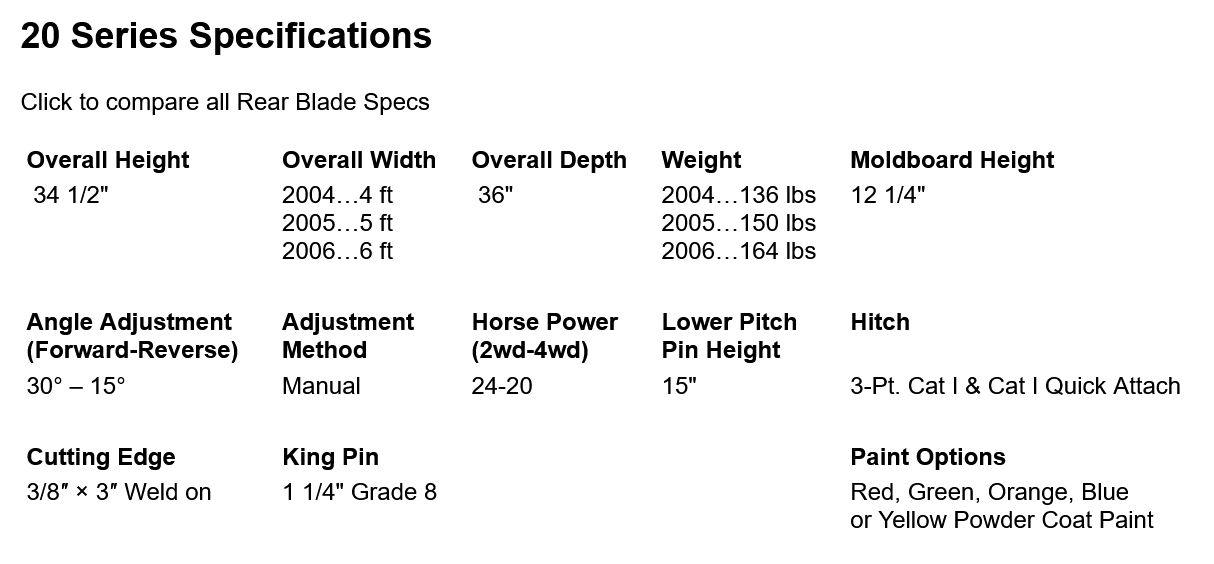

Detailed Specifications
| Specification | Model: 2004 (4 ft) | Model: 2005 (5 ft) | Model: 2006 (6 ft) |
|---|---|---|---|
| Overall Height | 34 1/2" | 34 1/2" | 34 1/2" |
| Overall Width | 48" | 60" | 72" |
| Overall Depth | 36" | 36" | 36" |
| Weight (lbs.) | 136 lbs | 150 lbs | 164 lbs |
| Moldboard Height | 12 1/4" | 12 1/4" | 12 1/4" |
| Angle Adjustment (Forward-Reverse) | 30° – 15° | 30° – 15° | 30° – 15° |
| Adjustment Method | Manual | Manual | Manual |
| Horsepower Requirement (2WD-4WD) | 25-20 HP | 25-20 HP | 25-20 HP |
| Lower Pitch Pin Height | 15" | 15" | 15" |
