Product Description
Dirt Dog Rear Blade | 141 Series | Overall Width 96" & 108" inches | Horsepower 110-141 HP | For Tractor
Included Options:
DESCRIPTION
The 141 series blades are available with manual or hydraulic adjustments allowing you to customize it to your specifications.
The Dirt Dog 141 Series Rear Blade is a high-performance grading and land maintenance tool built for heavy-duty applications. Designed to withstand demanding conditions, this blade offers manual or hydraulic adjustments for tilt, offset, and angle, ensuring maximum precision in land leveling, road maintenance, and snow clearing.
The reinforced moldboard, available in 8ft and 9ft widths, ensures durability and efficient material handling. The 4” moldboard king pin adds strength, making this blade ideal for tractors with 110 to 141 HP. The Cat II & III Quick Hitch Compatible A-frame provides quick attachment, saving time and effort.
Manufactured in the USA, the Dirt Dog 141 Series Blade offers optional skid shoe and end plate kits, allowing further customization based on your operational needs.
Key Features
- Quick Hitch Compatibility: Designed for Category II & III systems, enabling fast and easy mounting.
- Durable Moldboard King Pin: Features a robust 4” moldboard king pin for enhanced stability and durability.
- Versatile Angle Adjustment: Provides 45° forward and reverse angle adjustment for efficient land grading.
- Tilt Adjustment for Uneven Terrain: Offers a 15° tilt adjustment to ensure smooth operation on varied surfaces.
- Customizable Offset Adjustment: Includes 35” offset adjustment, available with manual or hydraulic options for tailored operation.
- Reinforced Moldboard: Available in 8ft and 9ft widths, designed for durability and optimal performance.
- Optional Hydraulic Adjustments: Enhances functionality with hydraulic options for angle, tilt, and offset adjustments.
- Optional Skid Shoe Kit: Prevents excessive digging, promoting consistent and controlled grading.
- Optional Bolt-on End Plate Kit: Helps to efficiently trap materials for improved usability.
- Heavy-Duty Construction: Built with a sturdy, powder-coated finish, ensuring durability and resistance to wear.

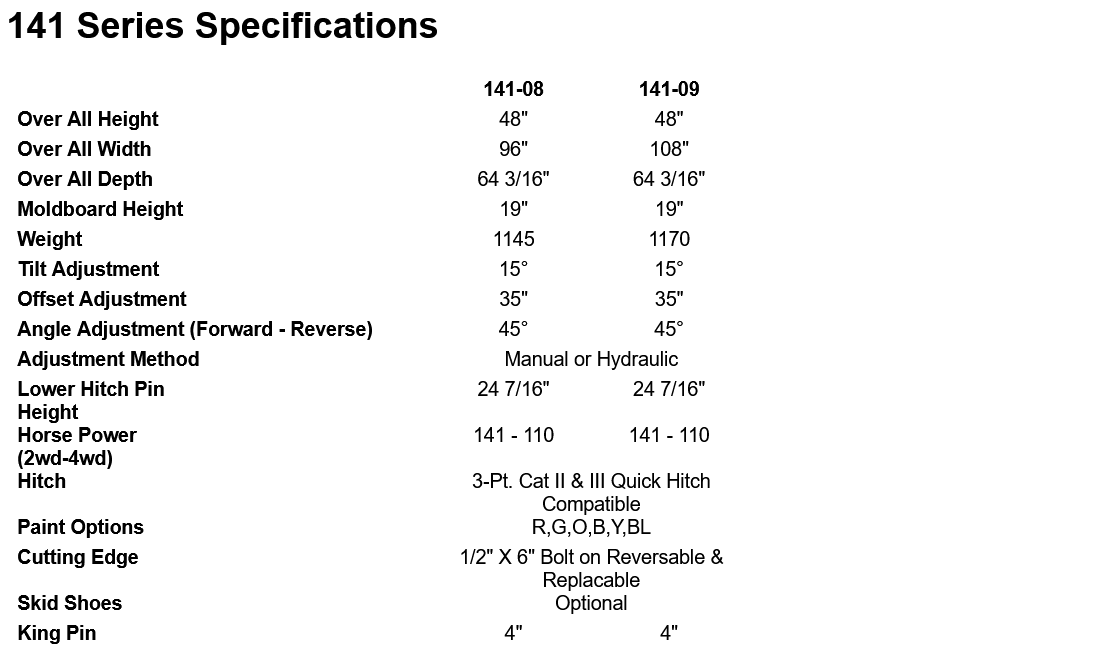

Detailed Specifications
| Specification | 141-08 | 141-09 |
|---|---|---|
| Over All Height | 48" | 48" |
| Over All Width | 96" | 108" |
| Over All Depth | 64 3/16" | 64 3/16" |
| Moldboard Height | 19" | 19" |
| Weight | 1145 lbs | 1170 lbs |
| Tilt Adjustment | 15° | 15° |
| Offset Adjustment | 35" | 35" |
| Angle Adjustment (Forward - Reverse) | 45° | 45° |
| Adjustment Method | Manual or Hydraulic | Manual or Hydraulic |
| Lower Hitch Pin Height | 24 7/16" | 24 7/16" |
| Horse Power (2wd-4wd) | 141 - 110 | 141 - 110 |
| Hitch | 3-Pt. Cat II & III Quick Hitch Compatible | 3-Pt. Cat II & III Quick Hitch Compatible |
