Product Description
Dirt Dog Rear Blade | 91 Series | Overall Width 84" & 96" inches | Horsepower 70-90 HP | For Tractor
DESCRIPTION
The 91 series blades are available with manual or hydraulic adjustments allowing you to customize it to your specifications. Fix drainage issues, grade the land, clear snow, and more. A simple, versatile tool that’s long been a staple of tractor owners for good reason.
The Dirt Dog 91 Series Blade is built for heavy-duty land maintenance, offering superior grading, levelling, and snow-clearing capabilities. Designed for tractors ranging from 70 to 90 HP, this rear blade provides manual or hydraulic adjustments for tilt, offset, and angle, making it one of the most adaptable tools for precision work.
The reinforced 5/16” moldboard and 1/2” x 6” bolt-on, reversible cutting edge provide long-term durability and superior ground penetration. It features a 3” moldboard king pin, ensuring a robust structure for high-performance applications. The Cat I & II 3-Point Quick Hitch Compatible A-frame allows for quick attachment and removal.
Made in the USA, the Dirt Dog 91 Series Blade is available in 7ft and 8ft widths, with optional hydraulic angle, offset, tilt, skid shoe kits, and end plates for enhanced performance.
Key Features
- Quick Hitch Compatibility: Designed for Category I/II systems, ensuring easy and secure attachment to tractors.
- Durable Moldboard King Pin: Equipped with a 3" moldboard king pin, enhancing stability and reliability.
- Flexible Adjustments: Tilt, offset, and angle adjustments available in both manual and hydraulic options for operational versatility.
- Reinforced Moldboard: Constructed with 5/16" reinforcement and available in 7 ft and 8 ft widths, offering increased durability.
- Optional Skid Shoe Kits: Available for controlled grading and preventing excessive digging.
- Cat I & II 3-Point and Quick Hitch Compatible: Ensures compatibility with a wide range of tractor systems.
- Wide Angle Range: Supports 45° forward and 45° reverse angle adjustments for efficient grading tasks.
- Tilt Adjustment: 15° pin tilt adjustment allows smoother operation over uneven terrain.
- Offset Adjustment: Provides a 20" adjustment to the left or right for customizable performance.
- Long-Lasting Cutting Edge: Features a 1/2" × 6" bolt-on, reversible cutting edge for extended wear life.
- Robust Build: Weighs 807 lbs for the 7 ft model and 827 lbs for the 8 ft model, ensuring durability during demanding tasks.
- High-Powered Compatibility: Suitable for tractors with up to 70 horsepower.

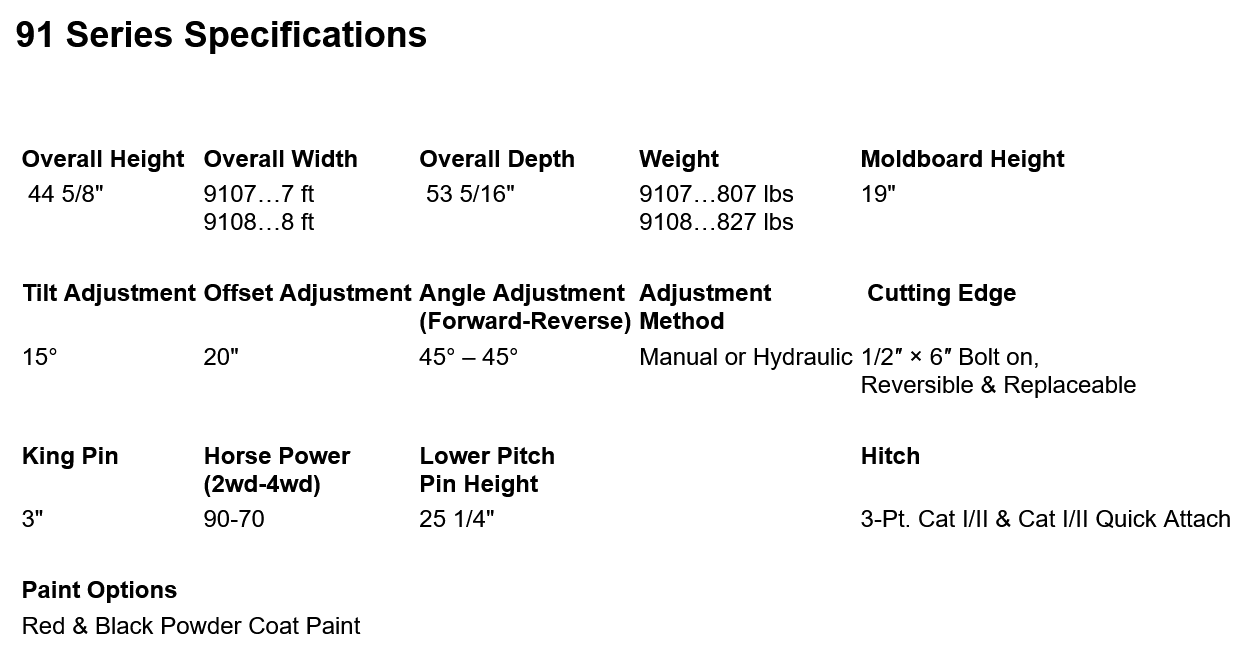

Detailed Specifications
| Feature | 9107 | 9108 |
|---|---|---|
| Overall Height | 44 5/8" | 44 5/8" |
| Overall Width | 7 ft | 8 ft |
| Overall Depth | 53 5/16" | 53 5/16" |
| Weight | 807 lbs | 827 lbs |
| Moldboard Height | 19" | 19" |
| Tilt Adjustment | 15° | 15° |
| Offset Adjustment | 20" | 20" |
| Angle Adjustment (F-R) | 45° – 45° | 45° – 45° |
| Adjustment Method | Manual or Hydraulic | Manual or Hydraulic |
| Cutting Edge | 1/2" × 6" Bolt-on, Reversible & Replaceable | 1/2" × 6" Bolt-on, Reversible & Replaceable |
| King Pin | 3" | 3" |
| Horsepower (2WD-4WD) | 90 – 70 HP | 90 – 70 HP |
| Lower Pitch Pin Height | 25 1/4" | 25 1/4" |
| Hitch | 3-Pt. Cat I/II & Cat I/II Quick Attach | 3-Pt. Cat I/II & Cat I/II Quick Attach |
| Paint Options | Red & Black Powder Coat Paint | Red & Black Powder Coat Paint |
