Dirt Dog Rear Scrape Blade | 70 Series | Working Width 72”, 84” & 96” inches | Horsepower 55-70 HP | For Tractor
Dirt Dog Rear Scrape Blade | 70 Series | Working Width 72”, 84” & 96” inches | Horsepower 55-70 HP | For Tractor
Regular price
$2,107.00
Regular price
Sale price
$2,107.00
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Dirt Dog Rear Scrape Blade | 70 Series | Working Width 72”, 84” & 96” inches | Horsepower 55-70 HP | For Tractor
Included Options:
DESCRIPTION
Dirt Dog’s 70 series rear scrape blade has withstood the test of time because it works. The 70 is one of our oldest, durable designs but remains the best scraper blade in its class. The fully welded A frame uses a triple lug hitch that is cat I & cat II quick hitch compatible. The 70 comes standard with a manual pinjack to offset the blade up to 18” right or left. The reinforced, formed 5/16” moldboard uses a reversible and replaceable ½” x 6” cutting edge to dig deep, rolling the dirt, making this blade the perfect option for leveling, grading and ditch digging. Angling the blade is simple, pull the index pin and the blade rotates up to 45° right or left. The 70’s moldboard also tilts up to 30° in either direction with a pull of a pin. Dirt Dog’s 70 series comes in 72”, 84” & 96” widths and is available in red, green, orange, blue or classic Dirt Dog yellow powder coat paint.
Key Features
- Quick Hitch Compatibility: Designed for Category I & II quick hitch systems, allowing for easy and secure mounting to tractors.
- Adjustable Angle: Provides up to 45° forward and reverse angle adjustments for precise and efficient grading tasks.
- Tilt Adjustment: Offers up to 30° of tilt adjustment, ensuring smooth operation over uneven terrain.
- Versatile Offset Adjustment: Features an 18” offset adjustment (standard with pinjack) to increase flexibility during use.
- Durable Moldboard: Built with a reinforced 5/16” moldboard, available in 6 ft, 7 ft, and 8 ft sizes, offering robust performance.
- High-Quality Cutting Edge: Includes a 1/2" × 6" bolt-on, reversible cutting edge for exceptional durability and extended wear life.
- Convenient Storage: Comes with a parking stand, making storage easy and efficient when not in use.
- Optional Skid Shoe Kit: A 27 lbs skid shoe kit is available to prevent excessive digging, ensuring controlled grading.
- Optional Bolt-on End Plates: Weighing 110 lbs, these optional end plates help to efficiently trap material during operation.
- Made in the USA: Proudly manufactured domestically, ensuring high-quality craftsmanship and reliability.

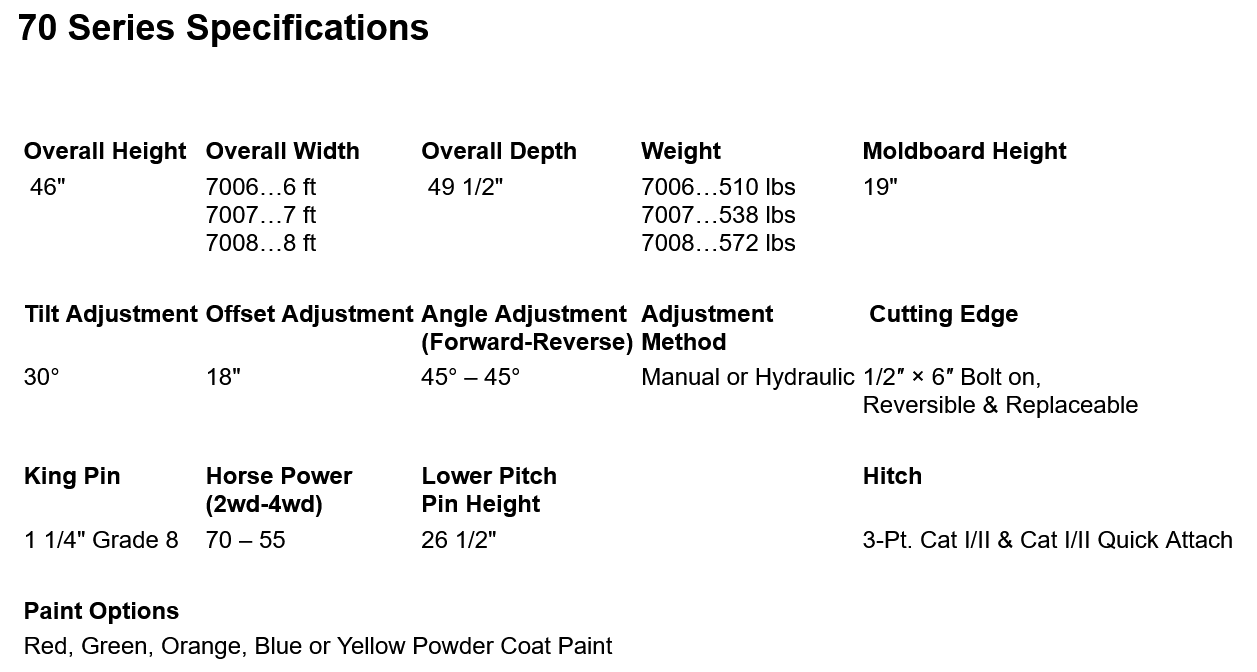

Detailed Specifications
| Feature | 7006 | 7007 | 7008 |
|---|---|---|---|
| Overall Height | 46" | 46" | 46" |
| Overall Width | 6 ft | 7 ft | 8 ft |
| Overall Depth | 49 1/2" | 49 1/2" | 49 1/2" |
| Weight | 510 lbs | 538 lbs | 572 lbs |
| Moldboard Height | 19" | 19" | 19" |
| Tilt Adjustment | 30° | 30° | 30° |
| Offset Adjustment | 18" | 18" | 18" |
| Angle Adjustment (F-R) | 45° – 45° | 45° – 45° | 45° – 45° |
| Adjustment Method | Manual or Hydraulic | Manual or Hydraulic | Manual or Hydraulic |
| Cutting Edge | 1/2" × 6" Bolt-on, Reversible & Replaceable | 1/2" × 6" Bolt-on, Reversible & Replaceable | 1/2" × 6" Bolt-on, Reversible & Replaceable |
| King Pin | 1 1/4" Grade 8 | 1 1/4" Grade 8 | 1 1/4" Grade 8 |
| Horsepower (2WD-4WD) | 70 – 55 HP | 70 – 55 HP | 70 – 55 HP |
| Lower Pitch Pin Height | 26 1/2" | 26 1/2" | 26 1/2" |
| Hitch | 3-Pt. Cat I/II & Cat I/II Quick Attach | 3-Pt. Cat I/II & Cat I/II Quick Attach | 3-Pt. Cat I/II & Cat I/II Quick Attach |
| Paint Options | Red, Green, Orange, Blue, or Yellow Powder Coat Paint | Red, Green, Orange, Blue, or Yellow Powder Coat Paint | Red, Green, Orange, Blue, or Yellow Powder Coat Paint |
