Product Description
Dirt Dog Sub-Soiler Series | Model Standard Duty & Heavy Duty | Horsepower 25-85 HP | For Tractors
Included Options:
DESCRIPTION
A 3-Point Subsoiler drives its shanks deep into the ground through hardpan commonly found in untended earth. This tear into the earth allows drainage to avoid root rot, and also promotes deep root growth for access to more nutrients. It isn’t necessary to do every year, but for land that hasn’t been cultivated in some time, it’s the perfect starting point for seed prep. You can also use a subsoiler to lay wire, waterlines, or other pipe.
This Heavy Duty Subsoiler from Dirt Dog is available with a single or double high-carbon steel shank, cutting either 19 or 23 inches into the soil with a heat-treated plow point. Your tractor and subsoiler are protected by a sheer pin, should you run into an immovable object.
Key Features
Sub Soiler Series:
- Durable Construction: 3/4" x 6" Shank crafted from wear-resistant 1060 steel for long-lasting performance.
- Convenient Maintenance: Reversible and replaceable point ensures extended usability and reduced downtime.
- Versatile Use: Bolt-on shank foot, hitch, and top link offer easy installation and adaptability.
Heavy Duty Sub Soiler Series:
- Enhanced Strength: 1-1/4" shank built to handle tough conditions and heavy use.
- Quick Hitch Compatible: Suitable for Cat 1 & 2 quick hitches, ensuring seamless attachment.
- Robust Framework: 1/4" x 4" x 4" main tube provides superior strength and durability.
- Easy Maintenance: Replaceable plow point allows for effortless upkeep and long-term efficiency.
- Superior Penetration: Parabolic shank design ensures easy soil penetration and improved performance.
- Flexible Configurations: Available in single or double shank setups to meet various needs and preferences.
Detailed Specifications
SS Sub Soiler
| Specification | Details |
|---|---|
| Description | Sub Soiler |
| Weight | 113 lbs |
| Material | High-strength steel |
| Shank Size | Single shank, standard |
| Depth Capacity | Up to 18" |
| HP Range | 25-35 HP |

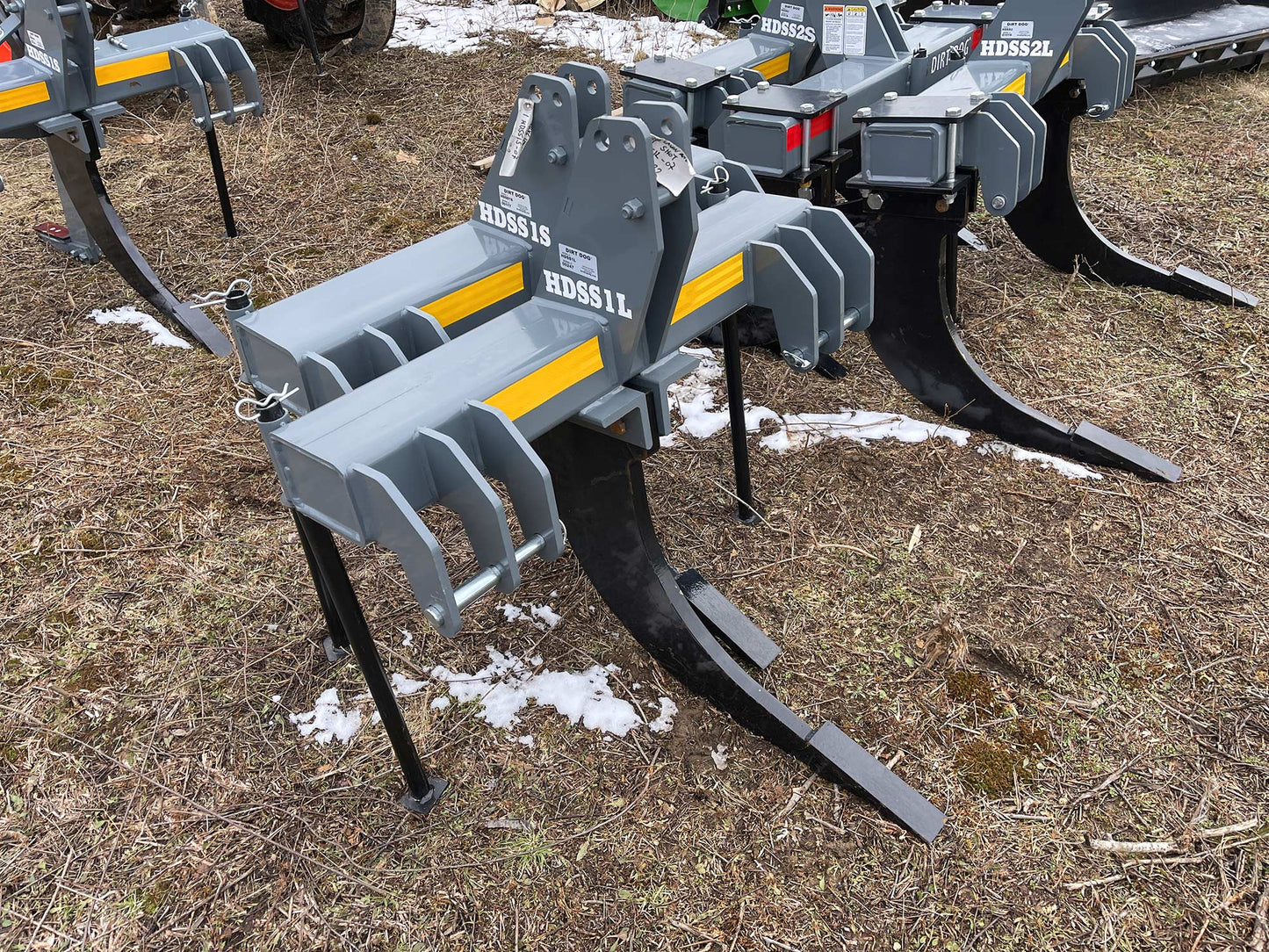

HDSS1S
| Specification | Details |
|---|---|
| Description | HD Sub Soiler 1 Shank, Short, 18.75" |
| Weight | 261 lbs |
| Material | Heavy-duty steel |
| Shank Size | Single shank, short (18.75") |
| Depth Capacity | Up to 20" |
| HP Range | 30-50 HP |
HDSS2S
| Specification | Details |
|---|---|
| Description | HD Sub Soiler 2 Shank, Short, 18.75" |
| Weight | 450 lbs |
| Material | Heavy-duty steel |
| Shank Size | Dual shank, short (18.75") |
| Depth Capacity | Up to 20" |
| HP Range | 40-60 HP |
HDSS1L
| Specification | Details |
|---|---|
| Description | HD Sub Soiler 1 Shank, Long, 23.125" |
| Weight | 450 lbs |
| Material | Heavy-duty steel |
| Shank Size | Single shank, long (23.125") |
| Depth Capacity | Up to 24" |
| HP Range | 45-70 HP |
HDSS2L
| Specification | Details |
|---|---|
| Description | HD Sub Soiler 2 Shank, Long, 23.125" |
| Weight | 490 lbs |
| Material | Heavy-duty steel |
| Shank Size | Dual shank, long (23.125") |
| Depth Capacity | Up to 24" |
| HP Range | 55-85 HP |
