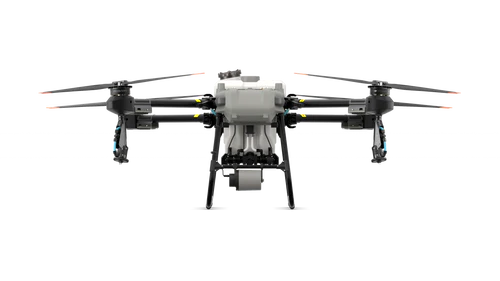

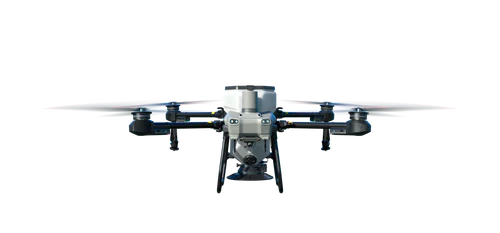

DJI Agras T25- Agricultural Light and Nimble Drone

DJI Agras T25- Agricultural Light and Nimble Drone

$1.00 USD
$1.00 USD
Sale Sold out
Shipping calculated at checkout.

DJI Agras T25- Agricultural Light and Nimble Drone

***Online pricing not available, Please request a quote:***

How To Get A Quote:

Option 1:
Contact Us to make sure you are getting the best unit possible. These machines are complex so let us help you get exactly what you need!

Option 2: (quickest response times)
Step 1. Add the item to your cart
Step 2. Checkout or Click on the Chat button box that is at the bottom right of your screen
Step 3. Please tell us any info you think we would need to know
Step 4. Relax, our team is processing your request and an expert will be in touch to get you exactly what you need!

DESCRIPTION

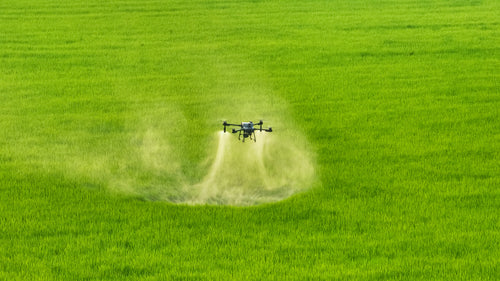

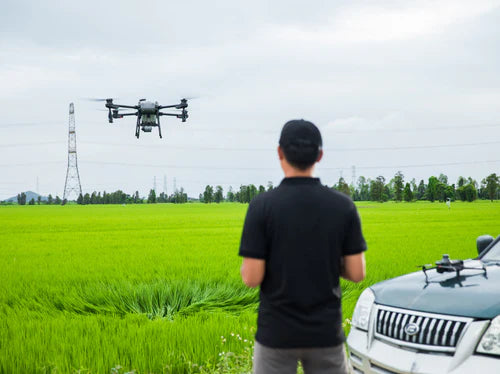

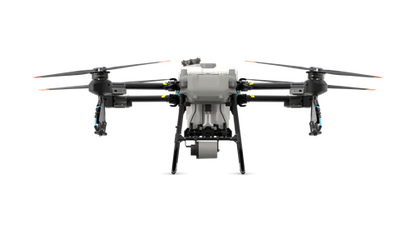

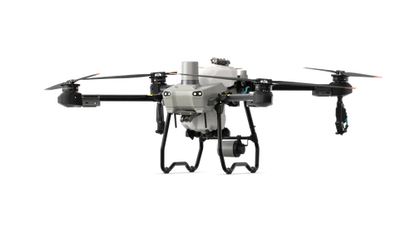

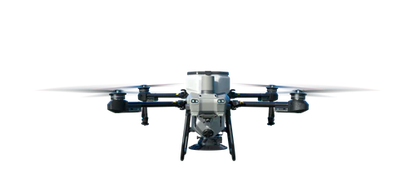

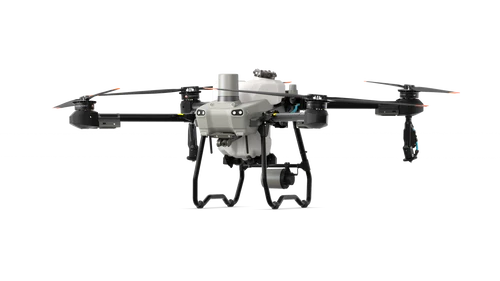

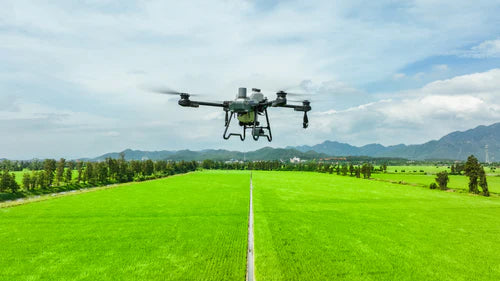

DJI AGRAS T25 redefines standards for compact agricultural drones. Light and nimble, DJI AGRAS T25 can easily be handled by one person. It can carry a spraying payload up to 20 kg[1] or a spreading payload up to 25 kg[1]. DJI AGRAS T25 is equipped with Front and Rear Phased Array Radars, a Binocular Vision System, and a high resolution FPV gimbal camera. DJI AGRAS T25 supports multiple missions, from surveying[2] to spraying and spreading and excels across a variety of terrains.

FEATURES

  • Spraying payload: 20 kg / 20 L
  • Spreading payload: 25 kg / 35 L
  • Area coverage: Up to 12 ha/h
  • 2 sets of Active Phased Array Radars
  • 2 sets of Binocular Vision
  • Dual Atomized Spraying System
  • UHD FPV Gimbal Camera
  • Four-Sprinkler Configuration

    SPECIFICATION

    Aircraft

    Weight
    		 25.4 kg (excl. battery)
    32 kg (incl. battery)
    Max Takeoff Weight[1]
    		 Max takeoff weight for spraying: 52 kg (at sea level)
    Max takeoff weight for spreading: 58 kg (at sea level)
    Max Diagonal Wheelbase
         		1925 mm
    Dimensions
         		2585×2675×780 mm (arms and propellers unfolded)
    1475×1540×780 mm (arms unfolded and propellers folded)
    1050×690×820 mm (arms and propellers folded)
    Hovering Accuracy Range (with strong GNSS signal)
         		D-RTK enabled:
    Horizontal: ±10 cm, Vertical: ±10 cm
    D-RTK disabled:
    Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)
    RTK/GNSSOperating Frequency
         		RTK:
    GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2
    GNSS:
    GPS L1, BeiDou B1I, GLONASS F1, Galieo E1, QZSS L1
    Max Configurable Flight Radius 2000 m
    Max Wind Resistance
         		6 m/s

    Propulsion System - Motors

    Stator Size
    		  100×28 mm
    KV
    		 59 rpm/V
    Power
    		 4600 W/rotor


    Propulsion System - Propellers

    Material
    		  Nylon carbon fiber filament
    Dimension
    		 50 inch
    Propeller Rotation Diameter
    		 1270 mm
    Quantity
    		 4


    Dual Atomizing Spraying System - Spray Tank

    Material
    		  Plastic (HDPE)
    Volume
    		 20 L
    Operating Payload [1]
    		 20 kg[1]
    Quantity
    		 1


    Dual Atomizing Spraying System - Sprinklers

    Model
    		  LX8060SZ
    Quantity
    		 2
    Nozzle Distance
    		 1368 mm（Rear Nozzles）
    Droplet Size
    		 50-500 μm
    Effective Spray Width[2]
    		 4-7 m (at a height of 3 m above the crops)


    Dual Atomizing Spraying System - Delivery Pumps

    Type
    		  Impeller pump (magnetic drive)
    Quantity
    		 2
    Single Pump Flow Rate
    		 0-12 L/min
    Max Flow Rate
    		 16 L/min (2 sprinklers)
    24 L/min (4 sprinklers)


    DJI AGRAS T25 Spreading System

    Compatible Material Diameter 0.5-5 mm
    Spread Tank Volume 35 L
    Spread Tank Internal Load [10] 25 kg[1]
    Effective Spraying Width Varies according to material diameter, spinner disk rotational speed, hopper outlet size, and flight altitude. For optimal performance, it is recommended to adjust the corresponding variables to achieve a spreading range of 5-8 meters.

    Phased Array Radar System

    Model RD241608RF (forward phased array radar)
    RD241608RB (rear phased array radar)
    Terrain Follow Max slope in Mountain mode: 20°
    Altitude detection range: 1-50 m
    Stabilization working range: 1.5-30 m
    Obstacle Avoidance[4]

    Obstacle sensing range (omnidirectional): 1-50 m

    FOV:
    Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone)
    Rear phased array radar: vertical 360°, horizontal ±45°
    Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s.

    Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking)

    Sensing direction: 360° omnidirectional sensing

    Binocular Vision System

    Measurement range 0.5-29 m
    Effective Sensing Speed ≤10 m/s
    FOV Horizontal: 90°, Vertical: 106°
    Operating Environment Adequate light and discernible surroundings

    Remote Controller

    Model RM700B
    Operating Frequency[5] 2.4000-2.4835 GHz, 5.725-5.850 GHz
    Max Transmission Distance 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE)
    (unobstructed, free of interference, and at an altitude of 2.5 m)
    Wi-Fi Protocol Wi-Fi 6
    Wi-Fi Operating Frequency [5]
    		 2.4000-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz
    Bluetooth Protocol
    		 Bluetooth 5.1
    Bluetooth Operating Frequency
    GNSS
    		 GPS+Galileo+BeiDou
    Screen
    		 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
    Operating Temperature
    		 -20° to 50° C (-4° to 122° F)
    Storage Temperature Range
    		 Less than one month: -30° to 45° C (-22° to 113° F)
    One to three months: -30° to 35° C (-22° to 95° F)
    Six months to one year: -30° to 30° C (-22° to 86° F)
    Charging Temperature
    		 5° to 40° C (41° to 104° F)
    Internal Battery Runtime
    		 3 hours 18 minutes
    External Battery Runtime
    		 2 hours 42 minutes
    Charging Type
    		 It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger.
    Charging Time
    		 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

    DB800 Intelligent Flight Battery

    Model
    		  DB800 Intelligent Flight Battery
    (BAX702-30000mAh-52.22V)
    Weight
    		 Approx. 6.6 kg
    Capacity
    		 15000 mAh
    Nominal Voltage
    		 52.22 V


    D6000i Multifunctional Inverter Generator

    Output Channel 1. DC charging output 42-59.92V/9000W
    2. Power supply for air-cooled heat sink 12 V/6 A
    3.AC output 230V/1500W or 120V/750W [8]
    Battery Charging Time To fully charge one battery (DB800 battery) takes 9-12 mins
    Fuel Tank Capacity 20 L
    Starting Method Starting the Generator via the One-Button Start Switch
    Max Power of Engine
    		 6000 W
    Fuel Type
    		 Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%(*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%)
    Reference Fuel Consumption [9]
    		 600 ml/kWh
    Engine Oil Model
    		 SJ10W-40

    C8000 Intelligent Charger

    Model Number CSX702-9500
    Dimensions 400 × 266 × 120 mm
    Weight Approx. 11.4 kg
    Input/Output Input Voltage: 100-240 VAC
    Output Voltage: 59.92V
    Output Current: 100A max
    Charging Time
    		 Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery)
    Protection Functions
    		 Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection
    Charging Safety
    		 AC wire protection, power wire protection, and charge connector protection

    Relay

    Model RL01-65
    Dimensions 120×110×100 mm
    Weight ≤575 g
    Input Voltage [6] 9 V3 A / 12 V2.5 A / 15 V2 A
    Power Consumption
    		 9 W (SRRC), 12 W (FCC)
    Capacity
    		 6500 mAh
    Operating Time
    		 4 hours
    Operating Frequency [5]
    		 2.4000-2.4835 GHz
    5.725-5.850 GHz
    Max Transmission Distance
    		 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
    (unobstructed, free of interference, and at a flight altitude of 2.5 m)
    Charging Time
    		 2 hours and 20 minutes (when using a standard DJI charger)
    IP Rating [6]
    		 IP55
