DJI Dock 3 with Matrice 4TD Ready to Fly Kit (No Care)
DESCRIPTION

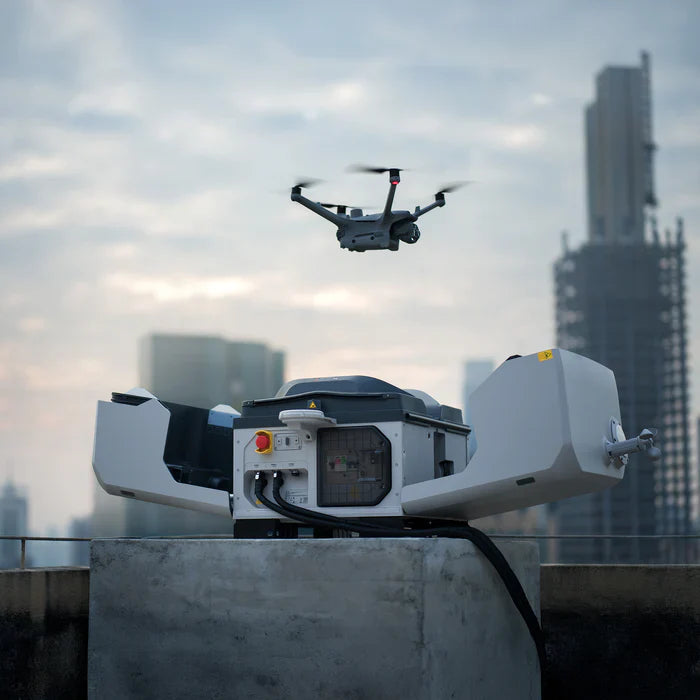

The DJI Dock 3 Ready To Fly Bundle Kit with Matrice 4TD is DJI’s most advanced autonomous drone-in-a-box solution for 24/7 remote operations. Engineered to perform in the harshest environments, Dock 3 supports fixed installations and, for the first time, mobile vehicle-mounted deployment, enabling rapid emergency response, long-range inspection, and real-time data capture.

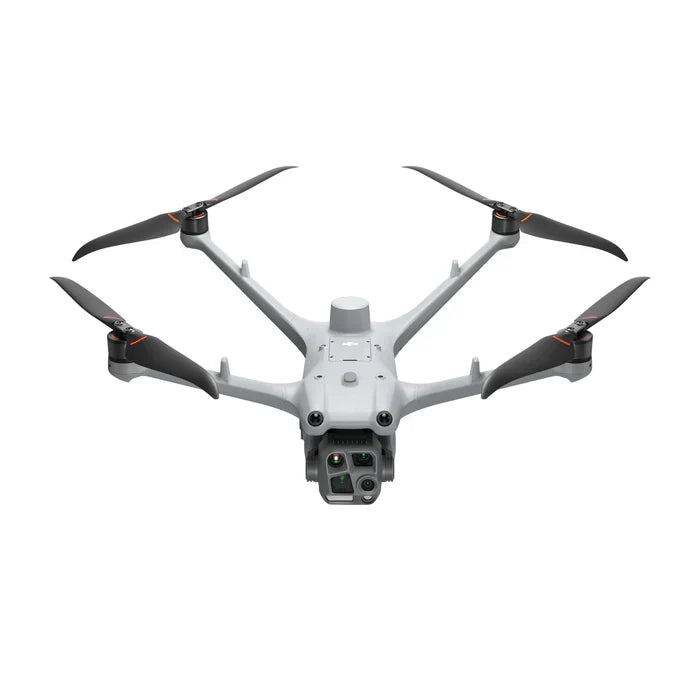

This RTF kit includes the high-performance Matrice 4TD—equipped with a wide-angle camera, medium-tele camera, tele camera, laser range finder, and a professional thermal imaging system. With IP55 weather protection, anti-ice propellers, and up to 54 minutes of flight time, the Matrice 4TD is built for precision inspections, infrastructure monitoring, public safety, powerline inspection, mapping, and more.
When paired with DJI FlightHub 2, the Dock 3 enables automated missions, intelligent change detection, low-latency live streaming, optimal route planning, and data transmission during flight—reducing manpower requirements and revolutionizing remote UAV operations.
In The Box
-
(1) DJI Dock 3 Body
-
(1) Wind Speed Gauge Module
-
(4) Expansion Bolt
-
(1) Ethernet Cable Connector
-
(1) Power Cable Connector
-
(6) Wire Ferrule
-
(1) Screws and Tools
-
(1) Matrice 4TD Aircraft
-
(1) CW Low-Noise Anti-Ice Propellers (Pair)
-
(1) CCW Low-Noise Anti-Ice Propellers (Pair)
-
(1) Screws and Washers
-
(1) DJI Matrice 4D Battery
-
(1) DJI RC Plus 2 Controller
- (1) DJI 240W Power Adapter
Key Features
Extreme Environment Ready
- Operates from −30°C to 50°C (−22°F to 122°F)
- IP56-rated dock + IP55-rated aircraft
- Anti-ice, low-noise propellers for stable performance in freezing rain
- Handles 12 m/s wind for takeoff, landing, and operation
Flexible Deployment
- First DJI Dock supporting vehicle-mounted deployment
- Integrates with D-RTK 3 Relay for up to 25 km transmission
- Smartphone-based setup via DJI Enterprise App
High-Performance Matrice 4TD Drone
- 54 min max flight time, 10 km operating radius
- Wide-angle + medium tele + tele cameras
- High-resolution thermal camera (1280 × 1024)
- NIR auxiliary light for 24/7 visibility
- Laser Range Finder for accurate distance measurements
Intelligent Autonomous Operations
- Advanced route planning and FlyTo missions
- Low-latency live streaming via FlightHub 2
- Real-time modeling + data transmission during flight
- Automatic change detection for inspections
- Intelligent subject tracking and auto-zoom
Enhanced Software & Remote Control
- Fully integrated with FlightHub 2
- Upgraded Virtual Cockpit with Mouselook
- Seamless airborne relay in mountainous areas
Rugged, Reliable, Always Ready
- Fully enclosed electronic system for harsh environments
- Fast charging and rapid dispatch
- Designed for 24/7 unattended operations
Detailed Specifications
DJI Dock 3
| Category | Specification |
|---|---|
| Weight | 55 kg (without aircraft) |
| Dimensions (Open) | 1760 × 745 × 485 mm |
| Dimensions (Closed) | 640 × 745 × 770 mm |
| Input Voltage | 100–240V AC, 50/60 Hz |
| Max Input Power | 800 W |
| Operating Temperature | −30°C to 50°C |
| Ingress Protection | IP56 |
| Max Landing Wind Speed | 12 m/s |
| Max Operating Altitude | 4500 m |
| RTK Base Station | GPS, BeiDou, GLONASS, Galileo, QZSS simultaneous reception |
| Positioning Accuracy | Horizontal: 1 cm + 1 ppm | Vertical: 2 cm + 1 ppm |
| Dock Capacity | Supports 1 aircraft |
DJI Matrice 4TD Aircraft
| Category | Specification |
|---|---|
| Weight | 1850 g |
| Max Takeoff Weight | 2090 g |
| Dimensions | 377.7 × 416.2 × 212.5 mm |
| Max Ascent Speed | 6 m/s (Normal), 10 m/s (Sport) |
| Max Descent Speed | 6 m/s |
| Max Horizontal Speed | 15 m/s (Normal), 21 m/s (Sport) |
| Max Wind Resistance | 12 m/s |
| Max Takeoff Altitude | 6500 m |
| Max Flight Time | 54 minutes |
| Max Hover Time | 47 minutes |
| Max Flight Distance | 43 km |
| Operating Radius | 10 km |
| Operating Temperature | −20°C to 50°C |
| Ingress Protection | IP55 |
| Positioning Accuracy | Vertical ±0.1 m (vision) / ±0.5 m (GNSS) / ±0.1 m (RTK) <br> Horizontal ±0.3 m (vision) / ±0.5 m (GNSS) / ±0.1 m (RTK) |
| Camera Suite | Wide-angle | Medium tele | Tele (48 MP, readable signs at 250 m) |
| Thermal Camera | 1280 × 1024 resolution | High-Res mode | IR-Cut filter | NIR auxiliary light (100 m) |
| Advanced Features | 5-direction oblique imaging | Orthophoto mapping | Smart 3D Capture | Airborne relay | Enhanced low-light performance |
| Obstacle Sensing | Rotating LiDAR + millimeter-wave radar |
| Propellers | 1364F low-noise, foldable, anti-ice |
| RTK Module | Integrated |
| Beacon | Integrated for safe nighttime operations |
