DJI

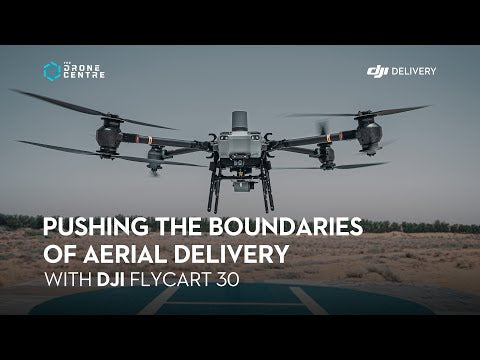

DJI FlyCart 30 Dynamic Aerial Delivery Drone

DJI FlyCart 30 Dynamic Aerial Delivery Drone

$20,560.00
$20,560.00
Sale Sold out
Customizable
Fast
24/7 Support

DJI FlyCart 30 Dynamic Aerial Delivery Drone

DESCRIPTION

DJI FlyCart 30 is here to deliver the goods. A long-distance heavy lifter with powerful signal and intelligence, DJI FlyCart 30 supports Cargo mode and Winch mode and ascends beyond traditional logistical limits to deliver a safe, economical, and efficient air transport solution.

Heavy Payloads, Long Distances

  • 30 kg Max Payload[1]
  • 28 km Flight Distance Without Payload[2]
  • 16 km Flight Distance with Full Payload[3]
  • 20 m/s Max Speed[4]
  • The first three indicators are measured in dual battery mode

Built for Extremes

  • 6,000 m Max Flight Altitude[5]
  • -20° to 45° C (-4° to 113° F) Operating Temperature[6]
  • 12 m/s Max Wind Speed Resistance[7]

Strong Signal

  • 20 km Video Transmission with O3[8]
  • 4G Enhanced Video Transmission[9]
  • Dual Operator Mode[10]
  • High-Resolution FPV Gimbal Camera

Advanced Safety and Intelligence

  • IP55 Protection and Corrosion Resistance[11]
  • Radars, Binocular Vision, Intelligent Obstacle Sensing[12]
  • Dual Batteries and Parachute

Convenient Configurations

  • Foldable
  • 70 L EPP Case[13]
  • Winch System

Fully-Automatic Operations

  • DJI Pilot 2
  • DJI DeliveryHub
  • Health Management System

Send What's Needed, Where It's Needed

Heavy payload capacity and long flight distance overcome logistical limitations fornext-generation delivery.

  • 30kg Max Payload (Dual Batteries)[1]
  • 40kg Max Payload (Single Battery)[1]
  • 28km Max Flight Distance Without Payload (Dual Batteries)[2]
  • 16km Max Flight Distance with Full Payload (Dual Batteries)[3]
  • 20m/s Max Flight Speed (with Carbon Fiber Propellers)[4]
  • 15m/s Cruising Speed[4]

All-Weather Performance

Withstand round-the-clock operations across extreme altitudes and weather conditions.

  • 6,000 m Max Flight Altitude[5]
  • -20° to 45° C (-4° to 113° F) Operating Temperature[6]
  • IP55 Protection Rating[11]
  • 12 m/s Max Wind Speed Resistance[7]

Deliver With Safety and Reliability

Ensured safety from takeoff to landing.

  • Alternate Landing Site Settings: Set multiple alternate landing sites for safe landing in case of an emergency.
  • Takeoff and Landing Protection: Multiple features assure safe takeoff and landing, including sound and light prompts, a 6s delay of propeller rotation, and secondary confirmation of landing. Integrate an RTK module to achieve centimeter-level positioning to further improve takeoff and landing safety.
  • Integrated Parachute: In case of an emergency, the integrated parachute can open in low altitude and land the drone stably, reducing risk to people and property[14]. The parachute has its own self-check upon startup, an independent power supply, sound and light alerts, and propellers stop rotation before opening.

Intelligent Obstacle Sensing[12]

DJI FlyCart 30 is equipped with Front and Rear Phased Array Radars and a dual Binocular Vision system to achieve Intelligent Multidirectional Obstacle Sensing[12]. A built-in ADS-B signal receiver detects and warns of nearby crewed aircraft.

Multi-Level Redundancy

DJI FlyCart 30 is designed with high redundancy to guarantee flight safety even in harsh environments.
Powered by a dual battery system, if a single battery fails during flight, the other battery will keep the drone flying and ensure a safe return.

Strong Signal, Stable Transmission

DJI FlyCart 30 supports DJI O3 video transmission over up to 20 km[8].
Its four-antenna transceiver system intelligently selects the optimal antenna to transmit signals and enhance anti-interference capabilities. Bolster connection and stability with a DJI Cellular Dongle[15] which can work in tandem with DJI O3 video transmission. If O3 video transmission experiences interferrence, the 4G network can maintain signal stability and video transmission, improving flight safety even in complex environments.

Smooth Effortless Control

DJI RC Plus has a 7-inch high-bright screen and supports Dual Operator mode[10]. This mode allows two operators to conveniently transfer control permissions to meet diverse operation require

Built Ready for Harsh Environments

  • IP54 Protection[11] Water and dust resistant
  • -20° to 50° C (-4° to 122° F)[6] Capable in extreme environments

Stable Video Transmission and Long Battery Life

20 km Four-Antenna O3 Video Transmission[8]

Intelligently selects the optimal antenna to transmit signals for more stable video transmission.

4G Enhanced Video Transmission[9]

The remote controller can connect to Wi-Fi or connect to a mobile network by using a DJI Cellular Dongle[15] to achieve 4G enhanced video transmission[9].

6-Hour Long Battery Life[16]

Internal and external battery configuration powers the controller for 6 hours[16] and enables hot-swapping for seamless, uninterrupted flight operations.

Choose Your Payload Configuration

Cargo mode or Winch mode facilitate payload delivery depending on its destination.

Cargo Mode: Streamlined and Steady

  • 70 L Max Capacity[17]
  • 30 kg Max Payload (Dual Batteries)[1]
  • 40 kg Max Payload (Single Battery)[1]
  • DJI FlyCart 30 comes standard with an EPP case[13] that supports easy loading and unloading.
  • Weight and center-of-gravity detection ensures balanced cargo loading for safe and stable flight.

Winch Mode: Flexible and Precise

  • 30 kg Max Payload (Dual Batteries)[1]
  • 40 kg Max Payload (Single Battery)[1]
  • 0.8 m/s Max Cable Speed
  • 20 m Max Cable Length
  • *Winch System Kit is sold separately
  • Winched cargo is delivered by a retractable cable which can be controlled either manually or automatically. Cargo releases automatically upon touchdown and does not require manual detachment, ensuring safe and precise delivery.
  • DJI FlyCart 30 can intelligently adjust its attitude to minimize cargo swing and improve stability. For extreme situations where hanging cargo gets trapped or tangled, you have the option to heat and cut the winch cable, freeing the drone.

One-Stop Solution for Drone Delivery

DJI Pilot 2 and DJI DeliveryHub provide a powerful, efficient, and flexible one-stop solution for drone delivery management.

Simplified Delivery at Your Fingertips

DJI Pilot 2 displays real-time flight status, cargo status, and other interactive interfaces for efficient and safe operation with DJI FlyCart 30.

Real-Time Flight Safety Alerts

Check battery level, power status, and mileage in real time, and monitor the reachability of the destination point to ensure operation safety.

Intelligent Assistance for Elevated Efficiency

  • Delivery Mode: DJI Pilot 2 can visually display cargo status and intelligently control the winch system for efficient delivery.
  • Cruise Control: During long-distance and stable flights, Cruise Control can help mitigate pilot fatigue.
  • Real-Time Terrain Sensing: The elevation profile shows you the terrain changes and surrounding environment in real time.
  • AR Projection: AR Projection assists in precise landing and cargo dropoff.
  • Route Recording: DJI Pilot 2 can visually display cargo status and intelligently control the winch system for efficient delivery.

Collaborate Across Multiple Terminals

DJI DeliveryHub is a one-stop air delivery management platform. It facilitates efficient operation planning, comprehensive operation status monitoring, centralized team resource management, and data collection and analysis.

Task Planning and Execution

Remotely create, schedule, and allocate tasks and devices.
Confirm safety check and one-tap takeoff.
Increase efficiency and automatically perform scheduled delivery tasks based on recorded flight routes.

Comprehensive Status Monitoring

Track drones and task status on a 2.5D Base Map[18].
Live view directly from the drone's high resolution FPV gimbal camera to see the surrounding flight environment.
Receive alerts for abnormalities and take manual control to ensure flight safety.
Collaborate with teammates and share status notifications to multiple terminals.

Centralized Team Resource Management

Plan complex flight routes quickly based on a 2.5D Base Map[18].
Manage marked locations and alternate landing sites for efficient team collaboration and coordination.
Monitor drone health status, maintenance information, and DJI Care status.
View drone, route, and time statistics to evaluate efficiency and optimize future operations.

Data Security

DJI takes the security of your data seriously. We use best-in-class measures to protect the integrity of your photos, videos, flight logs, and other user data, allowing you to confidently use the full power of a cloud-based fleet management system. DJI FlyCart 30 and DJI DeliveryHub is built to maintain integrity across multiple levels of the drone and data management process – from device connection and maintenance, to data upload and transmission, to cloud service storage and operational security.


DJI DeliveryHub uploads, stores and manages data on cloud servers operated by Amazon Web Services, which are compliant to ISO/IEC 27001 security certificate.

Data Collection

DJI will not access any user data before the user grants DJI the permission to do so.

You can grant or revoke the permission anytime in "Network Security Mode" or enable "Local Data Mode" to use your device completely offline.

Data Transmission and Storage

Full-link encryption effectively protects data from third-party hijacking. Sensitive information, such as email addresses, mobile numbers, and locations, is protected with additional AES-256-CBC encryption.

Clear All Device Data

You can choose to erase any data generated during your use of DJI devices. Using the DJI Pilot 2 app, you can clear the logs and cache on your device and the app, or restore the device to factory settings.

SPECIFICATION

Aircraft

  • Weight: 42.5 kg (without battery), 65 kg (with two DB2000 batteries)
  • Max Takeoff Weight: 95 kg (with cargo at sea level）
  • Max Diagonal Wheelbase: 2200 mm
  • Dimensions:1590 x 1900 x 947 mm (LxWxH) (arms unfolded, propellers folded), 2800x3085x947 mm (LxWxH) (arms & propellers unfolded), 1115x760x1027 mm (LxWxH) (arms & propellers folded)
  • Folding Method: Towards body
  • Loadable Battery Quantity: 2
  • Hovering Endurance (empty weight, with max battery capacity): 29 mins (dual battery mode), 15 mins (single battery mode)
    *The data was collected in controlled conditions: zero altitude and a windless environment. For reference only.
  • Hovering Endurance (max weight, with max battery capacity): 18 mins (30 kg weight load, dual battery mode): 8 mins (40 kg weight load, single battery mode)
    *The data was collected in controlled conditions: zero altitude and a windless environment. For reference only.
  • Max Flight Distance (empty weight, with max battery capacity): 28 km (dual battery mode),12 km (single battery mode)
    *The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15m/s. For reference only.
  • Max Flight Distance (max weight, with max battery capacity): 16 km (30 kg weight load, dual battery mode), 8 km (40 kg weight load, single battery mode)
    *The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15 m/s. For reference only.
  • Max Flight Time (max weight, with max battery capacity): 18 mins (30 kg weight load, dual battery mode), 9 mins (40 kg weight load, single battery mode)
    *The data was collected in controlled conditions: zero altitude and a windless environment, at a constant speed of 15 m/s. For reference only.
  • Operating Temperature: -20° to 45° C
  • Ingress Protection Rating: IP55
  • Hovering Accuracy (with strong GNSS signal): RTK positioning enabled:
    ±10 cm horizontal, ±10 cm vertical, RTK positioning disabled: ±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)
  • RTK/GNSS Operating Frequency: RTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2 GNSS: GPS L1, BeiDou B1I, Galileo F1, Galieo E1, QZSS L1
  • Max Pitch Angle: 30°
  • Max Ascent Speed: 5 m/s
    *The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.
  • Max Descent Speed: 3 m/s (vertical), 5 m/s (tilted)
    *The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.
  • Max Horizontal Speed: 20 m/s
    *The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload, for reference only.
  • Max Flight Altitude: 6000 m (without payload)
  • Max Wind Speed Resistance: 12 m/s
    *The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only.

Propulsion System

  • Stator Size: 100x33 mm
  • Motor KV Value: 48 rpm/V
  • Max Motor Power: 4000 W/rotor
  • Propellers Material: Carbon fiber composite
  • Propellers Diameter: 54 inch
  • Propellers Type: Foldable double-blade propellers
  • Main-rotor Diameter: 1375 mm
  • Rotor Quantity: 8

LED Light

  • Effective Illumination Distance: 10 m
  • Illumination Mode: 60 Hz, automatically switch on according to ambient light

DJI O3 Image Transmission

  • Model: Pigeon (with DDR)-2T4R
  • Signal Effective Distance: 20 km (FCC), 8 km (CE/SRRC/MIC)
    *Measured with FCC compliance in unobstructed environments with typical interference. Data is for reference only. The actual transmission distance may vary depending on the environment's obstruction and interference conditions. Please pay attention to reminders in the app.
  • O3 Operating Frequency: 2.4000 to 2.4835 GHz, 5.725 to 5.850 GHz
    *Some countries or regions do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details.
  • EIRP: 2.400 GHz - 2.4835 GHz:
    <33 dBm（FCC）
    <20 dBm（CE/SRRC/MIC）
    5.725 GHz - 5.850 GHz：
    <33 dBm（FCC）
    <30 dBm（SRRC）
    <14 dBm（CE）
  • Data Security: AES-256, ADS-B
    Supported

Forward and Backward Active Phased Array Radar

  • Model Number: RD241608RF (forward)
    RD241608RB (backward)
  • Altitude Detection: Fixed altitude range: 1.5-200 m
  • Rear Obstacle Avoidance: Sensible distance (rear): 1.5-50 m
    FOV Forward: 360° horizontal, ±45° vertical，±45°upward
    Backward: ±45° horizontal, 360° vertical
    Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m away from the aircraft
    Safe distance: 3.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking)
    Sensing direction: multi-direction

Binocular Vision System

  • FOV: Horizontal: 90; Vertical: 106°
  • Work Environment Requirements: Normal lighting with clearly textured surfaces

FPV Camera

  • Resolution: 1920x1440
  • DFOV: 149°
  • Frame Rate: 30fps
  • Type: Full HD FPV Single Axis Gimbal Camera
  • Fill Light: Supported

Cargo Case

  • Dimension: 754x472x385 mm (LxWxH)
  • Inner Space: 573x416x305 mm (LxWxH)
  • Material: EPP plus aluminum alloy frame
  • Weighing Feature: Supported
  • Weight: Approx. 3 kg
  • Load Capacity: 0-40 kg

Parachute

  • Max Payload: ≤ 95 kg
  • Dimension: 300x200x120 mm (LxWxH)
  • Weight: Approx. 2.1 kg
  • Automatic Reaction Time: Approx. 1000 ms
  • Descending Speed: ≤ 6 m/s (at sea level, no wind)
  • Parachute Shape: Square
  • Material: Nylon
  • Surface Area: Approx. 22 ㎡
  • Minimum Opening Height: 60 m
  • Operating Temperature: -20° to 45° C
  • Ingress Protection Rating: IP55
  • Mainboard Power-off Battery Life: ≥ 1 hour
  • Memory Card Capacity: Real-time record for 10 flights
  • Buzzar Alarm: Supported
  • Lighting Alarm: Supported
  • Manually Opening: Supported
  • Automatic Opening: Supported

Winch System (Optional)

  • Model: A2EWI-30A
  • Dimension: 252x195x193 mm (LxWxH)
  • Body Weight: 2.5 kg (without clump and couple)
  • Clump Weight: 1.9 kg
  • Couple Weight: 0.6 kg
  • Touchdown Release Feature: Supported
  • Payload Capacity: 5-30 kg (dual battery)5-40 kg (single battery)
  • Cable Length: 20 m
  • Max Retraction Speed: 0.8 m/s
  • Operating Temperature: -20° to 45° C
  • Ingress Protection Rating: IP55
  • Weighing Function: Supported
  • Cut Cable Protection: Supported
  • Swing Control Feature: Supported
  • Manual Operation: Supported
  • Automatic Operation: Supported
  • Deceleration Protection: Supported

DJI DB2000 Intelligent Battery

  • Model: DB2000
  • Capacity: 38000 mAH
  • Nominal Voltage: 52.22 V
  • Type: 14S1P
  • Energy: 1984.4 Wh
  • Weight: Approx. 11.3 kg
  • Installation Method: Plug
  • Dimension: 316x152x279 mm (LxWxH)
  • Operating Temperature: -20° to 45° C
  • Charging Rate: 5 to 15° C: 1.0C15 to 45° C: 2.5C
  • Max Charging Power: 5700 W
  • Automatic Heating Feature: Supported (when the battery temperature is below 10° C, pressing and holding the button or turning on the drone will activate the self-heating function. When the battery temperature is below 20° C, connecting the charger to the battery will activate the self-heating function. Charging and discharging in a low-temperature environment may reduce the battery's lifespan)

DJI C8000 Intelligent Charger

  • Model: CHX101-7000
  • Input: 90-264 V AC
  • Output: 42-59.92 V DC
  • Max Output Power: 7200 W (Dual input)3600 W (Single input)
  • Output Channel Quantity: 2
    Protection Feature: The feature is designed to respond to issues including overheating, overvoltage, undervoltage, short circuits, fan stalls, etc.
  • Operating Temperature: -20° to 45° C
  • Charging Security: Connector protection feature available

Remote Controller

  • Type: DJI RC Plus
  • APP: DJI Pilot 2
  • Operating Frequency: 2.400-2.483 GHz, 5.725-5.850 GHz
  • EIRP: 2.400-2.4835 GHz: <33 dBm（FCC) , <20 dBm（CE/SRRC/MIC）
    5.725-5.850 GHz: <33 dBm（FCC）, <23 dBm（SRRC）, <14 dBm（CE）
  • Operating Temperature: -20° to 50° C
  • Charging Environment Temperature: 5° to 40° C
  • Built-in Battery Life: 3.3 hours
  • External Battery: 2.7 hours
  • Charging Method: Use a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended.
  • Charging Time: 2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method)
  • Ingress Protection Rating: IP54
  • Video Output Interface: HDMI
  • Wi-Fi Protocol: Wi-Fi 6
  • Wi-Fi Working Frequency: 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
  • Bluetooth Protocol: Bluetooth 5.1
  • Bluetooth Working Frequency: 2.4000 - 2.4835 GHz
  • EIRP: <10 dBm
  • GNSS: GPS+Galileo+BeiDou
  • Screen: 7.02 inch touch LCD display screen, resolution 1920*1200, brightness 1200 nits
  • Dual Operator Mode: Supported

    IN THE BOX

    • 1x DJI FlyCart 30 Aircraft
    • 1x Remote Controller
    • 1x Remote Controller Strap
    • 1x Power Cable
    • 1x USB-A to USB-C Cable
    • 1x USB-C to USB-C Cable
    • 1x Battery Cover
    • 1x DJI 100W USB-C Power Adapter
    • 1x WB37 Intelligent Battery (Mounted in the remote controller)
    • 1x Goggles
    • Manuals (In the Box, Quick Start Guide, Disclaimer and Safety, Guidelines, & Product Certification)
    • 1x Hex Key Set
    • 8x Propeller Washers
    • 4x Nuts
    • 1x Phillips Screwdriver (PH0)
    • 1x Wrench (11 mm)



          View full details
