Description

Built Tough. Works Smart.

A New Standard for the Commercial Drone Industry

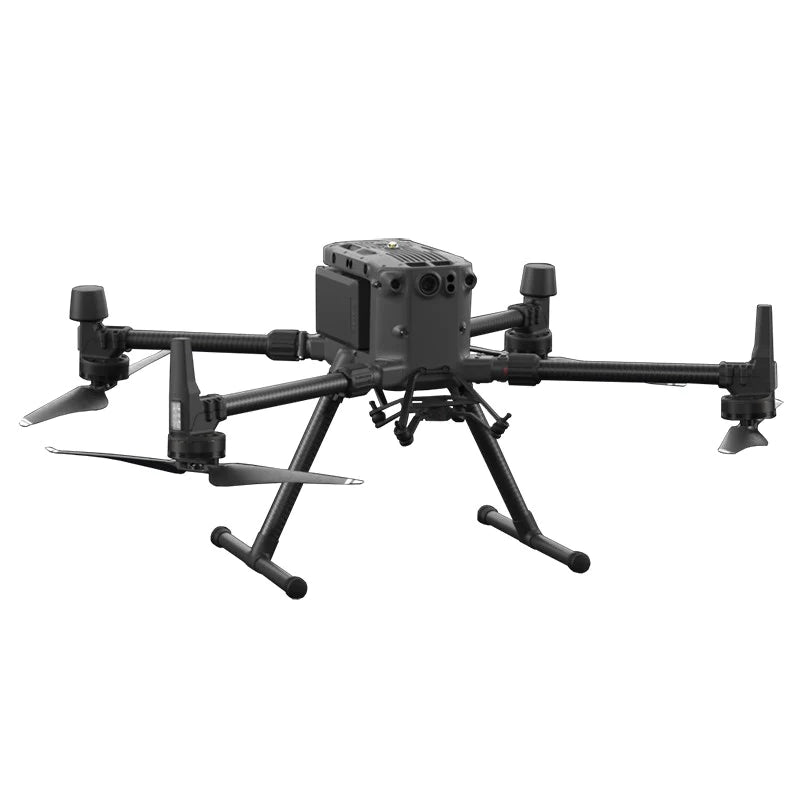

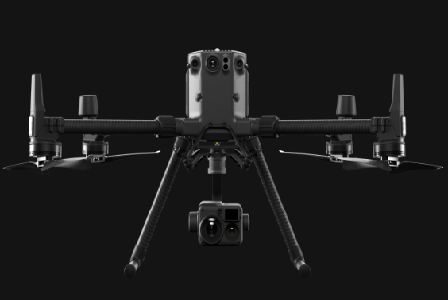

The Matrice 300 RTK is DJI's latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 Directional Sensing & Positioning and more ,the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.

^{Super Performance}

Improved Transmission System

Enhanced Flight Performance

Advanced Intelligence

Smart Inspection

Live Mission Recording

Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.

AI Spot-Check⁷

^{Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.}

Waypoints 2.0

Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3^rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.

Smart Pin & Track⁸

PinPoint

Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub⁹.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub⁹.

Aviation-Grade Situational Awareness

The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.

Flight Information

Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.

Navigation Display

Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.

Safety and Reliability

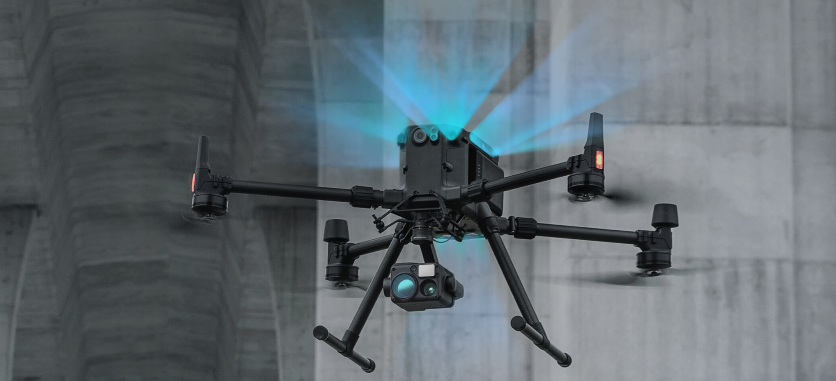

A Powerful Vision System You Can Rely On

To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.

Professional Maintenance for Your Drone Fleet

The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.

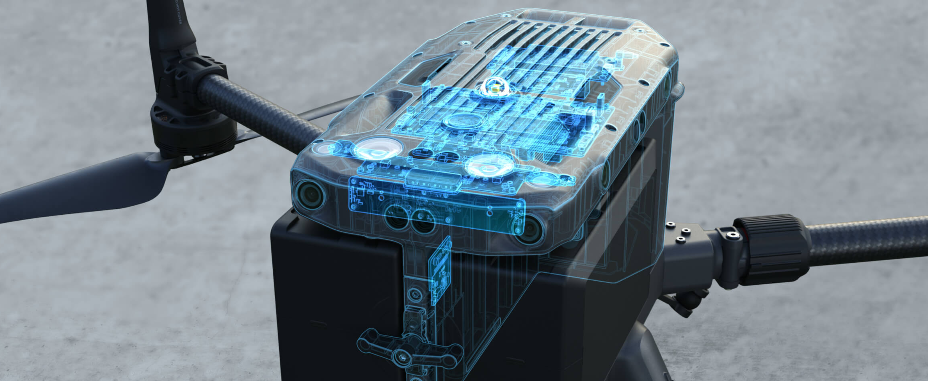

Redundancy Systems for Safer Flights

The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

More Adaptable Than Ever Before

Accessories

Purpose-built Applications

DJI Pilot

DJI Pilot is developed specifically for enterprise users to unleash the power of their DJI drones. With development made specifically for the M300 RTK, DJI Pilot optimizes your flight capability for peak performance.

DJI FlightHub

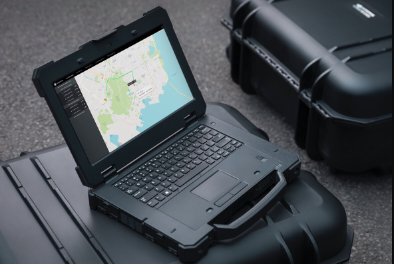

DJI FlightHub is a one-stop solution for managing your drone operations, supporting large organizations to effectively scale their aerial operations. Compatible with the M300 RTK, you can integrate FlightHub directly into your existing fleet of DJI drones and leverage its aerial intel across your organization.

 Specifications

Aircraft

• Dimensions:
• Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
• Folded, propellers included, 430×420×430 mm (L×W×H)
• Diagonal Wheelbase: 895 mm
• Weight (with single downward gimbal): Approx. 3.6 kg (without batteries)
• Approx. 6.3 kg (with two TB60 batteries)
• Single Gimbal Damper’s Max Payload: 930g
• Max Takeoff Weight: 9 kg
• Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz
• EIRP: 2.4000-2.4835 GHz:
• 29.5 dBm (FCC); 18.5dBm (CE)
• 18.5 dBm (SRRC); 18.5dBm (MIC)
• 5.725-5.850 GHz:
• 28.5 dBm (FCC); 12.5dBm (CE)
• 28.5 dBm (SRRC)
• Hovering Accuracy (P-mode with GPS)
• Vertical: ±0.1 m (Vision System enabled)
• ±0.5 m (GPS enabled)
• ±0.1 m (RTK enabled)
• Horizontal: ±0.3 m (Vision System enabled)
• ±1.5 m (GPS enabled)
• ±0.1 m (RTK enabled)
• RTK Positioning Accuracy
• When RTK enabled and fixed:
• 1 cm+1 ppm (Horizontal)
• 1.5 cm + 1 ppm (Vertical)
• Max Angular Velocity
• Pitch: 300°/s, Yaw: 100°/s
• Max Pitch Angle
• 30° (P-mode, Forward Vision System enabled: 25°)
• Max Ascent Speed
• S mode: 6 m/s
• P mode：5 m/s
• Max Descent Speed (vertical)
• S mode: 5 m/s
• P mode：4 m/s
• Max Descent Speed (tilt)
• S Mode: 7 m/s
• Max Speed
• S mode: 23 m/s
• P mode：17 m/s
• Service Ceiling Above Sea Level
• 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)
• Max Wind Resistance
• Max Wind Resistance 15 m/s (12 m/s when taking off or landing)
• Max Flight Time: 55 min
• Supported DJI Gimbals
• Zenmuse XT2/XT S/Z30/H20/H20T/DJI P1/DJI L1
• Supported Gimbal Configurations

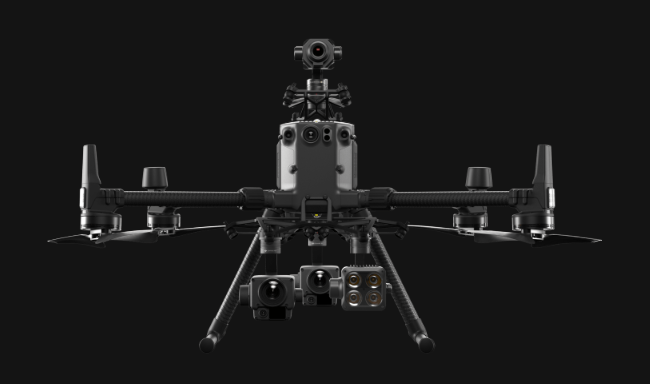

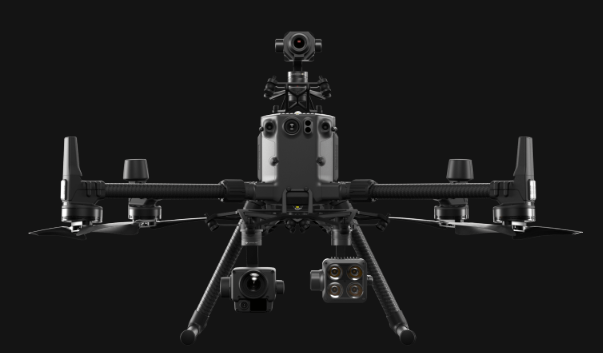

• Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
• Ingress Protection Rating: IP45
• GNSS
• GPS+GLONASS+BeiDou+Galileo
• Operating Temperature: -20°C to 50°C (-4°F to 122° F)

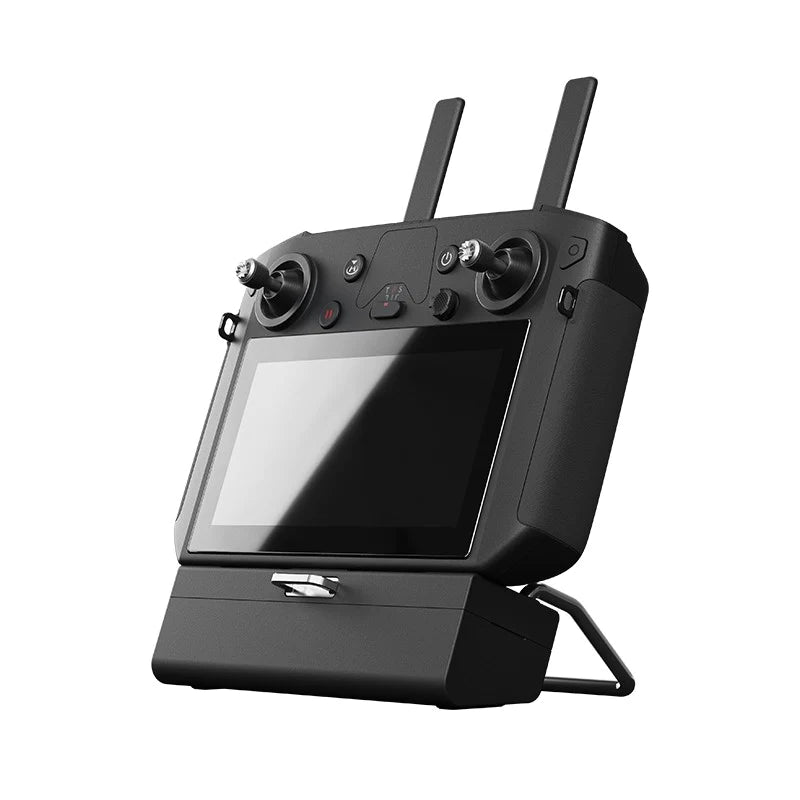

Remote Controller

• Operating Frequency:  2.4000-2.4835 GHz
• 5.725-5.850 GHz
• Max Transmitting Distance (unobstructed, free of interference)
• NCC/FCC: 15 km
• CE/MIC: 8 km
• SRRC: 8 km
• EIRP:
• 2.4000-2.4835 GHz:
• 29.5 dBm (FCC) 18.5dBm (CE)
• 18.5 dBm (SRRC); 18.5dBm (MIC)
• 5.725-5.850 GHz:
• 28.5 dBm (FCC); 12.5dBm (CE)
• 20.5 dBm (SRRC)
• External battery:
• Name: WB37 Intelligent Battery
• Capacity: 4920 mAh
• Voltage: 7.6V
• Type: LiPo
• Energy: 37.39Wh
• Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)
• Built-in battery
• Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
• Charging: Use a USB charger with specification of 12V / 2A
• Rated power: 17 W
• Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)
• Battery Life
• Built-in battery: Approx. 2.5h
• Built-in battery+External battery: Approx. 4.5h
• USB Power Supply: 5 V / 1.5 A
• Operating Temperature: -20°C to 40°C (-4 °F to 104 °F)

Vision System

• Obstacle Sensing Range
• Forward/Backward/Left/Right: 0.7-40m
• Upward/Downward: 0.6-30m
• FOV
• Forward/Backward/Downward: 65° (H), 50° (V)
• Left/Right/Upward: 75°(H), 60°(V)
• Operating Environment
• Surfaces with clear patterns and adequate lighting (> 15 lux)

• Obstacle Sensing Range: 0.1-8m
• FOV: 30° (±15°)
• Operating Environment: Large, diffuse and reflective obstacles (reflectivity >10%)

• Effective lighting distance: 5 m

• Resolution: 960p
• FOV: 145°
• Frame rate: 30 fps

• Name: TB60
• Capacity: 5935 mAh
• Voltage: 52.8 V
• Battery Type: LiPo 12S
• Energy: 274 Wh
• Net Weight: Approx. 1.35 kg
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Ideal storage temperature: 71.6°F to 86°F (22°C to 30°C)
• Charging Temperature: -4°F to 104°F (-20°C to 40°C)
• (When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
• Charging time: Using BS60 Intelligent Battery Station:
• 220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
• 110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)

• Dimensions: 501*403*252mm
• Net Weight: 8.37kg
• Maximum Capacity: TB60 Intelligent Flight Battery × 8
• WB37 Intelligent Battery × 4
• Input: 100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
• Max. Input Power: 1070W
• Output Power
• 100-120 V: 750 W
• 220-240 V: 992 W
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)

In The Box

• 1 x Matrice 300 RTK
• 1 x DJI Smart Controller Enterprise
• 2 x TB60 Batteries
• 1 x BS60 Battery Station
• 1 x Shield Basic
• 1 x Set of Propellers
• 2 x Landing Gear
• 1 x Spare Stick Cover (pair)
• 2 x Spare Propeller Holder
• 1 x Spare Gimbal Damper
• 1 x USB Cable
• 1 x Vision System Calibration Plate
• 1 x Smart Controller Lanyard
• 1 x Rubber Port Cover ( set)
• Screws and Tools
