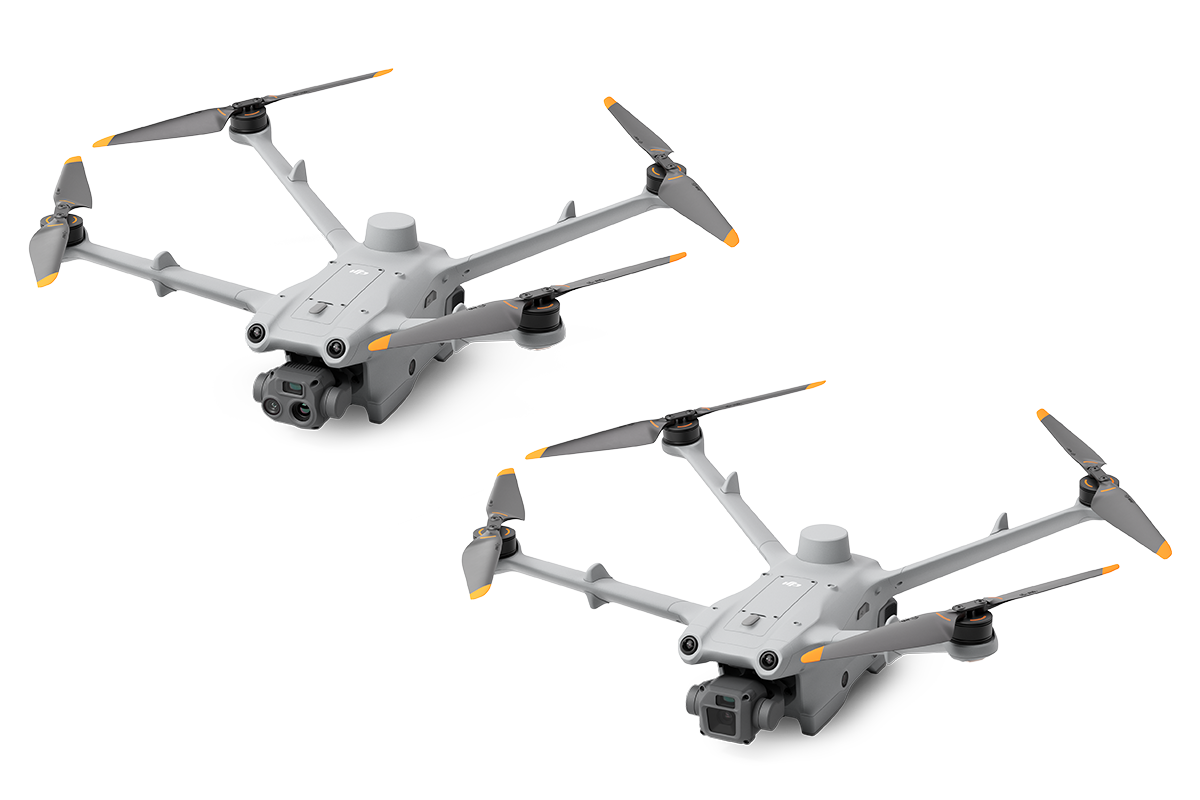

DJI Matrice 3D/3TD | High-Performance Aircraft Models
DESCRIPTION

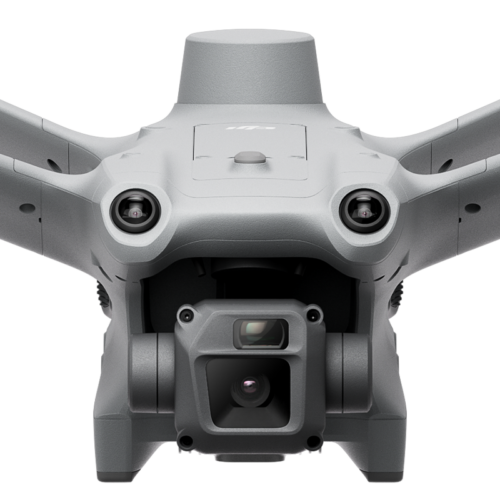

The DJI Matrice 3D/3TD is a high-performance aerial platform engineered for advanced mapping, inspection, and security operations. Designed specifically for the DJI Dock 2, the Matrice 3D features dual cameras (wide-angle and tele) with a mechanical shutter, delivering exceptional accuracy for precision mapping. The Matrice 3TD takes functionality further by incorporating an infrared camera, enabling seamless thermal imaging for a variety of industrial applications.
This aircraft stands out with its robust performance capabilities, including an IP54-rated body for dustproof and waterproof protection, a 6-directional obstacle sensing system for enhanced flight safety, and an integrated RTK module for pinpoint positioning accuracy. With a maximum flight time of 50 minutes and an effective operational radius of 10 km, the Matrice 3D/3TD is an ideal choice for professionals requiring reliable and efficient drone solutions.
Key Features
- Dual-Camera Design: Wide-angle and tele cameras for versatile aerial data capture.
- Thermal Imaging (3TD Model): Infrared camera enhances capabilities for inspections and security operations.
- Weatherproof Build: IP54-rated aircraft for challenging environments.
- Obstacle Avoidance: Six-directional sensing ensures safe navigation.
- Extended Battery Life: 50-minute flight time supports extended missions.
Detailed Specification
General Specifications
| Attribute | Details |
|---|---|
| Max Flight Time | 50 minutes |
| Max Operating Radius | 10 km |
| Battery Cycles | Up to 400 cycles |
| Protection Rating | IP54 |
| Positioning Accuracy | ±3 cm (RTK enabled) |
Wide-Angle Camera
| Attribute | Details |
|---|---|
| Sensor | 4/3 CMOS |
| Effective Pixels | 20 MP |
| Lens | 24mm format equivalent |
| Shutter | Mechanical |
Tele Camera
| Attribute | Details |
|---|---|
| Sensor | 1/2-inch CMOS |
| Effective Pixels | 12 MP |
| Lens | 162mm format equivalent |
Thermal Camera (3TD Model)
| Attribute | Details |
|---|---|
| Functionality | Infrared imaging for thermal data |
In Package
- 1x DJI Matrice 3D or 3TD Aircraft
- 1x Wide-Angle Camera
- 1x Tele Camera
- 1x Infrared Camera (3TD Model Only)
