DJI Matrice 3D Ultimate Vision: Advanced Aerial Imaging Drone | With DJI Care Enterprise | Maximum Flight Time 50 Minutes

DJI Matrice 3D Ultimate Vision: Advanced Aerial Imaging Drone | With DJI Care Enterprise | Maximum Flight Time 50 Minutes

$12,687.00
$12,687.00
Sale Sold out
Customizable
Fast
24/7 Support
  • Precision Mapping Capabilities: Equipped with a 20 MP wide-angle camera with a 4/3 CMOS sensor and a 12 MP telephoto camera for 1:500 high-precision mapping tasks.
  • Long-Lasting Performance: Up to 50 minutes of flight time and a 10 km effective operating radius.
  • Advanced Navigation: Integrated RTK module provides ±3cm positioning accuracy for professional-grade operations.
View full details

Product Description

DJI Matrice 3D Ultimate Vision: Advanced Aerial Imaging Drone | With DJI Care Enterprise | Maximum Flight Time 50 Minutes

DESCRIPTION

The DJI Matrice 3D is a high-performance drone designed for precision mapping and surveying. With cutting-edge camera technology, including a 20 MP wide-angle camera with a mechanical shutter and a 12 MP telephoto camera, this drone meets the demands of 1:500 high-precision mapping tasks.

Its robust design ensures reliability in challenging environments, boasting an IP54 rating and resistance to wind speeds of up to 12 m/s. The Matrice 3D offers 50 minutes of maximum flight time and a 10 km effective operating radius, making it ideal for extended and complex operations. Integrated RTK technology ensures centimeter-level accuracy for unmatched data precision, while the six-directional obstacle sensing system guarantees safe and efficient navigation.

This drone is tailored for professionals in industries such as construction, agriculture, and inspection, offering comprehensive features to support demanding operational requirements.

What's in the Box

  • 1x DJI Matrice 3D Aircraft
  • 1x DJI Matrice 3D Battery
  • 1x DJI RC Pro Enterprise
  • DJI Care Enterprise Basic for DJI M3D # DJI Matrice 3D with DJI Care Enterprise Basic

Key Features

  • 20MP Wide-Angle Camera: 24mm equivalent, 4/3 CMOS sensor for expansive coverage.
  • 12MP Tele Camera: 162mm equivalent, 1/2-inch CMOS sensor for capturing distant subjects.
  • IP54 Rating: Dustproof and waterproof for reliable performance in diverse environments.
  • 50-Minute Max Flight Time: Extended missions with fewer battery swaps.
  • 6-Directional Obstacle Sensing System: Enhanced safety by detecting and avoiding potential hazards.
  • 10-Km Effective Operating Radius: Extensive coverage for hard-to-access areas.
  • Integrated RTK Module: ±3cm positioning accuracy for detailed spatial information.
  • Includes DJI RC Pro Enterprise: Advanced remote control for seamless operation.
  • DJI Care Enterprise Basic: Comprehensive protection plan for peace of mind.

Detailed Specifications

Category Specification
Aircraft - General
Weight 1410 g (including battery, propellers, and microSD card)
Max Takeoff Weight 1610 g
Dimensions 335 × 398 × 153 mm (L × W × H, without propellers)
Wheelbase Diagonal: 463.2 mm, Left-Right: 359.9 mm, Front-Rear: 291.4 mm
Max Ascent Speed 6 m/s (Normal Mode), 8 m/s (Sport Mode)
Max Descent Speed 6 m/s (Normal Mode), 6 m/s (Sport Mode)
Max Horizontal Speed Normal Mode: 15 m/s (forward), 12 m/s (backward), 10 m/s (sideways); Sport Mode: 21 m/s (forward)
Max Wind Speed Resistance 12 m/s (during operation), 8 m/s (during takeoff/landing)
Max Takeoff Altitude 4000 m
Max Flight Time 50 minutes
Max Hovering Time 40 minutes
Max Operating Radius 10 km
Max Flight Distance 43 km
Max Pitch Angle 25° (Normal Mode), 25° (Sport Mode)
Max Angular Velocity 250°/s
Global Navigation Satellite System GPS + Galileo + BeiDou + GLONASS (RTK module enabled)
Hovering Accuracy Range Vertical: ±0.1 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK); Horizontal: ±0.3 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK)
Operating Temperature -20° to 45° C (-4° to 113° F)
Ingress Protection Rating IP54
Motor Model 2607
Propeller Model 1149, foldable, non-quick release
RTK Module Integrated on the aircraft
Beacon Integrated on the aircraft

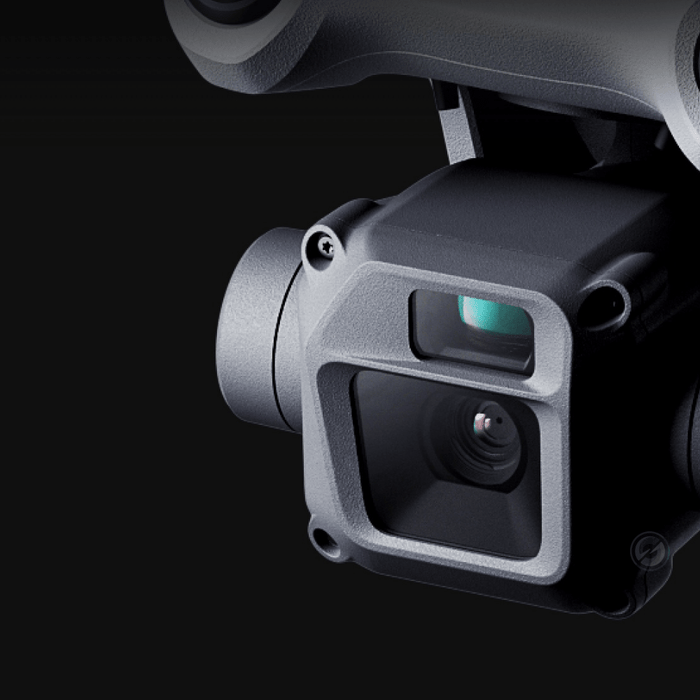

Aircraft - Wide-Angle Camera
Image Sensor 4/3 CMOS, Effective Pixels: 20 MP
Lens FOV: 84°, Format Equivalent: 24 mm, Aperture: f/2.8-f/11, Focus: 1 m to ∞
Lens Defogging Supported
ISO Range 100-6400
Shutter Speed Electronic: 8-1/8000 s, Mechanical: 8-1/2000 s
Max Image Size 5280 × 3956
Still Photography Modes Single: 20 MP, Timed: 20 MP, Smart Low-light: 20 MP, Panorama: 20 MP (raw), 100 MP (stitched)
Video Resolution H.264, 4K: 3840 × 2160 @30fps, FHD: 1920 × 1080 @30fps
Video Bitrate 4K: 130 Mbps, FHD: 70 Mbps
Supported File System exFAT
Photo Format JPEG
Video Format MP4 (MPEG-4 AVC/H.264)
Aircraft - Tele Camera
Image Sensor 1/2-inch CMOS, Effective Pixels: 12 MP
Lens FOV: 15°, Format Equivalent: 162 mm, Aperture: f/4.4, Focus: 3 m to ∞
Lens Defogging Supported
ISO Range 100-6400
Shutter Speed Electronic: 8-1/8000 s
Max Image Size 4000 × 3000
Photo Format JPEG
Video Format MP4 (MPEG-4 AVC/H.264)
Still Photography Modes Single: 12 MP, Timed: 12 MP, Smart Low-light: 12 MP
Video Resolution H.264, 4K: 3840 × 2160 @30fps, FHD: 1920 × 1080 @30fps
Video Bitrate 4K: 130 Mbps, FHD: 70 Mbps
Digital Zoom 8x (56x hybrid zoom)
Aircraft - Infrared Camera
Thermal Imager Uncooled VOx Microbolometer
Pixel Pitch 12 μm
Frame Rate 30 Hz
Lens FOV: 61°, Format Equivalent: 40 mm, Aperture: f/1.0, Focus: 5 m to ∞
Sensitivity ≤ 50 mk@F1.0
Temperature Measurement Method Spot Measurement, Area Measurement
Temperature Measurement Range -20° to 150° C (-4° to 302° F, High Gain Mode); 0° to 500° C (32° to 932° F, Low Gain Mode)
Palette White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
Photo Format JPEG (8-bit), R-JPEG (16-bit)
Video Resolution Normal Mode: 640 × 512 @30fps, UHR Infrared Image Mode: 1280 × 1024 @30fps
Video Bitrate 6 Mbps
Video Format MP4 (MPEG-4 AVC/H.264)
Still Photography Modes Single: Normal Mode: 640 × 512, UHR Infrared Image Mode: 1280 × 1024
Timed Normal Mode: 640 × 512, 0.7/1/2/3/5/7/10/15/20/30/60 s, UHR Infrared Image Mode: 1280 × 1024, 0.7/1/2/3/5/7/10/15/20/30/60 s
Digital Zoom 28x
Infrared Wavelength 8-14 μm
Infrared Temperature Measurement Accuracy ±2° C or ±2% (using the larger value)
Aircraft - Gimbal
Stabilization 3-axis mechanical gimbal (tilt, roll, pan)
Mechanical Range Tilt: -135° to +45°, Roll: -45° to +45°, Pan: -27° to +27°
Controllable Range Tilt: -90° to +35°, Pan: Not controllable
Max Control Speed (tilt) 100°/s
Angular Vibration Range ±0.005°
Aircraft - Sensing
Sensing Type Six-directional obstacle sensing
Forward Measurement Range 0.5-21 m
Detection Range 0.5-200 m
Effective Sensing Speed Flight Speed ≤ 15 m/s
FOV Horizontal 90°, Vertical 90°
Effective Sensing Speed Flight Speed ≤ 12 m/s
FOV Horizontal 90°, Vertical 90°
Lateral Measurement Range 0.5-15 m
Effective Sensing Speed Flight Speed ≤ 10 m/s
FOV Horizontal 104°, Vertical 90°
Upward Measurement Range 0.5-21 m
Effective Sensing Speed Flight Speed ≤ 6 m/s
FOV Front and Back 90°, Left and Right 90°
Downward Measurement Range 0.5-14 m
Effective Sensing Speed Flight Speed ≤ 6 m/s
FOV Front and Back 95°, Left and Right 110°
Operating Environment Surfaces with discernible patterns and adequate lighting (lux > 15)
Aircraft - Video Transmission
Video Transmission System DJI O3 Enterprise Transmission
Live View Quality 720p/30fps, 1080p/30fps (with DJI RC Pro Enterprise)
Operating Frequency 2.4000-2.4835 GHz, 5.150-5.250 GHz (CE: 5.170-5.250 GHz), 5.725-5.850 GHz
Max Transmission Distance FCC: 15 km, CE: 8 km, SRRC: 8 km, MIC: 8 km
Max Transmission Distance (with interference) Strong: 1.5-3 km, Medium: 3-9 km (FCC), 3-6 km (CE/SRRC/MIC), Low: 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
Max Download Speed 5 MB/s (with DJI Dock 2), 15 MB/s (with DJI RC Pro Enterprise)
Lowest Latency 110 to 150 milliseconds
Antenna 4 antennas, 2T4R
Transmitter Power (EIRP) 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC); 5.1 GHz: < 23 dBm (CE); 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)
Aircraft - Storage
Supported Memory Cards U3/Class10/V30 or above
Recommended microSD Cards SanDisk Extreme 32GB V30 A1, SanDisk Extreme PRO 32GB V30 A1, SanDisk Extreme 512GB V30 A2, Lexar 1066x 64GB V30 A2, Kingston Canvas Go! Plus 64GB V30 A2, Kingston Canvas React Plus 64GB V90 A1, Kingston Canvas Go! Plus 128GB V30 A2, Kingston Canvas React Plus 128GB V90 A1, Kingston Canvas React Plus 256GB V90 A2, Samsung PRO Plus 256GB V30 A2
Aircraft - Battery
Capacity 7811 mAh
Voltage 14.76 V
Max Charging Voltage 17.0 V
Type Li-ion 4S
Chemical System LiNiMnCoO2
Energy 115.2 Wh
Weight 544 g
Cycle Count 400
Charging Temperature 5° to 45° C (41° to 113° F)
Aircraft - Power Adapter
Input 100-240 V (AC), 50/60 Hz, 2.5 A
Output Power 100 W
Max output power 100 W (total)
Aircraft - Charging Base
Input USB-C: 5-20 V, 5.0 A
Output Battery Port: 12-17 V, 8.0 A
Rated Power 100 W
Charging Type One battery charged at a time
Charging Temperature 5° to 40° C (41° to 104° F)
