Product Description

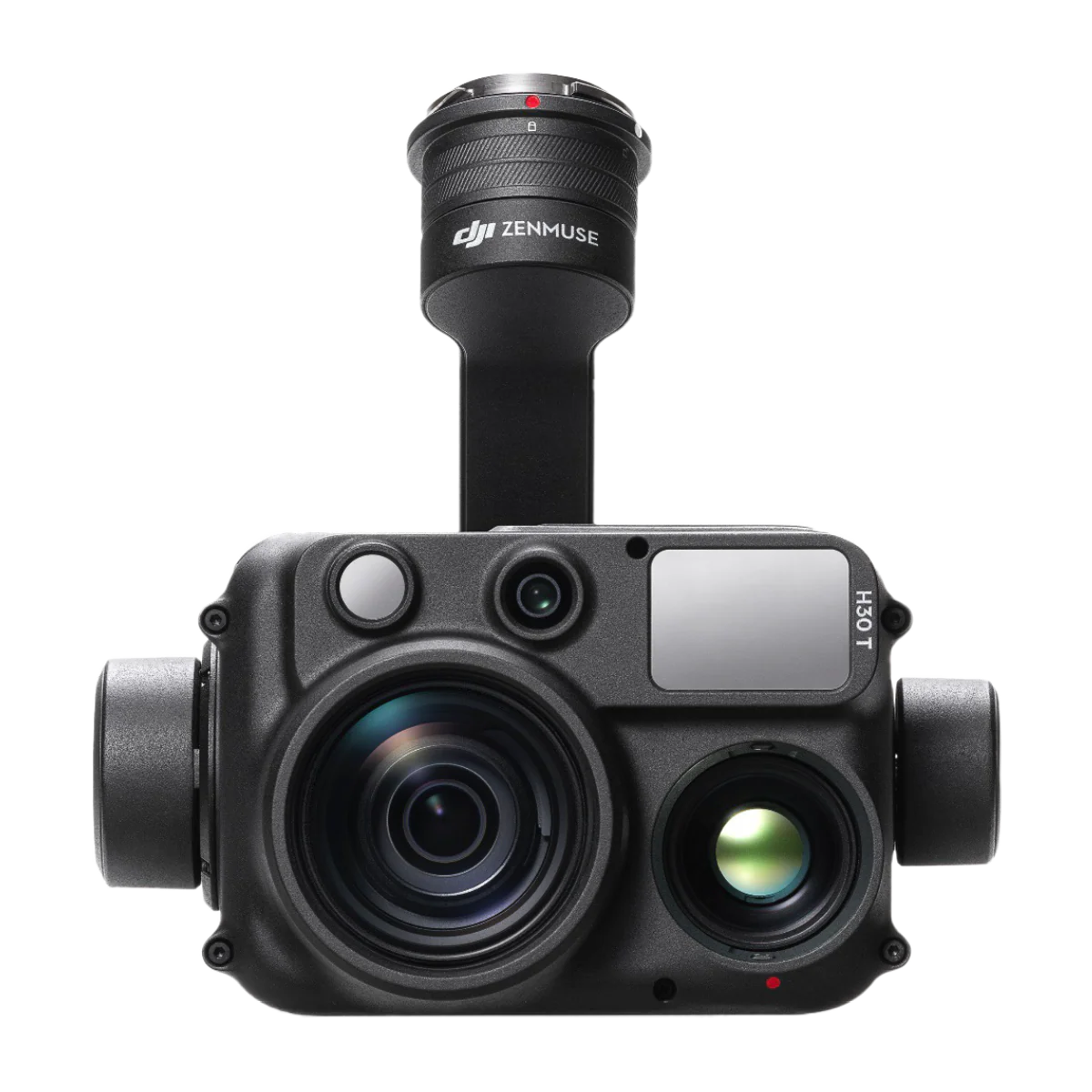

DJI Zenmuse H30T
DESCRIPTION
The DJI Zenmuse H30T is the flagship all‑weather, multi‑sensor aerial payload in the H30 Series, integrating five synchronized modules — a wide‑angle camera, zoom camera, infrared thermal camera, laser rangefinder, and NIR auxiliary light. Designed for seamless use with the DJI Matrice 300 RTK and Matrice 350 RTK (with DJI RC Plus), it delivers unmatched imaging performance for public safety, energy inspection, firefighting, search‑and‑rescue, forestry, and infrastructure monitoring.
With 34× optical / 400× digital zoom, Ultra‑HD thermal imaging (1280×1024), 3,000 m laser rangefinding, and enhanced night vision modes, the H30T ensures operators can detect, identify, and measure with precision — day or night, in any weather. Intelligent algorithms, superior stabilization, and simultaneous visual/thermal zoom make it a force multiplier for complex aerial missions.
Key Features
- Multi‑Sensor Payload: Wide‑angle, zoom, thermal, laser rangefinder, and NIR auxiliary light in one stabilized unit
- Wide‑Angle Camera: 48 MP, 1/1.3" CMOS sensor for high‑resolution situational awareness
- Zoom Camera: 40 MP, 1/1.8" CMOS sensor with 34× optical and up to 400× digital zoom
- Thermal Imaging (H30T): 1280×1024 resolution, 32× digital zoom, UHR infrared mode, and three gain modes (High, Low, High‑Res)
- Temperature Range: –20 °C to 1600 °C (–4 °F to 2912 °F) with IR density filter — ideal for firefighting and high‑heat inspections
- Laser Rangefinder: Accurate distance measurement from 3 m to 3,000 m, with GPS coordinate capture
- Night Vision Modes: Full‑color, black‑and‑white IR, and NIR illumination for covert or zero‑light operations
- Link Zoom: Synchronized zoom between visual and thermal cameras for faster subject location
- Image Stabilization: Advanced DJI algorithm reduces shake in high‑zoom telephoto footage
- Environmental Protection: IP54 rating for dust and water resistance in harsh conditions
- Seamless Integration: Plug‑and‑play with DJI Pilot 2 software on Matrice 300/350 RTK
-
Applications:
- Public Safety – Surveillance, suspect tracking, crowd monitoring
- Firefighting – Hotspot detection, structural risk assessment
- Search & Rescue – Locate heat signatures in challenging terrain
- Industrial Inspection – Detect faults, leaks, and overheating in assets
- Forestry & Conservation – Wildlife monitoring, fire prevention, and habitat surveys
Detailed Specification
| Category | Specification |
|---|---|
| Weight | 920 ± 5 g |
| Ingress Protection Rating | IP54 |
| Supported Aircraft | DJI Matrice 300 RTK (with DJI RC Plus), Matrice 350 RTK |
| Video Pre‑Recording | Supported |
| Angular Vibration Range | Hover: ±0.002°, Flight: ±0.004° |
| Controllable Range | Tilt: –120° to +60°, Pan: ±320° |
| Sensor | 1/1.3" CMOS, 48 MP effective pixels |
| Lens | DFOV: 82.1°, Focal Length: 6.72 mm (24 mm equivalent), Aperture: f/1.7 |
| Focus Range | 1 m to ∞ |
| Max Photo Size | 8064×6048, 4032×3024 |
| Video Resolution | 3840×2160@30 fps, 1920×1080@30 fps (Night Scene: 25/15/5 fps) |
| ISO Range | 100–25,600 (Night Scene: up to 409,600) |
| Formats | Photo: JPEG, Video: MP4 (H.264/H.265) |
| Sensor | 1/1.8" CMOS, 40 MP effective pixels |
| Lens | DFOV: 66.7°–2.9°, Focal Length: 7.1–172 mm (33.4–809.3 mm equivalent), Aperture: f/1.6–f/5.2 |
| Focus Range | 5 m to ∞ |
| Optical Zoom | 34× |
| Max Zoom | 400× |
| Max Photo Size | 7328×5496, 3664×2748 |
| Video Resolution | 3840×2160@30 fps, 1920×1080@30 fps (Night Scene: 25/15/5 fps) |
| ISO Range | 100–25,600 (Night Scene: up to 819,200) |
| Formats | Photo: JPEG, Video: MP4 (H.264/H.265) |
| Sensor Type | Uncooled VOx Microbolometer |
| Resolution | 1280×1024 @ 30 fps |
| Photo Format | R‑JPEG |
| Digital Zoom | Up to 32× |
| Temperature Measurement Modes | Spot, Area, Center Point |
| Temperature Range | High Gain: –20 °C to 150 °C; Low Gain: 0 °C to 600 °C; With IR Density Filter: up to 1600 °C |
| NETD | ≤ 50 mK @ f/1.0 |
| Lens | DFOV: 45.2°, Focal Length: 24 mm (52 mm equivalent), Aperture: f/0.95 |
| High‑Res Mode | Supported |
| UHR Infrared Image | Supported |
| Wavelength | 905 nm |
| Measurement Range | 3–3000 m |
| Accuracy | ≤ 500 m: ±(0.2 m + distance×0.15%), ≥ 500 m: ±1.0 m |
| Safety Class | Class 1 |
| Wavelength | 850 nm |
| Field of View | 4.6° ± 0.6° |
| Illumination Range | @100 m: ~8 m diameter circle |
