Erskine Industrial Digging Backhoe | Model DB240-S | Digging Depth 6' Ft | Swing Range 100° Degree | For Skid Steer
Erskine Industrial Digging Backhoe | Model DB240-S | Digging Depth 6' Ft | Swing Range 100° Degree | For Skid Steer
Regular price
$6,264.50
Regular price
Sale price
$6,264.50
Unit price
per
Couldn't load pickup availability
Couldn't load pickup availability
Product Description
Erskine Industrial Digging Backhoe | Model DB240-S | Digging Depth 6' Ft | Swing Range 100° Degree | For Skid Steer
DESCRIPTION

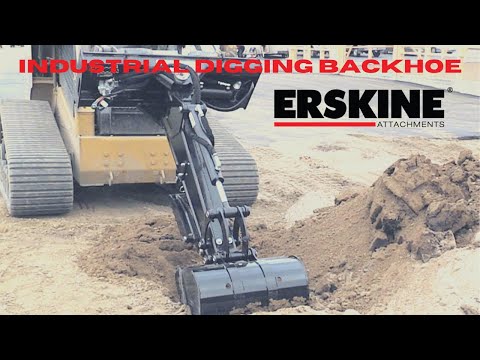

Dig deep with the Digging Backhoe. This skid steer digger backhoe reaches 6 feet deep with a single arm and hydraulically controlled bucket. Use it for trenching or other productive digging work. Includes hydraulic side-to-side swing operation.
Key Features
- Six Bucket Options: Choose from six different buckets, sold separately, to suit various digging and excavation needs.
- Optional Mechanical Thumb: Enhance your bucket's grip and functionality with an optional mechanical thumb.
- Hydraulic Side Swing: Provides side-to-side movement for precise digging and trenching.
- Greasable Pins: All pin points are greaseable for easy maintenance and longer life.
- Hardened Bushing Inserts: Ensures durability and reduces wear and tear at pivot points.
- AR400 Bucket Plates: Features tough AR400 steel bucket plates for added strength and resistance to abrasion.
- Replaceable Bucket Teeth: Buckets come with replaceable teeth (pin on) for easy maintenance and extended use.
- Powerful Cylinder: The powerful cylinder pushes the bucket into all ground conditions, ensuring efficient digging.
- Optional Street Pads: Street pads are available for added stability and protection on paved surfaces.
- Optional Pistol Grip Control Harness: Required if the skid steer is not equipped with an attachment control system.
Detailed Specifications
| Specification | Detail |
|---|---|
| Model | DB240-S |
| Part Number | 901071 |
| Bucket Cylinder | 2.5” x 16” |
| Swing Cylinder | 2.5” x 6” |
| Bucket Breakout Force | 5,346 lb. @ 3,000 psi |
| Digging Depth | 6’ |
| Weight (without bucket) | 500 lb. |
| Swing Range | 100° |
| Bucket Options | 9”, 12”, 15”, 18”, 24”, 24” ditching bucket |
| Optional Mechanical Thumb | Yes |
| Hydraulic Side Swing | Yes |
| Greasable Pins | Yes |
| Hardened Bushing Inserts | Yes |
| AR400 Bucket Plates | Yes |
| Replaceable Bucket Teeth | Yes (pin on) |
| Powerful Cylinder | Yes |
| Optional Pistol Grip Control Harness | Required if skid steer not equipped with attachment control system |
