Product Description
Erskine Mat Grapple Forks | Frame Width 58" | Factory Installed Couplers | For Skid Steer
DESCRIPTION

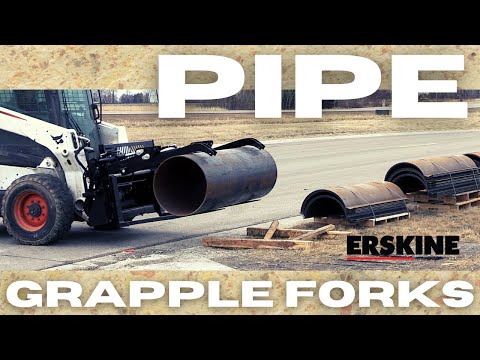

The Pipe Grapple Forks attachment is a versatile solution for construction sites, designed to safely and efficiently handle pipes and general materials. With its unique clamp arms, this attachment securely holds pipes during transport, reducing the risk of damage and enhancing safety. When the clamp arms are lifted and locked vertically, the attachment functions as a standard pallet fork, allowing for dual functionality on the job site.
Built to handle tough tasks, the Pipe Grapple Forks attachment can accommodate pipes up to 24" in diameter and provides a load capacity of up to 5,500 lbs at a 24" load center. Equipped with bolt-on steps, this attachment also offers convenient access in and out of the skid steer. This durable and adaptable tool is ideal for improving productivity and safety in various material-handling applications.
Key Features
- Pipe Capacity: Handles pipes up to 24” in diameter
- Dual Functionality: Opens vertically to operate as a regular pallet fork
- Easy Access: Bolt-on steps assist in skid steer entry and exit
- High Load Capacity: Rated for 5,500 lbs at a 24” load center
- Secure Clamping: Clamp arms secure pipes for safe transport
- Versatile Use: Ideal for both pipe handling and general material transport
- Heavy-Duty Cylinders: Operates with 3,000 psi hydraulic cylinders
- Compact Design: Fits standard skid steer for easy maneuverability
- Durable Frame: Robust frame construction for long-lasting performance
- Enhanced Safety: Reduces risk of damage or accidents during transport
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | Pipe Grapple Forks |
| Part Number | 900707 |
| Operating Weight | 770 lb |
| Frame Width | 58” |
| Frame Width (with steps) | 66.5” |
| Overall Height (open) | 78.75” |
| Overall Height (closed) | 35.5” |
| Overall Length | 59.25” |
| Fork Length | 48” |
| Capacity @ 24” Load Center | 5,500 lb |
| Cylinders | 3,000 psi |
In Package
- Pipe Grapple Forks Attachment
- Bolt-on Steps for Easy Skid Steer Access
- 3,000 psi Hydraulic Cylinder System
- Product Manual and Installation Guide
Available Options
- Factory-Installed Couplers
- Extended Warranty Options
- Replacement Steps
- Hydraulic Hose Kit
