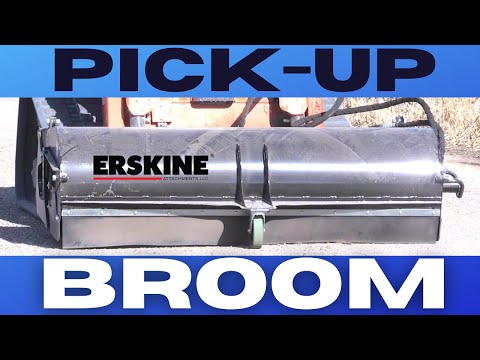

Erskine Pick Up Broom | 60", 72” & 84” Width | Factory Installed Couplers | For Skid Steer
DESCRIPTION
The Pick-Up Broom attachment is a powerful and versatile cleaning solution designed for construction, industrial, and municipal applications. Its bidirectional operation allows it to sweep dirt and debris forward and backward, making it ideal for tough cleaning tasks. With adjustable arbor mounts, you can control bristle pressure on the surface, extending bristle life and improving cleaning efficiency. The unit is designed for easy attachment, has a user-friendly operation, and features a fully covered design to control dust, making it an excellent choice for warehouses, machine sheds, parking lots, and more.
Equipped with a reversible cutting edge and poly or poly/steel bristles, this broom ensures effective debris collection. The container can be easily dumped when full, streamlining the cleanup process. Optional accessories like a curb sweeper and water kit add extra functionality to meet specific cleaning needs.
Key Features
- Bidirectional Operation: Sweeps and scrapes in forward and reverse for versatile cleaning
- Adjustable Arbor Mounts: Controls bristle pressure for longer bristle life
- Replaceable Cutting Edge: Cuts through caked-on mud effectively
- Dust Containment: Fully covered to control dust, ideal for enclosed areas
- Reversible Bristle Direction: Increases operational versatility
- Easy Attachment: Quick and simple mounting for skid steers
- Multiple Bristle Types: Poly or poly/steel options for various applications
- Container for Easy Disposal: Convenient dumping of collected debris
- Heavy-Duty Design: Built to withstand demanding cleaning tasks
- Optional Accessories: Curb sweeper and water kit for enhanced performance
Detailed Specifications
Feature | 60” w/ poly | 60” w/ poly/steel | 72” w/ poly | 72” w/ poly/steel | 84” w/ poly | 84” w/ poly/steel |
---|---|---|---|---|---|---|
Part Number | 901207 | 901208 | 901062 | 901063 | 901065 | 901066 |
Weight | 740 lb | 740 lb | 850 lb | 850 lb | 940 lb | 940 lb |
Width | 60” | 60” | 72” | 72” | 84” | 84” |
Overall Height | 25.25” | 25.25” | 25.25” | 25.25” | 25.25” | 25.25” |
Diameter of Wafer | 24” | 24” | 24” | 24” | 24” | 24” |
Wafer Package Qty | 30 | 30 | 38 | 38 | 44 | 44 |
Cutting Edge | .625” x 6” | .625” x 6” | .625” x 6” | .625” x 6” | .625” x 6” | .625” x 6” |
Drive System | Direct-Drive | Direct-Drive | Direct-Drive | Direct-Drive | Direct-Drive | Direct-Drive |
Hydraulic Motor Flow Range | 13-25 GPM | 13-25 GPM | 13-25 GPM | 13-25 GPM | 13-25 GPM | 13-25 GPM |
Optional Accessories
- Curb Sweeper: Direct-drive with a 26” diameter, shipping weight of 200 lb
- Water Kit: 40-gallon tank, 12V power source, .27 GPM tip flow, 40-minute spray time, total operating weight of 360 lbs (full tank)
