Product Description
Erskine Tilt Attachment | Width 57.2" | With Hydraulic Control Valve Kit | For Skid Steer
DESCRIPTION

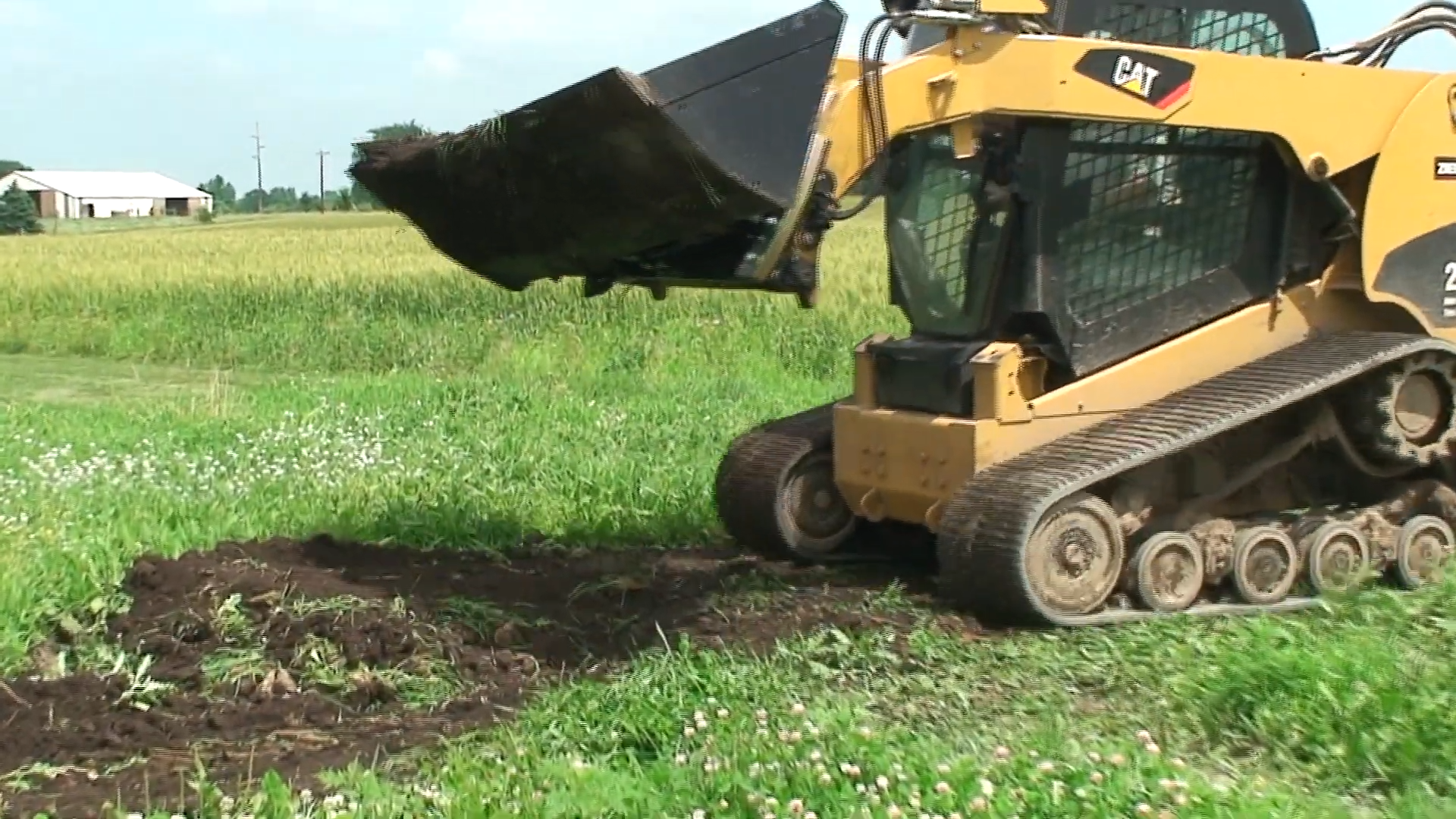

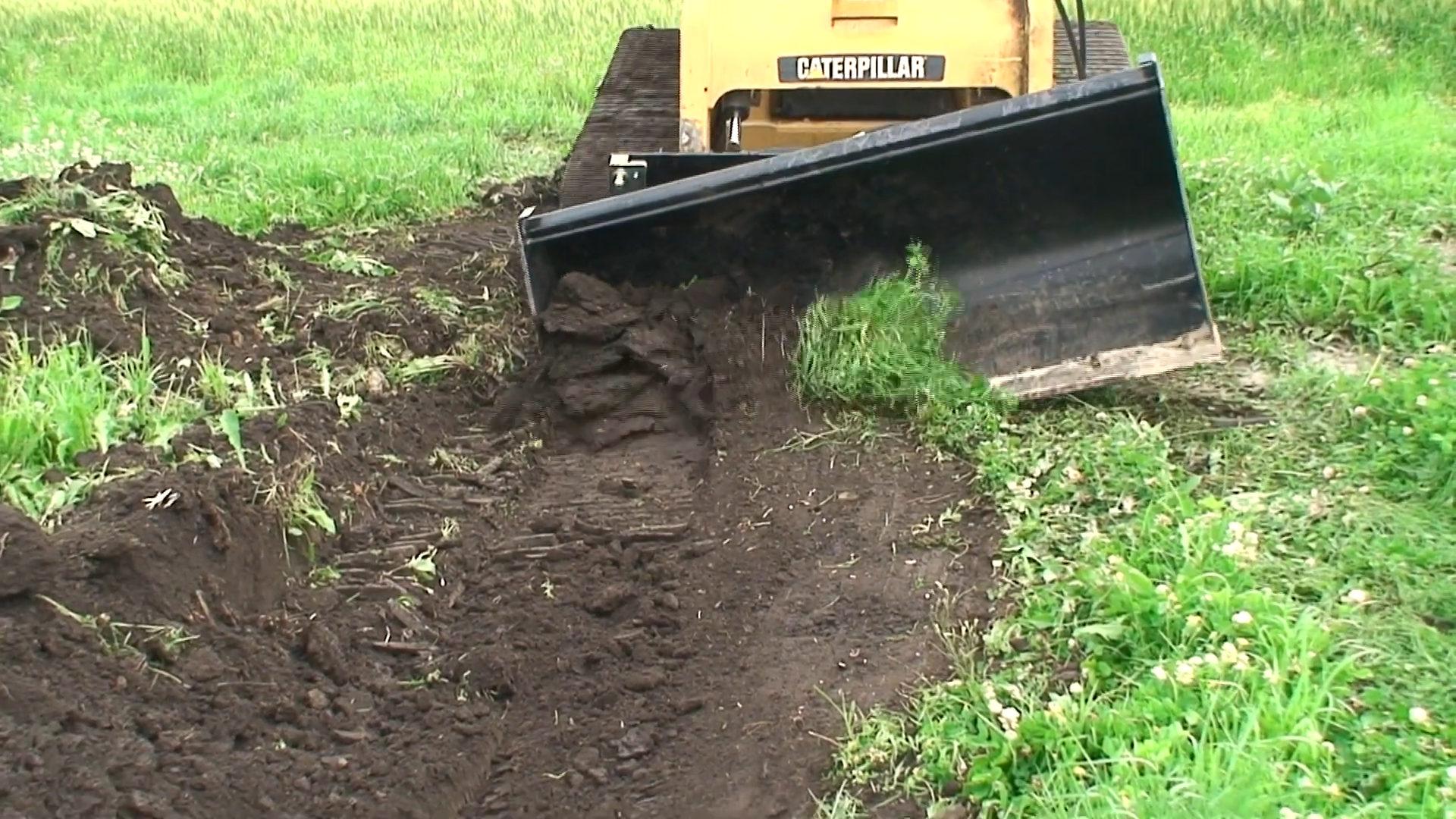

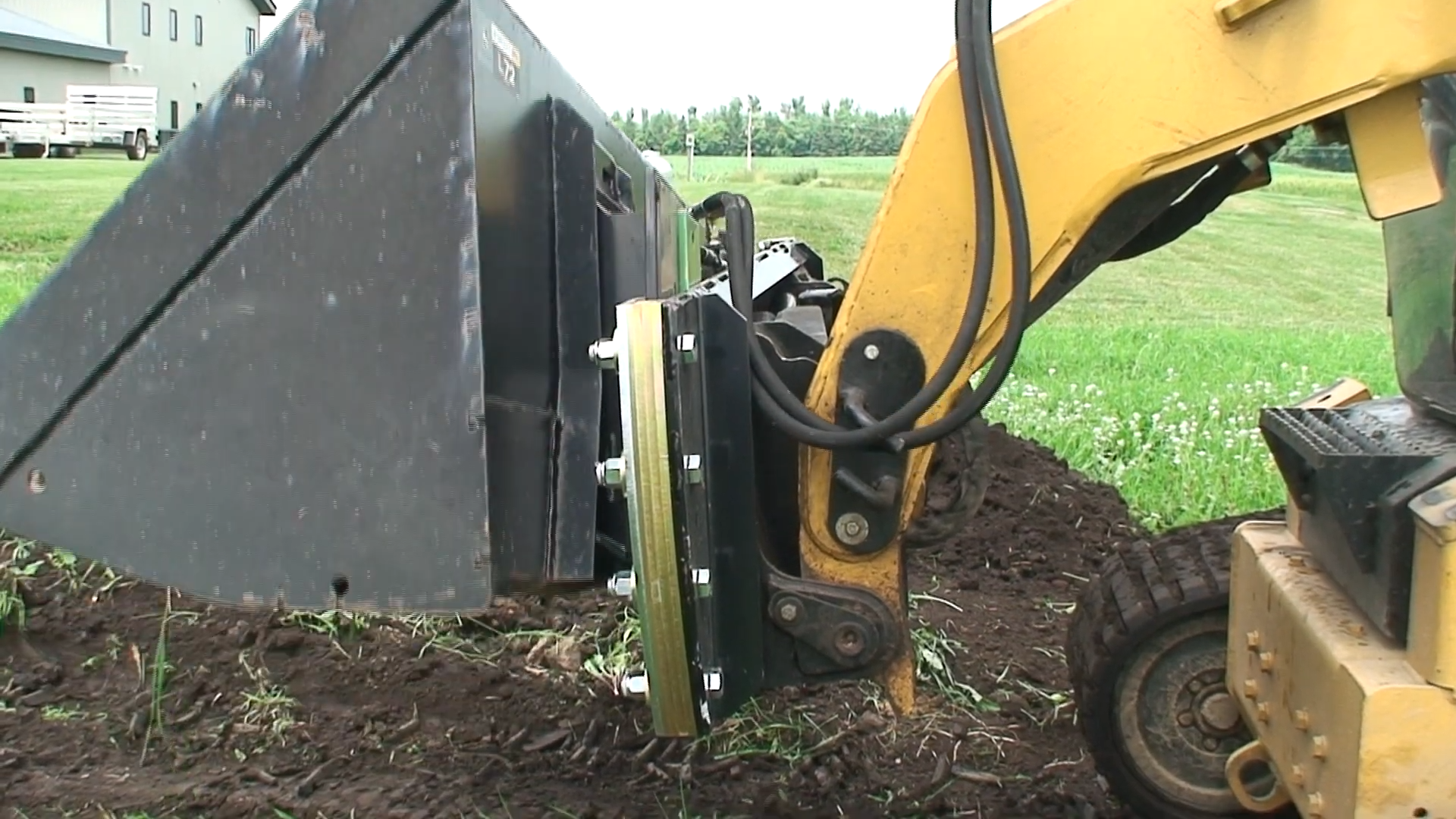

The Tilt Attachment enhances the functionality and accuracy of skid steer loaders, making it an invaluable tool for grading, leveling, and contouring tasks. This attachment is ideal for construction and landscaping projects that demand precise control and stability. With easy operator control from the loader seat and lateral stability, the Tilt Attachment allows you to maintain a level position, even on sloped terrain, while performing tasks such as cutting grades, creating swales, and other intricate grading operations.
Built for reliability and precision, this attachment offers a 17° tilt capability to either side, using a dual-cylinder system that ensures smooth and powerful tilting in both directions. The replaceable nylon material at key wear points minimizes maintenance, making this attachment both efficient and low-maintenance. From machine control applications to complex grading, the Tilt Attachment is designed to boost productivity and precision.
Key Features
- Large Center Bushing: 5" bushing enhances durability and strength.
- 17° Rotation: Rotates up to 17° left or right from the horizontal centerline.
- Dual Cylinder Design: Ensures smooth operation and powerful tilting force.
- Machine Control Compatible: Suitable for use with laser or sonic-guided equipment.
- Minimal Maintenance: Replaceable nylon at wear points, eliminating the need for grease.
Detailed Specifications
| Model | Tilt Attachment |
|---|---|
| Part Number | 900639 |
| Weight | 470 lb |
| Width | 57.2” |
| Height | 20.9” |
| Depth | 11.13” |
| Oscillation | +/- 17° |
| Cylinders | 2 |
| Cylinder Bore | 2.5” |
| Cylinder Rod | 1.25” |
| Cylinder Stroke | 6” |
In Package
- Tilt Attachment Unit
- Dual Hydraulic Cylinders
- Installation Manual
Available Options
- Wear-Resistant Nylon Pads: Replaceable pads to reduce maintenance needs
- Laser or Sonic Guidance Compatibility: Ideal for precision control systems
Manuals & Documents
Product Brochure
Manual
